Product Introduction

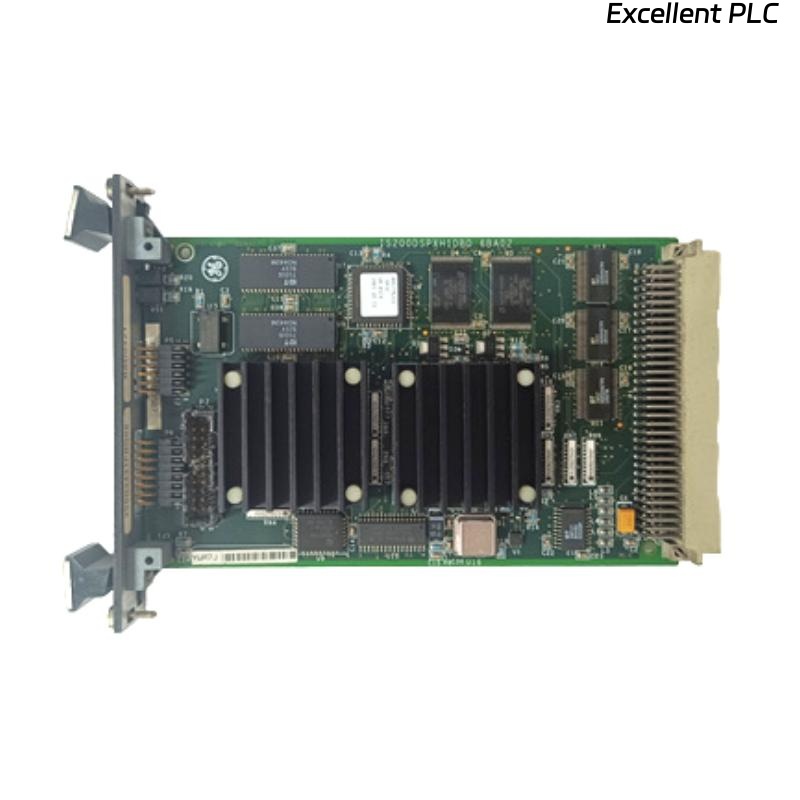

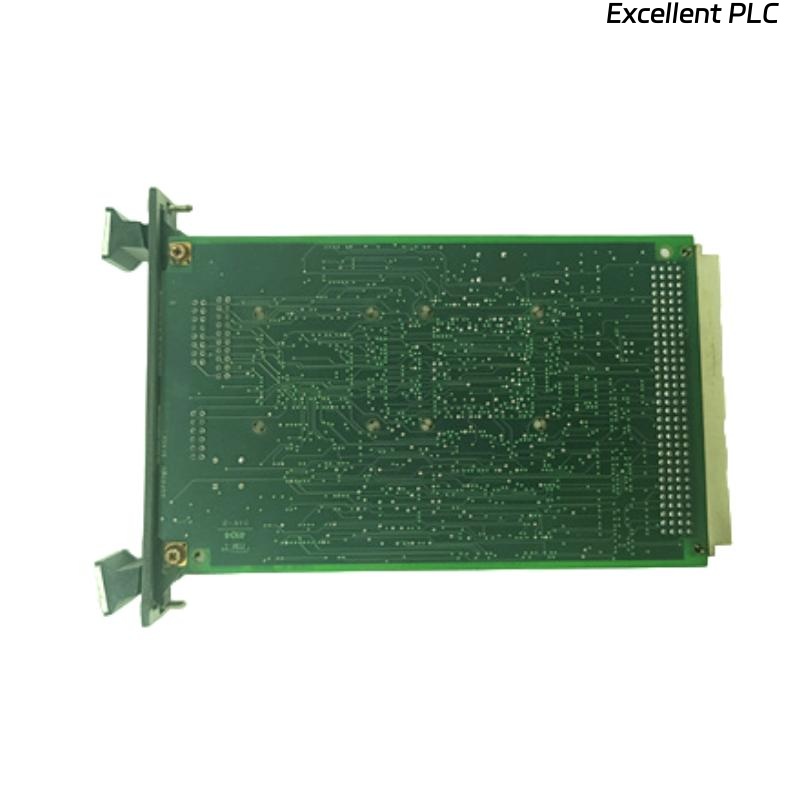

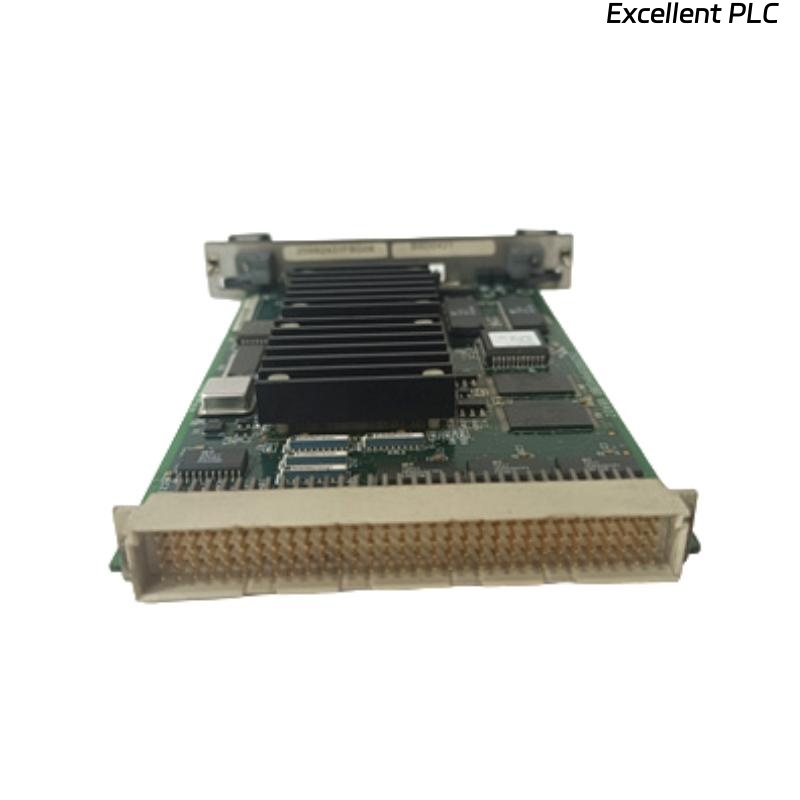

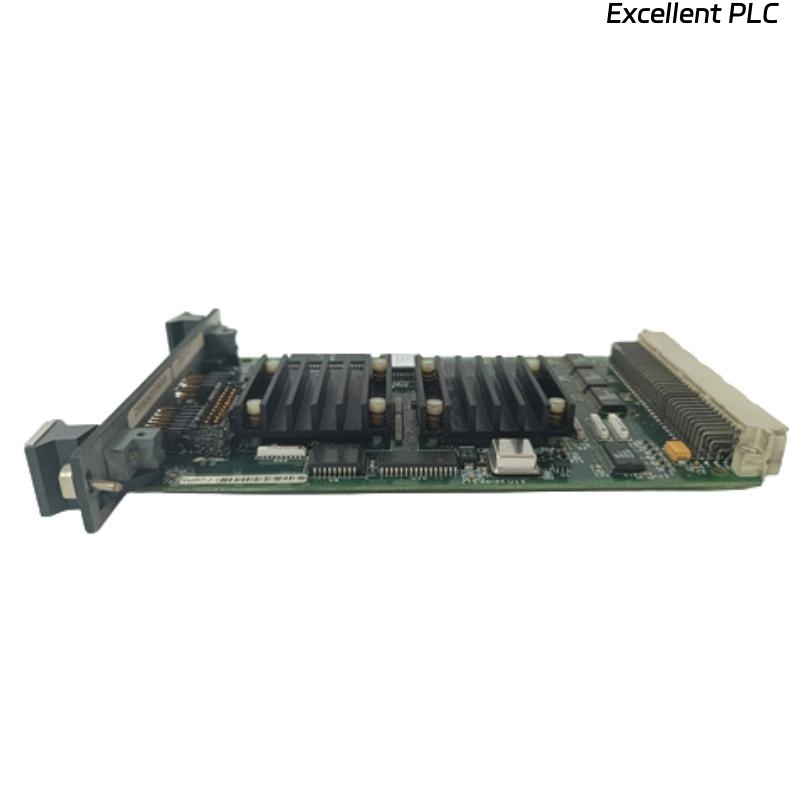

The GE IS200DSPXH1DBD Digital Signal Processor (DSP) Control Board is a high-performance processing module designed for the Mark VIe control system used in turbine and industrial automation applications. This control board provides advanced computational capability for signal processing, control algorithms, and real-time monitoring of turbine and auxiliary systems.
By utilizing powerful DSP technology, the IS200DSPXH1DBD handles complex control logic and data acquisition tasks, ensuring that turbines and industrial processes operate with precision, stability, and reliability. The module forms a vital link between input/output devices, communication buses, and the central control processor.
It is typically used in environments requiring high-speed calculations, real-time signal conditioning, and deterministic control execution, making it an indispensable part of GE’s control system platform.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | GE IS200DSPXH1DBD |
| Series | Mark VIe Control System |
| Function | Digital Signal Processor Control Board |
| Processor Type | High-speed DSP core for real-time control tasks |
| Memory | On-board RAM and flash memory for control algorithms |
| Communication | Ethernet and backplane interface |
| Input Support | Digital and analog data inputs via I/O modules |
| Output Support | Control signals to actuators, relays, and system backplane |
| Diagnostics | Built-in self-test and fault detection |
| Power Supply | +5 VDC and +12 VDC supplied via backplane |
| Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 10–90% RH, non-condensing |
| Cooling | Passive convection with rack ventilation |
| Mounting | Plug-in rack-mounted module |
| Dimensions | 330 x 178 mm |
| Weight | 0.58 kg |
Product Applications
The IS200DSPXH1DBD is deployed across a wide range of power generation and automation applications, including:
-
Gas Turbine Control – Real-time monitoring and control of turbine performance, fuel flow, and combustion stability.
-
Steam Turbine Control – Signal processing for valve positioning, generator synchronization, and turbine sequencing.
-
Balance-of-Plant (BoP) Control – Supports pumps, fans, compressors, and auxiliary equipment with precise control logic.
-
Vibration and Condition Monitoring – Processes high-speed data from vibration and temperature sensors.
-
Generator Control Systems – Interfaces with excitation systems, breakers, and protective relays.
-
Redundant Architectures – Deployed in simplex, dual, or triple modular redundant systems for maximum availability.
-
Industrial Automation – Beyond turbines, it can be used for high-speed industrial process control requiring deterministic logic.
Product Advantages
-
High Processing Power – Equipped with DSP technology for real-time high-speed computations.
-
Reliable Control Execution – Designed for mission-critical turbine and power applications.
-
Flexible Integration – Interfaces with a variety of I/O modules and network communication standards.
-
Robust Diagnostics – Built-in self-test and watchdog monitoring enhance system dependability.
-
Scalable Architecture – Compatible with simplex and redundant configurations for different plant requirements.
-
Industrial Durability – Functions reliably in harsh plant environments with wide operating temperature ranges.
-
Seamless Communication – High-speed Ethernet and backplane data transfer for deterministic system operation.
-
Maintenance Efficiency – Modular design enables rapid replacement with minimal downtime.
FAQ
-
What is the primary function of the IS200DSPXH1DBD?
It executes real-time digital signal processing for turbine and plant control within the Mark VIe system. -
Does the board handle both analog and digital inputs?
Yes, it processes data from analog and digital input modules connected via the backplane. -
What type of communication interface does it use?
It supports Ethernet communication and direct backplane bus interfacing. -
How does it support redundant control architectures?
It can operate in simplex, dual, or triple modular redundant configurations. -
Is there built-in fault detection on the board?
Yes, the DSP module includes self-test diagnostics and error monitoring features. -
Can the IS200DSPXH1DBD interact with protection relays?
Yes, it can process relay signals through associated I/O modules. -
What role does memory play on this board?
On-board memory stores control algorithms, system logic, and real-time processing data. -
Is the module hot-swappable?
No, it requires a controlled shutdown before replacement to prevent system faults. -
How does it enhance turbine efficiency?
By providing precise signal processing, it optimizes combustion, load distribution, and system stability. -
Can it be used outside turbine applications?
Yes, it is suitable for other industrial automation systems requiring deterministic control.
