Product Description

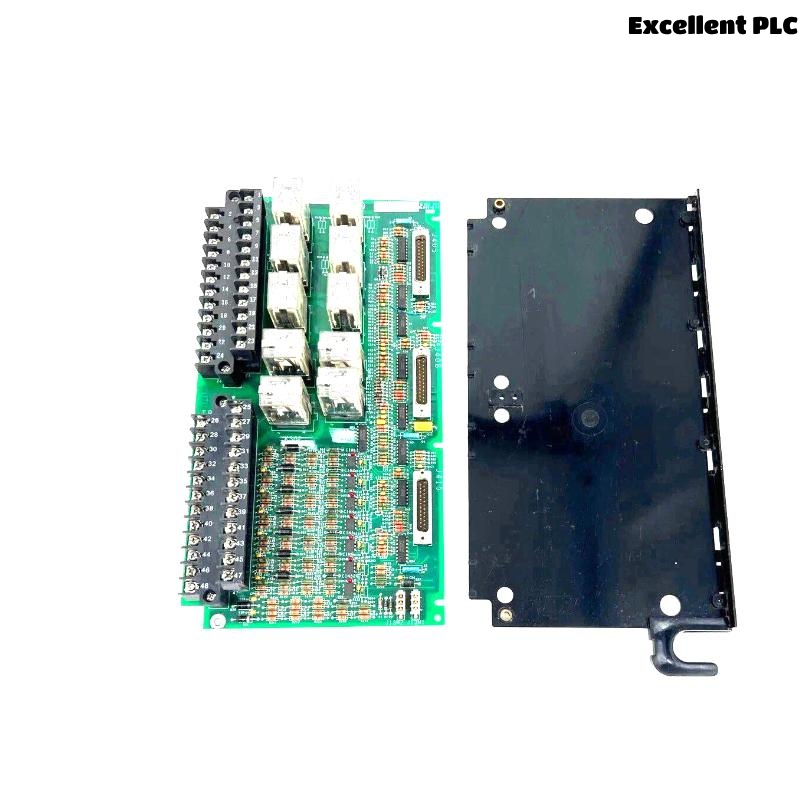

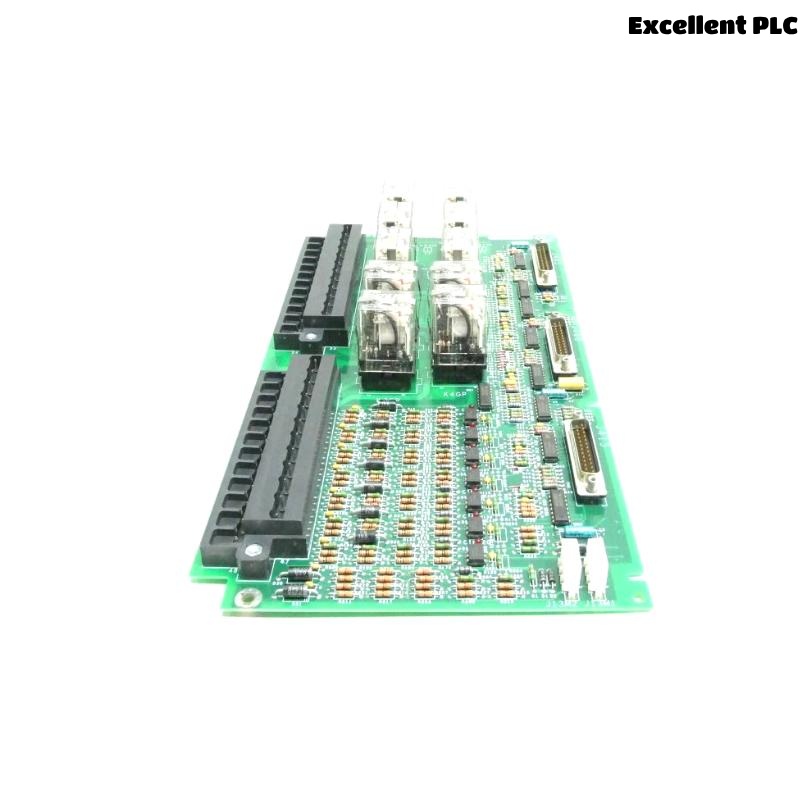

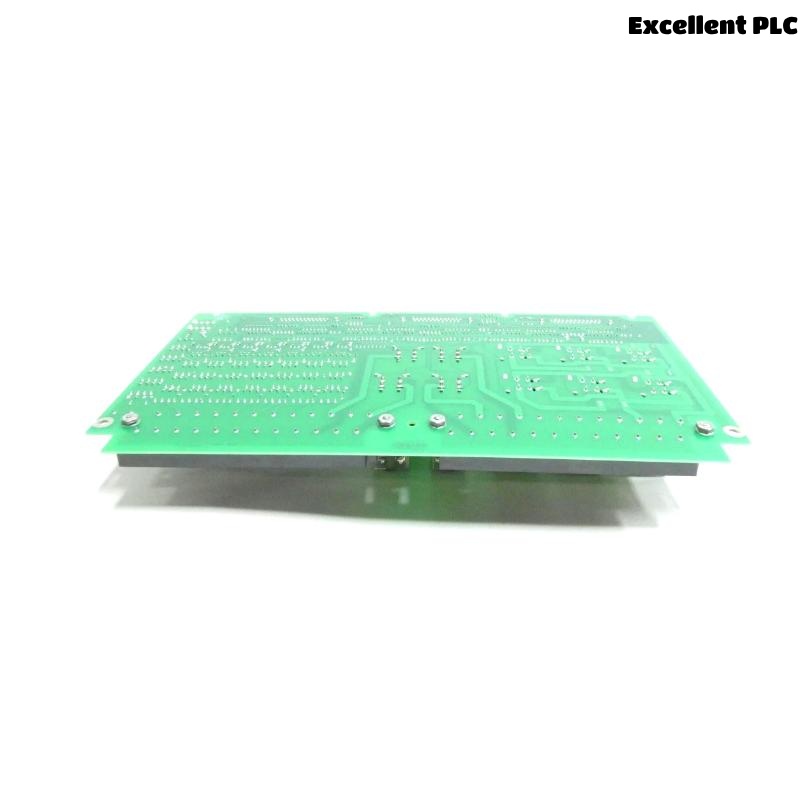

The GE IS200ECTBG1A is an Exciter Contact Terminal Board for the EX2100 excitation system, part of the Mark VI family. It serves as a reliable interface for contact I/O signals, utilizing barrier-type pluggable terminals for ease of wiring and maintenance.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS200ECTBG1A |
| Series | EX21000 |
| Function | Exciter Contact Terminal Board |
| Terminal Type | Barrier, pluggable |
| Dimensions (L×W×H) | 150 × 76 × 90 mm |
| Weight | 0.34 kg |
| Mounting | Panel or rack |
| Compatibility | GE EX2100 Excitation System |
| Operating Temperature | 0–45°C |
| Storage Temperature | -40–70°C |
| Humidity | 5–95% non-condensing |
Applications
-
Provides contact I/O signal interfacing in GE EX2100 exciter systems
-
Used in steam and gas turbine excitation systems
-
Applied in power generation and industrial turbine control systems
Advantages
-
Compact and robust construction suitable for industrial environments
-
Simple maintenance with plug-in terminal blocks
-
Fully compatible with EX2100 and Mark VI systems
-
Supports reliable signal handling and protection
-
Reduces installation and service time
Frequently Asked Questions
Q1: What does the IS200ECTBG1A do?
A1: It interfaces field contact signals to the GE EX2100 exciter control system.
Q2: Is it compatible with Mark VI control panels?
A2: Yes, it is designed for Mark VI and EX2100 integration.
Q3: How is it installed?
A3: It can be mounted on panels or racks as per system design.
Q4: What terminal type does it have?
A4: It features pluggable, barrier-type terminals.
Q5: What are its dimensions and weight?
A5: It measures 150×76×90 mm and weighs 0.34 kg.
Q6: Can it operate in high-humidity environments?
A6: Yes, up to 95% non-condensing humidity.
Q7: Does it support hot-swap replacement?
A7: Some configurations allow replacement without full shutdown.
Q8: Is it optically isolated?
A8: Yes, the contact inputs are optically isolated.
Q9: Does it require special wiring tools?
A9: No, standard screwdrivers are sufficient.
Q10: How many contacts can it handle?
A10: It handles the standard EX2100 contact I/O load based on system design.
