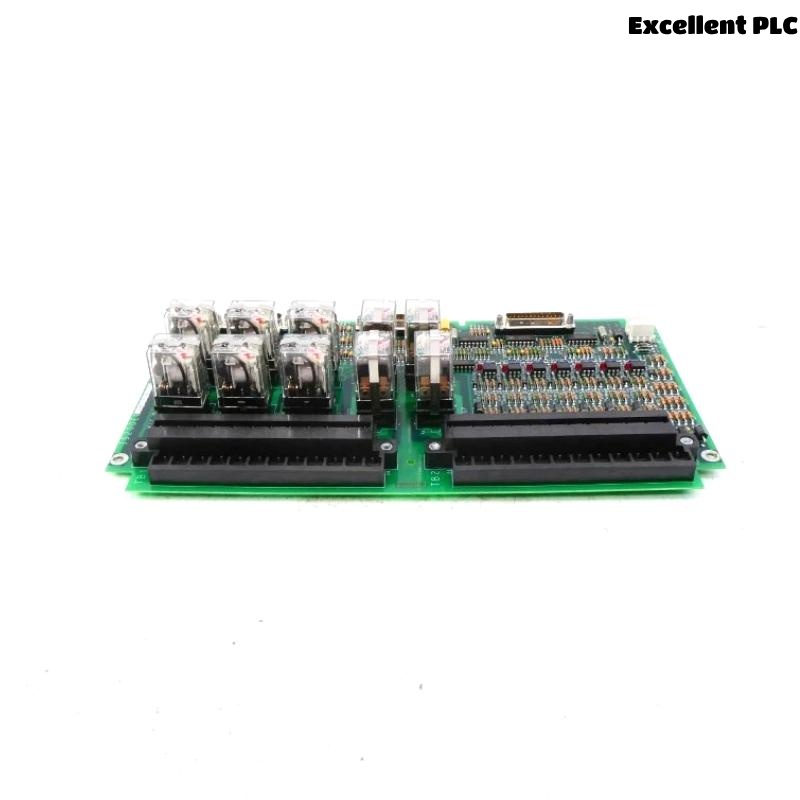

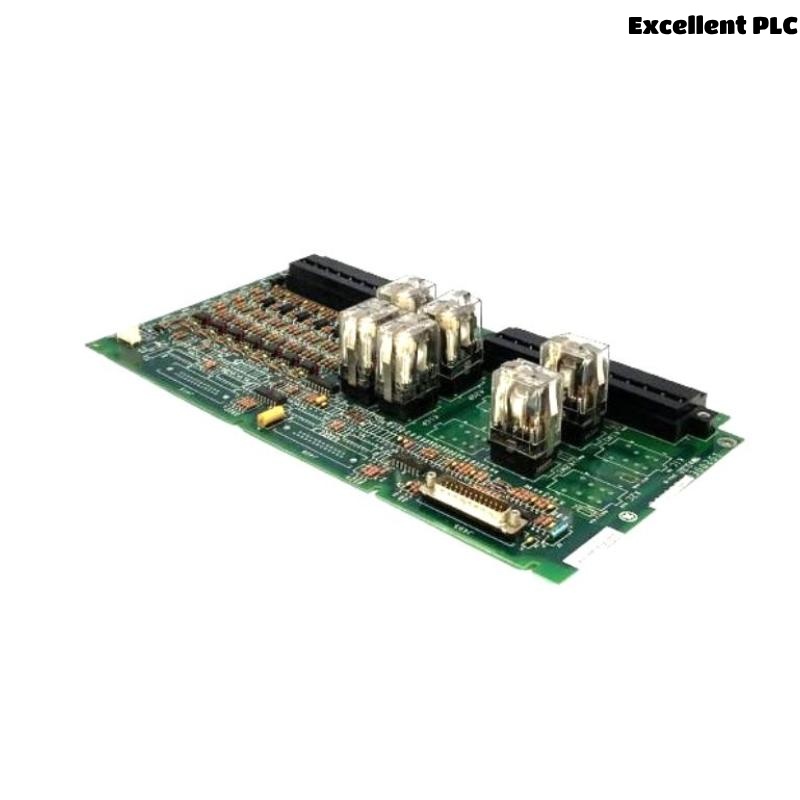

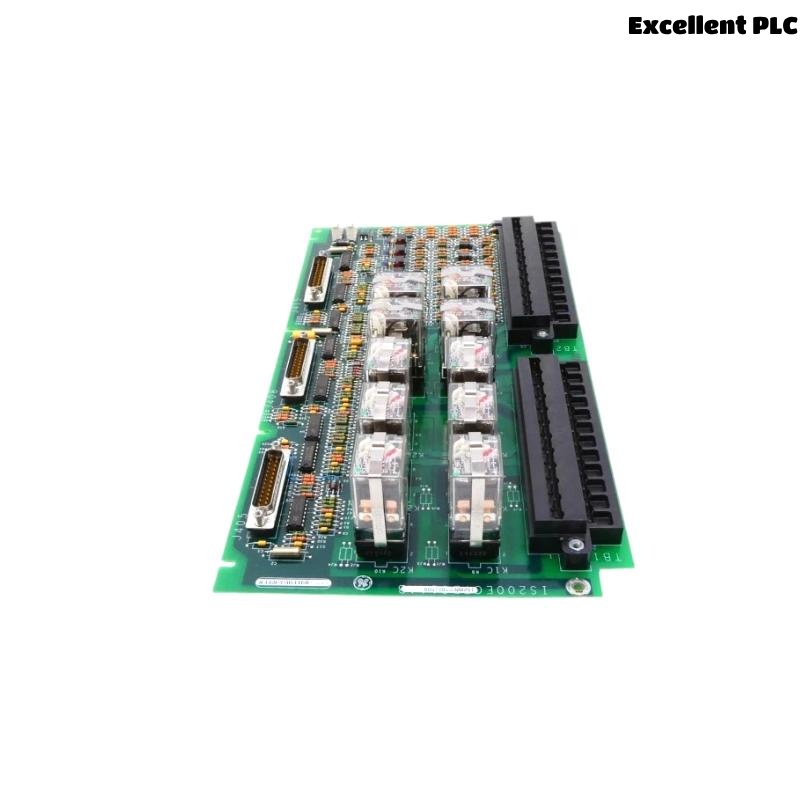

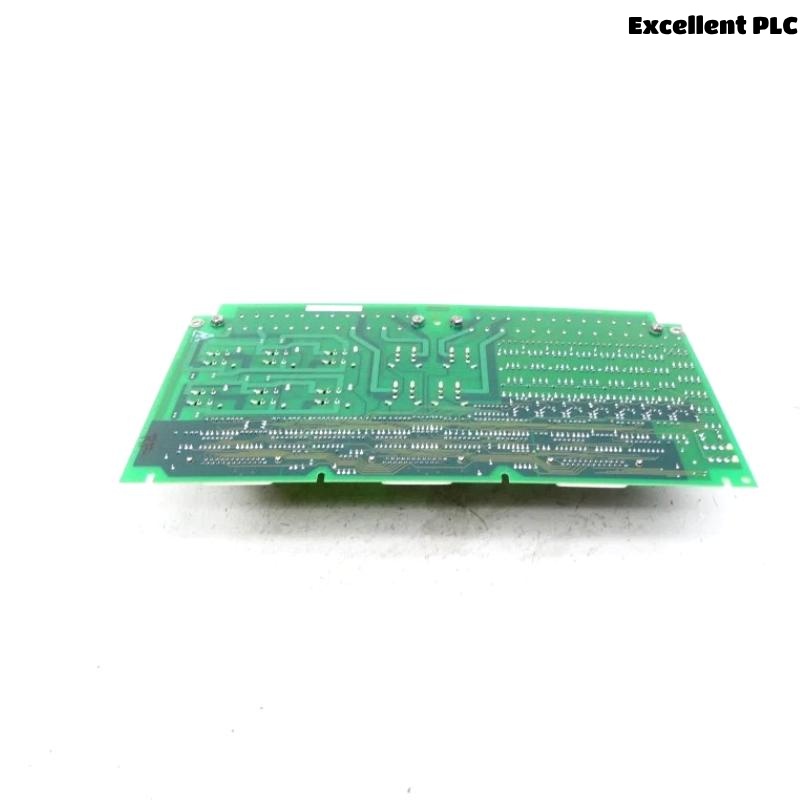

GE IS200ECTBG2A EX21000 Series Exciter Contact Terminal Board
The GE IS200ECTBG2A is a terminal board designed for the EX21000 exciter system. It provides reliable connection points for contact signals within the exciter, ensuring stable operation and simplified wiring in industrial excitation systems.
Product Features
-
Designed for GE EX21000 exciter systems
-
Compact and robust for industrial environments
-
Simplifies signal wiring and maintenance
-
High durability and long service life
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS200ECTBG2A |
| Series | EX21000 |
| Function | Exciter Contact Terminal Board |
| Dimensions | 150 x 76 x 90 mm |
| Weight | 0.34 kg |
| Mounting | Panel mounting |
| Operating Temperature | -40°C to +70°C |
| Material | Industrial-grade PCB |
Applications
-
GE EX21000 exciter systems
-
Power plant generator excitation control
-
Industrial motor excitation systems
-
Reliable contact signal termination in harsh environments
Advantages
-
Optimized for GE excitation systems
-
Compact size saves panel space
-
Easy installation and maintenance
-
Ensures stable signal connectivity
-
Built with high-quality industrial materials
FAQ
Q1: What is the primary function of the IS200ECTBG2A?
A1: It provides termination points for contact signals within GE EX21000 exciter systems.
Q2: Is this board compatible with other GE exciter series?
A2: It is specifically designed for EX21000 but may fit similar systems with compatible requirements.
Q3: What are the dimensions of the board?
A3: The board measures 150 x 76 x 90 mm.
Q4: How much does the IS200ECTBG2A weigh?
A4: It weighs approximately 0.34 kg.
Q5: Can it be mounted in any orientation?
A5: It is designed for panel mounting in standard orientation.
Q6: What is the operating temperature range?
A6: It operates reliably from -40°C to +70°C.
Q7: Does it require periodic maintenance?
A7: Maintenance is minimal; periodic inspection for cleanliness and connection integrity is recommended.
Q8: Is the board resistant to industrial environments?
A8: Yes, it is built with industrial-grade materials for durability.
Q9: Can it be replaced without system recalibration?
A9: Generally, it can be replaced directly, but system testing afterward is recommended.
Q10: Where is this board typically installed?
A10: Inside the control cabinet of the GE EX21000 exciter system.
