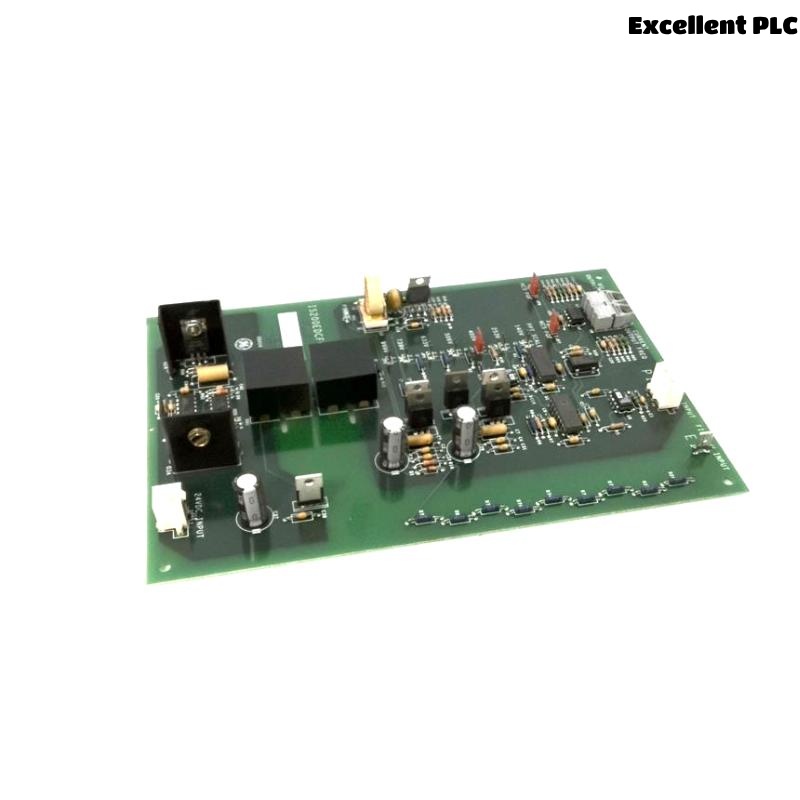

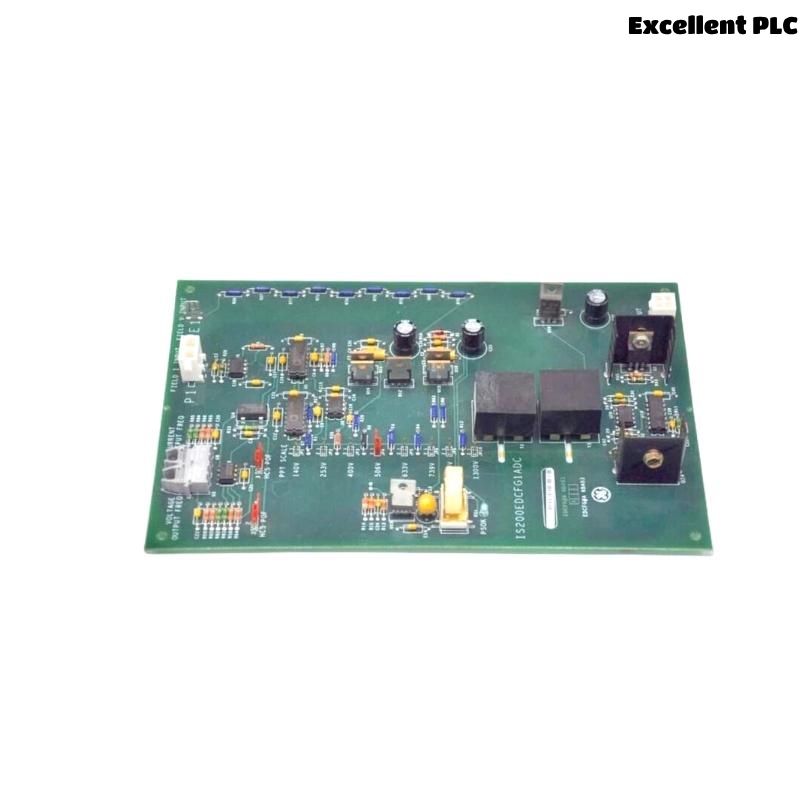

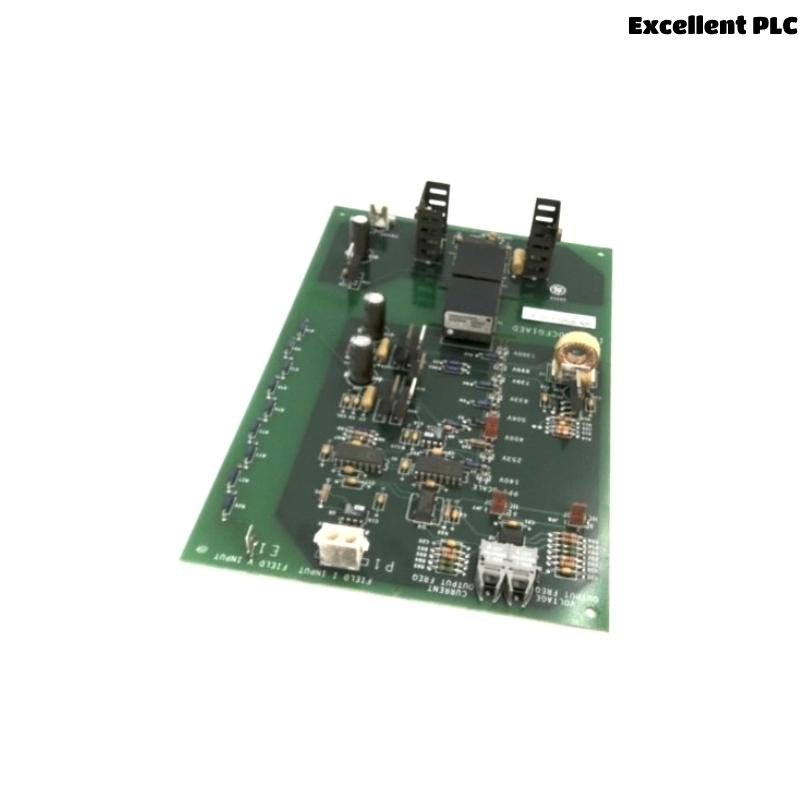

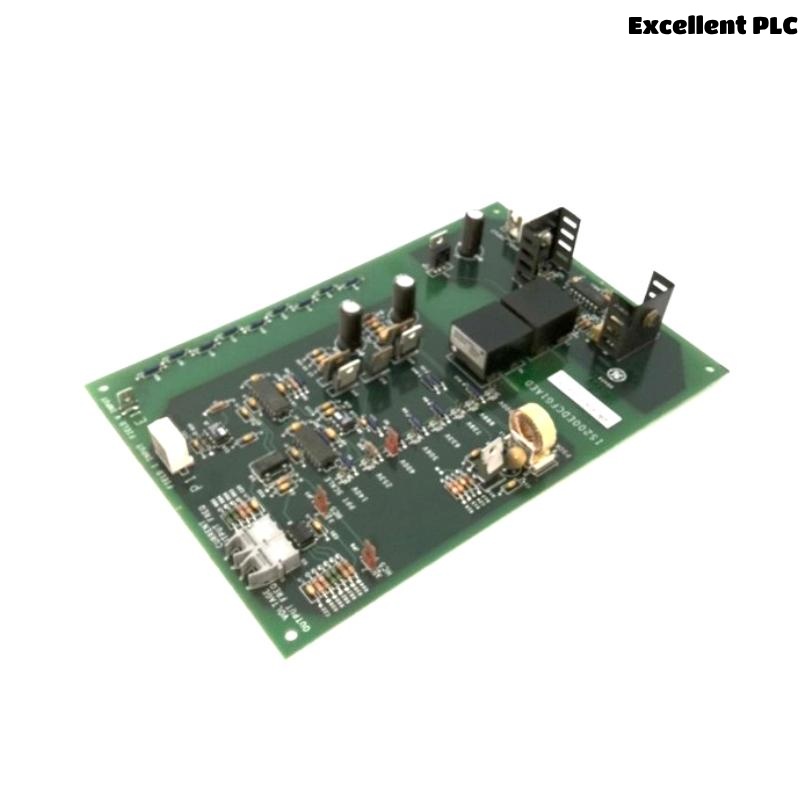

GE IS200EDCFG1A EX21000 Series Exciter DC Feedback Board
The GE IS200EDCFG1A is a high-reliability DC feedback board designed for the EX21000 series excitation control system. It monitors and feeds back DC parameters, ensuring precise control and stable operation of generators in power plants and industrial applications. Its compact and robust design makes it suitable for demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS200EDCFG1A |
| Series | EX21000 |
| Function | Exciter DC Feedback Board |
| Dimensions (H × W × D) | 38 × 330 × 250 mm |
| Weight | 0.7 kg |
| Mounting | Rack-mounted |
| Operating Voltage | As per EX21000 system spec |
| Feedback Signals | DC voltage and current |
| Environment | Industrial, controlled |
| Temperature Range | 0°C to +60°C |
Applications
The IS200EDCFG1A is used primarily in:
-
Generator excitation control systems
-
Power plants
-
Large-scale industrial generators
-
Systems requiring accurate DC feedback for stability
Advantages
-
High measurement accuracy for DC parameters
-
Compact and lightweight for easy integration
-
Reliable performance in harsh industrial conditions
-
Essential for maintaining generator voltage stability
-
Proven GE quality and durability
FAQ
Q1: What is the main function of the IS200EDCFG1A?
A1: It provides DC voltage and current feedback to the EX21000 exciter system.
Q2: Is it compatible with all EX21000 systems?
A2: Yes, it is specifically designed for the EX21000 series.
Q3: Can it be replaced in the field?
A3: Yes, it is field-replaceable and designed for ease of maintenance.
Q4: What type of signals does it handle?
A4: It handles DC voltage and current feedback signals.
Q5: How much does the board weigh?
A5: Approximately 0.7 kg.
Q6: What are the physical dimensions of the board?
A6: 38 × 330 × 250 mm.
Q7: Is it suitable for outdoor use?
A7: It is intended for controlled indoor environments.
Q8: Does it require calibration?
A8: Calibration may be required per maintenance schedule.
Q9: What is the typical operating temperature range?
A9: 0°C to +60°C.
Q10: Is it part of a redundant system design?
A10: It can be used in systems with redundancy depending on configuration.
Recommended Related Models (Same or Related Series)
| Model | Function Description | Dimensions (mm) | Weight |
|---|---|---|---|
| IS200EDCFG1B | Updated DC feedback board | 38 × 330 × 250 | 0.7 kg |
| IS200EISBG1A | Exciter Interface Signal Board | 38 × 330 × 250 | 0.65 kg |
| IS200EACFG2A | AC Feedback Board | 38 × 330 × 250 | 0.7 kg |
| IS200EGPAG1A | Exciter Ground Protection Assembly | 38 × 330 × 250 | 0.8 kg |
| IS200EPDMG1A | Exciter Power Distribution Module | 38 × 330 × 250 | 0.75 kg |
| IS200EXHSG1A | Exciter High-Speed Gate Driver Board | 38 × 330 × 250 | 0.72 kg |
