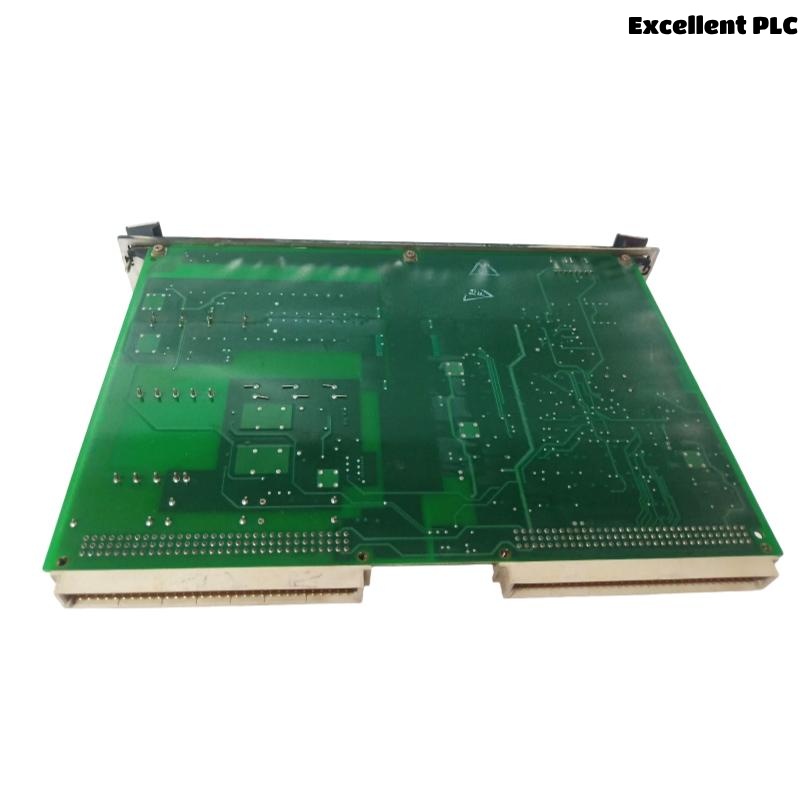

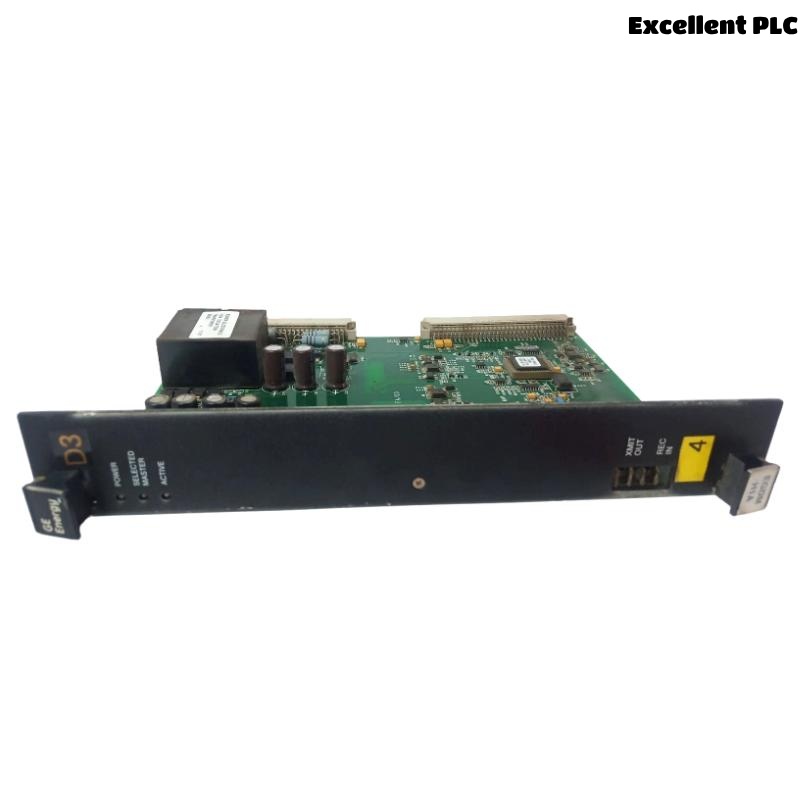

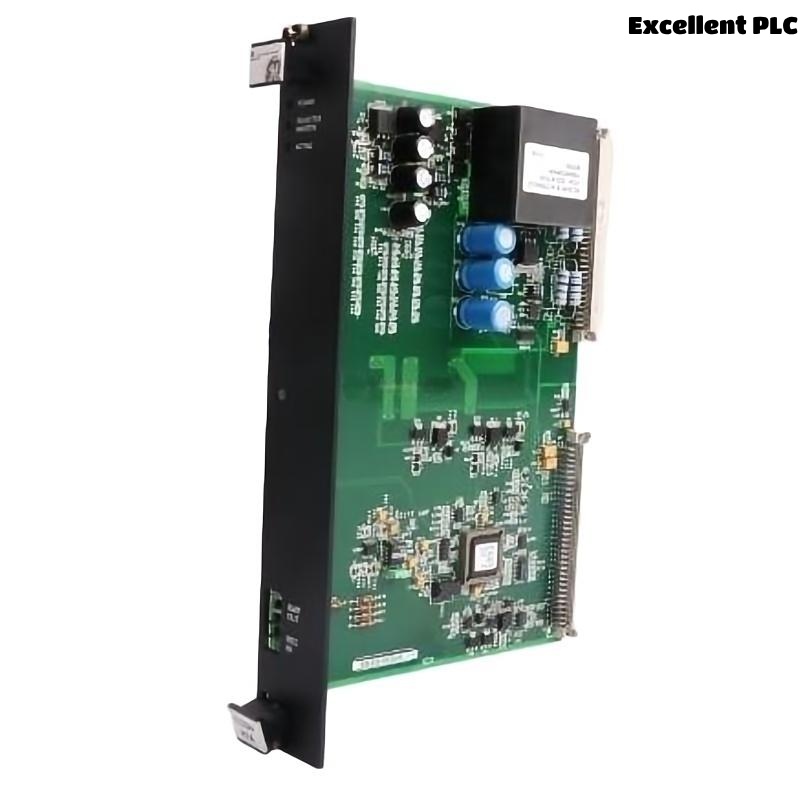

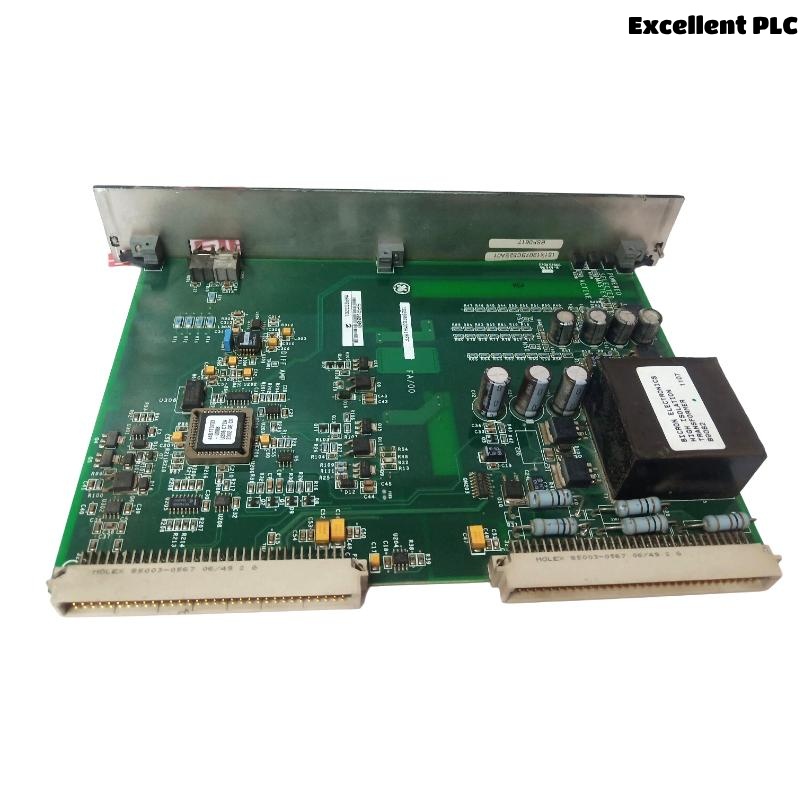

GE IS200EGDMH1A Exciter Ground Detector Module

Product Introduction

The GE IS200EGDMH1A is an Exciter Ground Detector Module developed by General Electric for use in GE’s Mark VI and EX2100 excitation control systems. Its primary role is to monitor and detect ground faults in the generator field or exciter circuit. Ground faults are a serious safety hazard that can lead to equipment damage, unplanned outages, or catastrophic failure if not detected early.

The IS200EGDMH1A module continuously monitors the generator field winding for insulation degradation or unintended grounding. It provides a real-time analog signal that represents the resistive path to ground, enabling the control system to take protective action if the resistance drops below a safe threshold.

This board is especially critical in high-voltage generator excitation systems, where even a minor insulation failure can have significant consequences. Designed with rugged industrial specifications, the EGDM board offers high sensitivity, fast response time, and reliable performance in demanding environments.

Technical Specifications

Applications

The GE IS200EGDMH1A module is used in a variety of power generation and industrial settings, including:

• Synchronous generator protection systems

• Excitation systems in thermal, hydro, and nuclear plants

• Large utility substations with rotating equipment

• Field insulation monitoring in high-voltage applications

• Safety-critical generator control environments

• Remote diagnostics and field circuit health monitoring

• Retrofit of older systems with modern detection modules

Product Advantages

• Early Ground Fault Detection: Identifies insulation failures before they become critical, helping prevent severe equipment damage.

• High Sensitivity Monitoring: Capable of detecting low-level resistive paths to ground, which many traditional systems may overlook.

• Fast Response Time: Triggers alarms or protective shutdowns rapidly, helping to isolate faults in real time.

• Robust Industrial Design: Built to withstand vibration, electrical interference, and high operational loads in power generation environments.

• Integrated System Compatibility: Fully supported by GE’s Mark VI and EX2100 platforms, simplifying wiring and configuration.

• Signal Integrity Assurance: Galvanic isolation and filtering provide clean analog outputs with minimal noise.

• Modular Serviceability: Designed for quick installation and replacement with minimal system disruption.

• Low Maintenance Requirements: Once installed, requires only basic periodic checks as part of standard system maintenance.

Frequently Asked Questions (FAQ)

1. What is the primary function of the IS200EGDMH1A board?
   It continuously monitors the generator field circuit for ground faults by measuring resistance to ground and signaling when faults occur.

2. Which systems is this board compatible with?
   It is designed for use in GE’s Mark VI and EX2100 excitation control systems.

3. Why is ground fault detection important in excitation systems?
   A ground fault can cause damage to the generator or excitation equipment. Early detection helps prevent unsafe conditions and unplanned downtime.

4. How is the output from this module used by the control system?
   The board outputs an analog signal that represents the resistance to ground; the control system uses this to initiate alarms or protective actions.

5. Does the module include signal isolation?
   Yes, it features galvanic isolation to prevent interference and protect connected circuits.

6. What is the response time for detecting faults?
   The board typically detects and responds to a fault in less than 100 milliseconds.

7. Can this board be used for retrofitting older systems?
   Yes, it is often used to upgrade existing GE excitation systems to improve ground fault monitoring reliability.

8. How often does this board require maintenance?
   Minimal maintenance is needed—routine signal verification and connector inspections are typically sufficient.

9. What environmental protections does this board have?
   It is designed to operate in industrial environments, tolerating wide temperature ranges and high humidity.

10. How is installation typically carried out?
    Installation involves mounting the board in the designated panel or rack slot, connecting the terminal and ribbon cables, and configuring the system input channels accordingly.
