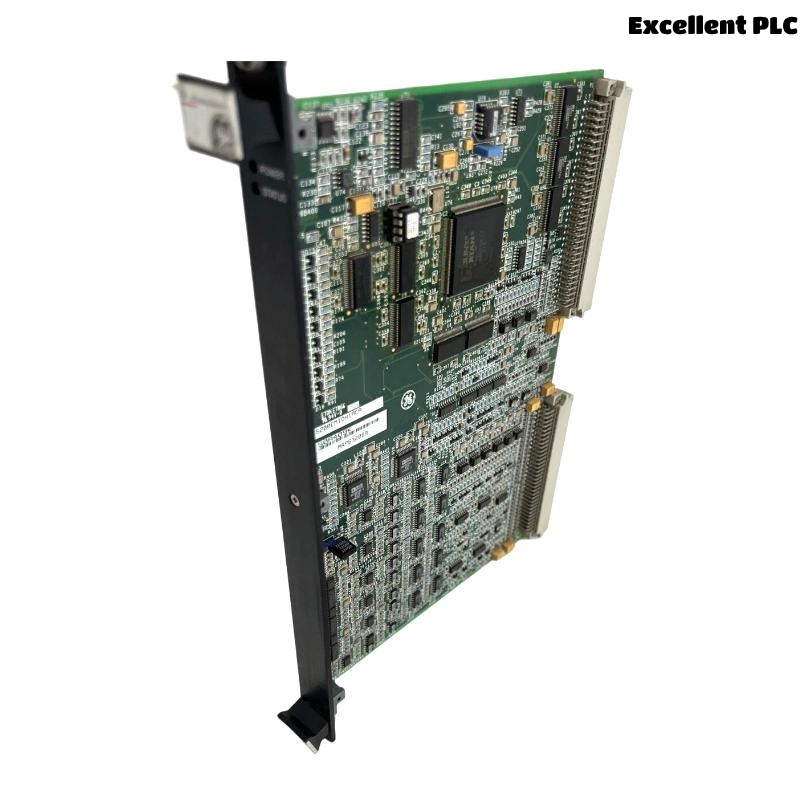

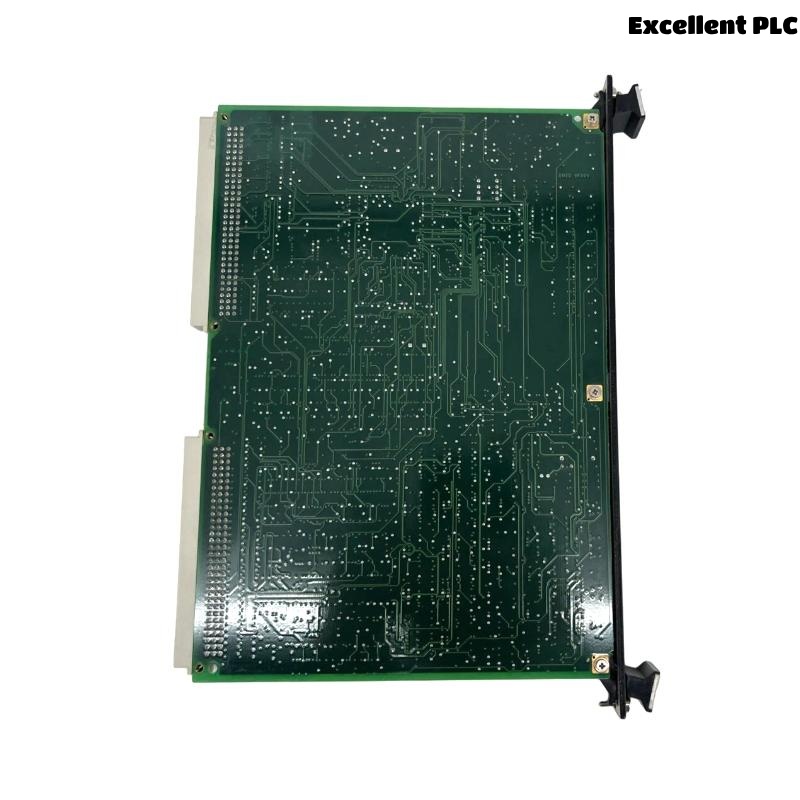

The GE IS200EMIOH1A Exciter Main I/O Board is a highly specialized component used within the GE Mark VIe and Mark VI control systems. Designed to handle input/output operations for power generation applications, this board plays a critical role in the excitation system, particularly in controlling the power supply and monitoring the operation of generators and turbines.
The IS200EMIOH1A board is primarily utilized in the excitation control of synchronous generators. Its primary function is to regulate the field excitation voltage supplied to the generator, which ensures optimal performance and stability. This board is equipped with numerous I/O channels to communicate with external devices, including voltage sensors, current transformers, and other control equipment.
With a robust design, the IS200EMIOH1A is built to perform reliably in demanding industrial environments, including power plants and utility facilities. Its advanced diagnostic capabilities and ease of integration with existing control systems make it an essential part of GE’s turbine and generator control offerings.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IS200EMIOH1A |
| Manufacturer | General Electric (GE) |
| Product Type | Exciter Main I/O Board |
| System Compatibility | GE Mark VIe, Mark VI |
| Input/Output Channels | 16 Analog Inputs, 16 Analog Outputs |
| Signal Types | Voltage, Current (Analog) |
| Power Supply | 24 VDC ± 20% |
| Communication Interface | Serial Communication, Discrete I/O |
| Diagnostics | Built-in diagnostics for real-time monitoring |
| Mounting | Rack-mounted (Chassis) |
| Cooling | Natural Convection, Fan Cooled |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Humidity Range | 5% to 95% RH, non-condensing |
| Dimensions (L×W×H) | 180 × 120 × 50 mm |
| Weight | 0.907 kg |
| Protection Rating | IP20 (Internal, must be housed for IP65/66) |
| Certifications | CE, UL, RoHS |
Product Applications
The GE IS200EMIOH1A Exciter Main I/O Board is designed for use in power generation environments where precision and reliability are paramount. Its main applications include:
-
Synchronous Generators
Regulates the excitation voltage to maintain stable operation and high efficiency. -
Turbine Control Systems
Integrates seamlessly with turbine control systems, providing real-time monitoring and feedback to optimize turbine performance. -
Power Plants
Used to control and monitor the excitation system for generating units, ensuring operational efficiency and grid stability. -
Utility and Industrial Facilities
In industrial and utility applications, the board facilitates the precise control of electrical generators and excitation systems. -
Renewable Energy
It is also used in renewable energy applications, such as hydroelectric and wind power plants, where stable excitation control is essential.
Product Advantages
-
Precise Control
Offers highly accurate regulation of excitation voltage to ensure optimal generator performance. -
Advanced Diagnostics
Equipped with advanced diagnostic capabilities to identify faults and optimize system performance, minimizing downtime. -
Seamless Integration
Easily integrates with existing GE Mark VIe and Mark VI systems, reducing setup time and increasing system compatibility. -
Compact Design
Despite its powerful capabilities, the board is compact and fits easily into the control rack for space-saving installations. -
Reliability
Built for harsh industrial environments, ensuring long-term reliability in power generation operations. -
Fast Response Time
Quick reaction to changes in system parameters, ensuring stable power generation and preventing performance degradation. -
Cost-Effective Maintenance
Reduces maintenance efforts through easy fault detection and fewer breakdowns, increasing overall system uptime. -
Widely Supported
Backed by GE’s global service network, ensuring support and availability of spare parts when needed.
Frequently Asked Questions (FAQ)
1. What is the primary function of the IS200EMIOH1A board?
It regulates the excitation voltage supplied to synchronous generators, ensuring stability and optimal performance.
2. Which systems is the IS200EMIOH1A compatible with?
It is compatible with GE Mark VIe and Mark VI control systems.
3. How many input/output channels does the board have?
The board offers 16 analog inputs and 16 analog outputs.
4. What types of signals does it support?
It supports voltage and current signals, ideal for use with voltage sensors, current transformers, and other control equipment.
5. Can this board be used in renewable energy applications?
Yes, it is suitable for use in renewable energy power plants, such as hydroelectric and wind power plants.
6. What are the operating temperature ranges for the board?
It operates within a temperature range of 0°C to 60°C (32°F to 140°F).
7. What is the cooling method used by the board?
The board uses natural convection for cooling, but it can be fan-cooled in more demanding environments.
8. How is the board mounted?
It is rack-mounted and can be installed within an I/O chassis or control rack.
9. Does the IS200EMIOH1A board have built-in diagnostics?
Yes, it comes with diagnostic features that monitor real-time system performance and identify faults.
10. What power supply is required for operation?
The board requires a 24 VDC power supply (±20%).
