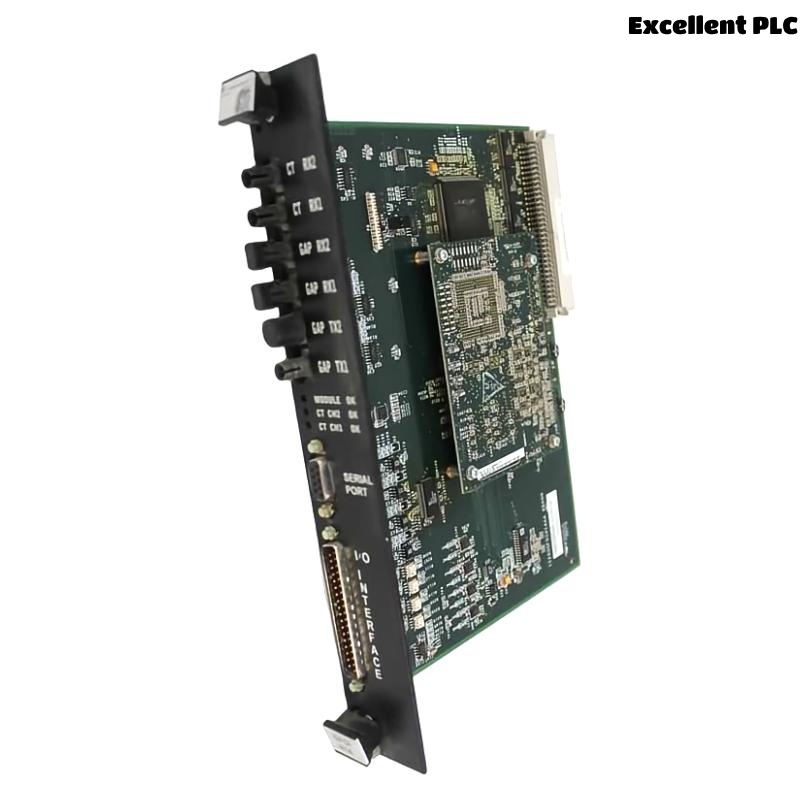

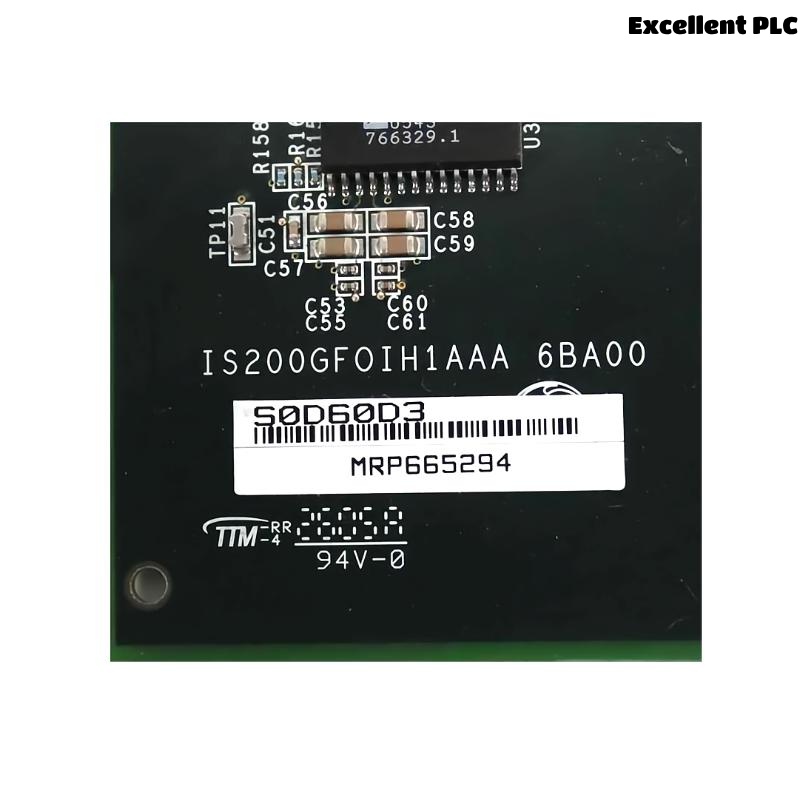

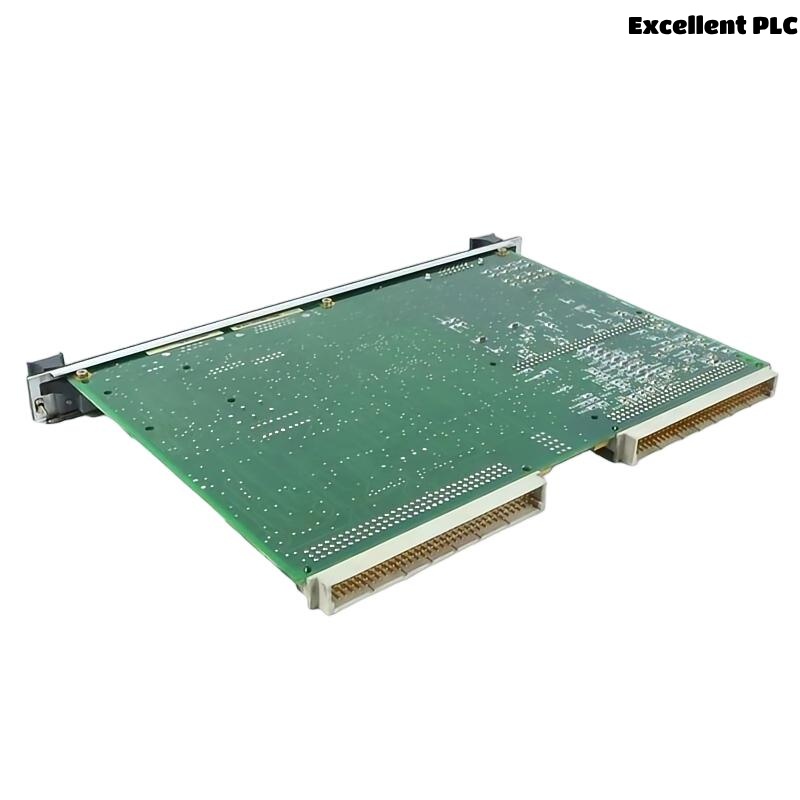

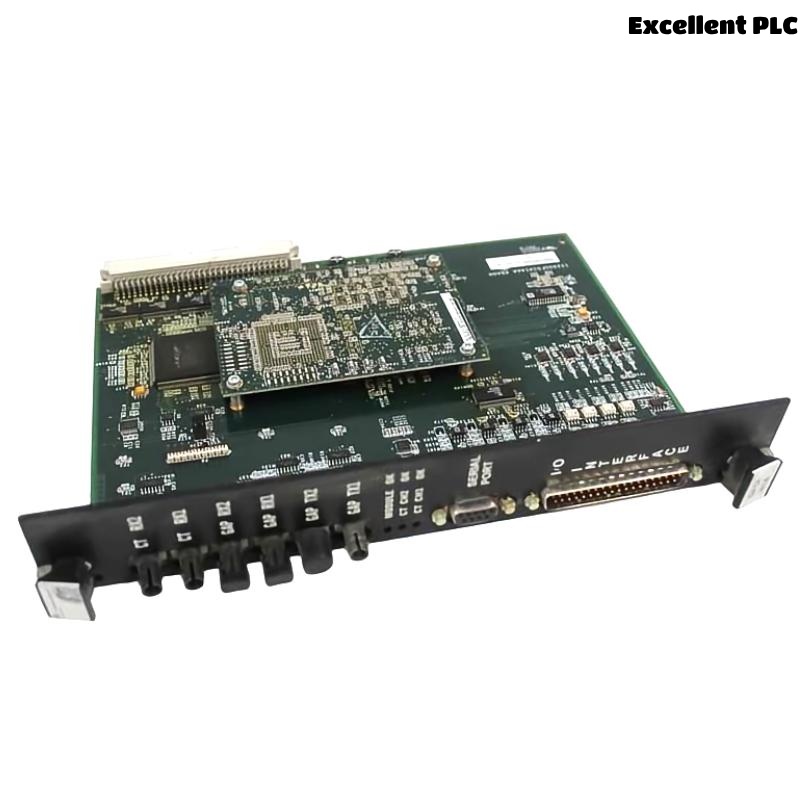

GE IS200GFOIH1AAA Mark VI Printed Circuit Board

Product Introduction

The GE IS200GFOIH1AAA is an advanced Printed Circuit Board (PCB) developed for use in Mark VI turbine control systems, designed by General Electric. This board serves as an essential component in the Gate Feedback and Output Interface, playing a pivotal role in transmitting control signals to IGBT (Insulated Gate Bipolar Transistor) gates and receiving feedback from them. Its primary function is to facilitate the safe and efficient control of high-power systems such as gas and steam turbines, motor drives, and power converter systems.

Operating in a highly reliable manner, the IS200GFOIH1AAA ensures the precision and stability of gate control circuits, even in demanding environments. The board’s design is optimized for high-speed communication, accurate signal conditioning, and electrical isolation between the control circuits and power-stage electronics. It is commonly used in pulse-width modulation (PWM) applications, which are critical for systems requiring precise and responsive control of motor speed, power distribution, and turbine operation.

Product Specifications

Product Applications

The GE IS200GFOIH1AAA board is designed for use in various industrial and power generation systems where high-speed gate control and feedback are crucial. Its typical applications include:

• Gas and Steam Turbine Control Systems
  Ensures precise control over the IGBT gate firing in turbine drives.

• Industrial Power Conversion Systems
  Used in converters and inverters for controlling motor drives and other high-power applications.

• Variable Speed Drives (VSDs)
  Controls motor speed in large industrial machinery such as pumps, compressors, and conveyors.

• Power Generation and Distribution Systems
  Works in grid-connected power generation systems, ensuring robust control over energy conversion.

• Pumped Storage Hydropower
  Controls power delivery in pumped storage plants, ensuring system reliability.

• Marine Propulsion Systems
  Used in ships and offshore oil rigs to maintain motor control in extreme environments.

Product Advantages

• Precision Gate Control
  The IS200GFOIH1AAA ensures accurate, real-time control of IGBT gate circuits, enhancing the overall performance of turbine and motor systems.

• Electrical Isolation
  Provides galvanic isolation between control circuits and high-voltage sections, protecting sensitive electronics from electrical surges and transients.

• Enhanced Diagnostic Capabilities
  Equipped with diagnostic LEDs that offer real-time monitoring of operational status, simplifying fault detection and maintenance.

• Built for Harsh Environments
  The board is designed to operate in extreme industrial environments, with a wide operating temperature range and protection against environmental factors like dust and humidity.

• Modular Design for Easy Integration
  Easily integrates into existing GE Mark VI systems with no need for significant reconfiguration, offering scalability for system upgrades.

• Improved Reliability
  The IS200GFOIH1AAA is part of the proven GE Mark VI family, known for its robust, field-tested performance in critical control applications.

FAQ

1. What types of signals does the IS200GFOIH1AAA process?
   It processes PWM signals for IGBT gate triggering and receives feedback signals from the IGBT gates.

2. Can the IS200GFOIH1AAA board be used in a redundant configuration?
   Yes, the board can be part of a redundant setup where multiple control signals ensure backup in case of failure.

3. How does the board ensure electrical isolation?
   It uses optical isolators and transformers to separate the low-voltage control circuits from the high-voltage power electronics.

4. What happens if a gate feedback signal is lost?
   The board detects signal loss or gate faults and triggers an alarm or system shutdown to prevent further damage.

5. Can the board be tested offline?
   Yes, the board can be tested using external simulators or diagnostic tools that simulate gate signals and feedback.

6. What type of diagnostic features are available on the board?
   The board has LED indicators for each channel, providing real-time status updates on gate firing and feedback.

7. What type of feedback does the board monitor?
   It monitors feedback from each IGBT gate, including fault signals, voltage levels, and operational status.

8. How is the board connected to other system components?
   The IS200GFOIH1AAA connects to other system components via ribbon cables or fiber-optic connections for high-speed data transfer.

9. Does the board support manual override control?
   The system can be configured to allow manual control in case of emergency, depending on the overall system design.

10. What safety features are built into the IS200GFOIH1AAA?
    The board is designed to automatically shut down in the event of a critical fault, ensuring the safety of the connected system.
