Introduction to the Module

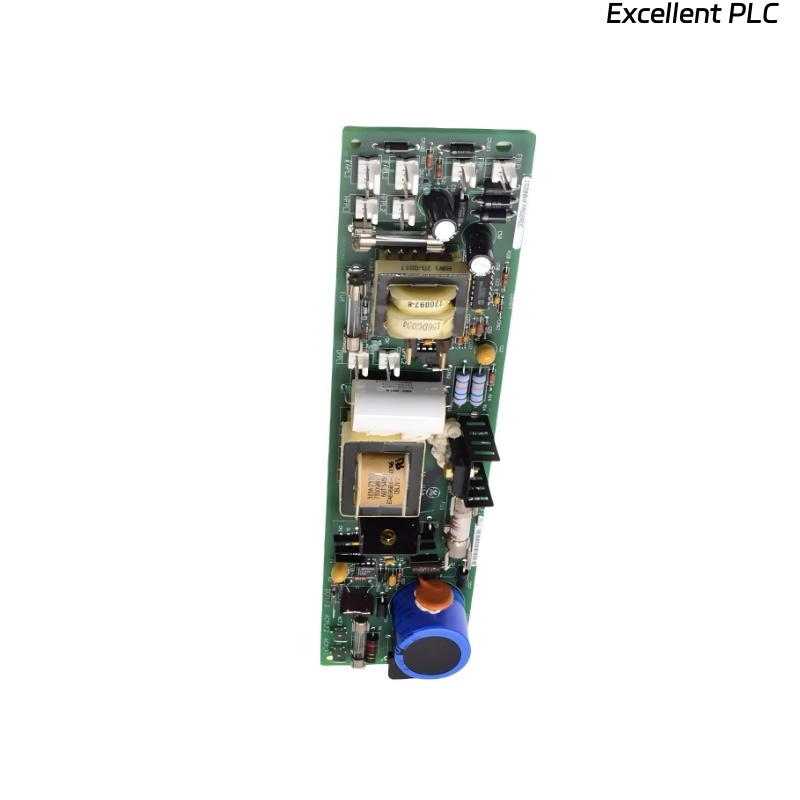

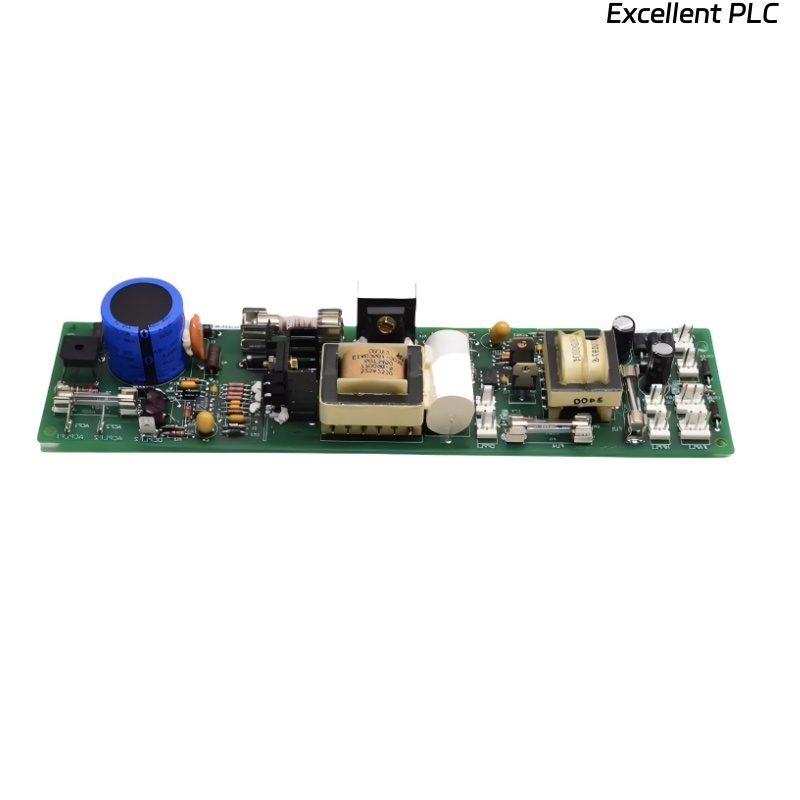

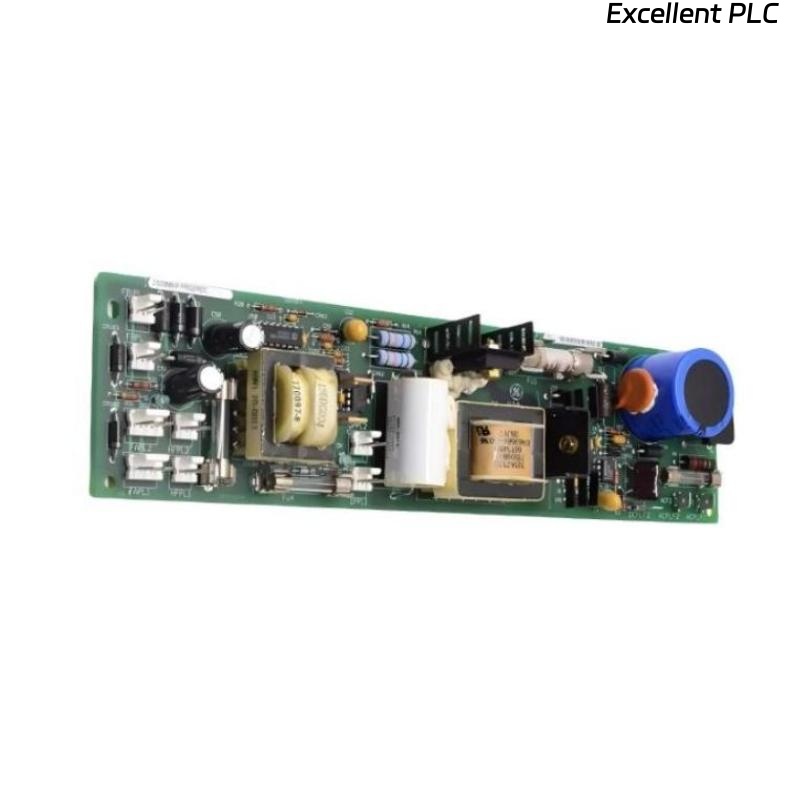

The IS200HFPAG1ADC is a high-frequency protection and analytical interface module developed for GE Mark VI and Mark VIe turbine control platforms. It is designed to interpret rapid analog events, detect transient conditions, and support protective logic that depends on precise high-speed measurements. In many control architectures, this board acts as the analytical bridge between raw sensing hardware and the turbine’s protective core logic, ensuring accurate and timely system responses.
Technical Specifications and Physical Details
| Parameter | Details |
|---|---|
| Brand | GE |
| Model | IS200HFPAG1ADC |
| Module Type | High-Frequency Processing / Protective Analysis Module |
| Signal Capability | High-frequency analog input conditioning |
| Processing Function | Filtering, event detection, transient interpretation |
| Operating Voltage | 5V / 24V depending on circuit path |
| Isolation Architecture | Channel-to-ground and channel-to-channel isolation |
| Dimensions (L × W × H) | 207 mm × 131 mm × 37 mm |
| Weight | 0.75 kg |
| Temperature Range | -20°C to 65°C |
| Installation Format | Standard Mark VI/VIe rack module |
Engineering Use Cases
The IS200HFPAG1ADC is typically deployed in environments where the turbine’s control system must react to rapidly changing mechanical or electrical conditions. Examples include:
-
Overspeed and high-frequency vibration monitoring
-
Transient event capture for rotating machinery
-
High-resolution diagnostic feedback during load transitions
-
Condition monitoring for safety-critical turbine protection paths
-
System upgrades replacing early HFPA revisions in Mark VI frames
Its responsiveness makes it valuable in modern plants that focus on predictive maintenance and early anomaly detection.
Design Advantages for System Performance
The module incorporates a high-bandwidth filtering structure that maintains signal integrity even when electrical noise and vibration are present. This allows the control system to operate with confidence during rapid turbine acceleration or load shifts. The isolation layers contribute to clean data paths, reducing the likelihood of false protection triggers. Engineers often select this revision because it provides a stable analytical foundation without requiring additional signal conditioning hardware.
