General Purpose of the Module

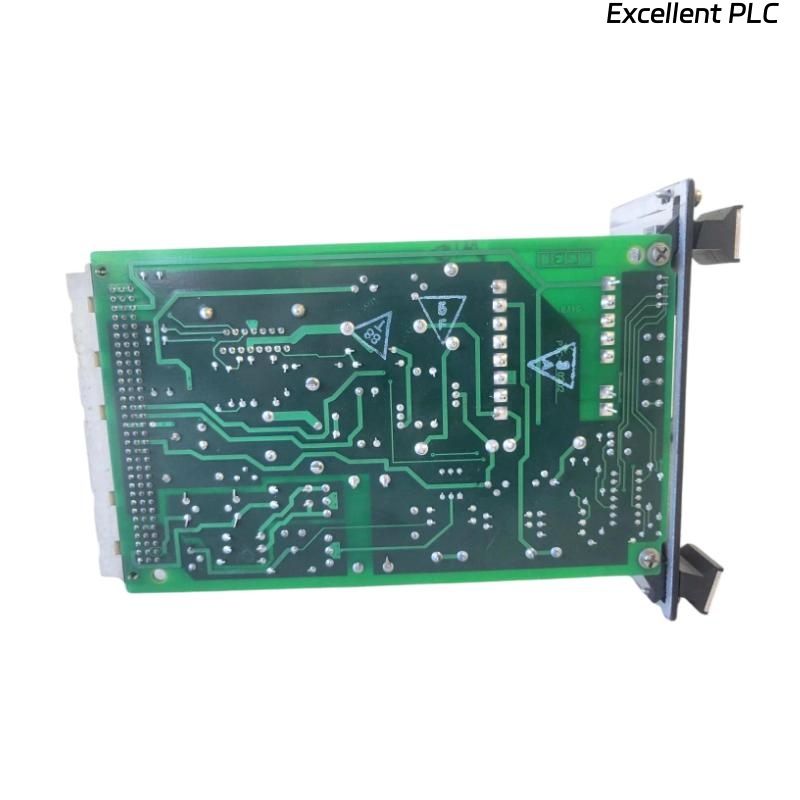

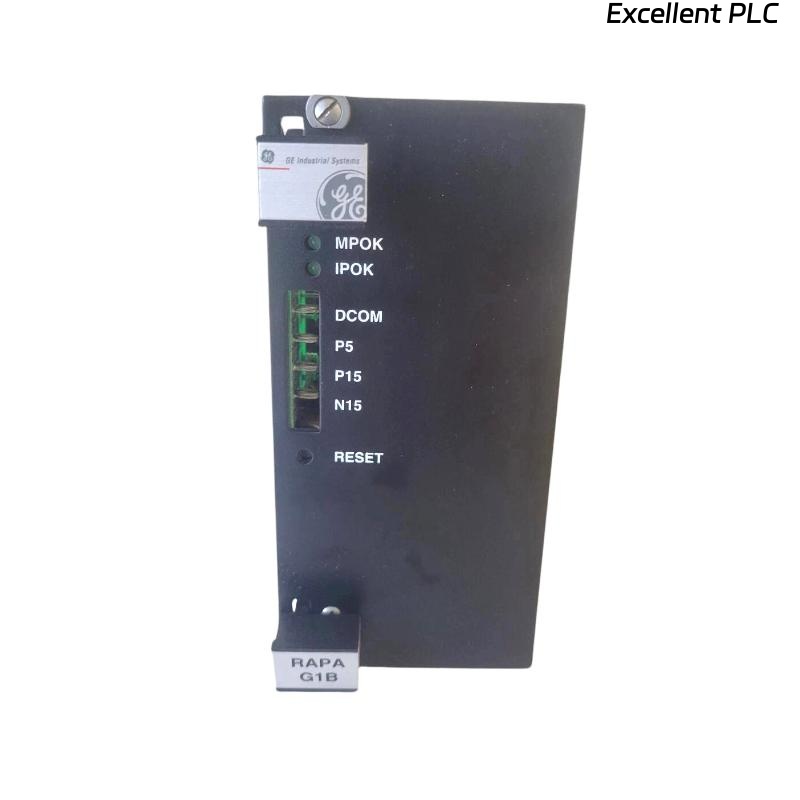

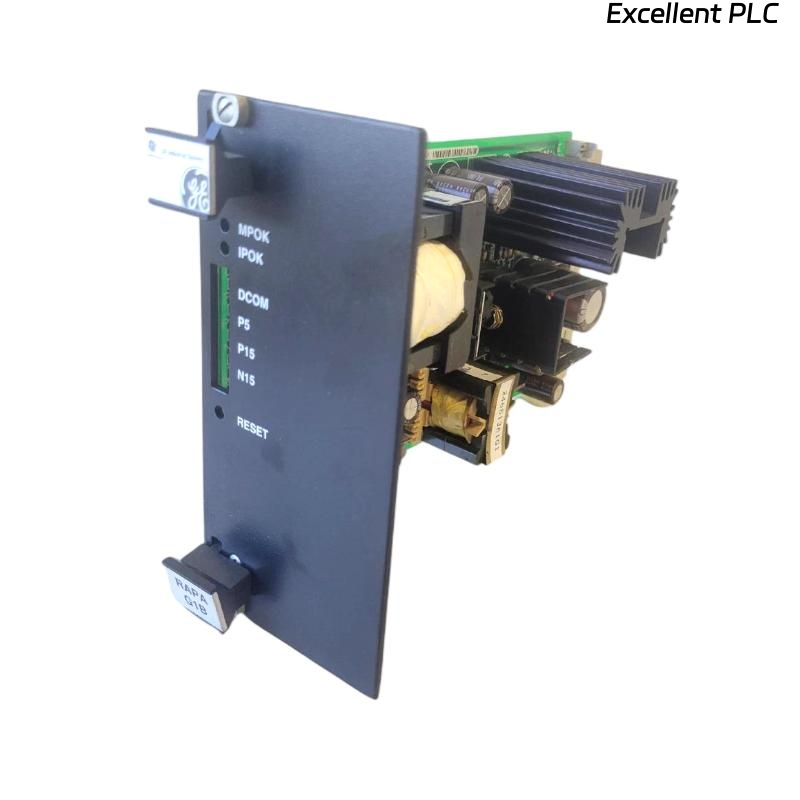

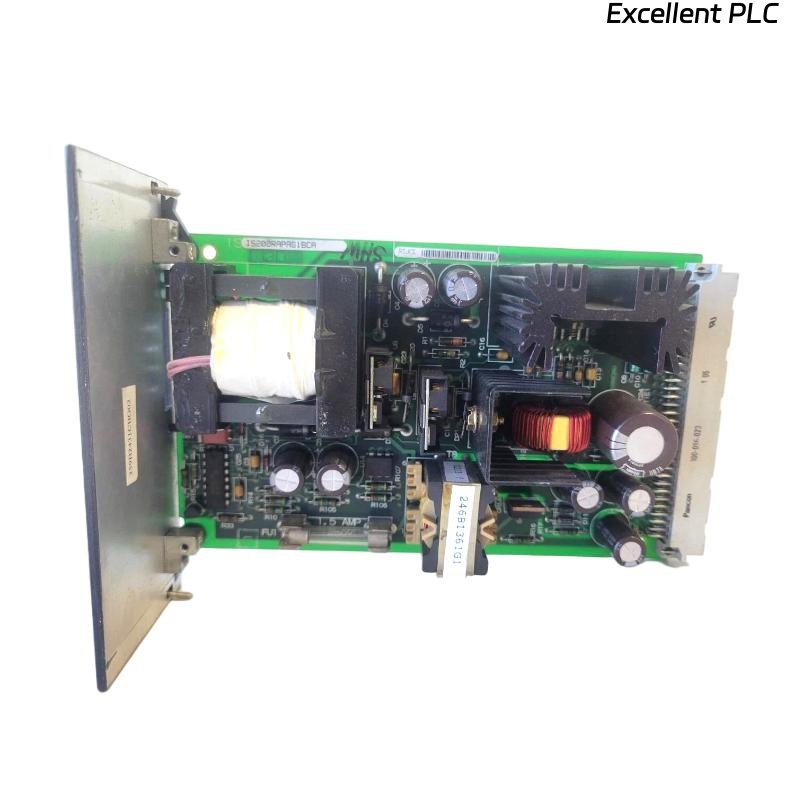

The IS200RAPAG1BCA serves as a protection and relay interface component within GE Mark VI/VIe architectures. Its primary task is to receive critical protection inputs and deliver relay-based actions to enforce shutdown, interlock, or safety responses. In troubleshooting environments, technicians rely on the stability of this module to confirm whether protective signals are passing correctly through the system.
Technical Characteristics and Physical Dimensions
| Feature | Details |
|---|---|
| Brand | GE |
| Module Type | Relay/Protection Interface Module |
| Functional Inputs | Multiple opto-isolated protective signals |
| Relay Outputs | Protection command pathways |
| Rated Voltage | 24V DC |
| Isolation Strength | 2 kV |
| Dimensions (L × W × H) | 178 mm × 110 mm × 38 mm |
| Weight | 0.72 kg |
| Operating Temperature | -20°C to 65°C |
| Storage Temperature | -40°C to 85°C |
Preliminary Checks Before Troubleshooting
Before entering fault isolation steps, technicians must confirm several prerequisites. The module should be firmly seated in the backplane, all wiring harnesses must be fully engaged, and the protective circuits must be free of unintended grounds. LED activity on the board often provides the first clue about abnormal input conditions.
If a relay fails to respond, technicians are instructed to verify the upstream protective signal source before attempting module-level diagnosis.
Signal Path Verification Procedures
When a mismatch occurs between a protective event and the response of downstream equipment, the module is evaluated in the following logical sequence (without numbering for instructional fluidity):
-
Verify that opto-isolated input channels receive correct triggering voltage.
-
Inspect the LED indicators to confirm input energization or loss.
-
Measure the relay coil voltage using a digital multimeter to validate actuation.
-
Confirm that output relays are not mechanically stuck or contaminated by debris.
-
Inspect the wiring terminals for reversed polarity or loose screws.
-
Observe for thermal damage or discoloration near high-current paths.
These steps are frequently used in high-risk shutdown circuits where a delayed relay response can compromise equipment integrity.
Operational Use Cases
The IS200RAPAG1BCA appears in systems requiring deterministic protective actions such as:
-
Turbine trip signal distribution
-
Emergency lube-oil shutdown systems
-
Overspeed logic handling
-
Auxiliary equipment interlock enforcement
-
Redundant protection chains for high-availability installations
In fault investigations, this module is often one of the first points examined due to its central role in safety-related pathways.
Reasons Technicians Rely on This Module
-
Clear LED state indicators that simplify early diagnosis
-
Robust isolation preventing noise from corrupting protection paths
-
Relay hardware proven to withstand continuous cycling
-
Fast actuation appropriate for trip-class protection events
-
Mechanical reliability in vibration-intensive environments
-
Straightforward wiring, reducing interpretation errors during inspections
