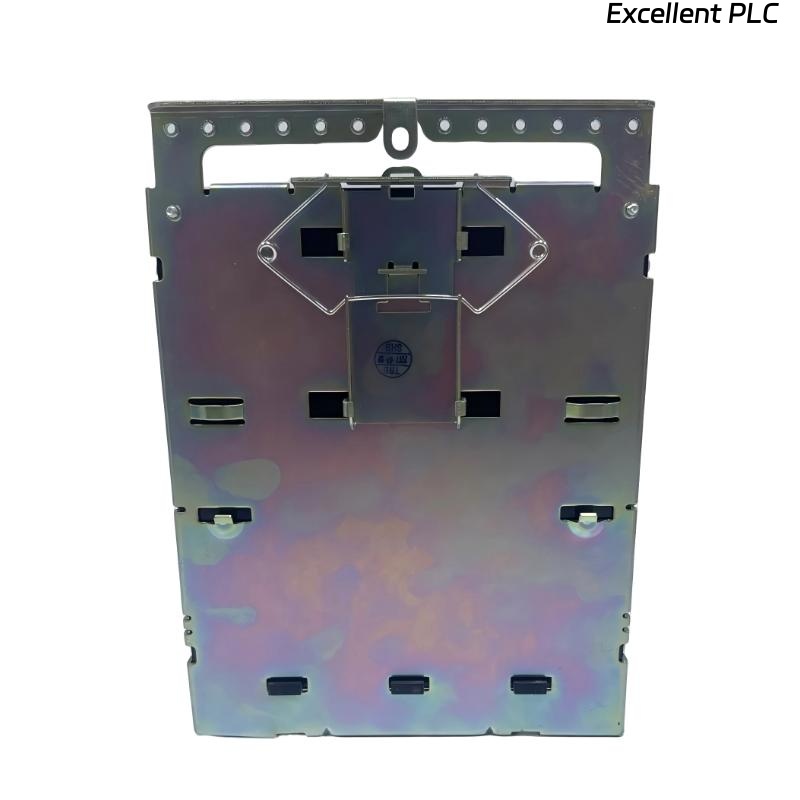

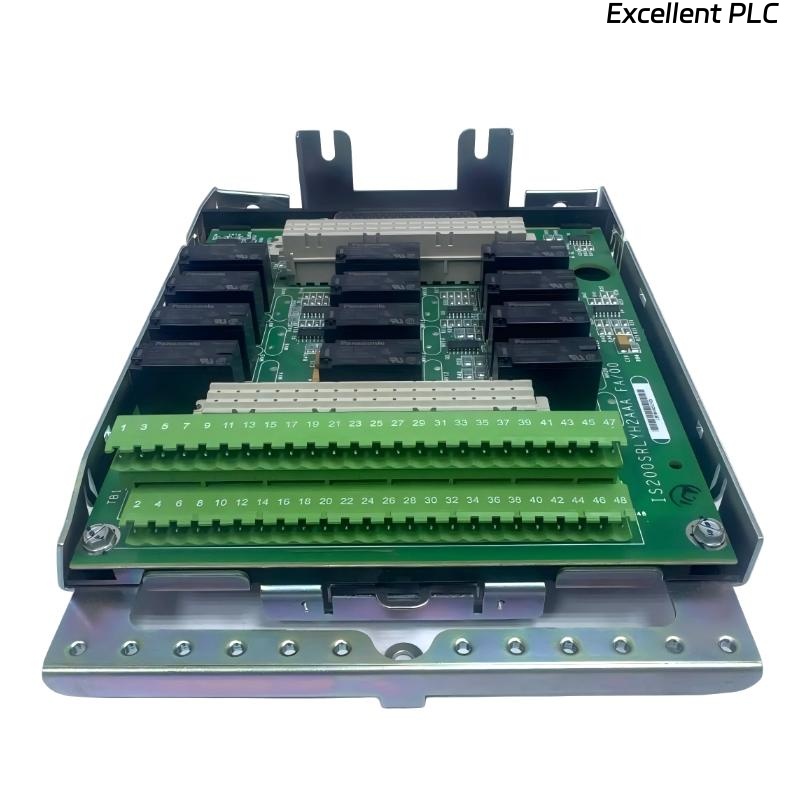

GE IS200SRLYH2AAA Simplex Relay Output Terminal Board

Product Introduction

The GE IS200SRLYH2AAA is a Simplex Relay Output Terminal Board designed for industrial control and automation applications. It provides reliable relay outputs for switching and controlling external devices, ensuring precise and safe operation of industrial processes.

This board is engineered for integration with programmable logic systems, process controllers, and distributed I/O networks. Its robust design ensures dependable performance in harsh industrial environments, while its compact form factor allows easy panel or rack installation.

The IS200SRLYH2AAA is widely used in power generation, manufacturing, and process industries where dependable relay outputs are required for alarms, actuators, and auxiliary devices.

Product Specifications

Applications

The IS200SRLYH2AAA board is suitable for industrial environments where reliable relay outputs are required:

• Process Control Systems – controlling actuators, valves, and alarms.

• Manufacturing Automation – interfacing PLC outputs to mechanical devices.

• Power Generation – signaling alarms and controlling auxiliary devices.

• Distributed I/O Systems – extending relay outputs for field devices.

• Industrial Safety Systems – providing safe and isolated switching outputs.

Advantages

Key benefits of the IS200SRLYH2AAA include:

• Reliable Relay Switching – ensures precise control of connected devices.

• Electrically Isolated Outputs – protects control circuits from load disturbances.

• Robust Design – built for harsh industrial environments.

• Flexible Configuration – supports SPST or SPDT relay contacts.

• Compact Form Factor – fits into standard panels or racks.

• Protection Features – overcurrent and short-circuit safeguards.

• Wide Temperature Range – operation from -10°C to 60°C.

• Easy Installation and Maintenance – simple mounting and connection.

FAQ

1. What is the maximum current rating for each relay output?
   Each relay output can handle up to 5 A at 250 V AC or 30 V DC.

2. Are the relay outputs electrically isolated?
   Yes, all outputs are fully isolated to protect control circuits.

3. What types of relay contacts are supported?
   SPST (single-pole single-throw) or SPDT (single-pole double-throw) selectable.

4. Can the board handle continuous switching at high frequency?
   Yes, up to 10 Hz switching frequency per output is supported.

5. What is the coil voltage for the relays?
   The nominal coil voltage is 24 V DC.

6. Is the board protected against short circuits?
   Yes, it includes overcurrent and short-circuit protection.

7. What is the operating temperature range for the board?
   -10°C to 60°C continuous operation.

8. Can multiple boards be used together in a system?
   Yes, multiple boards can be connected to expand relay output capacity.

9. What is the maximum number of relay outputs per board?
   Depending on configuration, the board supports 8–16 outputs.

10. How is the board mounted in industrial panels?
    Panel or rack mounting using screws or DIN rail adapters is supported.
