Product Introduction

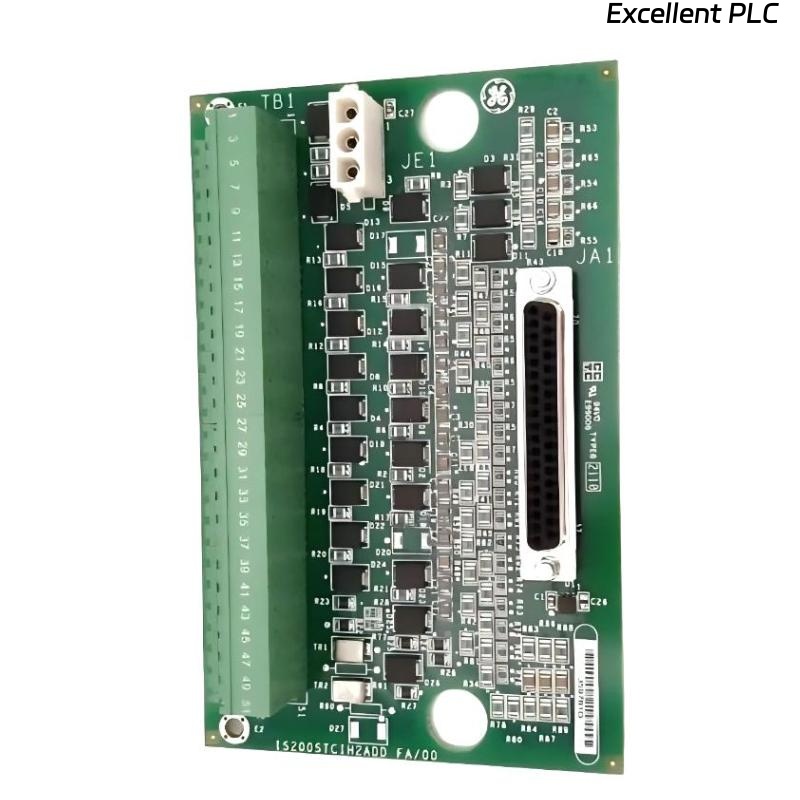

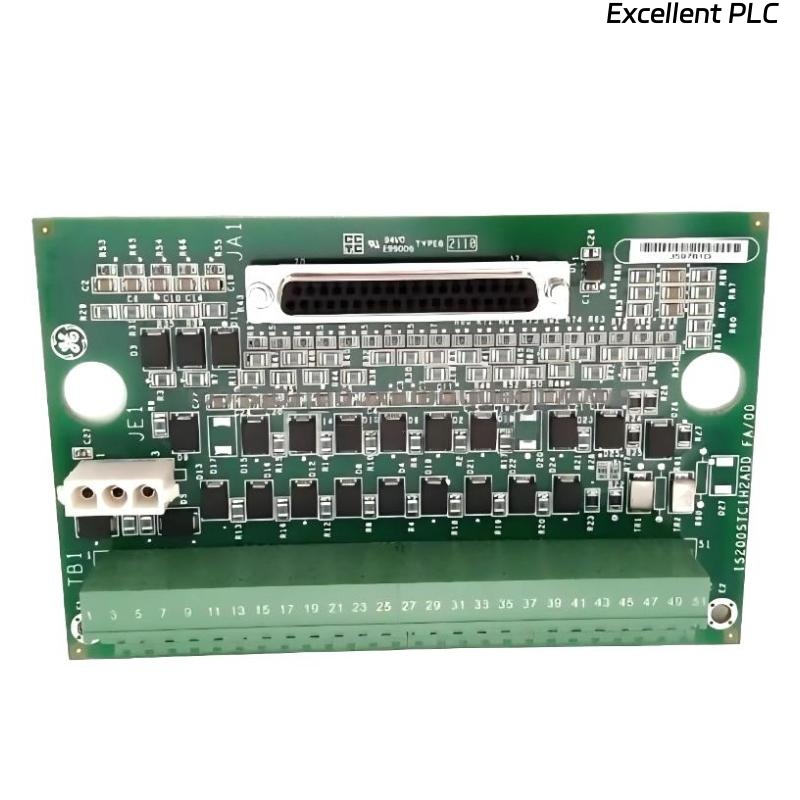

The GE IS200STCIH2AED is a Simplex Contact Input Terminal Board designed for industrial automation and control systems. It provides reliable interface for discrete contact inputs, allowing precise monitoring and control of external devices such as switches, sensors, and limit contacts.
This board is compact and robust, suitable for integration into distributed control systems, PLC panels, and industrial cabinets. Its design ensures electrical isolation, signal stability, and protection for connected control circuits.
The IS200STCIH2AED is widely used in manufacturing, process automation, power generation, and other industrial environments where safe and reliable discrete input processing is required.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | IS200STCIH2AED |
| Type | Simplex Contact Input Terminal Board |
| Component Name | Contact Input Board |
| Number of Input Channels | 8–16 channels (depending on configuration) |
| Input Type | Dry or wet contact inputs |
| Contact Voltage | 24 V DC nominal |
| Input Current | 5–20 mA |
| Response Time | <10 ms |
| Isolation | Electrically isolated inputs |
| Protection Features | Overcurrent and short circuit protection |
| Operating Temperature | -10°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Mounting Style | Panel or rack-mounted |
| Dimensions | 150 × 100 × 40 mm |
| Weight | 0.6 kg |
Applications
The IS200STCIH2AED board is suitable for industrial systems requiring reliable contact input monitoring:
-
Process Control Systems – monitoring switches, sensors, and limit contacts.
-
Industrial Automation – interfacing discrete field devices with PLCs or DCS.
-
Power Generation – monitoring breaker, switchgear, and auxiliary contacts.
-
Distributed I/O Systems – expanding discrete input capacity for field devices.
-
Safety and Alarm Systems – providing isolated and protected contact monitoring.
Advantages
Key benefits of the IS200STCIH2AED include:
-
Reliable Contact Monitoring – ensures accurate detection of discrete input states.
-
Electrical Isolation – protects control circuits from external disturbances.
-
Robust Construction – suitable for harsh industrial environments.
-
Flexible Configuration – supports 8–16 channels depending on system needs.
-
Compact Design – easy installation in panels or racks.
-
Protection Features – safeguards against overcurrent and short circuits.
-
Wide Operating Temperature – -10°C to 60°C for reliable operation.
-
Maintenance Friendly – simple installation and replacement procedures.
