Product Introduction

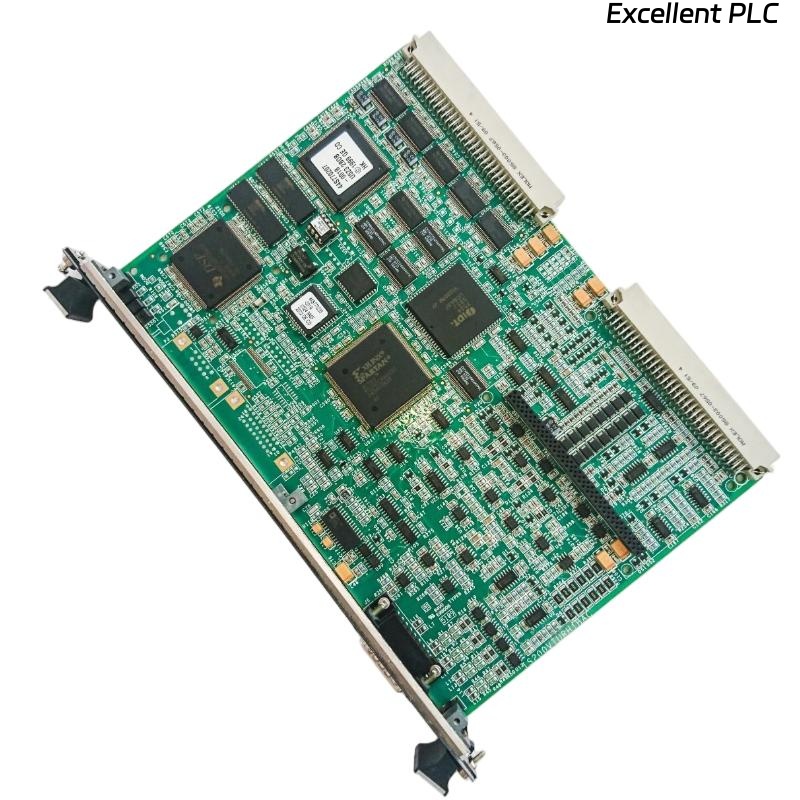

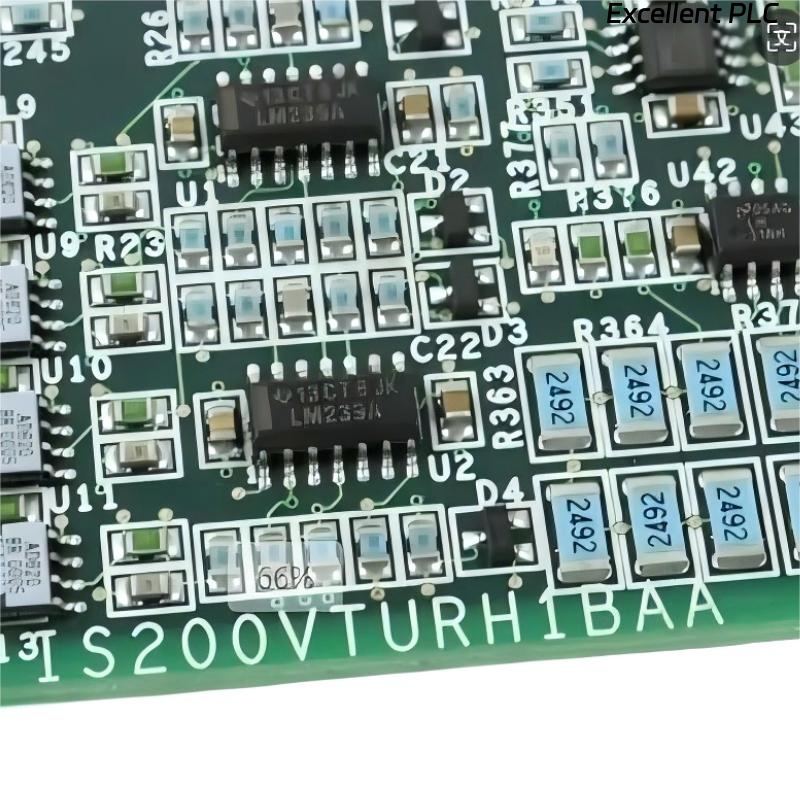

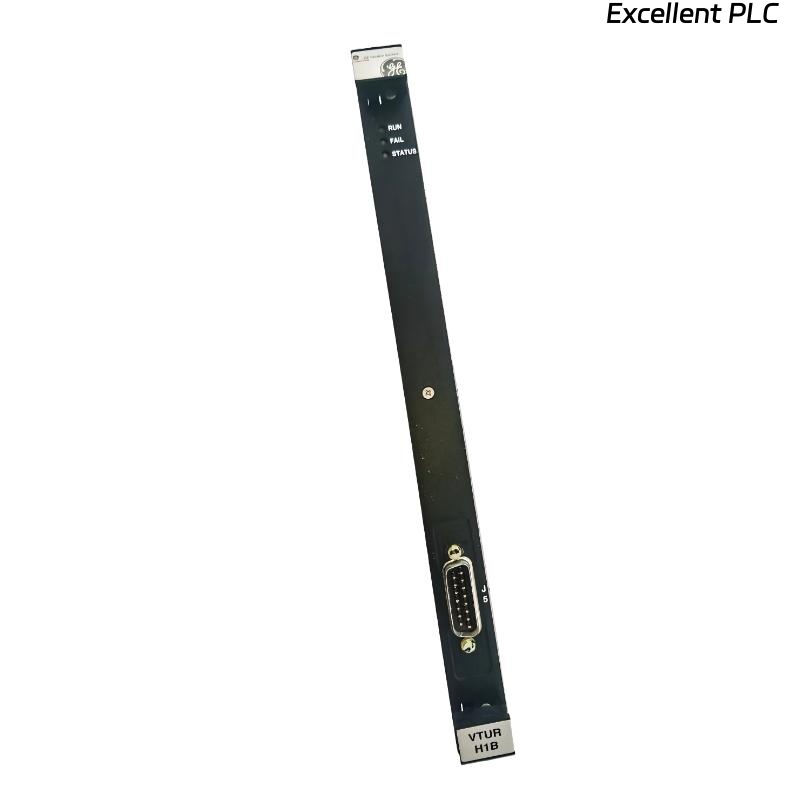

The GE IS200VTURH1BAA Turbine Protection Board is a high-reliability module designed for turbine protection and monitoring in industrial power generation applications. It provides real-time detection and response to abnormal operating conditions such as overspeed, excessive vibration, and temperature excursions, ensuring turbine safety and operational continuity.
This board is suitable for steam, gas, and hydro turbines, offering integrated protection logic, trip outputs, and diagnostic feedback. Its compact design allows panel-mounted installation in control cabinets or relay racks. The IS200VTURH1BAA is ideal for medium-sized turbines where precise protection and high reliability are required.
The board supports advanced monitoring algorithms and can be integrated seamlessly into GE turbine control systems, providing high-speed protection and redundant signal handling for critical installations.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS200VTURH1BAA |
| Product Type | Turbine Protection Board |
| Application | Steam, Gas, and Hydro Turbines |
| Protection Functions | Overspeed, Vibration, Temperature, Trip Logic |
| Input Type | Digital and analog inputs |
| Output Type | Relay contacts for trip and alarm signaling |
| Integration | Compatible with GE turbine control systems |
| Diagnostics | Self-test and status reporting |
| Mounting Type | Panel-mounted |
| Dimensions | 210 × 180 × 60 mm |
| Weight | 0.408 kg |
Applications
• Steam turbine protection
Monitors critical turbine parameters to prevent overspeed and mechanical damage.
• Gas turbine safety
Provides fast trip signaling in response to abnormal operating conditions.
• Hydro turbine monitoring
Ensures safe operation under variable water flow and load conditions.
• Power plant control cabinets
Integrates with control systems for real-time diagnostics and event logging.
• Industrial turbine safety systems
Supports fault detection and protective interlocks to prevent downtime.
Advantages
• High-speed protection logic
Rapid response to overspeed, vibration, or temperature deviations to prevent damage.
• Compact panel-mount design
Easy installation in relay or control cabinets without occupying excessive space.
• Integrated diagnostics
Self-test and status reporting simplify troubleshooting and maintenance.
• Reliable operation
Designed for continuous use in industrial and power generation environments.
• System compatibility
Seamless integration with GE turbine control systems for unified monitoring and protection.
