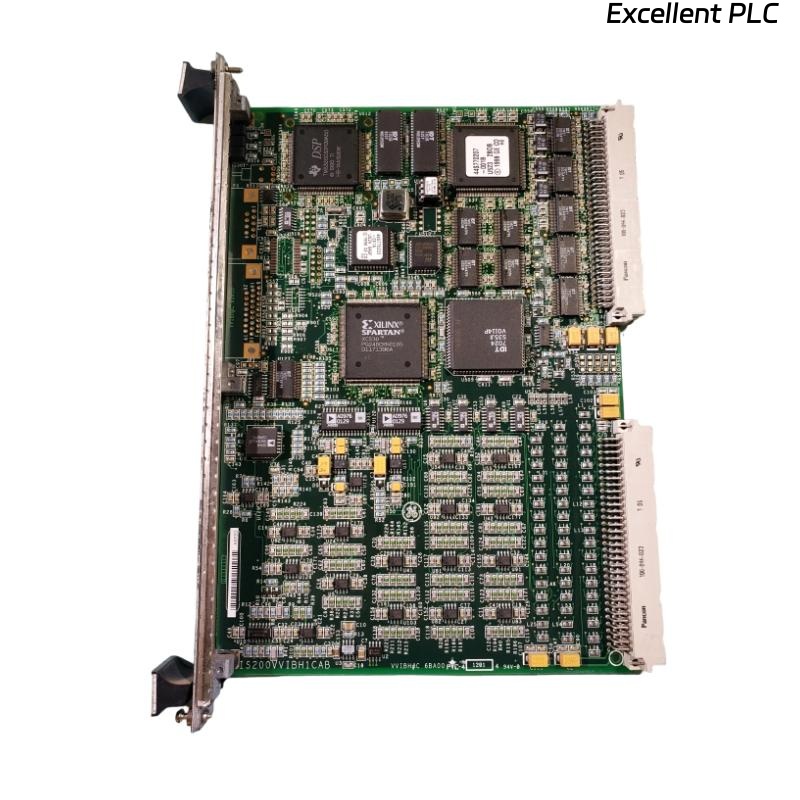

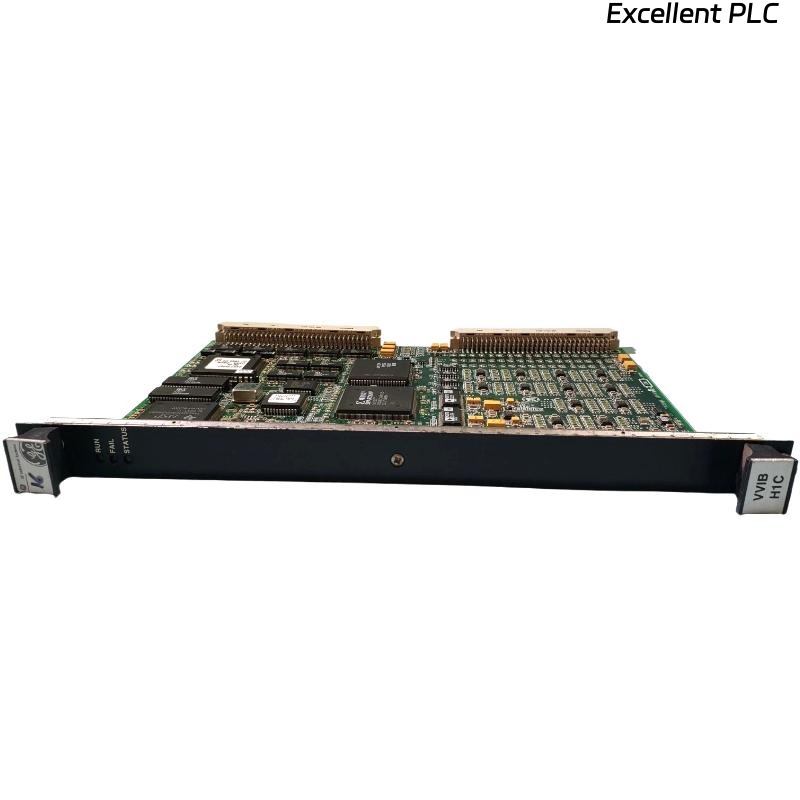

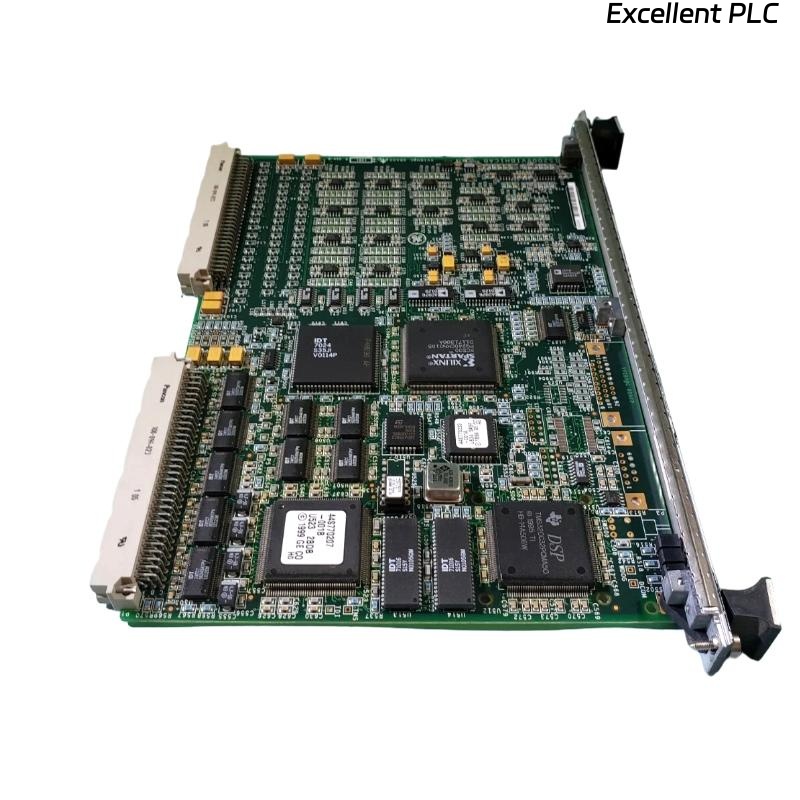

The GE IS200VVIBH1C Vibration Monitor Board is a precision-engineered module designed to monitor and analyze vibration signals in critical rotating machinery. It is a vital component in GE’s Mark VI and Mark VIe control systems, offering advanced diagnostic capabilities to ensure reliable turbine, compressor, and generator operation. The board is capable of interfacing with both proximity probes and accelerometers, converting raw sensor signals into accurate diagnostic data to protect machinery and optimize maintenance schedules.
The IS200VVIBH1C uses advanced digital signal processing (DSP) technology to deliver real-time vibration analysis, allowing early detection of imbalance, misalignment, and bearing wear. With a rugged VME architecture, the board is engineered for demanding industrial environments and provides seamless integration with GE’s control systems for comprehensive machinery protection.
Product Specifications
| Parameter | Details |
|---|---|
| Model | GE IS200VVIBH1C |
| Type | Vibration Monitor Board |
| System Compatibility | GE Mark VI / Mark VIe Control Systems |
| Sensor Interfaces | Proximity probes, accelerometers |
| Signal Processing | Real-time digital signal processing |
| Vibration Measurement Range | Configurable according to sensor specifications |
| Outputs | Conditioned analog and digital signals |
| Diagnostics | Built-in self-test and continuous fault monitoring |
| Redundancy Support | Compatible with redundant architectures |
| Communication Bus | VME backplane |
| Power Supply | 28 VDC nominal |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Compliance | CE, UL, IEC, RoHS |
| Dimensions (L x W x H) | 240 x 110 x 25 mm |
| Weight | 0.5 kg |
Product Applications
-
Turbine Condition Monitoring: Provides continuous vibration data for steam and gas turbines to prevent failures.
-
Compressor Protection: Detects early signs of mechanical issues in high-speed compressors.
-
Generator Safety: Monitors vibration trends to avoid catastrophic damage in generators.
-
Industrial Machinery Monitoring: Ensures operational integrity of pumps, motors, and other rotating equipment.
-
Predictive Maintenance Systems: Enables trend analysis to schedule maintenance before critical failures.
-
Integration with GE Control Systems: Works seamlessly with Mark VI/VIe systems for full plant protection.
Product Advantages
-
High Precision Measurement: Advanced DSP technology ensures accurate vibration detection and analysis.
-
Real-Time Protection: Immediate response to abnormal vibration patterns minimizes equipment damage.
-
Flexible Sensor Support: Compatible with a wide range of proximity probes and accelerometers.
-
Robust Diagnostics: Built-in self-testing and continuous fault monitoring improve system reliability.
-
Easy Integration: Directly integrates into GE Mark VI and Mark VIe control platforms.
-
Industrial-Grade Design: Withstands harsh environments and provides long-term operational stability.
FAQ
-
Which types of sensors are supported by the IS200VVIBH1C?
It supports both proximity probes and accelerometers for comprehensive vibration analysis. -
Does the board offer real-time digital signal processing?
Yes, the IS200VVIBH1C uses DSP algorithms to process vibration signals in real time. -
Can this board be used in redundant system configurations?
It is fully compatible with dual and triple modular redundancy architectures for high reliability. -
What is the communication interface used by this module?
The board uses a VME backplane for high-speed data exchange with the control system. -
Does it provide conditioned output signals for protection systems?
Yes, the board outputs processed analog and digital signals for protection and monitoring systems. -
Is the IS200VVIBH1C suitable for high-speed rotating machinery?
It is specifically designed for turbines, compressors, and other high-speed industrial machines. -
Can it monitor both low and high-frequency vibration patterns?
Yes, the board can process a wide range of frequencies depending on sensor configuration. -
Does the board include self-diagnostic capabilities?
It has built-in self-tests and continuous health monitoring to ensure reliable operation. -
Is the IS200VVIBH1C capable of supporting predictive maintenance?
Yes, it provides detailed vibration trend data that can be used for predictive maintenance strategies. -
What power input is required for this module?
The board operates on a nominal 28 VDC power supply.
