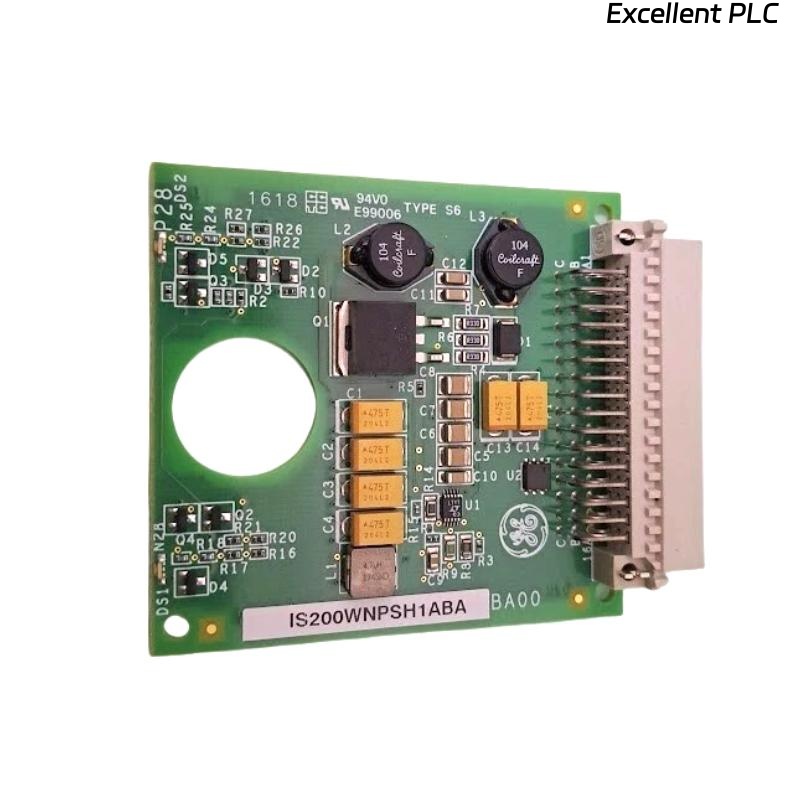

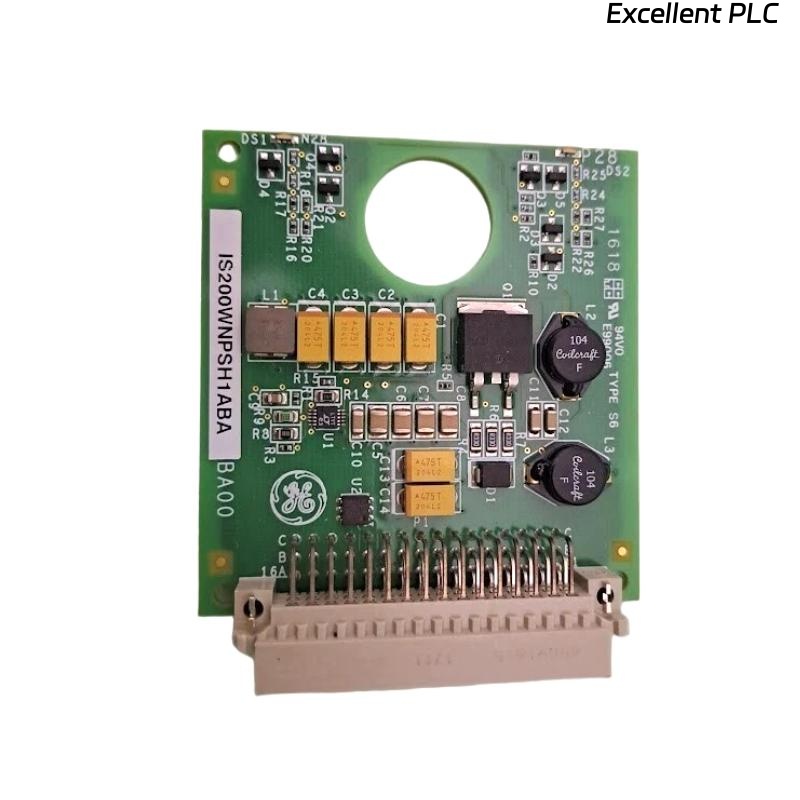

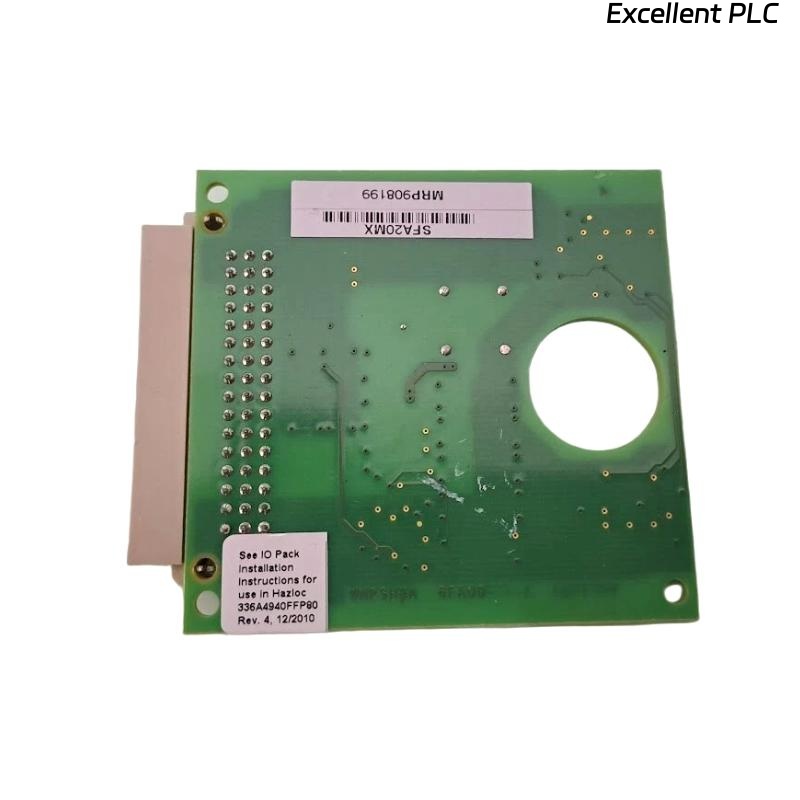

The GE IS200WNPSH1ABA is a precision-engineered Power Supply Daughterboard, part of the Mark VI turbine control platform developed by General Electric (GE). This board is designed to support power distribution and voltage regulation within the control system, functioning as a critical intermediary between the main power supply and the control processing units.
Known for its reliability, performance stability, and electrical robustness, the IS200WNPSH1ABA provides regulated low-voltage DC power to control circuits, while monitoring voltage conditions and enabling system diagnostics. It is a part of GE’s mission to provide highly modular and maintainable control system components for gas turbines, steam turbines, and other industrial automation systems.
Used in various high-reliability environments, this daughterboard ensures the integrity of power delivery by offering filtering, isolation, regulation, and communication with higher-level system diagnostics, helping avoid system disruptions due to voltage anomalies.
Product Specifications
| Parameter | Details |
|---|---|
| Model Number | IS200WNPSH1ABA |
| Product Type | Power Supply Daughterboard |
| Manufacturer | General Electric (GE) |
| Series | Mark VI / Mark VIe Turbine Control Series |
| Function | Power regulation, voltage feedback, and power monitoring |
| Input Voltage Range | Typically 28 VDC (supplied from primary power module) |
| Output Voltage Support | Regulated 5V/12V/15V DC (depends on system architecture) |
| Power Conversion | Linear and low-dropout regulators with feedback protection |
| Protection Features | Overvoltage protection, noise filtering, transient suppression |
| Feedback Capability | Yes – real-time monitoring of power outputs |
| Connector Type | Ribbon cable interface, backplane slot-compatible connectors |
| Mounting Type | Plug-in daughterboard |
| Cooling | Passive, board-mounted heat dissipation |
| Board Construction | Multi-layer PCB, conformal-coated for environmental durability |
| Operating Temperature | -30°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5%–95% non-condensing |
| Compliance | CE, RoHS |
| Status | Active / Field-Replaceable Unit (FRU) |
| Dimensions (L × W × H) | 123 x 129 x 30 mm |
| Weight | 0.45 kg |
Product Applications
The IS200WNPSH1ABA is commonly deployed in systems requiring regulated power delivery, redundancy, and voltage monitoring. This makes it ideal for mission-critical environments where stable power to control systems is non-negotiable.
Typical applications include:
-
Gas Turbine Control Panels
-
Steam Turbine Automation Systems
-
GE Mark VI / VIe Turbine Control Platforms
-
Excitation Control Systems
-
Drive and Process Control Enclosures
-
Power Distribution Networks in Industrial Automation
Product Advantages
-
High Voltage Stability: Ensures reliable voltage levels through internal regulation and monitoring.
-
Real-time Feedback: Supports live power status reporting to the central processor for diagnostics.
-
Modular Design: Enables easy replacement and system expansion without extensive downtime.
-
Redundancy Ready: Compatible with dual power configurations, increasing fault tolerance.
-
Industrial Grade Build: Built to withstand temperature extremes and vibration found in turbine environments.
-
Efficient Power Filtering: Protects connected systems from spikes, noise, and voltage transients.
-
Fast Fault Isolation: Diagnostic feedback enables fast troubleshooting and repair.
FAQ
-
What is the primary voltage input for the IS200WNPSH1ABA?
The board is designed to receive a nominal 28 VDC input from the main power module. -
Can the board provide feedback to a centralized control unit?
Yes, it has integrated feedback circuits for voltage and power status monitoring. -
Is this board compatible with hot-swap applications?
No, the system must be powered down before installation or removal to avoid electrical damage. -
What kind of regulators are used on this daughterboard?
The board utilizes low-dropout linear regulators and protection diodes for smooth DC regulation. -
Does this board support redundant power input configurations?
Yes, it’s designed for dual power supply architecture for high-availability systems. -
How does the board protect connected circuits from surges?
Through internal filtering, transient voltage suppression diodes, and EMI shielding. -
Is the IS200WNPSH1ABA firmware-dependent?
No, it functions independently of firmware, performing passive power regulation and feedback. -
How does it communicate status to the main processor?
Voltage conditions are reported via signal lines through the ribbon connector to the host board. -
Can this board regulate multiple output voltages?
Yes, depending on the configuration, it can manage and stabilize several voltage rails (e.g., 5V, 12V, 15V). -
Is there any onboard diagnostic indicator (e.g., LED)?
No integrated LEDs are standard, but voltage feedback is electronically monitored by the system controller.
