Product Introduction

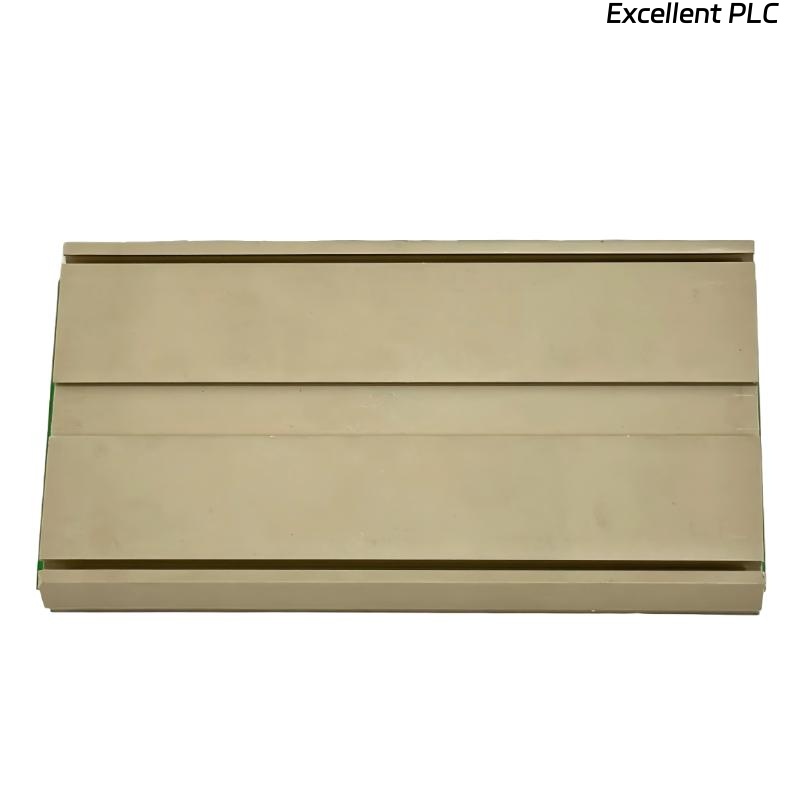

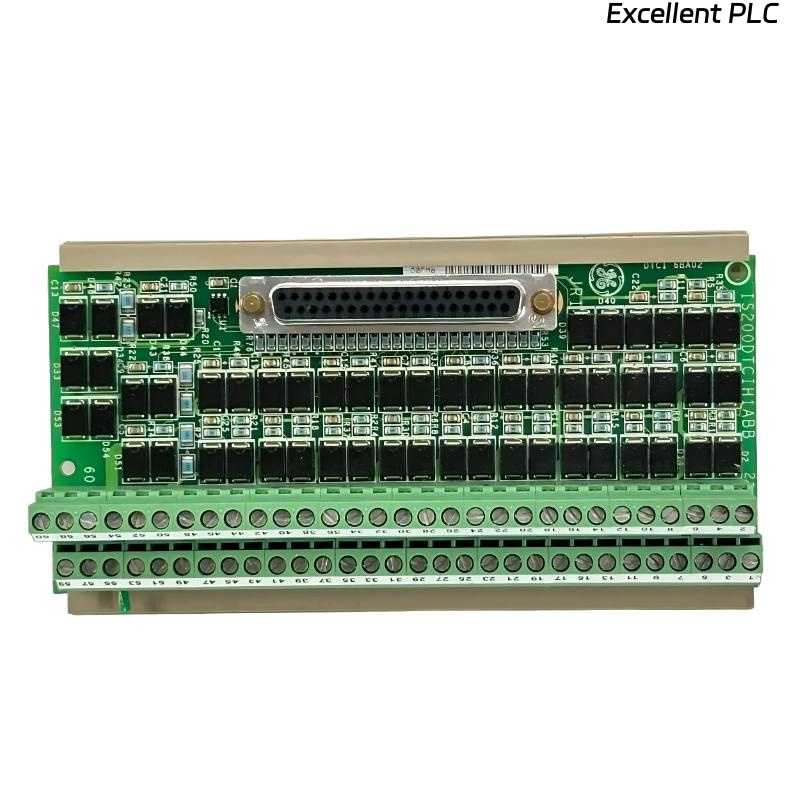

The GE IS210DTCIH1A and IS200DTCIH1A Contact Input Terminal Boards are reliable modules designed to interface discrete contact inputs from field devices into GE Series 90-70 and PACSystems RX3i control systems. These boards provide a centralized terminal interface for switches, relays, and other contact-based devices, facilitating secure and organized wiring within industrial automation systems.
These terminal boards ensure accurate and consistent signal transmission from field devices to the controller, maintaining signal integrity even in electrically noisy or high-vibration environments. Their robust construction and standardized design make them suitable for continuous operation in industrial settings.
They are widely deployed in process control, manufacturing automation, and critical industrial applications where discrete input monitoring is essential for system reliability and control.
Product Specifications
| Parameter | Description |
|---|---|
| Product Name | Contact Input Terminal Board |
| Model | IS210DTCIH1A / IS200DTCIH1A |
| Device Type | Terminal board for discrete contact inputs |
| Input Channels | Configurable for multiple contact inputs |
| Power Supply | Provided via I/O rack or controller backplane |
| Signal Type | Discrete contact signals (dry or wet contacts) |
| Mounting Type | Rack-mounted or panel installation |
| Interface | Simplex contact input wiring |
| Diagnostics | Basic status monitoring for contact inputs |
| Environmental Suitability | Industrial automation environments |
| Dimensions | 180 × 120 × 30 mm |
| Weight | 0.55 kg |
Product Applications
• Connecting switches, relays, and other discrete contact devices to control systems
• Discrete input acquisition for process monitoring and automation
• Integration into modular I/O racks for PACSystems RX3i and Series 90-70
• Real-time status monitoring of equipment and machinery
• Supporting industrial control systems in manufacturing, chemical, and process plants
• Enabling organized and reliable wiring for control panels
Product Advantages
• Centralized and organized interface for multiple contact inputs
• Ensures accurate and reliable signal transmission
• Compact and robust design suitable for industrial environments
• Simplifies wiring and reduces installation errors in control panels
• Compatible with GE Series 90-70 and PACSystems RX3i platforms
• Supports continuous operation and integration into automated monitoring systems
