Product Introduction

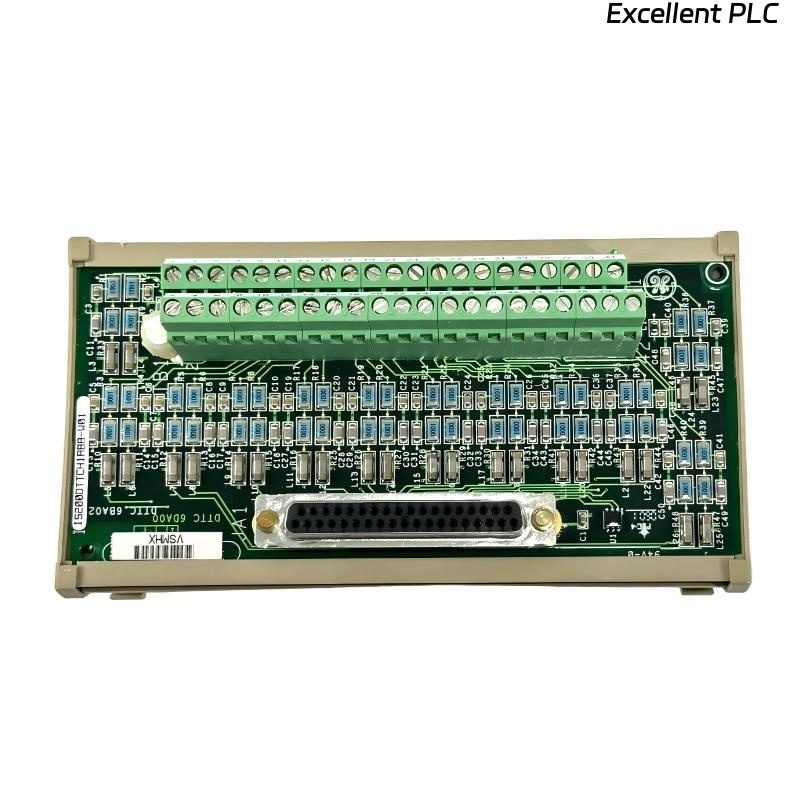

The GE IS210DTTCH1A / IS200DTTCH1A Simplex Thermocouple Input Board is designed for precise temperature measurement and monitoring within GE Mark V Distributed Control Systems (DCS). This board allows direct connection of thermocouples to the system, providing reliable and accurate temperature data for control and safety functions.
Engineered for industrial applications, the board ensures high signal integrity and minimal interference, supporting critical process monitoring in power plants, manufacturing, and other industrial environments.
Product Specifications
| Parameter |
Description |
| Product Name |
Simplex Thermocouple Input Board |
| Model Number |
IS210DTTCH1A / IS200DTTCH1A |
| Brand |
GE |
| Board Function |
Thermocouple signal acquisition for Mark V system |
| Installation Type |
Rack or panel mount |
| Input Type |
Thermocouple (single channel) |
| Signal Type |
Analog temperature signal |
| Electrical Performance |
High accuracy, low-noise signal acquisition |
| Housing Material |
Industrial-grade PCB and components |
| Dimensions (W × H × D) |
180 × 120 × 35 mm |
| Weight |
0.38 kg |
| Operating Mode |
Continuous |
| Typical Environment |
Power plants, process control, industrial monitoring |
Product Applications
The IS210DTTCH1A / IS200DTTCH1A board is used in applications requiring accurate temperature monitoring:
-
Connecting single thermocouples to Mark V systems for process control
-
Monitoring critical temperatures in turbines, boilers, and other industrial equipment
-
Supporting control loops in power plants and process automation systems
-
Integration with auxiliary and control boards for comprehensive monitoring
-
System upgrades or retrofits requiring additional thermocouple inputs
-
Industrial environments where accurate and reliable temperature measurement is essential
Product Advantages
• Accurate Temperature Measurement
Provides precise data for monitoring and control applications.
• Low-Noise Signal Acquisition
Engineered to minimize electrical interference for reliable readings.
• Industrial-Grade Construction
Durable PCB and components ensure continuous operation in harsh environments.
• Seamless Mark V Integration
Designed for easy integration with existing Mark V control and monitoring systems.
• Supports System Upgrades
Enables additional thermocouple inputs without affecting system reliability.
• Continuous Operation Ready
Suitable for 24/7 industrial monitoring and control applications.
FAQ
1. What is the primary function of the IS210DTTCH1A / IS200DTTCH1A board?
It acquires temperature signals from thermocouples for Mark V system monitoring and control.
2. How many thermocouple inputs does this board support?
It supports a single thermocouple channel per board.
3. Is it compatible with all Mark V system configurations?
Yes, it integrates seamlessly with standard Mark V architectures.
4. Can it operate reliably in industrial environments?
Yes, it is designed for continuous operation in harsh industrial conditions.
5. Does it provide accurate and low-noise signal acquisition?
Yes, it ensures high-fidelity temperature measurement with minimal interference.
6. Can it be used for system upgrades or retrofits?
Yes, it allows adding thermocouple inputs to existing Mark V systems.
7. Which industrial applications typically use this board?
Power plants, process control systems, turbines, boilers, and other temperature-critical equipment.
8. Does installation require calibration?
Standard system configuration is sufficient; no special calibration is needed.
9. Can it support continuous monitoring and control loops?
Yes, it is designed for real-time temperature monitoring and control integration.
10. How does it maintain signal integrity under industrial conditions?
Through low-noise design, robust PCB construction, and proper grounding within the Mark V system.
Recommended Related Models (Same Series / Related)
| Model |
Description |
| GE IS210DTTCH1B |
Simplex Thermocouple Input Board (alternate configuration) |
| GE IS200DTTCH1B |
Simplex Thermocouple Input Board (alternate configuration) |
| GE DS200ADGIH1A |
Mark V Auxiliary Interface Board |
| GE DS200ADGIK1A |
Mark V Auxiliary Interface Board (Alternate I/O) |
| GE DS200DSPCH1ADA |
Digital Signal Processor Control Board |
| GE DS200SDCIG1AFB |
Power Supply Instrumentation Board |
Popular GE Mark V Models (Same Brand)
| Model |
Description |
| GE DS200AIKAA1A |
Mark V Analog Input Module |
| GE DS200ADIHA1A |
Mark V Digital Input Module |
| GE DS200ADOAA1A |
Mark V Digital Output Module |
| GE DS200ADGIH1A |
Mark V Auxiliary Interface Board |
| GE DS200ADGJH1A |
Mark V Signal Interface Module |
| GE DS200ADKAA1A |
Mark V Auxiliary Interface Extension Board |
