Product Overview

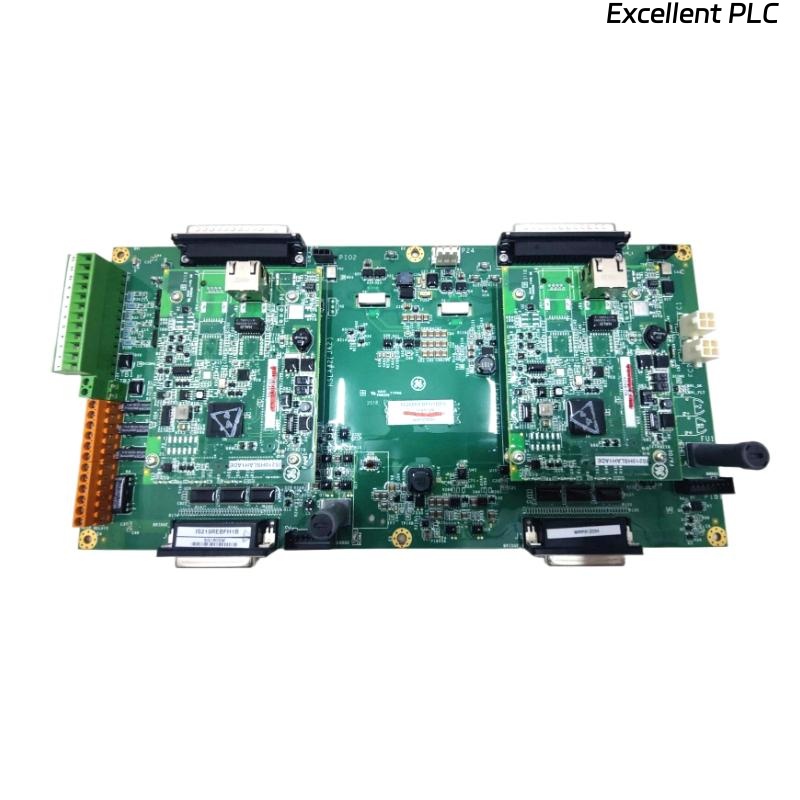

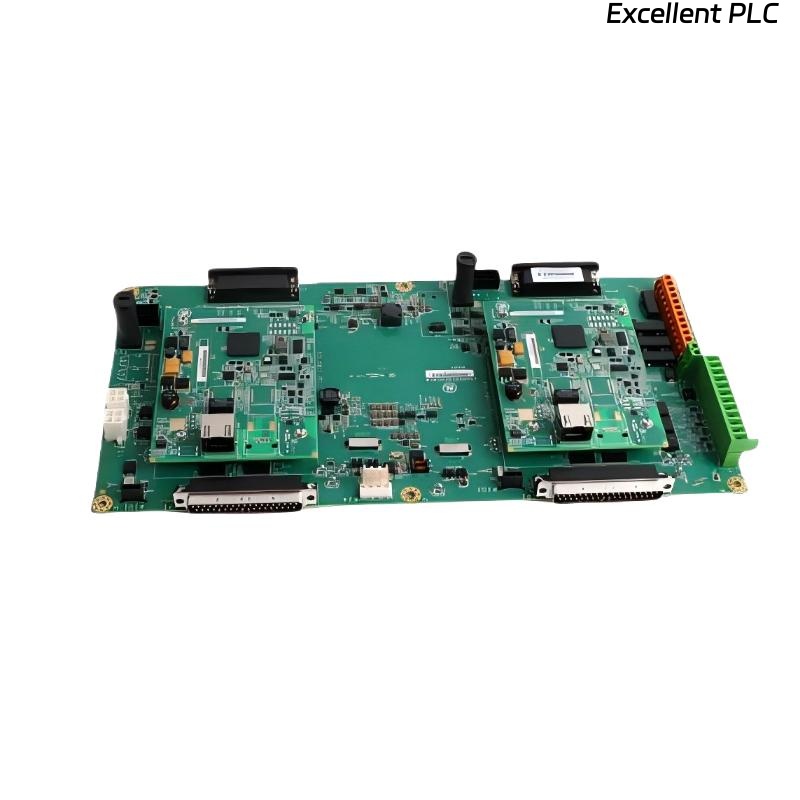

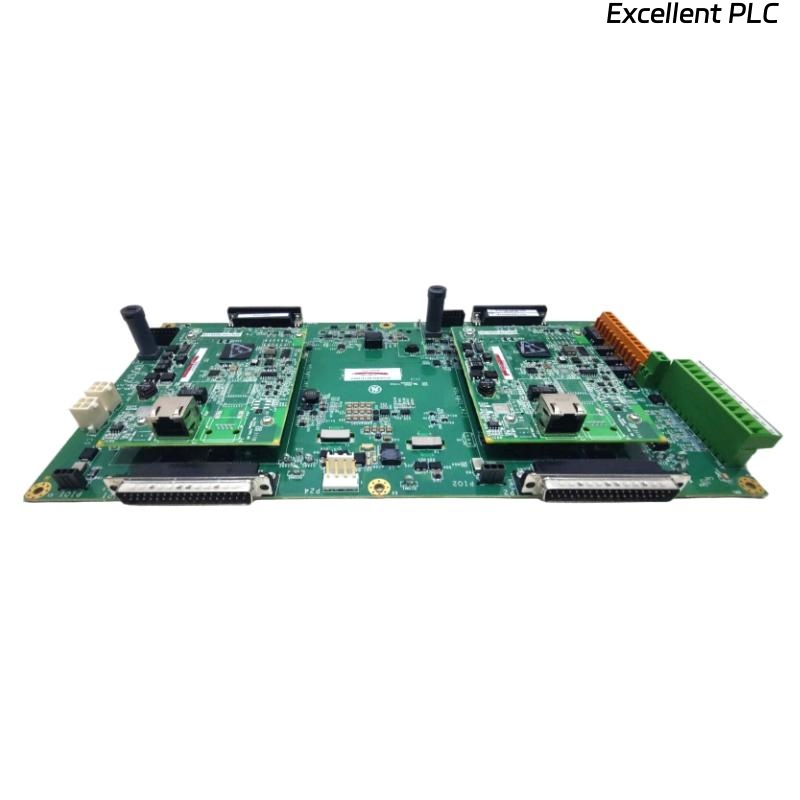

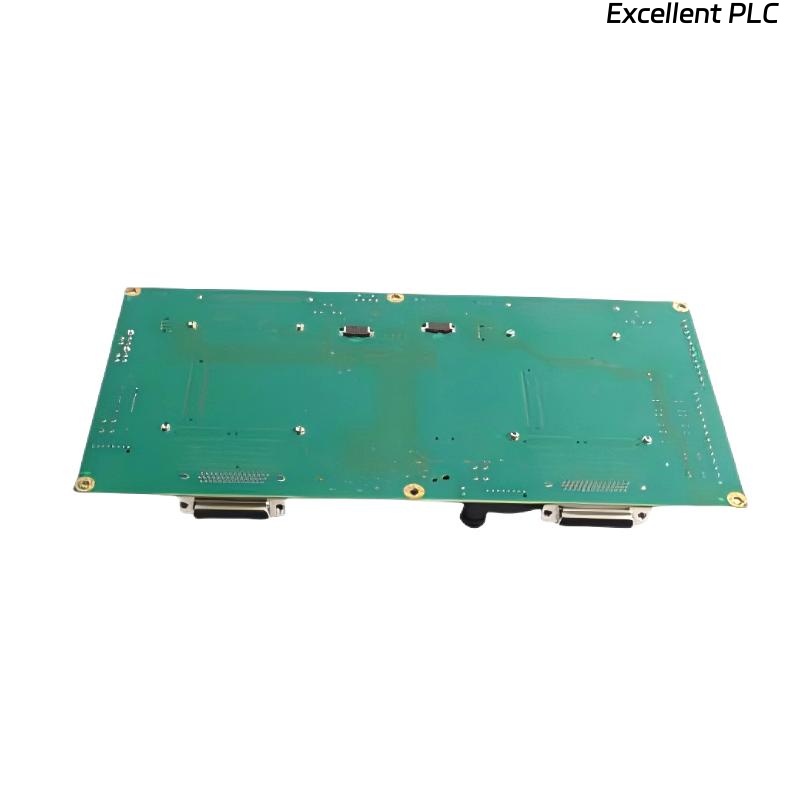

The GE IS215REBFH1B is an advanced I/O expansion board used within GE’s industrial control systems, particularly in the Mark VIe series. This board allows for the extension of I/O capabilities in control systems, enabling additional connections to field devices. It is designed for environments where scalability, flexibility, and reliable communication are critical for continuous operation.
This expansion board is particularly useful in industries such as power generation, manufacturing, and chemical processing, where large-scale systems need additional I/O points for monitoring, control, and automation. The IS215REBFH1B seamlessly integrates with GE’s control platforms, enhancing the overall functionality of the system and providing enhanced diagnostics and process control.
Key Features
-
Modular Expansion: Offers the ability to expand I/O points, making it ideal for complex systems requiring additional inputs and outputs.
-
Seamless Integration: Easily integrates with GE’s Mark VIe systems, expanding the functionality of the existing control platform without the need for a full redesign.
-
High-Performance: Ensures continuous data flow with minimal latency, contributing to real-time monitoring and control.
-
Robust Design: Built to withstand the rigors of industrial environments, ensuring long-term reliability and stability in critical applications.
-
Versatile I/O Support: Capable of handling a variety of digital and analog signals for a wide range of industrial applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | IS215REBFH1B |
| Type | I/O Expansion Board |
| Compatible Systems | GE Mark VIe |
| Dimensions | 178 x 51 x 305 mm |
| Weight | 0.5 kg |
| I/O Types | Digital Inputs, Digital Outputs, Analog Inputs, Analog Outputs |
| Power Supply | 24V DC |
| Communication Protocol | Ethernet, Serial Communication |
| Mounting Type | DIN Rail |
| Environmental Protection | IP20 |
| Operating Temperature Range | -40°C to +85°C |
| Humidity | 5% to 95% non-condensing |
| Integration Type | Plug-and-play with GE Mark VIe systems |
Applications
The GE IS215REBFH1B I/O Expansion Board is designed for industrial environments where adding extra I/O points is essential for controlling large-scale systems:
-
Power Generation: Widely used in power plants to expand the I/O capability for turbine, generator, and other power systems.
-
Oil & Gas: Used in the oil and gas industry for expanding I/O points to manage additional equipment such as pumps, valves, and compressors.
-
Manufacturing: Ideal for large manufacturing plants requiring extra I/O to monitor and control production lines, machinery, and automated processes.
-
Chemical Processing: Used to add I/O points in chemical plants for the control of complex processes and machinery.
-
Water Treatment: Applied in water and wastewater treatment facilities to monitor and control various stages of the treatment process, from filtration to chemical dosing.
Advantages
-
Enhanced System Capacity: By adding additional I/O points, the IS215REBFH1B significantly increases the capacity of the control system to manage more field devices without compromising performance.
-
Flexible Integration: Its plug-and-play nature allows it to seamlessly integrate with GE’s Mark VIe systems without extensive system reconfiguration.
-
Improved Monitoring and Control: The additional I/O expands the ability to monitor and control industrial processes more precisely, leading to improved operational efficiency.
-
Industrial-Grade Durability: Designed to operate in harsh industrial environments, it delivers reliable performance even under challenging conditions.
-
Reduced Downtime: By providing additional I/O functionality, this expansion board helps optimize system performance and minimize downtime during system upgrades or expansion projects.
-
Cost-Effective Solution: Rather than replacing the entire control system, this expansion board provides a cost-effective way to enhance the system’s capabilities.
FAQ
-
What types of I/O does the IS215REBFH1B support?
Answer: The IS215REBFH1B supports both digital and analog I/O types, including digital inputs, digital outputs, analog inputs, and analog outputs. -
Can this expansion board be used with systems other than GE Mark VIe?
Answer: The IS215REBFH1B is specifically designed for use with GE’s Mark VIe systems. Compatibility with other systems may require additional configuration. -
How is the IS215REBFH1B mounted?
Answer: It is mounted on a DIN rail, which is a standard method of installation in industrial control systems. -
What communication protocols are supported by this board?
Answer: The board supports Ethernet and serial communication protocols, allowing it to interface effectively with other control system components. -
What is the power supply requirement for the IS215REBFH1B?
Answer: The module operates on a 24V DC power supply. -
Can the IS215REBFH1B be used in extreme temperatures?
Answer: Yes, the IS215REBFH1B operates within a temperature range of -40°C to +85°C, making it suitable for harsh industrial environments. -
Is the IS215REBFH1B suitable for use in hazardous locations?
Answer: The IS215REBFH1B is rated for IP20 protection, which provides basic protection against dust and moisture but may not be suitable for use in highly hazardous environments. -
How does the IS215REBFH1B improve the performance of the control system?
Answer: It expands the I/O capabilities of the Mark VIe system, allowing more field devices to be connected, thus improving monitoring and control of complex industrial processes. -
What industries typically use the IS215REBFH1B expansion board?
Answer: It is commonly used in power generation, oil and gas, manufacturing, chemical processing, and water treatment industries. -
Can the IS215REBFH1B be integrated with existing systems without disruption?
Answer: Yes, the expansion board is designed for plug-and-play integration with the Mark VIe system, which minimizes system downtime during installation.
