Product Overview

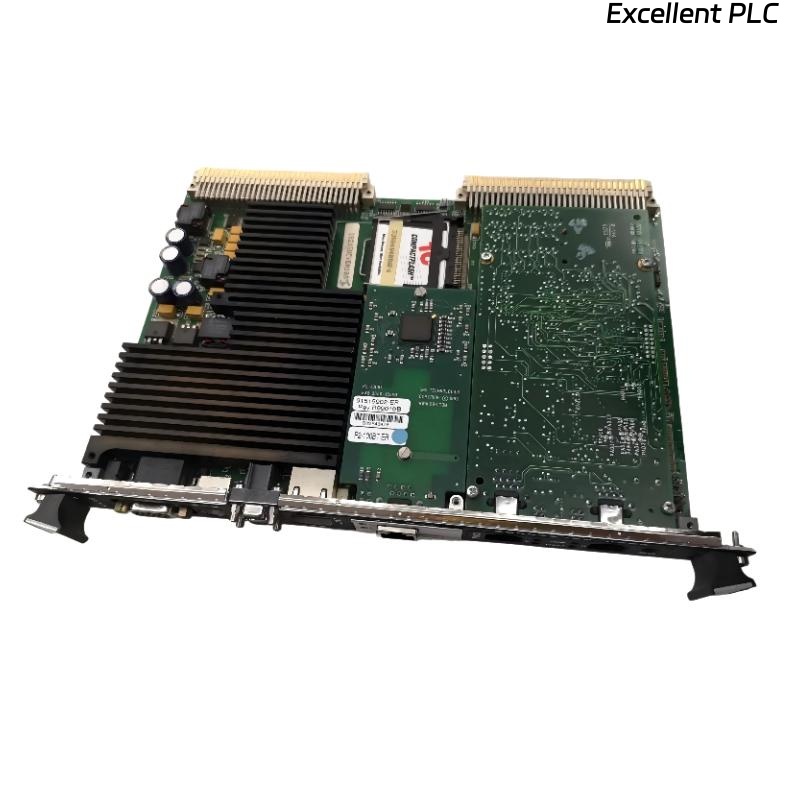

The GE IS215UCVEM10A VME Controller is a versatile and high-performance industrial control solution designed to deliver precise control in demanding environments. It integrates seamlessly into existing control systems and is designed for critical applications that require high availability, reliability, and flexibility. Ideal for use in various industries, it supports various control and communication functions in a robust, modular form factor.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IS215UCVEM10A |
| Dimensions | 159 x 178 mm |
| Weight | 0.907 kg |
| Operating Voltage | 5V DC ±5% |
| Power Consumption | 15 W |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% RH, non-condensing |
| Mounting Type | VMEbus |
| Bus Type | VME (VersaModule Eurocard) |
| I/O Ports | 4 x Serial Ports (RS-232/RS-485) |
| Input Channels | 16 Digital Inputs, 8 Analog Inputs |
| Output Channels | 16 Digital Outputs, 8 Analog Outputs |
| Communication Protocol | Ethernet, Modbus RTU, CANopen |
| Diagnostics | Self-diagnostics, LED indicators |
Product Applications
The GE IS215UCVEM10A VME Controller is widely used in industries that require high-speed, reliable, and efficient control. It is specifically suited for applications such as:
-
Process Control: Integration with various PLC and DCS systems for seamless control and monitoring.
-
Industrial Automation: Managing complex automated processes with high reliability.
-
Data Acquisition Systems: Gathering real-time data from machines or sensors for analysis and reporting.
-
Energy Management: Monitoring and controlling power systems or energy-efficient solutions in manufacturing plants.
-
Transportation Systems: Used in train control systems, traffic monitoring, and control systems.
-
Oil & Gas: Control and monitoring of production systems in offshore and onshore rigs.
Product Advantages
-
High Reliability: Engineered for critical control systems, offering extended uptime in mission-critical environments.
-
Modular and Scalable: The VME format allows users to customize and scale the system to meet evolving operational needs.
-
Integrated Communication: Supports multiple communication protocols, including Ethernet, Modbus RTU, and CANopen, ensuring compatibility with a wide range of systems.
-
High Performance: Advanced processing power and fast response times make it ideal for high-speed industrial control systems.
-
Self-diagnostics and Monitoring: Built-in diagnostics help in proactive maintenance and system health checks, reducing downtime.
-
Temperature Range: Operates in extreme temperatures, making it suitable for outdoor or harsh environmental conditions.
FAQ
1. What is the power supply voltage for the GE IS215UCVEM10A controller?
The power supply voltage required for the GE IS215UCVEM10A controller is 5V DC ±5%.
2. What communication protocols does the controller support?
The controller supports multiple communication protocols, including Ethernet, Modbus RTU, and CANopen, enabling versatile communication in industrial environments.
3. What is the operating temperature range for the IS215UCVEM10A?
The controller can operate in temperatures ranging from -20°C to 70°C.
4. How many digital inputs and outputs does the controller support?
The controller provides 16 digital inputs and 16 digital outputs, allowing for flexible integration with a wide range of industrial equipment.
5. Can the controller be used in high-humidity environments?
Yes, the controller can function in environments with humidity levels ranging from 5% to 95%, non-condensing.
6. Does the GE IS215UCVEM10A have built-in diagnostics?
Yes, it features built-in self-diagnostics, and LED indicators for real-time system status monitoring.
7. What type of mounting does the controller support?
The IS215UCVEM10A is designed for mounting on a VMEbus, ensuring compatibility with existing VME-based control systems.
8. Is the GE IS215UCVEM10A compatible with other GE control products?
Yes, the IS215UCVEM10A is fully compatible with other GE control products, providing easy integration into existing GE-based control systems.
9. What is the maximum number of analog I/O points the controller supports?
The controller supports 8 analog input channels and 8 analog output channels.
10. What diagnostic features are available for monitoring the system health?
The controller includes self-diagnostics and LED indicators, providing real-time health checks and alerts for preventive maintenance.
Related Models
| Model Number | Description |
|---|---|
| IS215UCVEM12A | VME Controller with enhanced digital I/O |
| IS215UCVEM20A | Advanced VME controller with additional communication ports |
| IS215UCVEM30A | VME controller with increased processing speed and power |
| IS215UCVEM40A | VME controller for high-performance applications |
| IS215UCVEM50A | VME controller designed for harsh environments |
| IS215UCVEM60A | High-capacity VME controller with extended I/O capabilities |
