Product Introduction

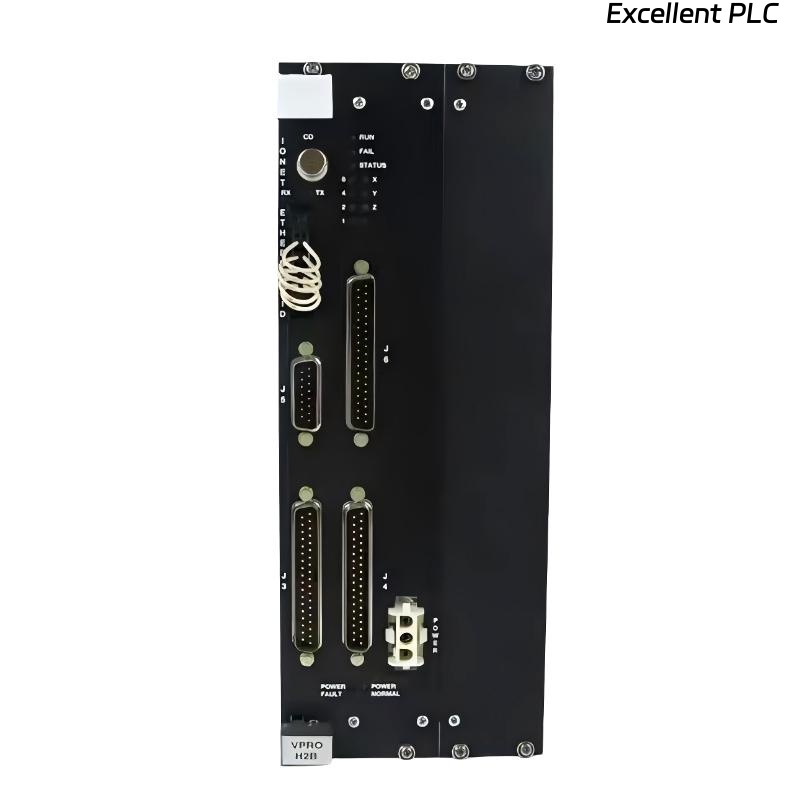

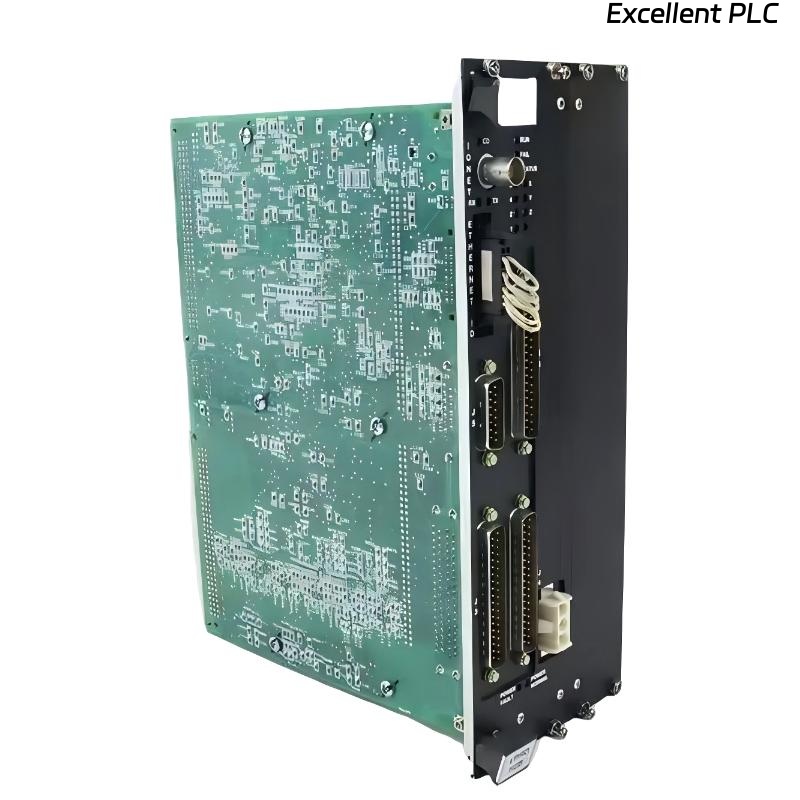

The GE IS215VPROH2BD Turbine Protection Board is an advanced module designed for turbine monitoring and protection in industrial and power generation applications. It provides reliable real-time protection for steam, gas, and hydro turbines, safeguarding them against abnormal operating conditions such as overspeed, excessive vibration, and abnormal temperatures.
This board is engineered for redundant operation, enhancing system reliability by allowing continuous monitoring even if one input path fails. It integrates seamlessly with GE turbine control systems, offering fast fault detection, trip signaling, and diagnostic feedback.
The IS215VPROH2BD is ideal for critical turbine installations where high availability, safety, and reliability are essential.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | IS215VPROH2BD |
| Product Type | Turbine Protection Board |
| Application | Steam, Gas, and Hydro Turbines |
| Protection Functions | Overspeed, Vibration, Temperature, Trip Logic |
| Input Type | Redundant digital and analog inputs |
| Output Type | Relay contacts for trip and alarm signaling |
| Integration | Compatible with GE turbine control systems |
| Diagnostics | Self-test and status reporting |
| Mounting Type | Panel-mounted |
| Dimensions | 231 × 111 × 33 mm |
| Weight | 0.4 kg |
Applications
• Steam turbine protection
Monitors speed, vibration, and temperature to prevent mechanical damage and unsafe operation.
• Gas turbine protection
Provides fast trip signaling for abnormal operating conditions to protect turbine assets.
• Hydro turbine control
Ensures safe operation under fluctuating water flow and load conditions.
• Power plant monitoring
Integrates into control cabinets for real-time diagnostics and event logging.
• Redundant turbine safety systems
Supports continuous monitoring using redundant inputs for high-reliability installations.
Advantages
• Redundant input support
Maintains monitoring and protection even if one input fails, enhancing reliability.
• High-speed protection logic
Provides rapid trip signaling for overspeed, vibration, or temperature anomalies.
• Compact panel-mounted design
Easy installation in relay or control cabinets with minimal space requirements.
• Integrated diagnostics
Includes self-test and status reporting for simplified troubleshooting.
• Seamless GE system integration
Designed to work directly with GE turbine control and monitoring systems.
