Product Introduction

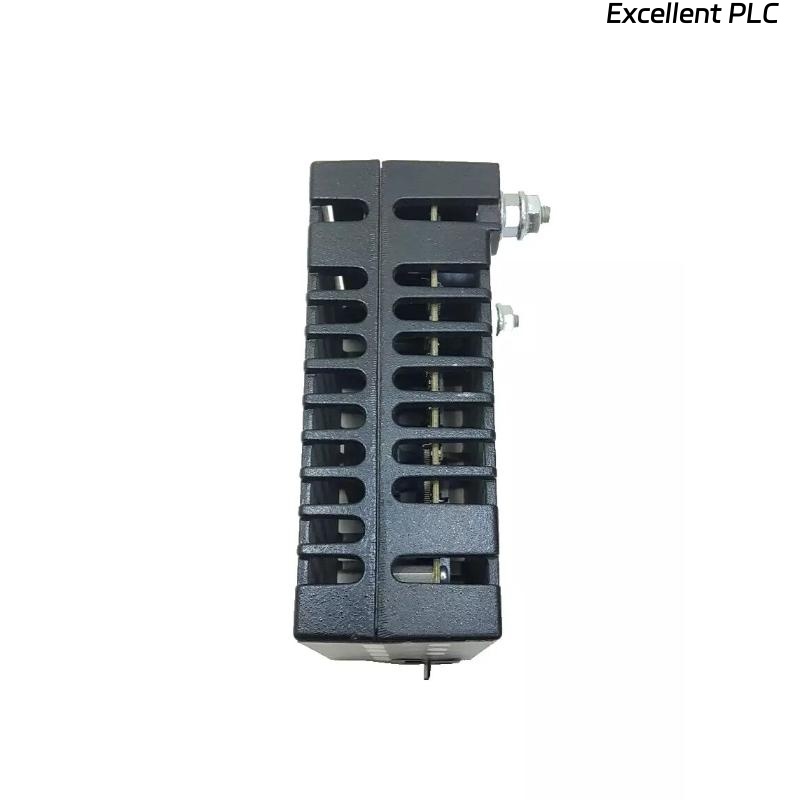

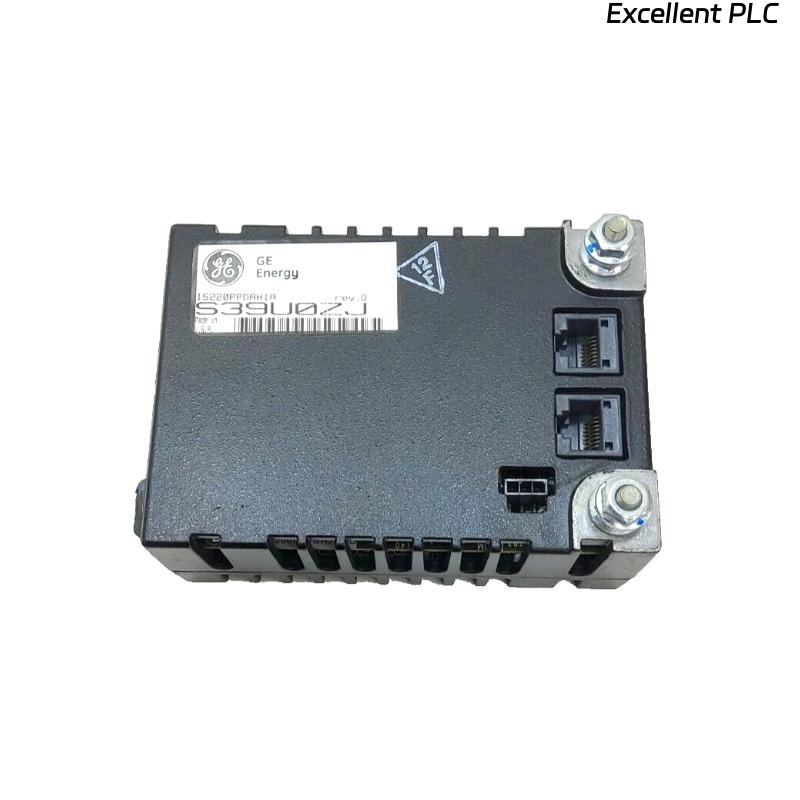

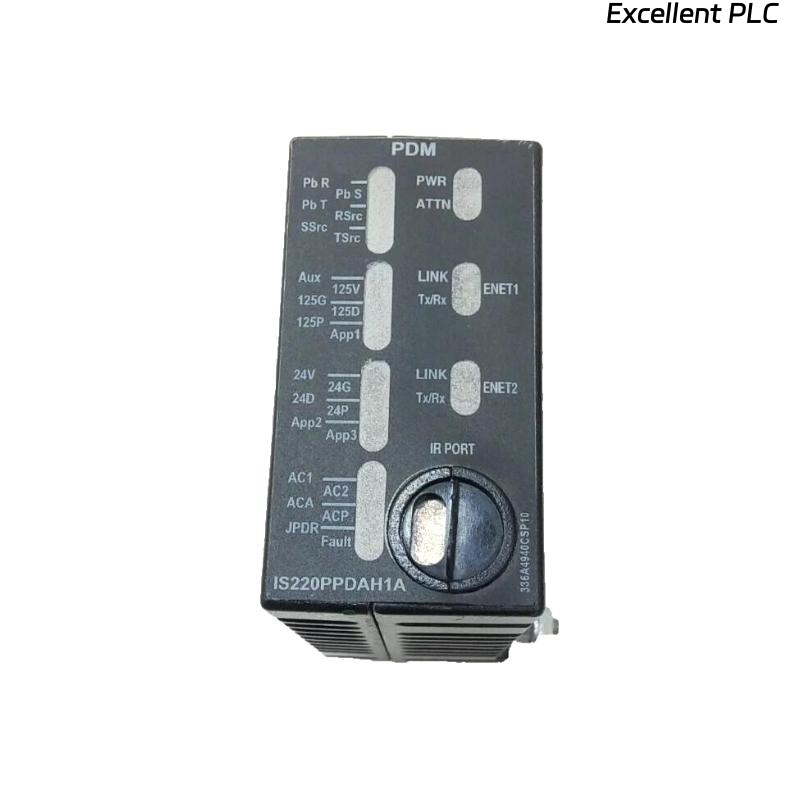

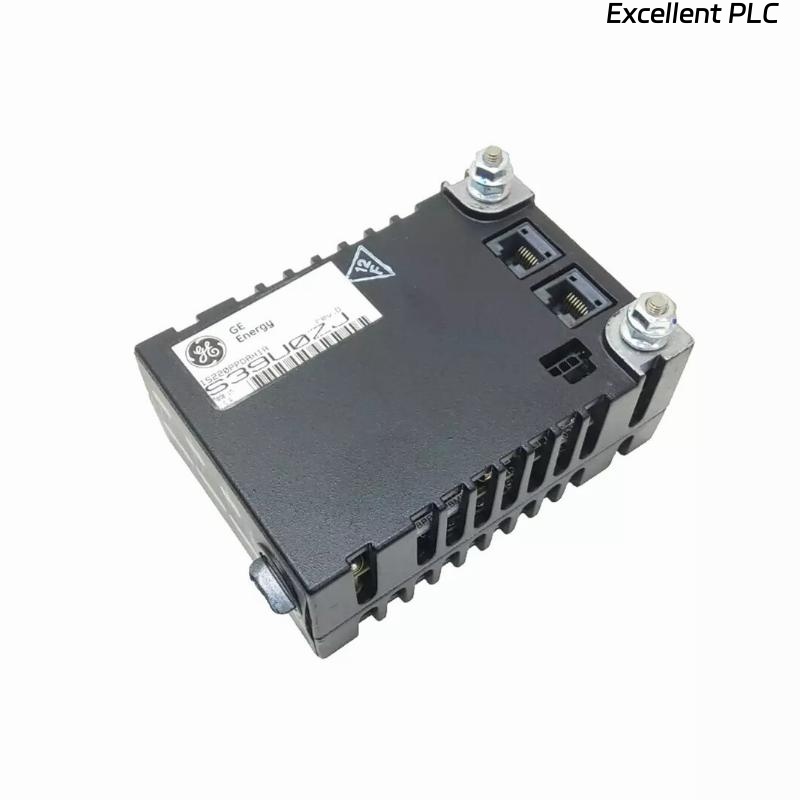

The GE IS220PPDAH1A Power Distribution System Feedback I/O Module is a critical component in the Mark VIe control system, engineered to monitor, manage, and provide feedback on power distribution networks within turbine and industrial automation environments. It functions as an intelligent I/O interface, capturing electrical signals from breakers, relays, bus bars, and other distribution devices, then transmitting accurate diagnostic and operational data back to the control system.
The module ensures that the control system receives real-time feedback on power system health, enabling protection, sequencing, and operational adjustments. It plays a vital role in maintaining the reliability of turbine-driven generation units, balance-of-plant subsystems, and auxiliary electrical distribution networks.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | GE IS220PPDAH1A |
| Series | Mark VIe Control System |
| Function | Power Distribution System Feedback I/O Module |
| Input Channels | Multiple isolated inputs for breaker and relay feedback |
| Output Channels | Status and control signals to the system backplane |
| Communication | Ethernet-based communication with control processors |
| Isolation | High-voltage electrical isolation for input signals |
| Diagnostics | Built-in self-test, error detection, and status indication |
| Power Supply | +5 VDC and +12 VDC provided through backplane |
| Cooling | Passive convection through rack airflow |
| Operating Temperature | -20 °C to +65 °C |
| Storage Temperature | -40 °C to +85 °C |
| Humidity | 10–90% RH, non-condensing |
| Mounting | Plug-in rack-mounted module |
| Dimensions | 180 × 220 × 20 mm |
| Weight | 0.381 kg |
Product Applications
The IS220PPDAH1A is widely used across power generation, heavy industry, and plant automation sectors. Its applications include:
-
Gas Turbines – Monitors auxiliary breaker feedback, fuel pump distribution, and turbine protection circuits.
-
Steam Turbines – Interfaces with high-voltage distribution relays and feedback loops for boiler and turbine auxiliaries.
-
Balance-of-Plant (BoP) Systems – Provides input/output feedback for motors, pumps, fans, and compressors.
-
Power Distribution Networks – Ensures accurate breaker open/close status and trip signals.
-
Redundant Architectures – Operates within simplex or redundant configurations for critical power protection.
-
Substation and Grid Interface – Supplies control system with essential relay and bus bar monitoring data.
Product Advantages
-
High Reliability – Designed for harsh industrial environments with robust isolation and noise immunity.
-
Accurate Feedback – Provides precise real-time power distribution feedback for turbine safety and efficiency.
-
Scalable Integration – Easily integrates into Mark VIe distributed I/O architecture.
-
Built-In Diagnostics – Continuous self-monitoring improves fault detection and predictive maintenance.
-
Reduced Downtime – Modular construction allows rapid replacement without rewiring.
-
Versatile Applications – Supports gas turbines, steam turbines, and auxiliary plant equipment.
-
Industrial-Grade Design – Operates under wide environmental conditions with high durability.
-
Seamless Networking – Ethernet communication ensures fast and deterministic system response.
FAQ
-
What is the main function of the IS220PPDAH1A?
It monitors and reports feedback from power distribution devices to the Mark VIe control system. -
Does the module provide isolation for input signals?
Yes, it features electrical isolation to ensure safety and reduce interference. -
How does it communicate with the Mark VIe controller?
It uses Ethernet-based high-speed communication protocols. -
Can it be used in redundant system configurations?
Yes, it is compatible with simplex and redundant architectures. -
Does the module support breaker feedback monitoring?
Yes, it is specifically designed to capture breaker open/close and trip signals. -
What diagnostic features are built into the module?
It has watchdog timers, self-test routines, and error detection for fault monitoring. -
How does it interact with relay systems?
It receives status feedback from relays and communicates them to the control processor. -
Is the IS220PPDAH1A hot-swappable?
No, it requires a controlled system shutdown for replacement. -
How does it contribute to turbine safety?
By providing reliable power distribution feedback, it ensures protective logic executes correctly. -
Can it interface with non-turbine electrical systems?
Yes, it can be applied in broader industrial power distribution and automation systems.
