Product Introduction

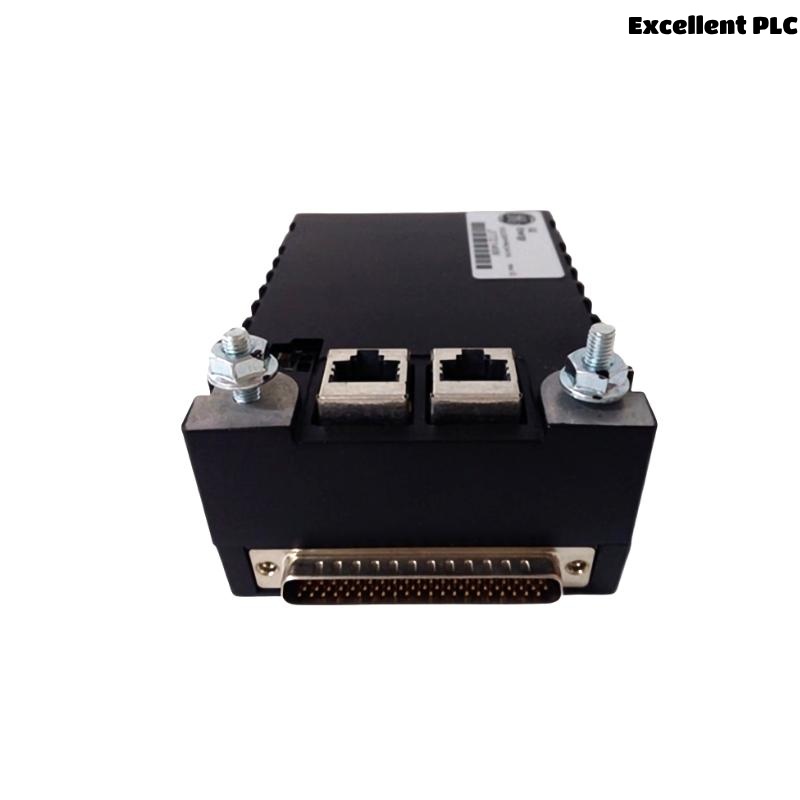

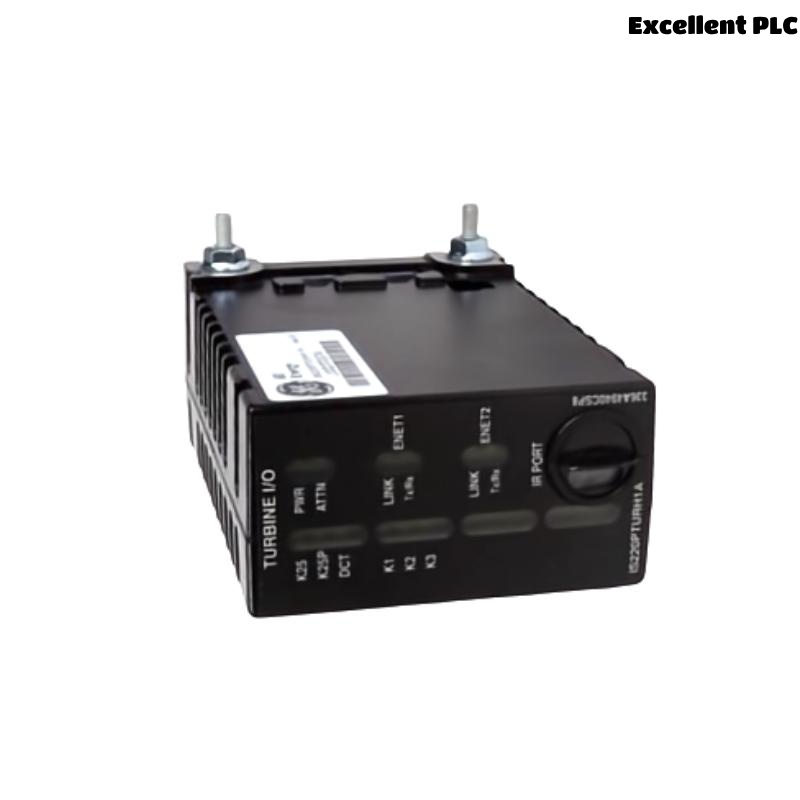

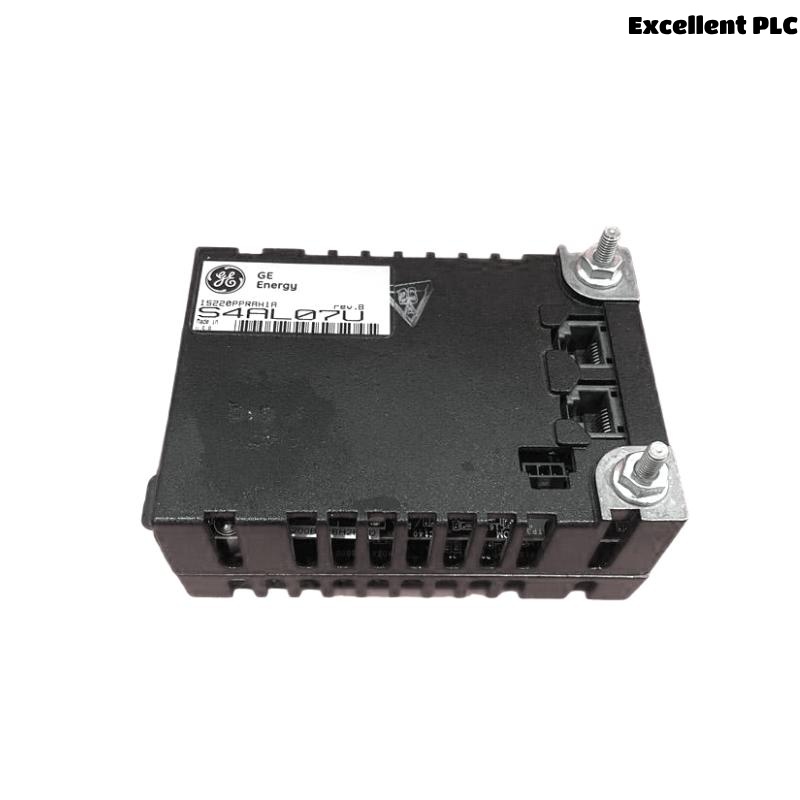

The GE IS220PPRFH1A Profibus Master Gateway Pack is an industrial communication module designed to integrate Profibus-DP networks with GE’s Mark VIe control system architecture. Acting as a Profibus Master, this gateway enables seamless communication between the control system and field devices such as drives, remote I/O racks, distributed sensors, and actuators that use the Profibus-DP protocol.
It serves as a critical link in turbine control systems and industrial automation environments where interoperability between modern control platforms and Profibus-based field equipment is required. The IS220PPRFH1A is engineered for high-speed communication, reliable data transfer, and easy integration — all within GE’s robust and secure Mark VIe platform.
Its compact form factor, rugged construction, and advanced diagnostics help optimize system performance while ensuring operational continuity even in demanding industrial conditions.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | GE IS220PPRFH1A Profibus Master Gateway Pack |
| Model Number | IS220PPRFH1A |
| Series | GE Mark VIe / IS220 Series |
| Function | Profibus-DP Master Gateway for field device integration |
| Supported Protocols | Profibus-DP (IEC 61158 / EN 50170) |
| Profibus Transmission Rate | 9.6 kbps to 12 Mbps (auto-detect) |
| Number of Connected Devices | Up to 125 Profibus-DP slave devices |
| Diagnostic Features | Network health monitoring, communication error reporting, device status |
| Communication Interface (to controller) | Redundant Ethernet IONet (10/100 Mbps) |
| Redundancy Support | Yes (controller and network redundancy) |
| Profibus Interface | Isolated RS485 (EN 50170 compliant) |
| External Power Supply | 24 VDC nominal (range: 18–32 VDC) |
| Module Power Consumption | ~6 W typical |
| Operating Temperature Range | -30°C to +65°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity Range | 5% to 95%, non-condensing |
| Shock / Vibration Compliance | IEC 60068 |
| Mounting Type | Panel-mounted or DIN rail |
| Dimensions (H x W x D) | 330 × 170.8 × 120 mm |
| Weight | 1.2 kg |
| Certifications | CE, UL, CSA, ISO9001, EN 50170, IEC 61158 |
Product Applications
The IS220PPRFH1A Profibus Master Gateway is ideal for a variety of industrial sectors and applications where GE Mark VIe controls must communicate with Profibus-based field devices:
-
Turbine Control Systems
Integrates Profibus-based valve actuators, motor drives, and field instrumentation with Mark VIe turbine control platforms. -
Combined Cycle Power Plants
Enables communication between steam and gas turbine controllers and Profibus-enabled balance-of-plant equipment. -
Industrial Drives Integration
Connects VFDs (variable frequency drives), motor starters, and servo drives on Profibus networks to GE controls. -
Process Automation
Provides connectivity to distributed I/O systems, flow meters, analyzers, and smart devices used in refineries, chemical plants, and heavy industry. -
Retrofit and Modernization Projects
Bridges legacy Profibus-DP networks with modern Mark VIe control systems, ensuring investment protection and system longevity. -
OEM Equipment Integration
Facilitates integration of third-party equipment and packaged systems that use Profibus-DP as their native protocol.
Product Advantages
-
Seamless Integration
Provides reliable Profibus-DP Master capability to the GE Mark VIe platform with no need for external protocol converters. -
Supports Large Device Networks
Up to 125 Profibus-DP slave devices supported, simplifying large system architectures. -
High-Speed Communication
Supports Profibus data rates up to 12 Mbps for real-time data acquisition and control. -
Built-In Diagnostics
Network monitoring and error diagnostics streamline commissioning and maintenance. -
Redundant Operation
Dual-redundant Ethernet interface enhances system availability and fault tolerance. -
Compact and Rugged Design
Industrial-grade components ensure reliable operation even in harsh environments. -
Global Standards Compliance
Meets all relevant global standards for Profibus-DP, electrical safety, and EMC. -
Future-Proof
Facilitates migration paths for older Profibus-based assets to GE’s modern Mark VIe controls.
Frequently Asked Questions (FAQ)
-
What is the main function of the IS220PPRFH1A?
It acts as a Profibus-DP Master Gateway to integrate Profibus-based field devices with the GE Mark VIe control system. -
How many Profibus devices can be connected?
Supports up to 125 Profibus-DP slave devices. -
What is the maximum Profibus transmission rate?
Up to 12 Mbps (auto-detectable). -
Does the module support redundant communication?
Yes, it supports redundant Ethernet IONet connectivity. -
Is the Profibus interface isolated?
Yes, it is optically isolated RS485 per EN 50170. -
Can this module be used in retrofit projects?
Yes, it is ideal for retrofitting existing Profibus networks to modern GE Mark VIe controls. -
How is the module powered?
It uses a 24 VDC external power supply (18–32 VDC range). -
What is the mounting method?
The module can be mounted on a panel or DIN rail. -
Does it support online diagnostics?
Yes, it includes network health monitoring and device status diagnostics. -
Which industries typically use this module?
Power generation, oil & gas, chemical processing, heavy industry, and OEM equipment integration.
