Product Introduction

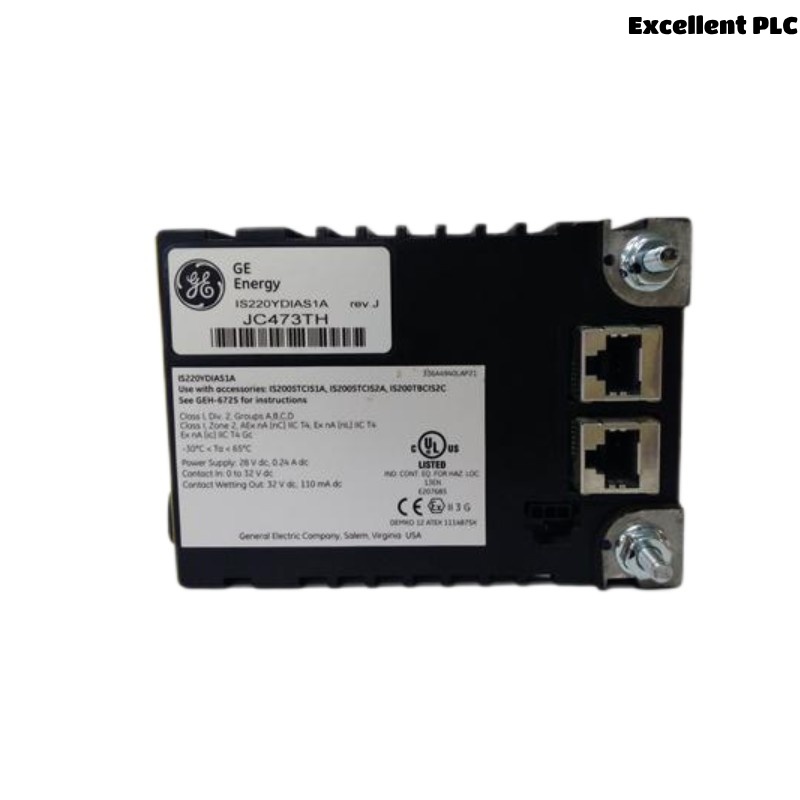

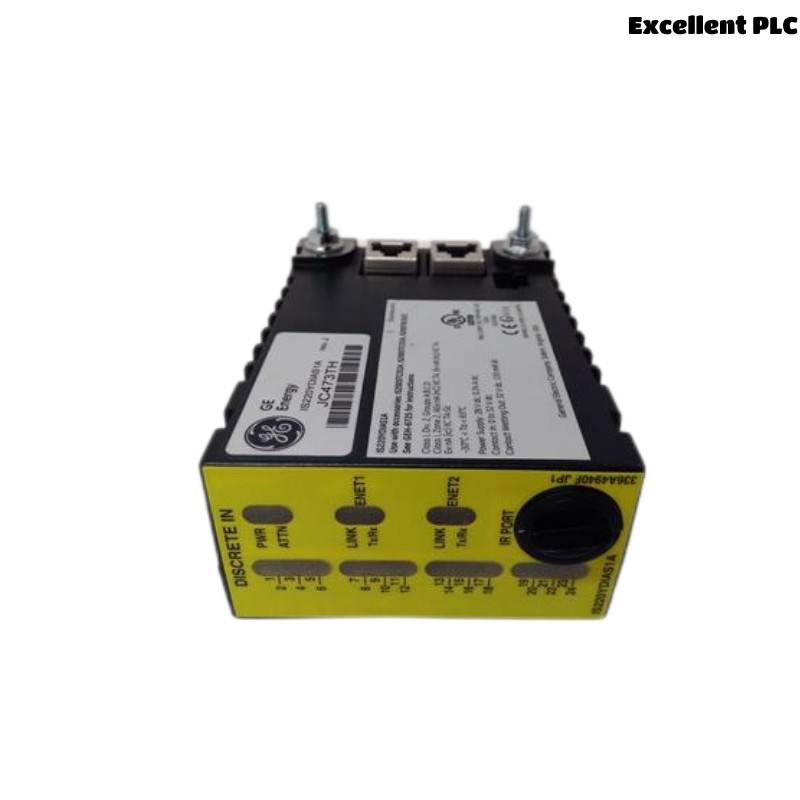

The GE IS220YDIAS1A is a high-performance discrete input module designed for the GE Mark VIe control system. It is part of the I/O pack family within GE’s modular and scalable turbine control architecture. Engineered to interface with field devices such as switches and sensors, the IS220YDIAS1A processes 24 discrete inputs, ensuring accurate, fast, and reliable data collection for real-time turbine monitoring and process control.
The module incorporates advanced diagnostic features and supports TMR (Triple Modular Redundancy) or simplex applications, making it suitable for critical industrial environments. It is equipped with a built-in processor, allowing local control execution and reducing response time while enhancing system reliability. The IS220YDIAS1A is hot-swappable, enabling maintenance without shutting down the system.
Product Specifications
| Parameter | Value |
|---|---|
| Manufacturer | GE (General Electric) |
| Model Number | IS220YDIAS1A |
| Module Type | Discrete Input I/O Pack |
| Number of Channels | 24 discrete input channels |
| Input Type | Dry Contact / Voltage-type input |
| Input Voltage Range | 24 VDC nominal |
| Isolation | Optical isolation per channel |
| Built-in Processor | Yes |
| Hot Swappable | Yes |
| Communication | Ethernet (profinet-compatible) |
| Diagnostics | Per-channel status & self-check features |
| Mounting Type | DIN rail or panel mount |
| Operating Temperature | -30°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% non-condensing |
| Power Supply | 28–32 VDC |
| Dimensions | 138 x 86 x 56mm |
| Weight | 0.907kg |
| Certification | CE, UL, CSA, RoHS |
Product Applications
The GE IS220YDIAS1A module is used across a variety of industrial and energy applications requiring robust input signal monitoring. Common use cases include:
-
Gas and Steam Turbine Control Systems
-
Process Automation in Power Plants
-
Oil & Gas Pipeline Control
-
Industrial Manufacturing Automation
-
Safety Interlock Systems
-
Utility Substations and Renewable Energy Systems
Its compatibility with GE Mark VIe control platforms ensures seamless integration into large-scale distributed control systems (DCS).
Product Advantages
-
High Channel Density – Supports 24 discrete input channels, enabling compact and efficient wiring.
-
Advanced Diagnostics – Built-in status and error monitoring improve system visibility and troubleshooting.
-
Integrated Processor – Reduces central controller load and allows distributed logic execution.
-
Hot Swappable – Enables replacement without downtime, supporting continuous operation.
-
Flexible Mounting – Can be DIN rail or panel-mounted to suit different cabinet designs.
-
Industrial-grade Design – Operates reliably in harsh environments with wide temperature and humidity ranges.
-
Standardized Communication – Ethernet connectivity ensures high-speed, industry-standard networking.
-
Fail-Safe Functionality – Designed for mission-critical systems with redundancy support.
Frequently Asked Questions (FAQs)
Q1: What is the primary function of GE IS220YDIAS1A?
A1: It collects and processes 24 discrete input signals from field devices for use in GE Mark VIe control systems.
Q2: Can the module be replaced while the system is running?
A2: Yes, it is hot-swappable, allowing maintenance or replacement without shutting down the system.
Q3: Is this module compatible with TMR systems?
A3: Yes, the IS220YDIAS1A supports both simplex and Triple Modular Redundancy (TMR) configurations.
Q4: What type of devices can be connected to the input channels?
A4: It supports dry contact switches or devices providing a 24 VDC signal, such as proximity sensors or relays.
Q5: Does it support diagnostic features?
A5: Yes, it provides per-channel diagnostics and fault monitoring, including status LEDs and error logging.
Q6: What is the voltage requirement for the input signal?
A6: The module is designed for nominal 24 VDC input signals.
Q7: Can this I/O module be used in outdoor environments?
A7: While the module itself is rugged, it should be installed within an appropriately rated enclosure for outdoor use.
Q8: What standards or certifications does this module meet?
A8: It complies with CE, UL, CSA, and RoHS standards.
Q9: What happens if a channel fails?
A9: The module provides diagnostic feedback and can be configured to raise system alarms or take predefined actions.
Q10: Is the IS220YDIAS1A suitable for safety systems?
A10: Yes, it is widely used in safety-critical systems, especially when configured with redundancy and diagnostics.
