Product Overview

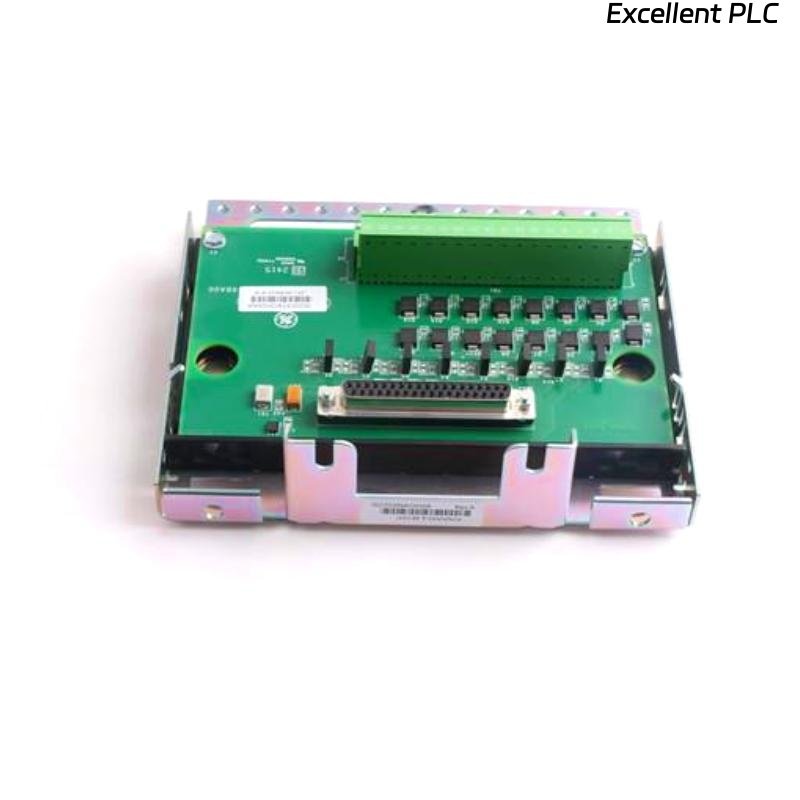

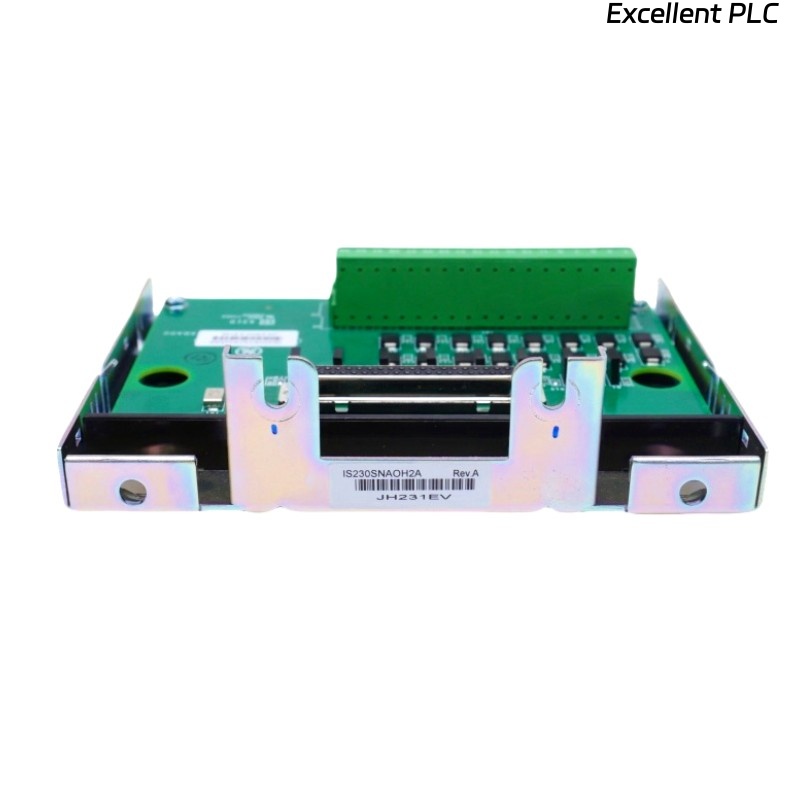

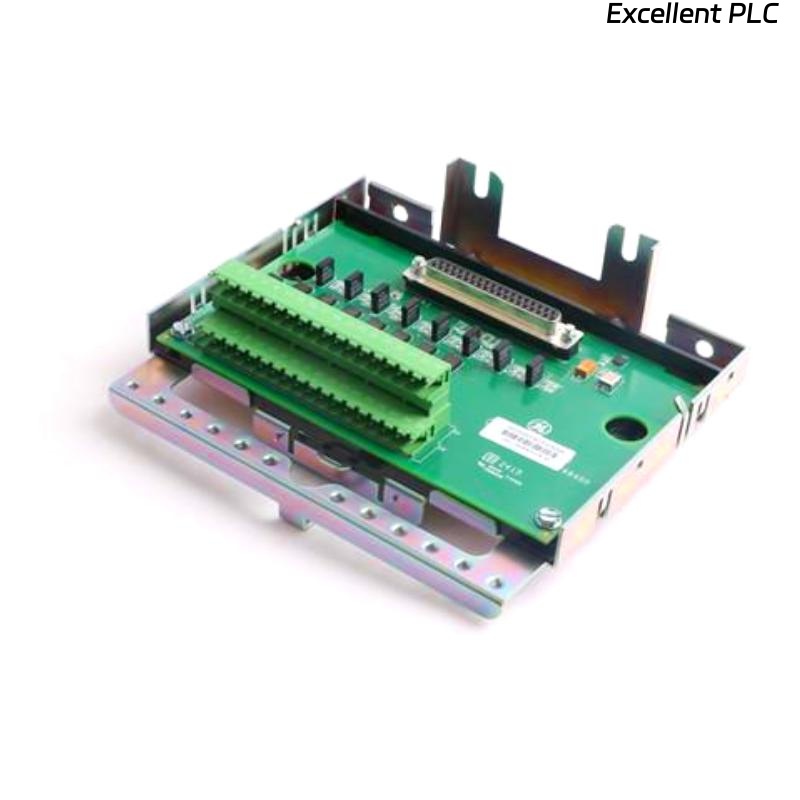

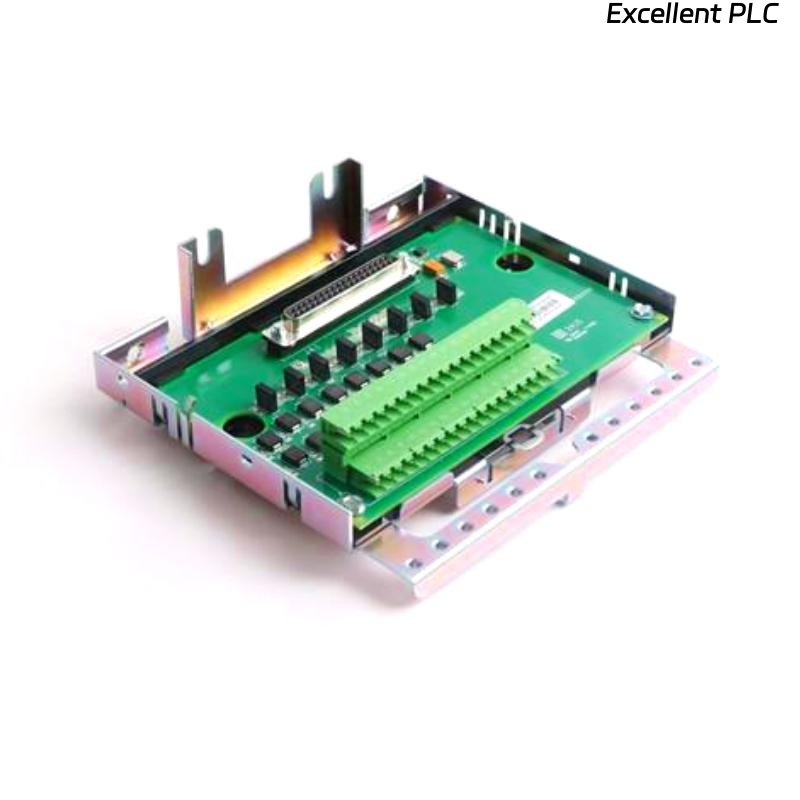

The GE IS230SNAOH2A Analog Output Board is designed for industrial applications that require high-performance analog output signals. It integrates seamlessly into control systems, offering precise control and reliable signal transmission. The board is part of the GE series of I/O modules, providing flexibility and scalability for process control and automation systems.
Technical Specifications
| Specification | Details |
|---|---|
| Model | IS230SNAOH2A |
| Dimensions | 167 x 148 x 55 mm |
| Weight | 0.56 kg |
| Voltage | 24 V DC |
| Output Type | 4-20 mA, 0-10 V |
| Accuracy | ±0.1% FS |
| Temperature Range | -20°C to 70°C |
| Mounting Type | DIN Rail |
| Power Consumption | 5W |
Product Applications
-
Industrial Automation: For controlling actuators, valves, and other analog devices within an automation system.
-
Process Control: To interface with machinery and equipment that require continuous analog output signals.
-
Energy Systems: Used for managing and regulating power equipment that utilizes analog signals for operational control.
-
Temperature and Pressure Control: In systems where precise analog outputs are required to control the heating, ventilation, or pressure systems in industries such as oil & gas, manufacturing, and chemicals.
Product Advantages
-
High Precision: Offers accurate analog output, ensuring smooth and reliable control in industrial systems.
-
Versatile Compatibility: Integrates easily with various controllers and systems in industrial environments.
-
Reliable Performance: Built to withstand the harsh conditions of industrial settings, offering consistent output over long periods.
-
Ease of Installation: Simple DIN rail mounting design for fast and efficient setup.
-
Wide Temperature Range: Suitable for use in diverse environmental conditions, from cold storage to high-temperature zones.
-
Low Power Consumption: Efficient power use, ensuring reduced operational costs.
FAQ
-
What type of outputs can the IS230SNAOH2A provide?
-
The board provides 4-20 mA and 0-10 V analog output signals, ideal for industrial control applications.
-
-
What is the accuracy of the output signal?
-
The output signal accuracy is ±0.1% of full scale, ensuring precise control in industrial processes.
-
-
What is the recommended operating temperature range for the IS230SNAOH2A?
-
The recommended operating temperature range is from -20°C to 70°C, making it suitable for a wide range of environments.
-
-
Can this module be integrated with other GE control systems?
-
Yes, the IS230SNAOH2A is fully compatible with GE’s control systems and can be easily integrated with other I/O modules.
-
-
What is the power consumption of this module?
-
The IS230SNAOH2A consumes only 5W of power, making it energy-efficient for continuous operation.
-
-
How is the module mounted?
-
The module is designed for DIN rail mounting, which simplifies installation and provides secure, stable positioning in control cabinets.
-
-
What is the voltage requirement for this module?
-
The IS230SNAOH2A operates on 24 V DC, commonly used in industrial control environments.
-
-
Can this board be used in hazardous environments?
-
While this module is designed for robust industrial environments, specific certifications may be required for use in hazardous locations. Consult the technical manual for more details.
-
-
How many analog output channels are supported by the module?
-
The IS230SNAOH2A supports multiple analog output channels, with each channel providing either 4-20 mA or 0-10 V outputs.
-
-
Is this module suitable for temperature and pressure control systems?
-
Yes, this module is widely used in systems where temperature and pressure need to be controlled with precise analog outputs.
