Product Introduction

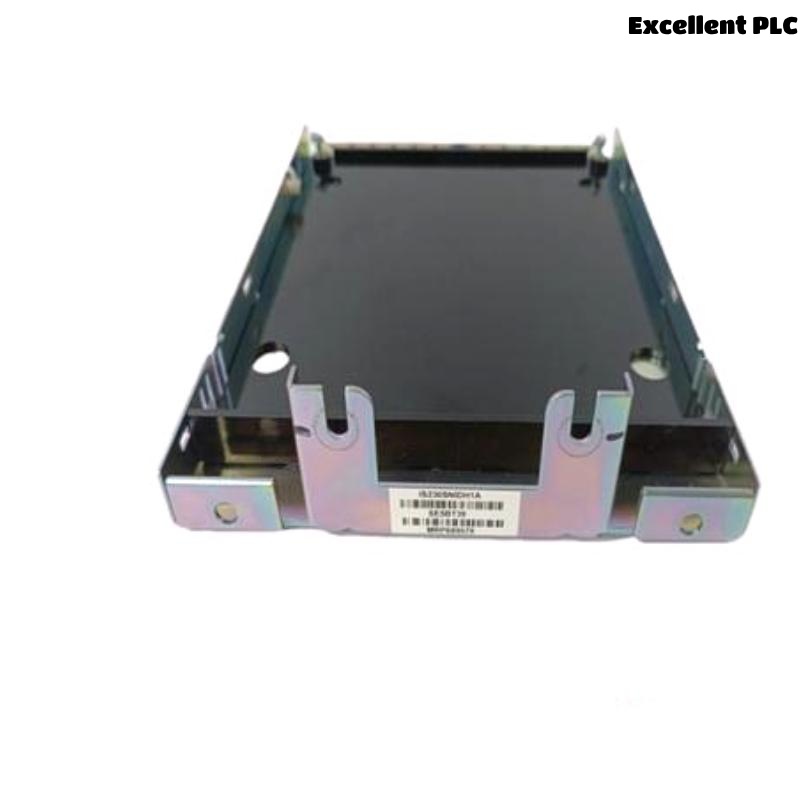

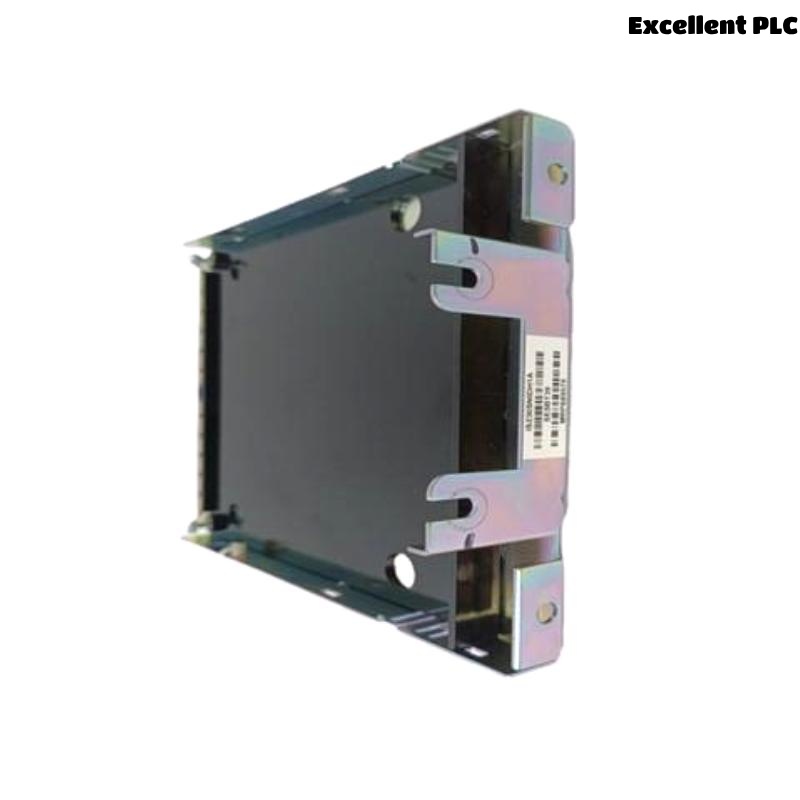

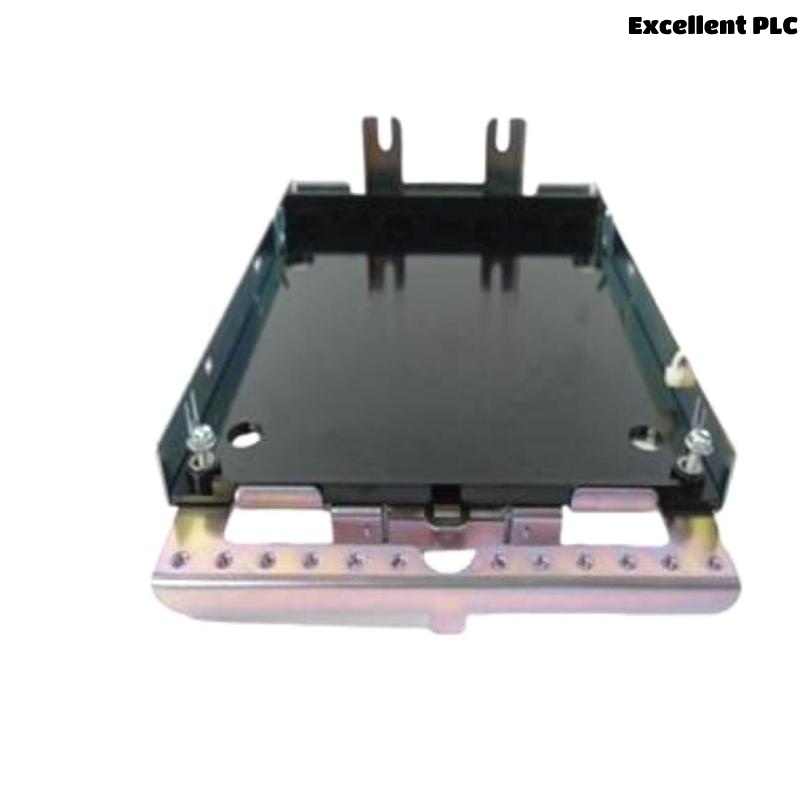

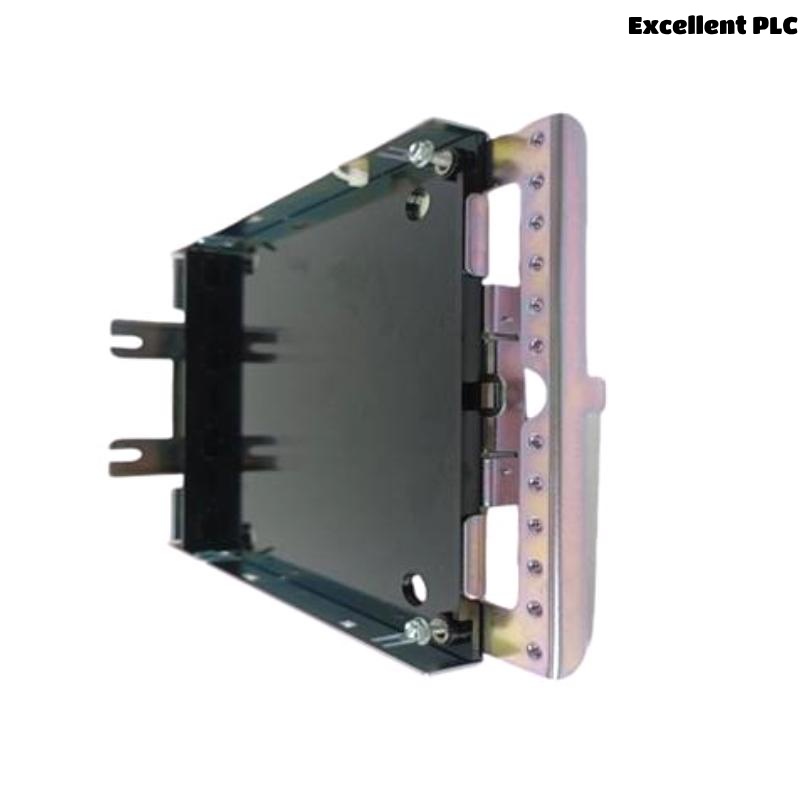

The GE IS230SNTCH4A is a sophisticated terminal board designed for the Mark VIe control system, part of GE’s renowned distributed control solutions for industrial and power applications. Engineered to deliver high-speed signal termination and robust field connectivity, this terminal board supports thermocouple signal inputs, offering exceptional reliability and accuracy in temperature monitoring and process control. Its modular design and compatibility with other Mark VIe components make it an essential part of modern automated systems, ensuring seamless integration and efficient system management.
Product Advantages
-
Precise Signal Handling: Designed specifically to handle multiple thermocouple inputs with high accuracy.
-
Industrial Robustness: Engineered to operate reliably in demanding industrial environments, resistant to vibrations and temperature variations.
-
Seamless Integration: Compatible with the GE Mark VIe system and other related GE modules, simplifying installation and system upgrades.
-
Compact and Modular: Optimized size for cabinet installation and modular replacement without significant downtime.
-
Enhanced Diagnostics: Supports built-in diagnostics to ensure system health and reduce unexpected maintenance.
-
Long Lifecycle: Designed and tested to meet the high reliability standards required in critical applications like power generation and process control.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | IS230SNTCH4A |
| Product Type | Thermocouple Terminal Board |
| Dimensions | 127x 127x 132mm |
| Weight | 0.4kg |
| Voltage | Typically operates within the low-voltage signal range for thermocouples |
| Number of Channels | 16 isolated thermocouple input channels |
| Temperature Range | -40°C to +70°C (operational) |
| Insulation | High-quality insulation ensuring safe and precise signal transfer |
| Mounting Style | DIN rail or panel mount, compatible with Mark VIe system cabinets |
| Certifications | Meets industry standards for industrial control equipment |
Applications
-
Power generation facilities for real-time turbine temperature monitoring.
-
Oil & gas plants requiring precise thermal measurement for process safety.
-
Chemical processing plants to monitor and control temperature-critical processes.
-
Industrial automation systems where accurate temperature feedback is essential.
-
Steel and metal industries needing consistent furnace and equipment temperature management.
-
Pulp and paper manufacturing, ensuring process stability and energy efficiency.
Product Advantages (Detailed)
-
Enables direct thermocouple termination, reducing wiring complexity.
-
Supports redundancy configurations for critical system reliability.
-
Designed to fit in standard control cabinets, minimizing additional space requirements.
-
Backed by GE’s global support and proven Mark VIe architecture.
-
Enables fast field replacement, lowering downtime during maintenance.
-
High signal integrity, ensuring precise process control.
FAQ
Q1: What is the primary function of the IS230SNTCH4A?
The IS230SNTCH4A is designed to receive and terminate thermocouple inputs for accurate temperature measurement in GE Mark VIe systems.
Q2: Can it be used with other GE control systems?
Primarily it is optimized for the Mark VIe system, but may be integrated with other GE systems where compatible modules exist.
Q3: How many thermocouple inputs does it support?
It supports up to 16 isolated thermocouple input channels.
Q4: What type of thermocouples can it handle?
It is generally compatible with standard industrial thermocouple types, like Type J, K, T, etc., depending on system configuration.
Q5: Is it suitable for outdoor installations?
The terminal board itself should be installed in a protected cabinet. Its components are built to withstand industrial temperatures but not direct outdoor exposure.
Q6: How does it improve system reliability?
Through isolated channels, built-in diagnostics, and redundancy support, the module ensures reliable temperature data, which is critical for safety and efficiency.
Q7: What are the installation requirements?
DIN rail or panel mounting inside a standard control cabinet, following GE’s installation manuals.
Q8: Does it need external power?
As a signal termination board, it relies on the Mark VIe system power; it doesn’t require separate external power.
Q9: What maintenance does it need?
Minimal maintenance; regular inspections for wiring condition and system diagnostics are recommended.
Q10: What industries use this product most?
Mainly power generation, oil & gas, petrochemical, and heavy industrial applications where temperature monitoring is mission-critical.
Recommended Related Models (Same Series / Compatible)
-
IS230TNTCH1A
-
IS230STTCH2A
-
IS230SRTDH2A
-
IS230TRTDH1A
-
IS230TTURH1C
-
IS230TTURH2C
Popular Models from the Same Brand (with Specs Table)
| Model | Product Type | Dimensions (mm) | Weight (g) | Typical Voltage |
|---|---|---|---|---|
| IS230TNTCH1A | Thermocouple Terminal Board | 180×110×25 | 280 | Low-voltage signal |
| IS230SRTDH2A | RTD Terminal Board | 180×110×25 | 270 | Low-voltage signal |
| IS230TRTDH1A | RTD Terminal Board | 180×110×25 | 270 | Low-voltage signal |
| IS230TTURH1C | Turbine Terminal Board | 185×120×28 | 300 | 24V nominal |
| IS230TTURH2C | Turbine Terminal Board | 185×120×28 | 310 | 24V nominal |
| IS220PAICH1A | Analog Input/Output Pack | 160×100×30 | 320 | 24V nominal |
| IS220PDIOH1A | Discrete Input/Output Pack | 160×100×30 | 320 | 24V nominal |
| IS220PSVOH1A | Servo Control Pack | 160×100×30 | 330 | 24V nominal |
