Product Introduction

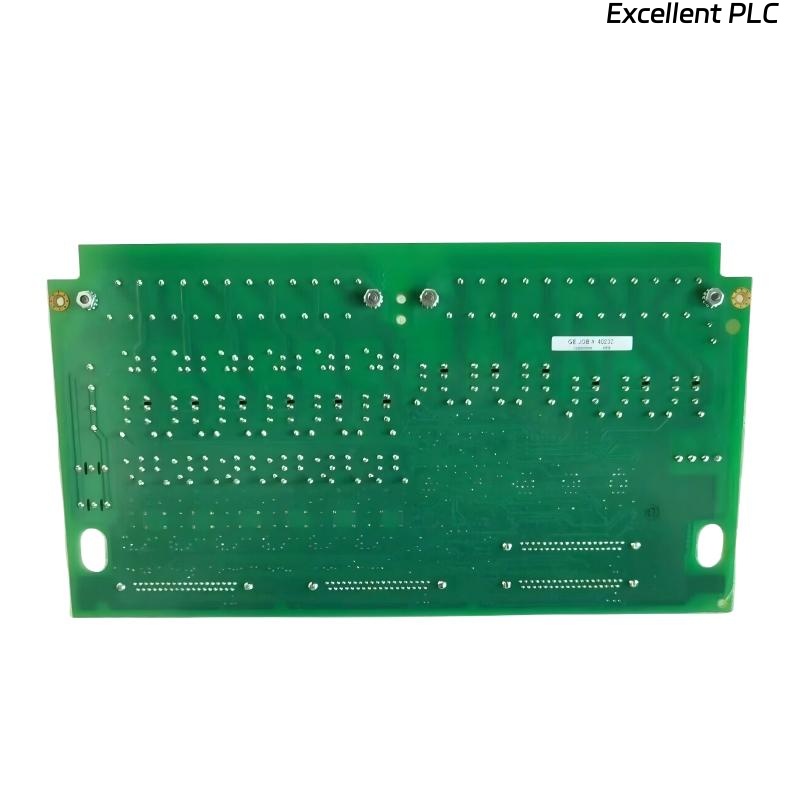

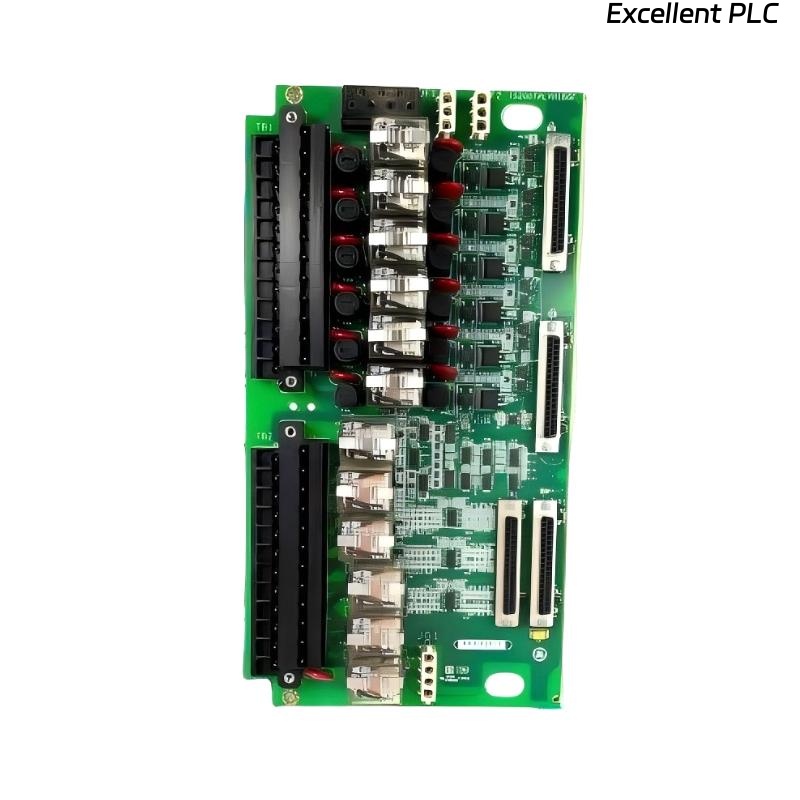

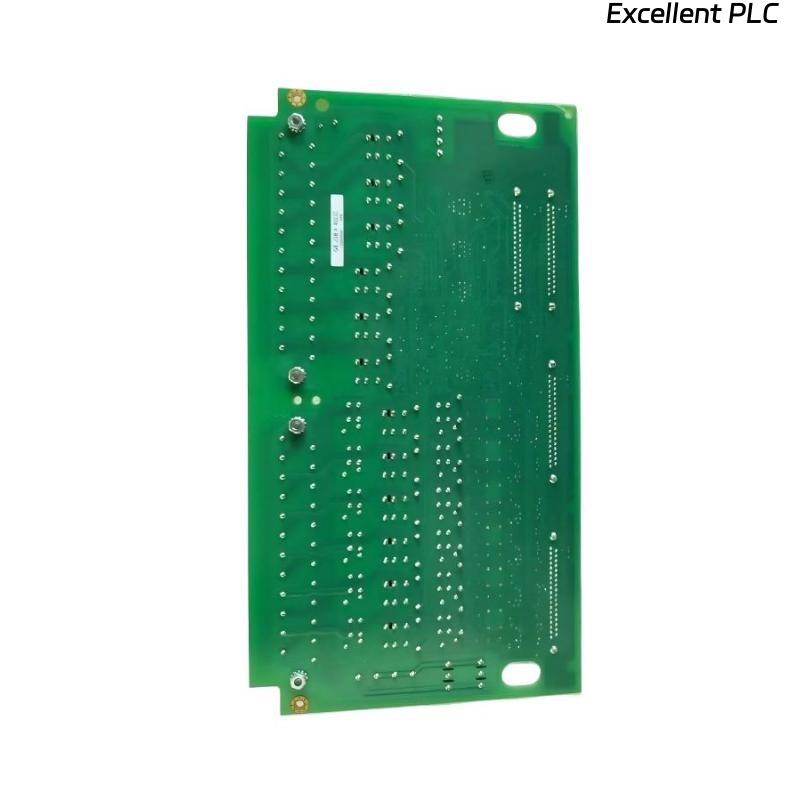

The GE IS239TRLYH1B Printed Circuit Board is a high-performance relay interface module developed by General Electric for use within the Mark VIe and related GE control systems. This board serves as an intelligent relay driver and interface between the control processor and field devices, enabling safe and accurate execution of output commands. Designed to handle complex automation requirements, it supports precise relay actuation, isolation, and signal transmission in industrial environments.
Constructed with industrial-grade electronic components and a multilayer PCB layout, the IS239TRLYH1B ensures superior electrical integrity and thermal stability. It plays a vital role in turbine control, process automation, and protection systems where reliable switching and fault isolation are essential. With its robust architecture, diagnostic capabilities, and high-voltage isolation, this circuit board enhances both system efficiency and operational safety.
Product Parameters
| Parameter | Description |
|---|---|
| Product Model | IS239TRLYH1B |
| Manufacturer | General Electric (GE) |
| Product Type | Printed Circuit Board (Relay Interface Module) |
| System Compatibility | GE Mark VIe and Mark VI Control Systems |
| Function | Provides electrical interface and actuation for relay outputs |
| Input Signal Type | Digital logic signal from control processor |
| Output Type | Relay driver outputs |
| Number of Output Channels | 16 channels (independently controlled) |
| Relay Type | Electromechanical and solid-state compatible |
| Voltage Rating | 24 VDC nominal control voltage |
| Current Rating | 2A per channel (max) |
| Isolation Voltage | 1500 V (channel-to-logic isolation) |
| Power Consumption | Approx. 8 W |
| Protection Features | Overvoltage, reverse polarity, and surge protection |
| Diagnostic Features | Channel status monitoring and relay feedback |
| PCB Material | FR4 multilayer board with conformal coating |
| Operating Temperature | 0°C to +65°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% non-condensing |
| Mounting Method | Rack-mounted or modular installation |
| Compliance Standards | CE, RoHS, IEC 61010, and EN 61326 |
| Dimensions | 200 × 120 × 35 mm |
| Weight | 1.05 kg |
Product Applications
The GE IS239TRLYH1B Printed Circuit Board is an integral component used across numerous industrial control and automation systems where signal reliability and output control are critical. Typical application areas include:
-
Turbine Control Systems: Facilitates relay actuation for trip, start, and stop commands in both gas and steam turbine operations.
-
Power Generation Facilities: Used for controlling generator breakers, alarms, and protective interlocks.
-
Industrial Automation: Provides relay-based control for manufacturing processes, robotics, and motor control systems.
-
Oil and Gas Processing: Manages remote relays and solenoid valves in hazardous environments.
-
Chemical and Refining Plants: Controls process valves, pumps, and safety systems requiring isolation and high reliability.
-
HVAC and Utility Systems: Enables automated switching and feedback for industrial ventilation and utility distribution.
Product Advantages
The GE IS239TRLYH1B offers numerous operational and technical benefits that enhance its performance in industrial applications:
-
High Output Reliability: Each relay output channel is independently driven and isolated, reducing fault propagation.
-
Comprehensive Protection: Features built-in overcurrent, overvoltage, and surge suppression mechanisms.
-
Modular Design: Allows quick replacement and maintenance without disrupting adjacent modules or system wiring.
-
Advanced Diagnostics: Supports real-time status indication and fault reporting for improved system monitoring.
-
Electrically Isolated Design: Provides excellent protection for logic circuits from external high-voltage transients.
-
Enhanced Control Accuracy: Fast switching relays ensure consistent and precise response in automation sequences.
-
Long-Term Stability: Designed for extended operation under harsh industrial temperature and vibration conditions.
-
Seamless Integration: Fully compatible with GE’s Mark VIe platform and associated I/O subsystems.
-
Low Power Demand: Efficient circuit design minimizes overall power consumption in large systems.
-
High-Quality Manufacturing: Produced under strict GE quality standards to ensure long-lasting performance.
FAQ
-
What is the main role of the IS239TRLYH1B board?
The board functions as a relay output interface that converts control processor signals into relay actuation commands for field devices. -
How many relay output channels are available on this board?
It provides sixteen (16) isolated relay driver channels for controlling multiple field circuits simultaneously. -
Is the IS239TRLYH1B compatible with both electromechanical and solid-state relays?
Yes, it supports both relay types, making it adaptable to a variety of industrial control setups. -
What kind of protection is integrated into the circuit design?
The board includes reverse polarity protection, transient suppression, and overcurrent protection on each output channel. -
Does the module include diagnostic monitoring?
Yes, it features diagnostic circuits that monitor output channel status and provide relay feedback to the main controller. -
How does the board ensure electrical isolation between field and logic circuits?
It utilizes opto-isolators and transformer-based design elements to separate control logic from high-voltage output circuits. -
What is the nominal control voltage for the IS239TRLYH1B?
The nominal control voltage is 24 VDC, which aligns with GE’s standard control system voltage. -
Can the board be used in high-noise industrial environments?
Yes, it is designed with noise-resistant PCB routing and conformal coating to withstand electrical and environmental interference. -
How fast can the output relays respond to control signals?
Typical response time per relay channel is less than 10 milliseconds, suitable for time-sensitive automation processes. -
Is this board hot-swappable within the GE Mark VIe rack?
Yes, it supports hot-swap replacement when installed in compatible systems, minimizing downtime during maintenance.
