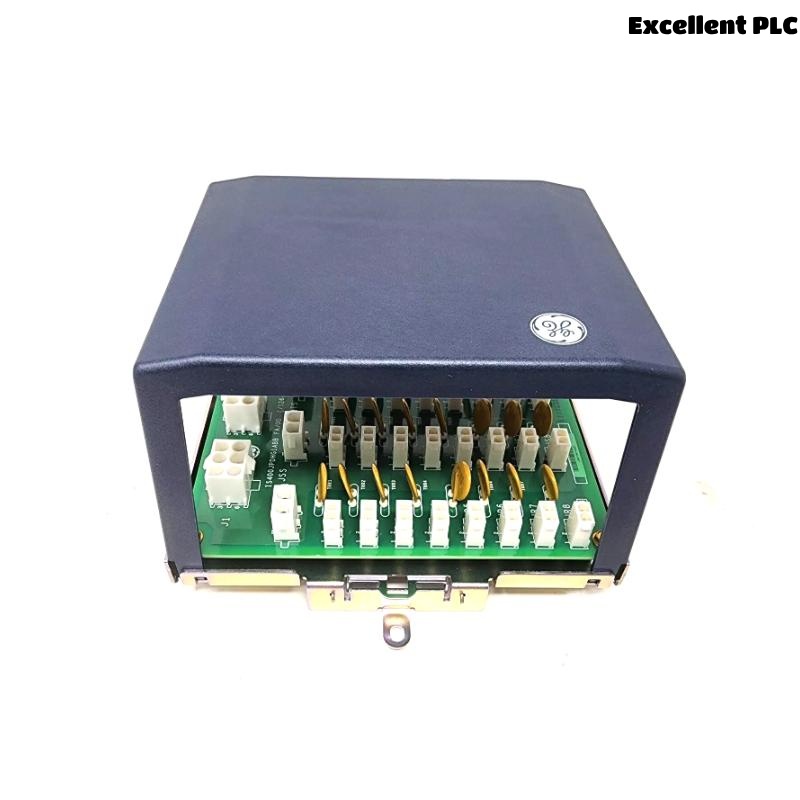

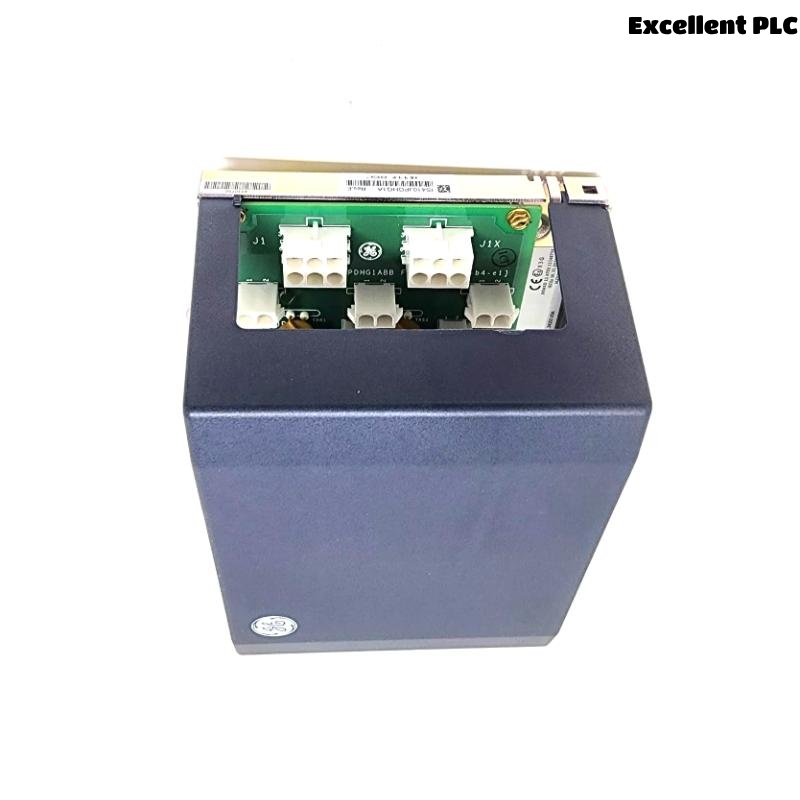

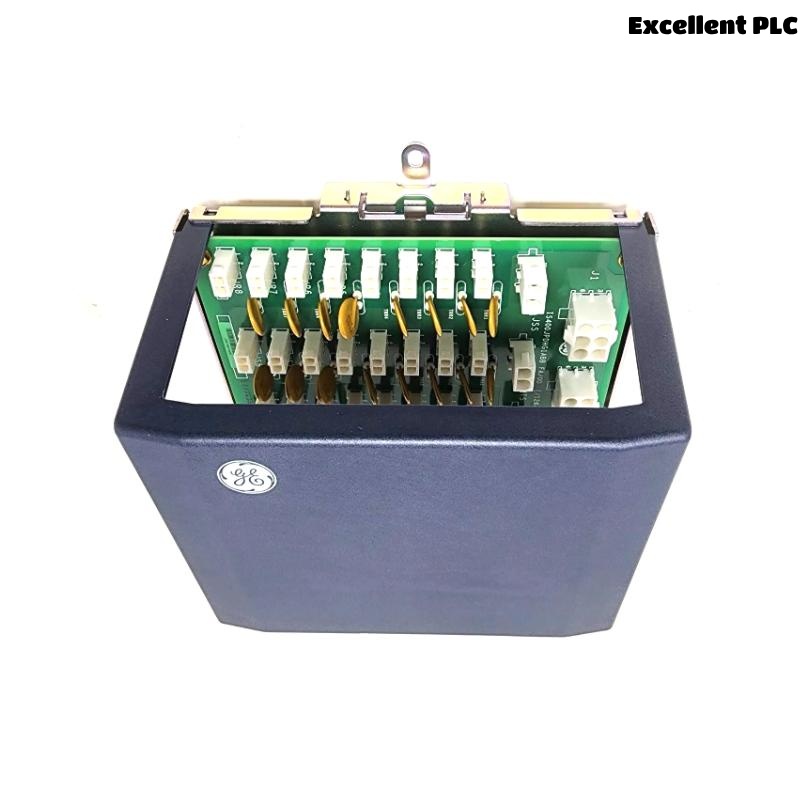

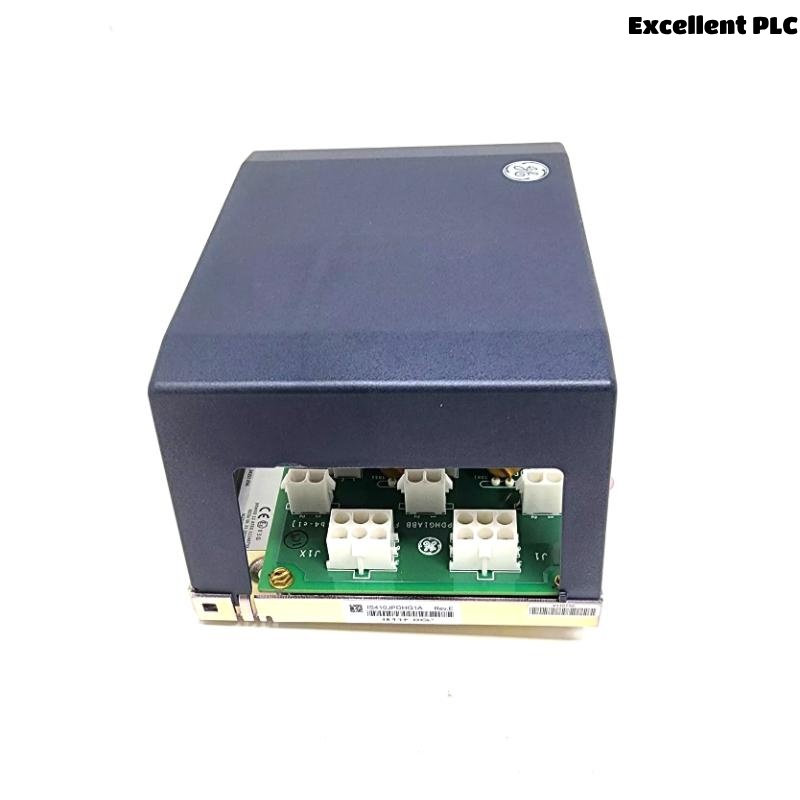

GE IS410JPDHG1A Pack Power Din Rail Module
The GE IS410JPDHG1A Pack Power Din Rail Module is an industrial-grade power distribution module designed for use in GE Mark VIe control systems. It is built to DIN rail standards, enabling easy installation in control panels. The module ensures stable power delivery to connected I/O and controller modules, supporting reliable operation in demanding environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS410JPDHG1A |
| Type | Pack Power Din Rail Module |
| Input Voltage | 24 VDC nominal |
| Output Power | Up to 50 W |
| Mounting | DIN rail |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 165 x 152 x 114 mm |
| Weight | 0.89 kg |
| Compliance | CE, UL, RoHS |
Applications
-
Power distribution within GE Mark VIe control systems
-
Industrial automation panels
-
Process control environments
-
Critical power supply for I/O and CPU modules
-
Power redundancy in mission-critical applications
Advantages
-
Compact DIN rail form factor for easy integration
-
Robust and reliable operation under harsh conditions
-
Simplifies panel wiring and maintenance
-
Supports high system uptime with stable power delivery
-
Fully compatible with GE Mark VIe ecosystem
FAQ
Q1: What is the input voltage requirement of the IS410JPDHG1A?
A1: The module operates on a nominal 24 VDC input.
Q2: Is the IS410JPDHG1A suitable for redundancy configurations?
A2: Yes, it can be used in redundant power setups to enhance system reliability.
Q3: What standard does the module mount to?
A3: It mounts on a standard DIN rail.
Q4: What is the typical operating temperature range?
A4: It is designed for -20°C to +60°C environments.
Q5: Can the IS410JPDHG1A be used outside of GE Mark VIe systems?
A5: It is optimized for Mark VIe systems but may be adapted for other industrial uses with compatible voltage and load.
Q6: Does the module provide overcurrent protection?
A6: Yes, it includes built-in protection features against overcurrent and short circuits.
Q7: How much does the module weigh?
A7: Approximately 0.89 kg.
Q8: Is the IS410JPDHG1A UL certified?
A8: Yes, it meets UL and CE certification standards.
Q9: What is the maximum output power?
A9: The module can deliver up to 50 W of power.
Q10: How is the module maintained?
A10: Minimal maintenance is required; periodic inspection of connections is recommended.
