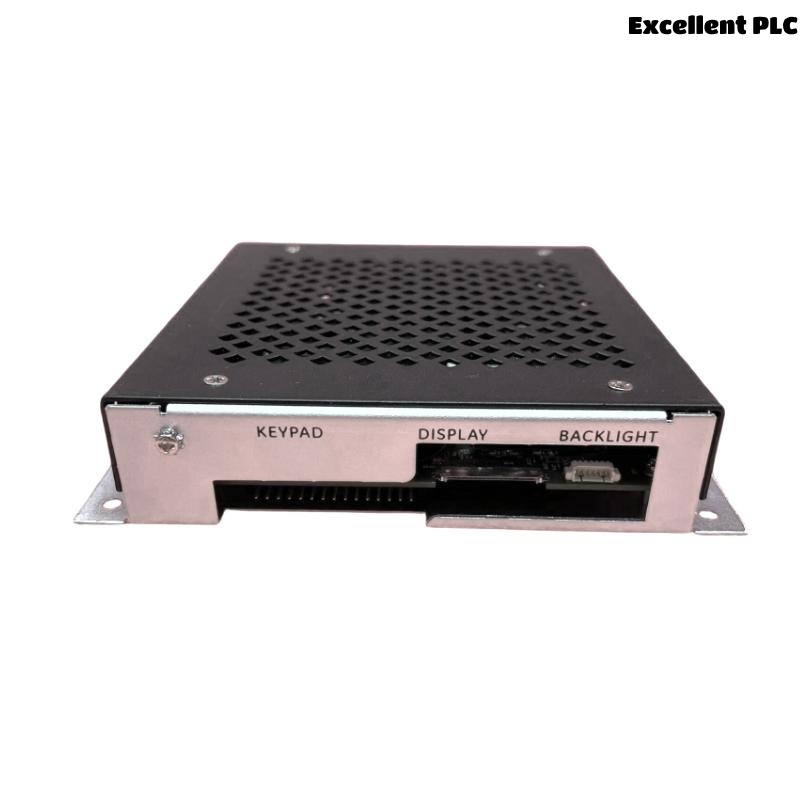

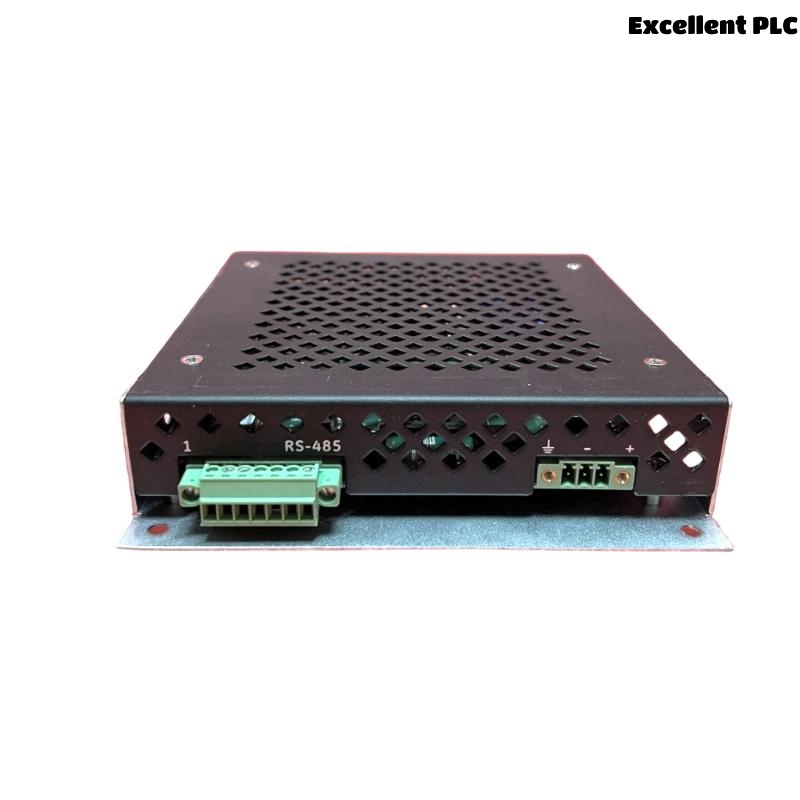

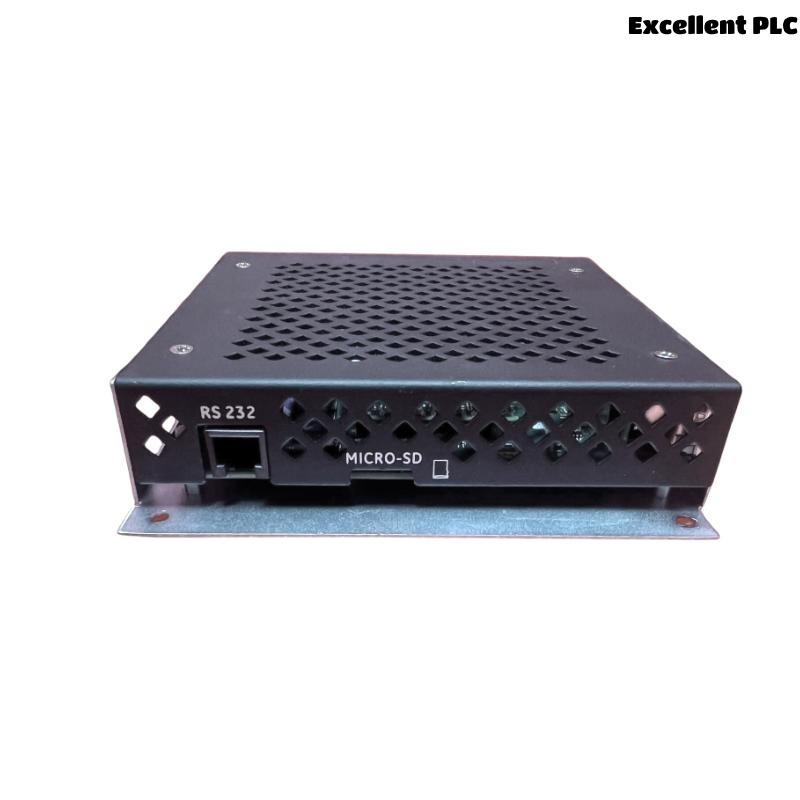

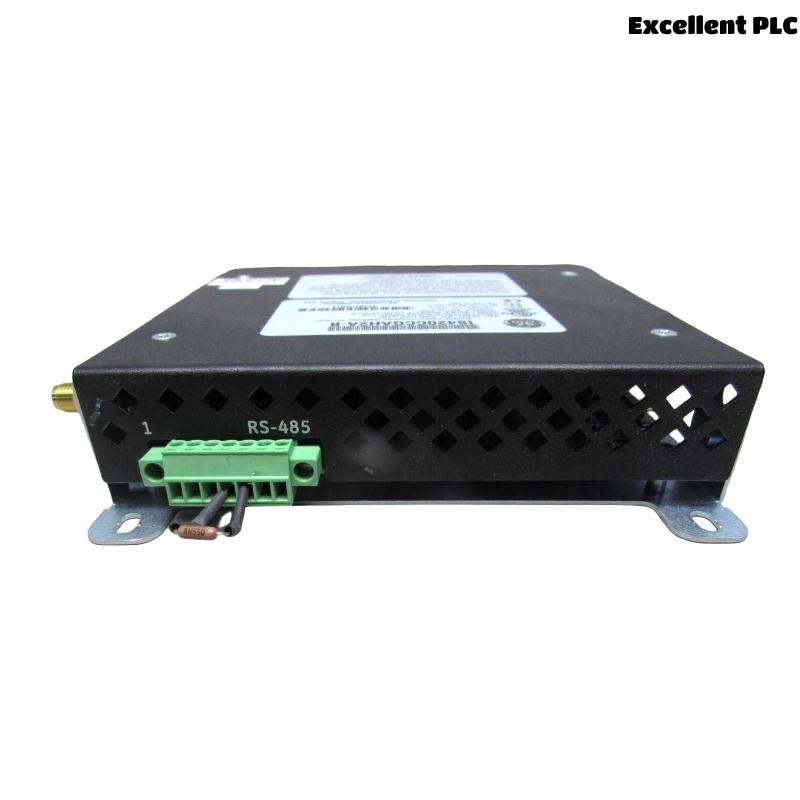

GE IS420CCGAH2A Control Communication Gateway Module Product Overview
The GE IS420CCGAH2A Control Communication Gateway Module is an advanced interface device designed for GE Mark VIe control systems. It facilitates seamless communication between control and monitoring networks, supporting reliable data transfer and system integration in industrial automation and power generation environments.
Product Features
-
Enables communication between control networks and external systems
-
Supports multiple protocols for flexible integration
-
High reliability for critical industrial operations
-
Compact and robust design for demanding environments
Technical Specifications
| Parameter | Value |
|---|---|
| Model | IS420CCGAH2A |
| Function | Control Communication Gateway |
| Supported Protocols | Ethernet, Modbus TCP/IP, others |
| Operating Temperature | -30°C to +65°C |
| Power Supply | 28 VDC |
| Dimensions | 200 × 115 × 57 mm |
| Weight | 0.788 kg |
| Installation | DIN-rail or panel mount |
| Compliance | CE, UL, RoHS |
Applications
-
Power plant control systems
-
Industrial process automation
-
Data acquisition and monitoring networks
-
SCADA integration
-
Oil, gas, and energy management systems
Advantages
-
Supports high-speed and secure data communication
-
Flexible integration with various industrial systems
-
Durable for use in harsh environments
-
Easy installation and maintenance
-
Reduces downtime and improves operational efficiency
FAQ
Q1: What is the main function of the IS420CCGAH2A module?
A1: It acts as a communication gateway between control systems and external networks, enabling data transfer and protocol translation.
Q2: Which control system is it compatible with?
A2: It is designed specifically for GE Mark VIe control systems.
Q3: Does it support redundant configurations?
A3: Yes, it supports redundant network configurations for high availability.
Q4: What communication protocols does it support?
A4: It supports Ethernet, Modbus TCP/IP, and other industrial protocols.
Q5: Can it operate in extreme temperatures?
A5: Yes, it operates reliably in temperatures from -30°C to +65°C.
Q6: Is it DIN-rail mountable?
A6: Yes, it can be mounted on DIN-rails or directly on a panel.
Q7: Does it require special software to configure?
A7: Configuration is typically done through GE-provided software tools.
Q8: Is the module hot-swappable?
A8: No, power must be removed before replacing the module.
Q9: What certifications does it carry?
A9: It complies with CE, UL, and RoHS standards.
Q10: What is its typical weight?
A10: The module weighs approximately 0.788 kg.
