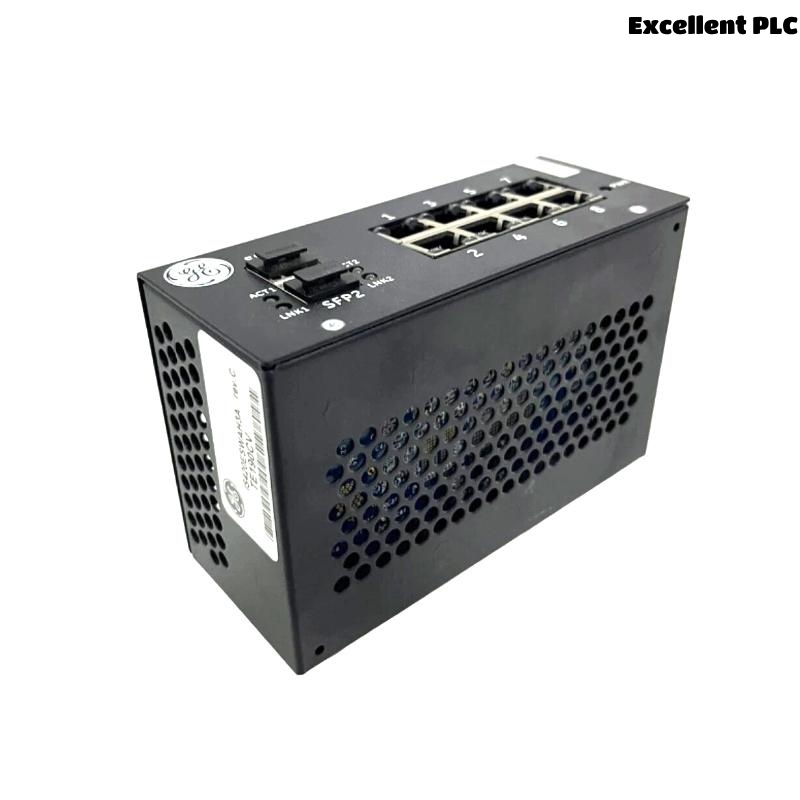

The GE IS420ESWAH1A is an unmanaged industrial Ethernet switch designed specifically for the Mark VIe and Mark VIeS Safety control systems. It offers reliable, real-time Ethernet communication, supporting both copper and fiber connections, with robust features suited for harsh industrial environments.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Name | Mark VIe IONet Switch |
| Model | IS420ESWAH1A |

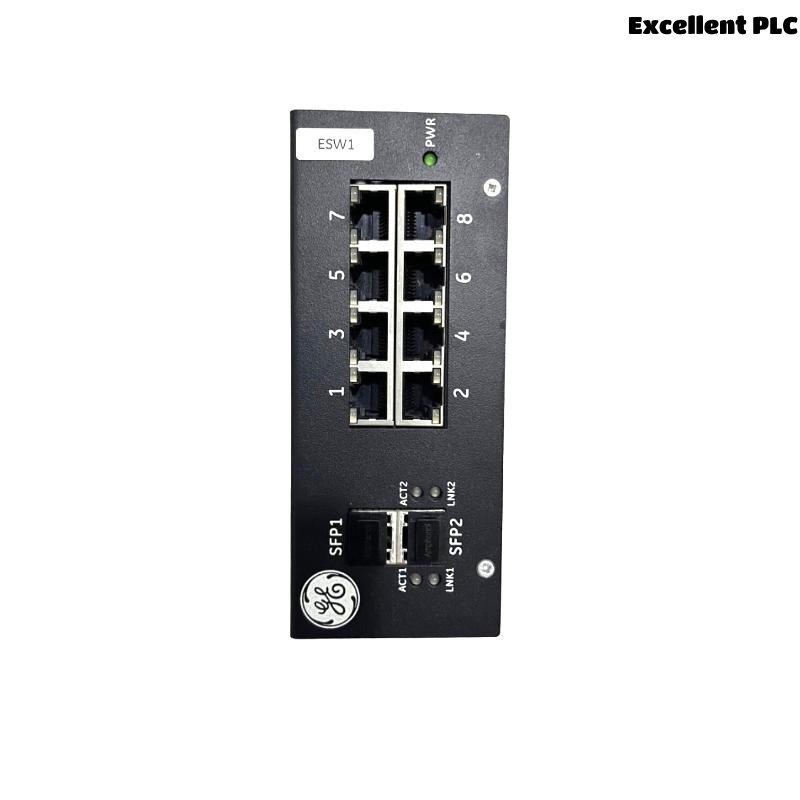

| Copper Ports | 8 × 10/100Base-TX RJ-45 |
| Fiber Ports | 1 × 100Base-FX, multi-mode, LC |
| Power Requirements | 24/28 V DC, 1 A max |

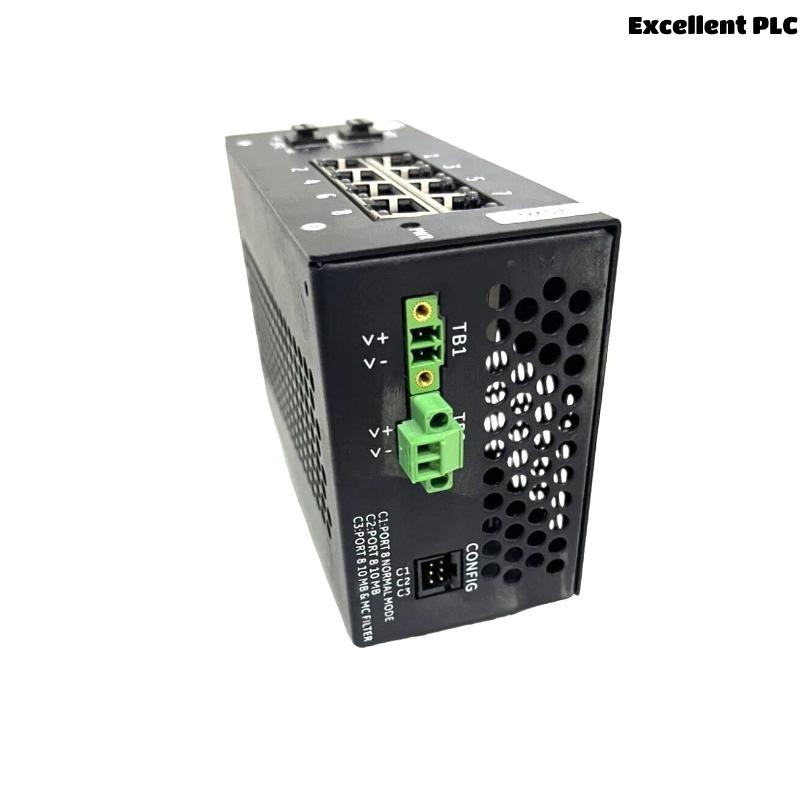

| Power Supply Connector | Phoenix MC 1.5/S-STF-3.81 (x2) |
| Dimensions (H × W × D) | 138 × 86 × 56 mm |
| Weight | 1.5 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |

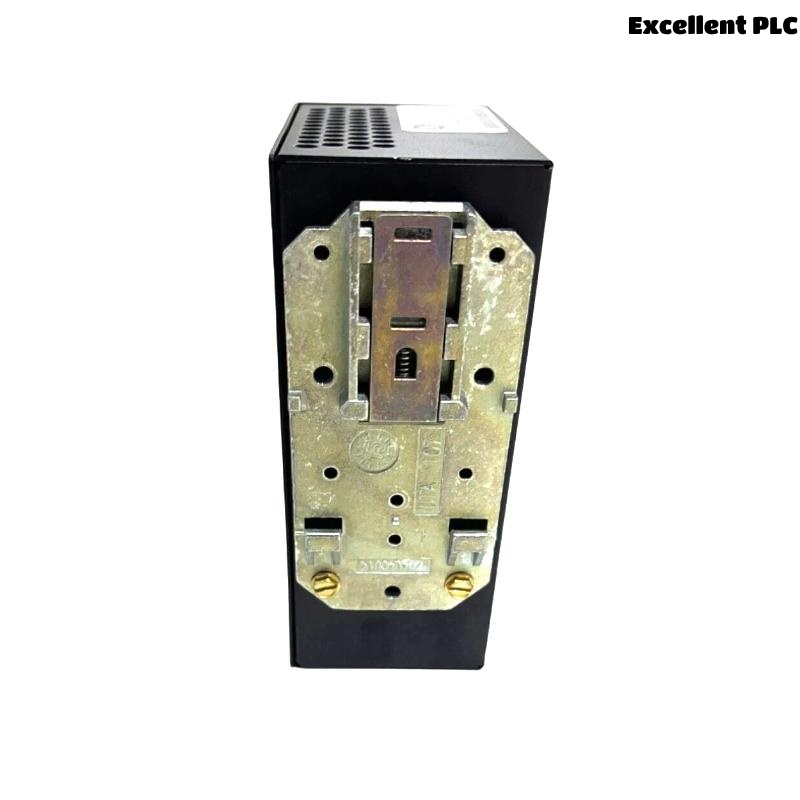

| Mounting Method | DIN-rail (clip sold separately) |
| Cooling | Convection |
| Safety Ratings | Class 1 Div 2 / Class 2 Zone 2 / ATEX |
| Compliance | IEEE 802.3, 802.3u, 802.3x |
| Buffer Size | ≥ 256 KB, 4K MAC addresses |
| Status Indicators | LEDs for link, activity, duplex, speed, and power |
Applications
-
Mark VIe and Mark VIeS safety control systems
-
Industrial process automation networks
-
Hazardous environment Ethernet connectivity
-
Real-time control and monitoring systems
Advantages
-
Dedicated for GE Mark VIe/VIeS control networks
-
Rugged, convection-cooled design for industrial settings
-
Redundant power supply support for high availability
-
Wide operating temperature range
-
Easy DIN-rail mounting with compact form factor
FAQ
Q1: What is the main purpose of the IS420ESWAH1A?
A1: It provides Ethernet network connectivity within GE Mark VIe/VIeS control systems.
Q2: How many copper ports are available?
A2: It has 8 RJ-45 copper ports supporting 10/100Base-TX.
Q3: Does it include fiber connectivity?
A3: Yes, it has 1 multi-mode fiber LC port.
Q4: Can it operate in hazardous environments?
A4: Yes, it meets Class 1 Div 2 and ATEX standards.
Q5: How is it mounted?
A5: It is DIN-rail mountable with a separate clip.
Q6: Does it support redundant power supplies?
A6: Yes, it supports dual power inputs that are diode-OR’d.
Q7: What is its operating temperature range?
A7: It operates between -40°C and +70°C.
Q8: How is the unit cooled?
A8: It is convection cooled with no moving parts.
Q9: What kind of cables are recommended?
A9: Cat 5e UTP cables with RJ-45 connectors.
Q10: Is it managed or unmanaged?
A10: It is an unmanaged Ethernet switch.
Related Models
| Model | Ports & Fiber Config | Dimensions (mm) | Weight |
|---|---|---|---|
| IS420ESWAH2A | 8 copper + 2 MM fiber | 138×86×56 | 1.5 kg |
| IS420ESWAH3A | 8 copper, no fiber | 138×86×56 | 1.5 kg |
| IS420ESWAH4A | 8 copper + 1 SM fiber | 138×86×56 | 1.5 kg |
| IS420ESWAH5A | 8 copper + 2 SM fiber | 138×86×56 | 1.5 kg |
| IS420ESWBH1A | 16 copper + 1 MM fiber | 188×86×56 | 2.1 kg |
| IS420ESWBH2A | 16 copper + 2 MM fiber | 188×86×56 | 2.1 kg |
