Product Introduction

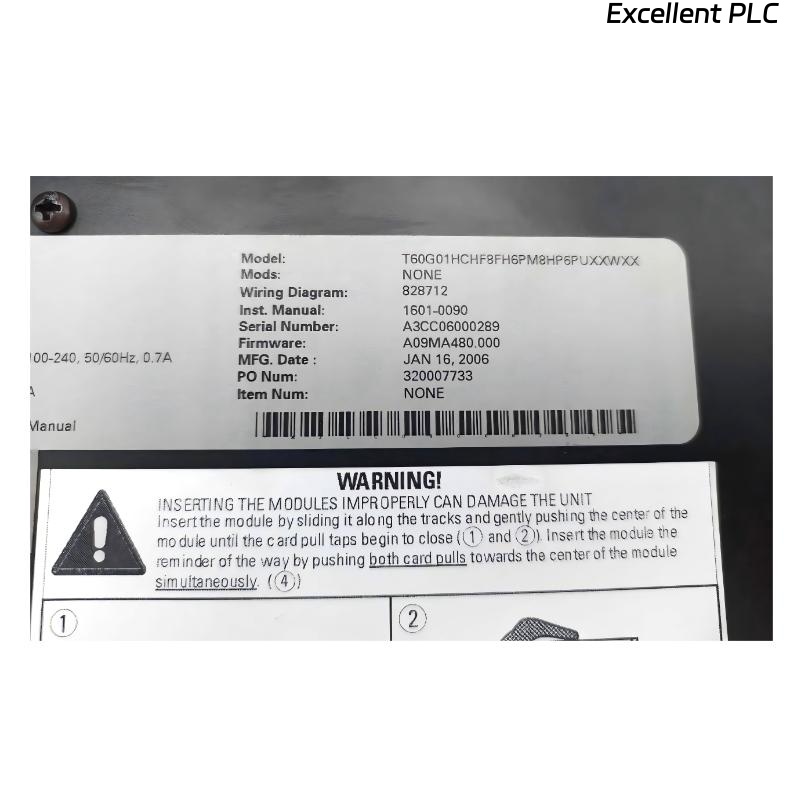

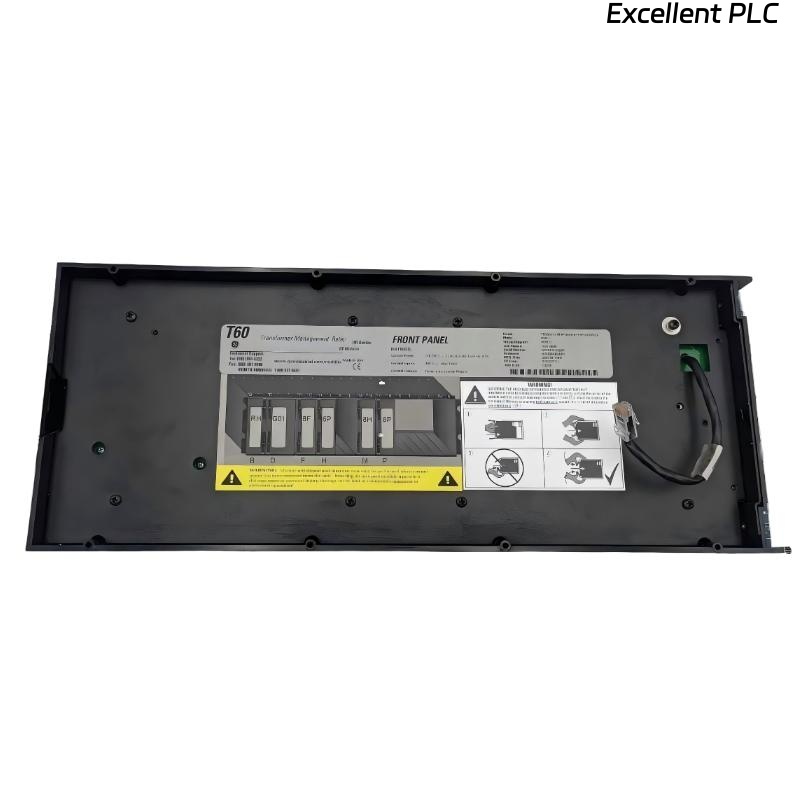

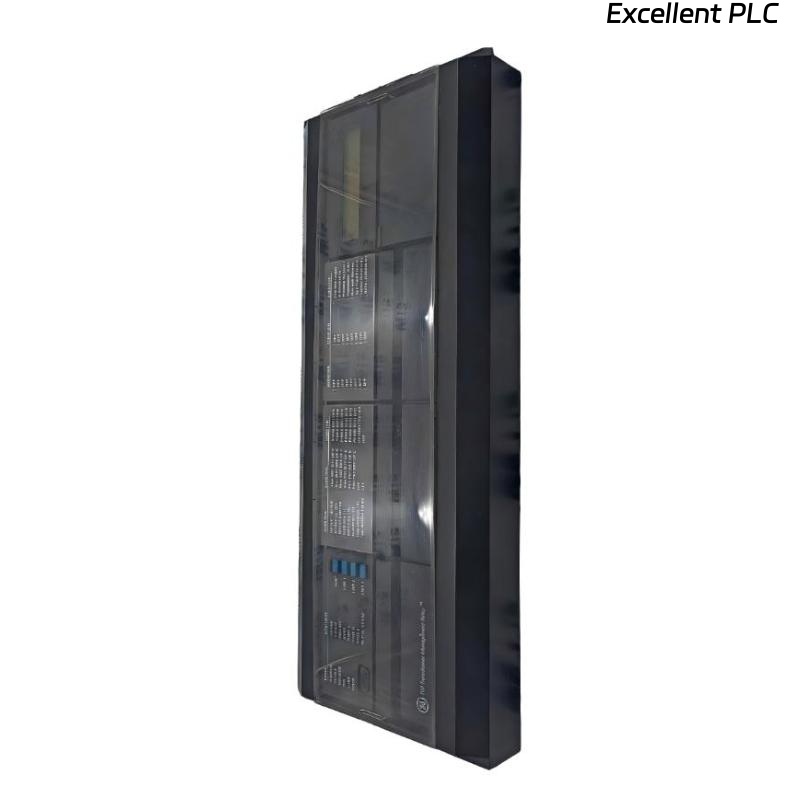

The GE T60G01HCHF8FH6PM8HP6PUXXWXX Transformer Management Relay Front Panel is an advanced protection and control interface for transformer management systems. It serves as the user interface for the T60 series relay, allowing operators to monitor transformer status, configure protection settings, and respond to alarms in real-time.
This front panel is designed for high-reliability industrial and utility environments, providing clear visualization of transformer operational parameters, fault indications, and control commands. It integrates seamlessly with GE transformer management relays, ensuring coordinated protection, monitoring, and diagnostics for medium- and high-voltage transformers.
The device supports rapid access to measurements, events, and alarms, enhancing operational efficiency and minimizing downtime for critical transformer operations.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | T60G01HCHF8FH6PM8HP6PUXXWXX |
| Product Type | Transformer Management Relay Front Panel |
| Application | Transformer protection and monitoring |
| Display Type | LCD / LED status indicators |
| Input Interface | Buttons and rotary selectors for user input |
| Integration | Compatible with GE T60 transformer management relays |
| Diagnostics | Real-time event and fault monitoring |
| Mounting Type | Panel-mounted |
| Dimensions | 200 × 260 × 35 mm |
| Weight | 0.7 kg |
Applications
• Transformer protection and monitoring
Provides a user interface for monitoring transformer status, alarms, and faults.
• Industrial power distribution
Used in industrial substations for medium- and high-voltage transformer management.
• Utility transformer stations
Supports operational monitoring and control in utility substations.
• Fault diagnostics and event management
Displays real-time events and enables operators to respond to abnormal conditions.
• Integration with GE T60 relays
Seamlessly connects to T60 series transformer management relays for coordinated protection.
Advantages
• User-friendly interface
Allows operators to easily view measurements, alarms, and operational data.
• Seamless relay integration
Fully compatible with GE T60 transformer management relays.
• Real-time monitoring
Provides instant feedback on transformer status and protection events.
• Enhanced operational safety
Supports fast response to faults, reducing risk of transformer damage.
• Compact and durable design
Panel-mounted front panel built for industrial and utility environments.
