Product Introduction

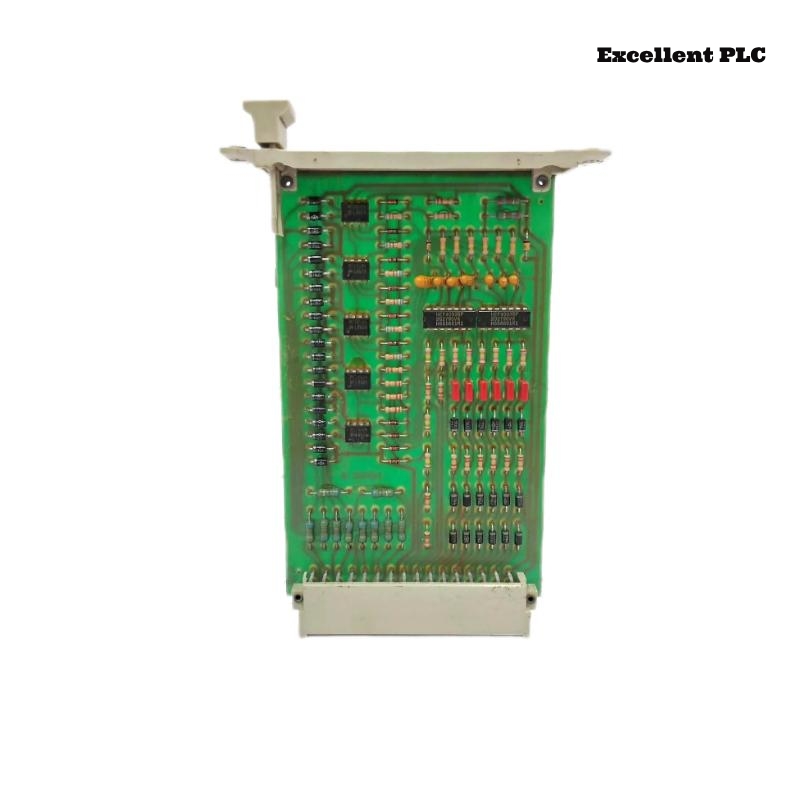

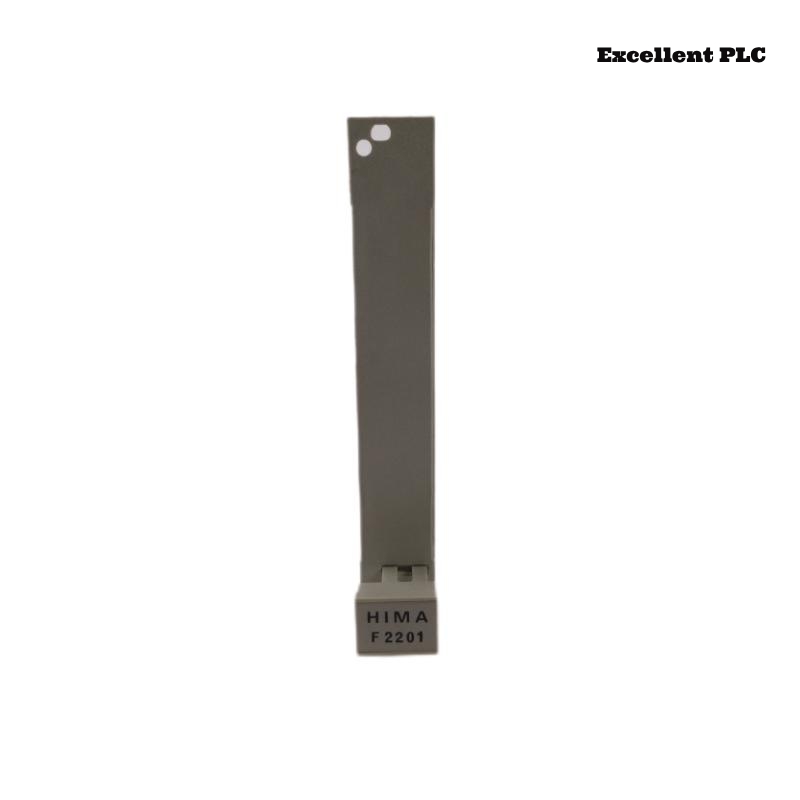

The HIMA F2201 is a safety-related controller module designed for use in industrial automation systems where safety and reliability are paramount. As part of the HIMatrix series, the F2201 module is engineered to meet rigorous safety standards, making it suitable for applications up to Safety Integrity Level 3 (SIL 3) as per IEC 61508 and related standards.
This module serves as a central processing unit (CPU) within safety controllers, offering high availability and fault tolerance for mission-critical applications in various industries, including process control, power generation, and transportation.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Type | Safety-Related Controller Module |
| Model | F2201 |
| Safety Certifications | TÜV-certified for applications up to SIL 3 (IEC 61508, IEC 61511, IEC 62061), Cat. 4 (EN 954-1), PL e (EN ISO 13849-1) |
| Dimensions (HxWxD) | 150 x 120 mm |
| Weight | 1 kg |
| Operating Temperature | -20°C to +60°C |
| Power Supply Voltage | 24V DC (Nominal) |
| Communication Interfaces | Ethernet, Serial Ports |
| Input Channels | Configurable Digital and Analog Inputs |
| Output Channels | Configurable Digital and Analog Outputs |
| Mounting Type | Rack Mountable |
| Environmental Rating | IP20 |
| Status Indicators | LED indicators for status and diagnostics |
| Redundancy | Supports high-availability configurations |
Product Applications
The HIMA F2201 module is utilized in various safety-critical applications, including:
-
Process Automation: Monitoring and controlling industrial processes in sectors such as oil and gas, chemical processing, and manufacturing.
-
Emergency Shutdown Systems (ESD): Ensuring safe and reliable shutdown procedures during critical situations.
-
Safety Instrumented Systems (SIS): Implementing safety functions to protect personnel, equipment, and the environment.
-
Transportation Systems: Enhancing safety in railways, subways, and other transportation infrastructures.
-
Power Generation: Managing safety protocols in power plants, including nuclear, coal, and renewable energy facilities.
Product Advantages
-
High Safety Standards: Certified for applications up to SIL 3, ensuring compliance with international safety regulations.
-
Reliability: Designed for high availability and fault tolerance, crucial for mission-critical operations.
-
Flexibility: Offers configurable input and output channels to adapt to various application requirements.
-
Diagnostic Capabilities: Equipped with LED indicators and diagnostic tools for real-time system monitoring and maintenance.
-
Integration: Compatible with other HIMA safety controllers and modules, facilitating seamless system integration.
-
Compact Design: Optimized dimensions and weight for efficient space utilization in control cabinets.
Latest News Titles
-
“HIMA F2201 Module Achieves Enhanced Safety Certifications for Industrial Applications”
-
“Integration of HIMA F2201 in Modern Process Automation Systems”
-
“Advancements in Safety Technology: Spotlight on HIMA’s F2201 Controller Module”
-
“HIMA F2201: Meeting the Demands of Next-Generation Safety Instrumented Systems”
-
“Case Study: HIMA F2201 Implementation in Chemical Processing Plants”
-
“Ensuring Transportation Safety with HIMA’s F2201 Controller Module”
-
“Power Industry Adopts HIMA F2201 for Enhanced Safety Measures”
-
“HIMA F2201: A Key Component in Emergency Shutdown Systems”
-
“Global Industries Embrace HIMA F2201 for Safety-Critical Operations”
-
“HIMA’s F2201 Module: Pioneering Safety in Industrial Automation”
Frequently Asked Questions (FAQ)
-
What is the primary function of the HIMA F2201 module?
- The HIMA F2201 is a safety-related controller module designed for use in industrial automation systems. It ensures high safety standards and reliability in critical applications such as emergency shutdown (ESD) and process automation.
-
What safety certifications does the HIMA F2201 have?
- The F2201 is TÜV-certified and meets SIL 3 requirements under IEC 61508 and IEC 61511, as well as EN ISO 13849-1 (PL e) and EN 954-1 (Category 4).
-
Which industries use the HIMA F2201 module?
- The module is commonly used in industries such as oil and gas, chemical processing, power generation, rail transportation, and manufacturing, where high-integrity safety systems are required.
-
What power supply does the HIMA F2201 require?
- The module operates on a nominal 24V DC power supply, ensuring compatibility with common industrial power systems.
-
What type of communication interfaces does the HIMA F2201 support?
- It supports Ethernet and serial communication protocols for seamless integration into automation and safety networks.
-
Can the HIMA F2201 be used in a redundant configuration?
- Yes, the module supports redundant setups for high availability and increased fault tolerance, ensuring continuous operation in safety-critical environments.
-
What are the key diagnostic features of the HIMA F2201?
- The module includes built-in LED indicators and self-diagnostic functions that provide real-time monitoring of system performance and fault detection.
-
What is the environmental rating of the HIMA F2201?
- It is rated IP20, which means it is designed for use in protected industrial control cabinets.
-
Is the HIMA F2201 compatible with other HIMA modules?
- Yes, it is fully compatible with other HIMA HIMatrix modules, allowing for flexible and scalable safety system designs.
-
What mounting type is required for the HIMA F2201?
- The module is designed for rack mounting, making it suitable for standard industrial control panels and cabinets.
