Product Introduction

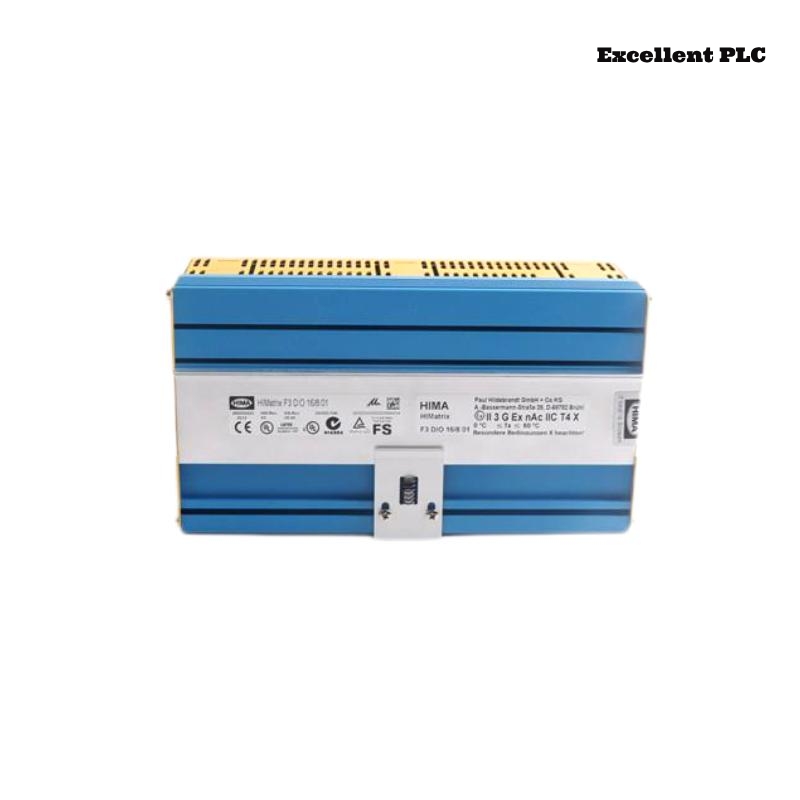

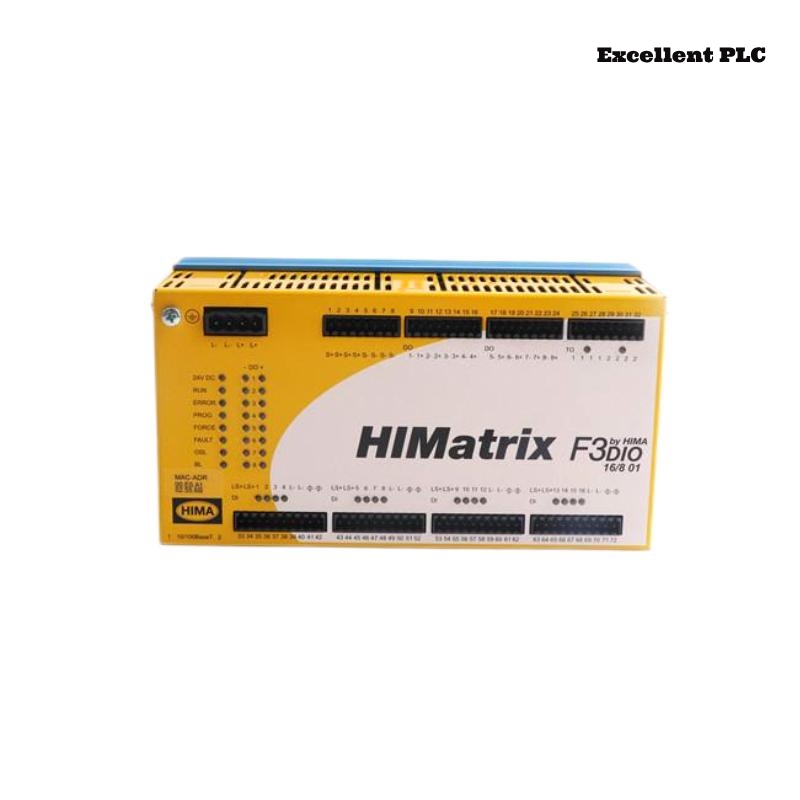

The HIMA F3 DIO 16/8 01 Remote I/O Module is a high-performance remote input/output module designed for use in safety-critical and industrial applications. It is part of the HIMA F3 safety platform, providing seamless integration for data acquisition and control of field devices. With 16 digital inputs and 8 digital outputs, this module offers robust functionality for managing various industrial processes and ensuring safe, reliable operations in environments where performance and safety are paramount.
The F3 DIO 16/8 01 module is engineered to meet the stringent demands of industries such as process control, power generation, chemical, and manufacturing, where precise monitoring and control are critical. By enabling remote control and real-time monitoring, it enhances operational efficiency and ensures that all critical safety protocols are followed. Its design is highly flexible and scalable, allowing it to easily integrate into existing HIMA F3 systems.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | F3 DIO 16/8 01 |
| Type | Remote I/O Module |
| Inputs | 16 Digital Inputs |
| Outputs | 8 Digital Outputs |
| Operating Voltage | 24V DC (Nominal) |
| Power Consumption | 4W |
| Dimensions (HxWxD) | 205 x 114 x 88 mm |
| Weight | 1.3 kg |
| Mounting | DIN Rail |
| Environmental Rating | IP20 |
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Signal Type | Digital (ON/OFF) |
| Communication Protocol | HIMA F3 System Communication |
| Diagnostic Features | Advanced Fault Detection |
| Certifications | SIL3 Certified, CE, UL |
Applications
The HIMA F3 DIO 16/8 01 Remote I/O Module is designed for use in a wide array of industrial sectors and applications that require reliable and safe monitoring and control:
- Safety Instrumented Systems (SIS): Critical in industries like oil and gas, petrochemical, and chemical processing, where safety and regulatory compliance are crucial. The module ensures the safe operation of equipment by interfacing with safety loops.
- Process Control: Facilitates the control of digital signals from various sensors, valves, actuators, and other field devices, providing real-time data for monitoring and controlling automated processes.
- Power Generation and Distribution: In power plants and electrical substations, the module supports the reliable and safe control of power distribution systems.
- Manufacturing and Automation: The module provides robust digital signal processing for automation systems, improving efficiency and reliability in automated manufacturing lines.
- Environmental Monitoring: In industries that require real-time environmental data acquisition, this module offers precise digital input/output capabilities for tracking parameters like temperature, pressure, and flow.
Advantages
- High Safety Standards: The HIMA F3 DIO 16/8 01 module is SIL3 certified, making it ideal for safety-critical applications where maintaining operational safety is a top priority.
- Flexibility and Scalability: It offers 16 digital inputs and 8 digital outputs, allowing for flexible configurations in various industrial systems. It can easily be expanded or integrated with other HIMA F3 modules.
- Robust Diagnostics: The built-in diagnostics help detect faults or anomalies, ensuring that any issues are addressed before they impact system performance, reducing downtime and maintenance costs.
- Compact Design: With compact dimensions (125mm x 100mm x 60mm), the module can be mounted in confined spaces, making it suitable for diverse industrial environments.
- Reliable Performance: Designed for industrial environments, the module operates effectively across a wide temperature range (-20°C to 60°C) and with high vibration tolerance, ensuring durability in challenging conditions.
- Easy Installation and Integration: The HIMA F3 DIO 16/8 01 module features DIN rail mounting, making installation straightforward. Additionally, it integrates seamlessly into the HIMA F3 safety platform, providing enhanced system compatibility.
Latest News Titles
- “HIMA F3 DIO 16/8 01 Module: A New Standard for Remote I/O in Critical Industries”
- “Revolutionizing Safety Instrumented Systems with HIMA’s F3 DIO 16/8 01 Remote I/O Module”
- “HIMA F3 DIO 16/8 01: Reliable Digital Input/Output Solutions for Process Control”
- “Enhancing Industrial Safety with the F3 DIO 16/8 01 Remote I/O Module”
- “Introducing the HIMA F3 DIO 16/8 01: High-performance Remote I/O for Manufacturing and Power Plants”
- “The Future of Safety and Reliability in Power Generation with HIMA F3 DIO 16/8 01”
- “New HIMA Remote I/O Module Delivers Exceptional Diagnostic Features for Industrial Control”
- “HIMA F3 DIO 16/8 01: The Essential Remote I/O Solution for Chemical Processing Plants”
- “Boosting Industrial Efficiency with HIMA’s F3 DIO 16/8 01 Digital I/O Module”
- “HIMA’s F3 DIO 16/8 01 Remote I/O Module Brings Robustness to Digital Control Systems”
FAQ (Frequently Asked Questions)
-
What is the function of the HIMA F3 DIO 16/8 01 module?
- The module is a remote I/O device that provides 16 digital inputs and 8 digital outputs, designed for use in safety-critical industrial applications.
-
What industries can benefit from this module?
- Industries such as oil and gas, chemical processing, power generation, and manufacturing can benefit from its robust safety features and reliable digital signal processing.
-
What is the operating voltage of the F3 DIO 16/8 01?
- The module operates on a 24V DC nominal voltage.
-
How does the F3 DIO 16/8 01 module ensure safety?
- The module is SIL3 certified, ensuring it meets the highest safety standards for critical industrial applications.
-
What is the environmental rating of the module?
- The module has an IP20 environmental rating, making it suitable for indoor use in industrial environments.
-
How is the module mounted?
- The module is designed for DIN rail mounting, making installation easy and efficient.
-
What is the weight and size of the module?
- The module weighs 1.3 kg and has dimensions of 205 x 114 x 88 mm.
-
Can this module handle high-temperature environments?
- Yes, the module operates in a temperature range from -20°C to 60°C, making it suitable for most industrial environments.
-
What diagnostic features are available in this module?
- The module includes advanced diagnostics to detect faults and help ensure the continuous operation of safety-critical systems.
-
How does the F3 DIO 16/8 01 integrate into the HIMA F3 system?
- The module seamlessly integrates into the HIMA F3 safety platform, supporting communication with other HIMA components for enhanced system reliability and safety.
