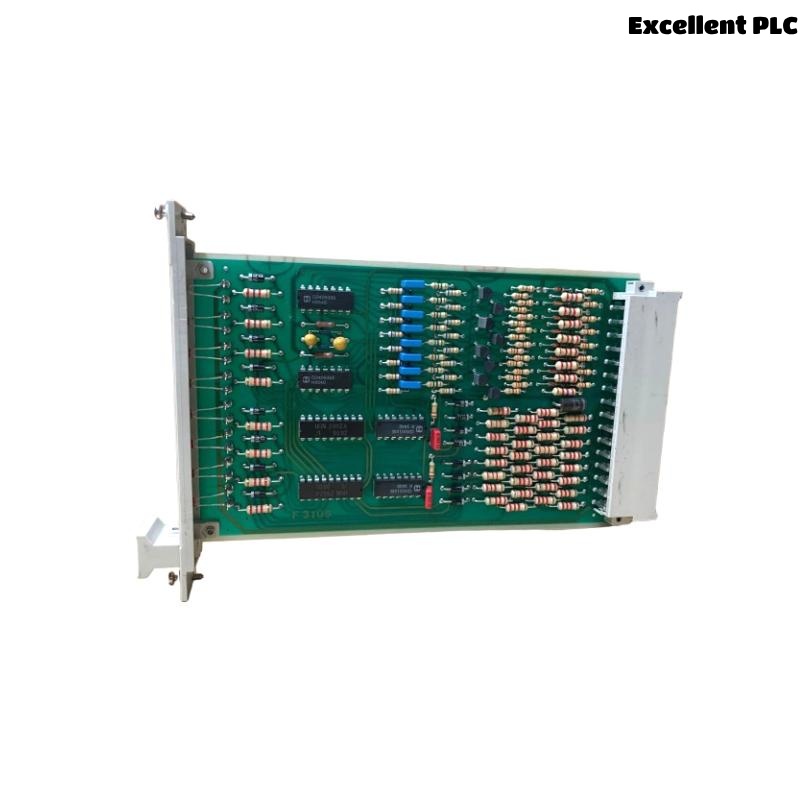

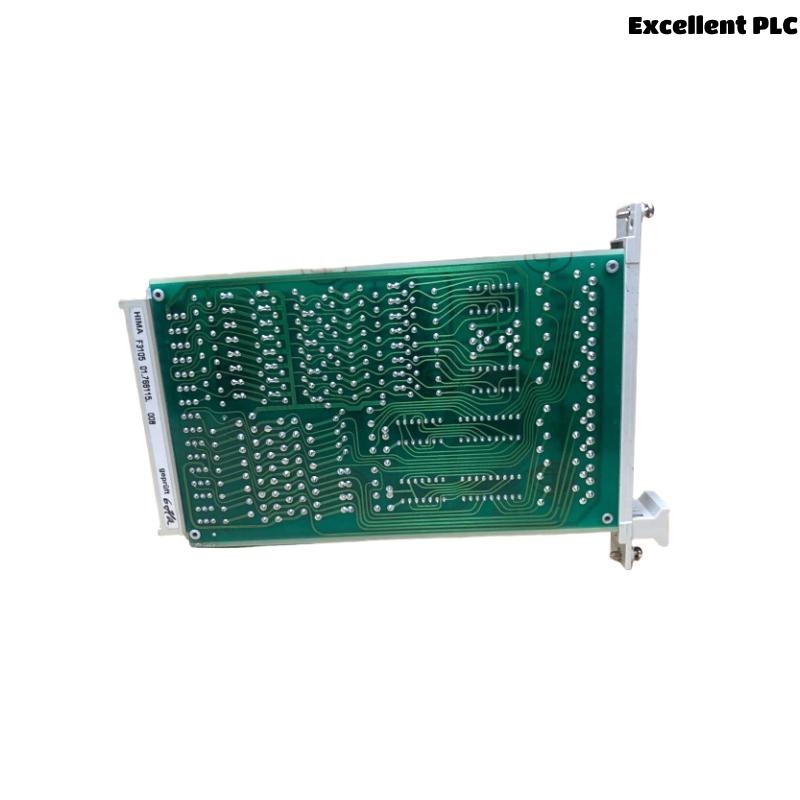

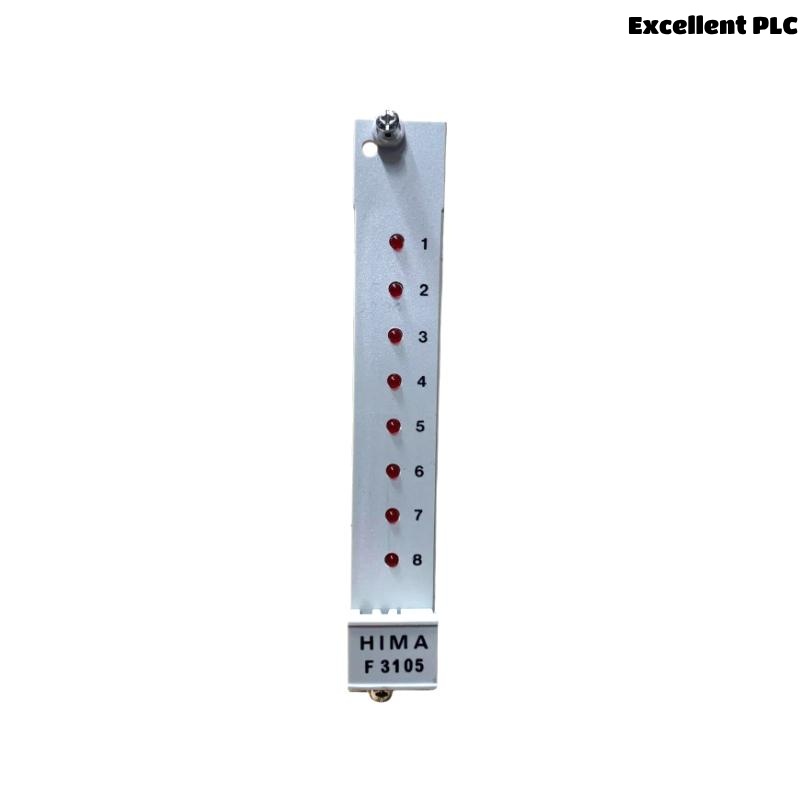

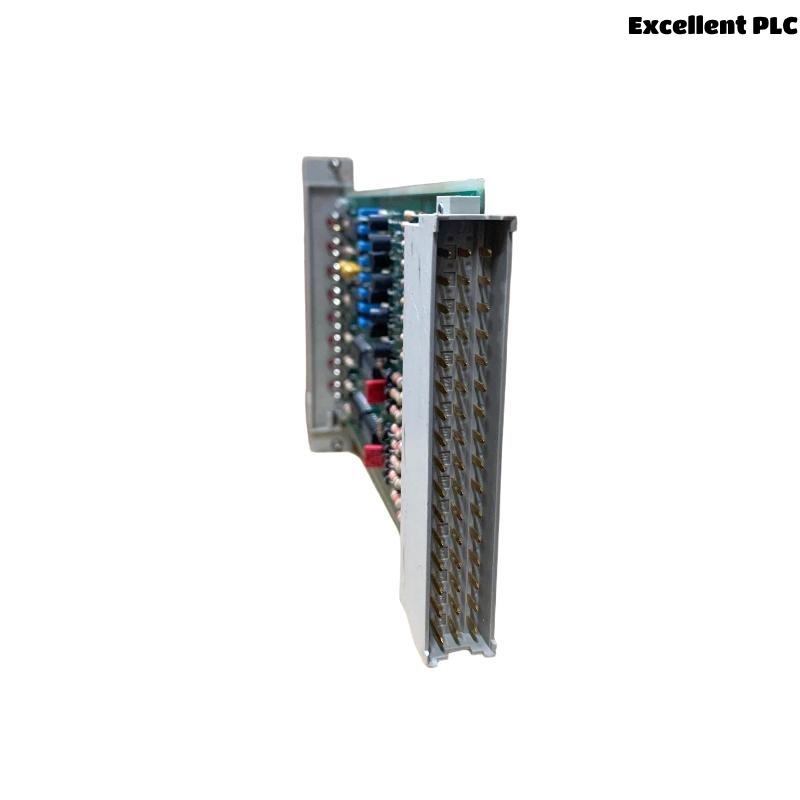

HIMA F3105 Planar F System 4-Channel Relay Module
The HIMA F3105 is a reliable 4-channel relay module designed for safety-critical applications within the Planar F safety system. It provides safe and efficient relay switching with high durability and robust design. Ideal for industrial automation and process safety systems.
Technical Specifications
| Parameter | Description |
|---|---|
| Model | F3105 |
| Type | 4-Channel Relay Module |
| Channels | 4 independent channels |
| Switching Voltage | 24 V DC / 230 V AC |
| Switching Current | Up to 6 A per channel |
| Response Time | ≤ 10 ms |
| Power Supply | Via Planar F backplane |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -20 °C to +85 °C |
| Dimensions (W x H x D) | 100 x 25 x 120 mm |
| Weight | 0.65 kg |
Applications
-
Safety-critical relay switching in process industries
-
Emergency shutdown (ESD) systems
-
Fire and gas protection systems
-
Power plant automation
-
Chemical and petrochemical industry safety functions
Advantages
-
Compact 4-channel design for space-saving installation
-
High switching capacity and fast response time
-
Integrated into Planar F safety architecture
-
Long service life and robust performance
-
Easy replacement and maintenance
Frequently Asked Questions
Q1: What is the main purpose of the F3105 module?
A1: It is used for safe and reliable relay switching in safety-critical applications.
Q2: How many channels does the module have?
A2: The F3105 has 4 independent relay channels.
Q3: What is the maximum switching current per channel?
A3: Up to 6 A per channel.
Q4: Is it suitable for high-temperature environments?
A4: Yes, it operates reliably up to +60 °C.
Q5: Can it handle both AC and DC loads?
A5: Yes, it supports 24 V DC and 230 V AC loads.
Q6: How is the module powered?
A6: It is powered via the Planar F system backplane.
Q7: Does it require regular maintenance?
A7: Minimal maintenance is needed due to its robust design.
Q8: Is the installation process complicated?
A8: No, it is designed for quick and easy installation into the system rack.
Q9: Can it be used in fire and gas systems?
A9: Yes, it is commonly used in fire and gas protection systems.
Q10: What is the weight of the module?
A10: The module weighs 0.65 kg.
