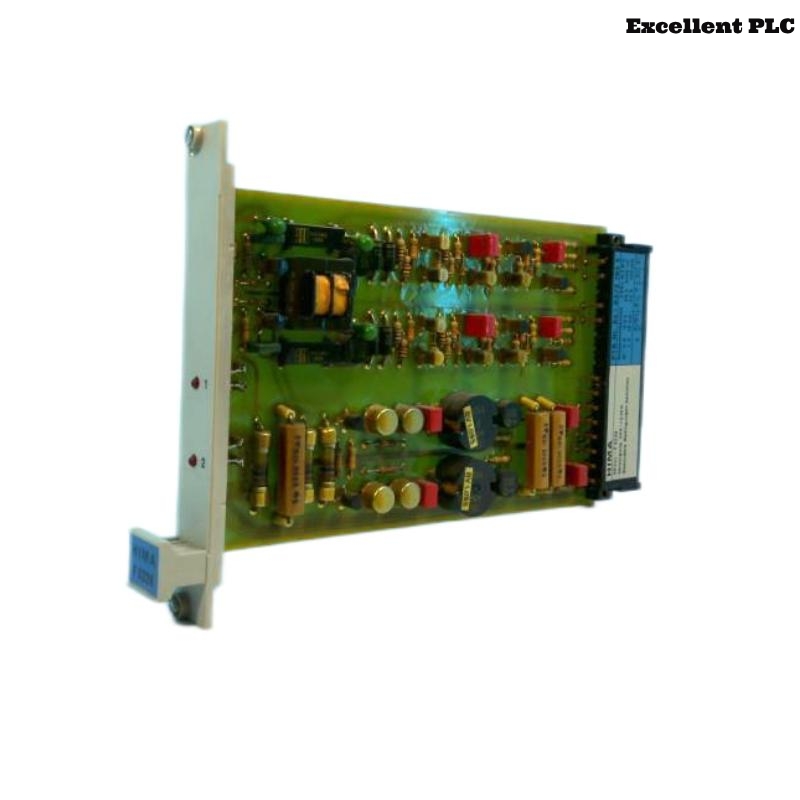

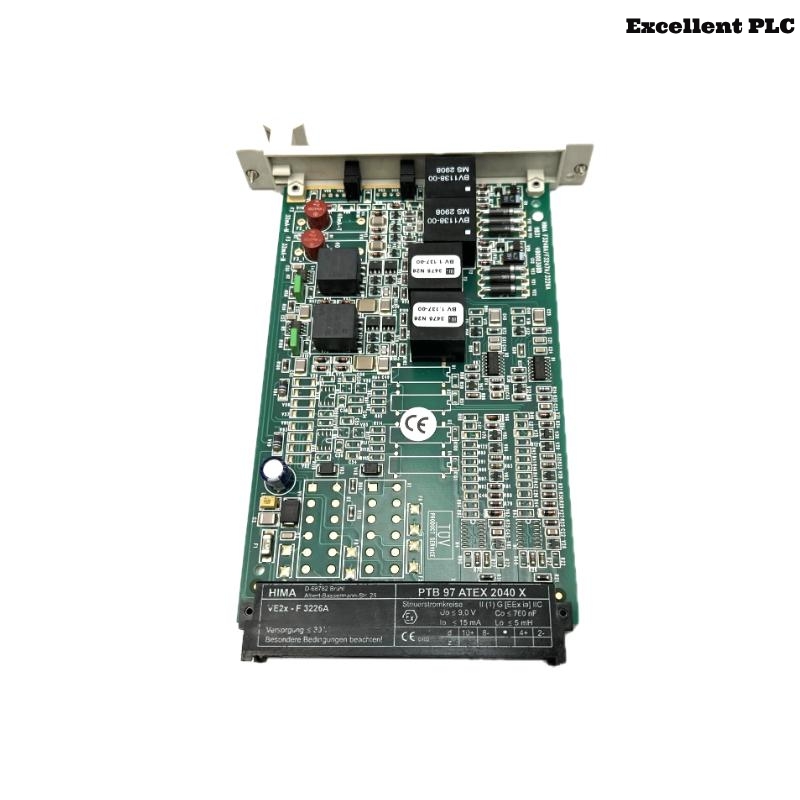

HIMA F3226A 2-Channel Safety Related Switching Amplifier Module

Product Overview

The HIMA F3226A is a dual-channel, safety-related switching amplifier module developed specifically for use in safety instrumented systems (SIS) that demand high integrity, availability, and compliance with SIL 3 standards according to IEC 61508. As part of the HIMA safety system portfolio, the F3226A is engineered to reliably isolate and amplify binary signals from field devices such as proximity switches, contactors, mechanical limit switches, and safety sensors.

Its primary function is to act as an interface between field devices and logic controllers, ensuring that incoming signals are safely conditioned, monitored, and relayed. The device supports both normally open (NO) and normally closed (NC) input logic and is equipped with two fully independent signal paths for increased system integrity.

The F3226A module is designed for DIN rail installation within control cabinets and is compatible with both new installations and retrofit projects in the process, energy, and manufacturing sectors.

Product Specifications

Product Applications

The F3226A module is suitable for a range of safety-critical applications, including:

• Chemical Industry: Monitoring and control of hazardous processes.

• Oil and Gas Sector: Ensuring safe operation of drilling and refining equipment.

• Power Generation: Protecting turbines and generators from unsafe conditions.

• Industrial Automation: Implementing safety interlocks and emergency shutdown systems.​

Product Advantages

• High Safety Compliance: Meets SIL 3 requirements for functional safety.

• Dual-Channel Design: Provides redundancy for enhanced reliability.

• Robust Construction: Suitable for operation in harsh industrial environments.

• Flexible Integration: Compatible with various input devices and control systems.

• Compact Size: Space-saving design facilitates easy installation.​

Frequently Asked Questions (FAQ)

1. What is the primary function of the F3226A module?
   It serves as a safety-related switching amplifier, processing digital input signals to control safety functions in industrial systems.

2. Which safety standards does the F3226A comply with?
   The module complies with IEC 61508 and EN 50156 standards, achieving SIL 3 certification.

3. Can the F3226A operate in extreme temperatures?
   Yes, it is designed to function within a temperature range of -20°C to +60°C.

4. What types of input devices are compatible with the F3226A?
   It supports digital inputs from devices such as switches, sensors, and relays.

5. Is the F3226A suitable for use in hazardous environments?
   Yes, its robust design allows it to operate reliably in challenging industrial settings.

6. How is the F3226A mounted within a control system?
   It is designed for DIN rail mounting, facilitating straightforward installation.

7. Does the module provide diagnostic capabilities?
   Yes, it includes features for self-diagnosis and fault detection to ensure system integrity.

8. What is the significance of the dual-channel design?
   The dual channels offer redundancy, enhancing the reliability and safety of the system.

9. Can the F3226A be integrated with existing HIMA systems?
   Yes, it is compatible with HIMA’s HIMax series and other safety control systems.

10. What are the dimensions and weight of the F3226A module?
    The module measures 193 x 117 x 40 mm and weighs 0.168 kg.
