Product Introduction

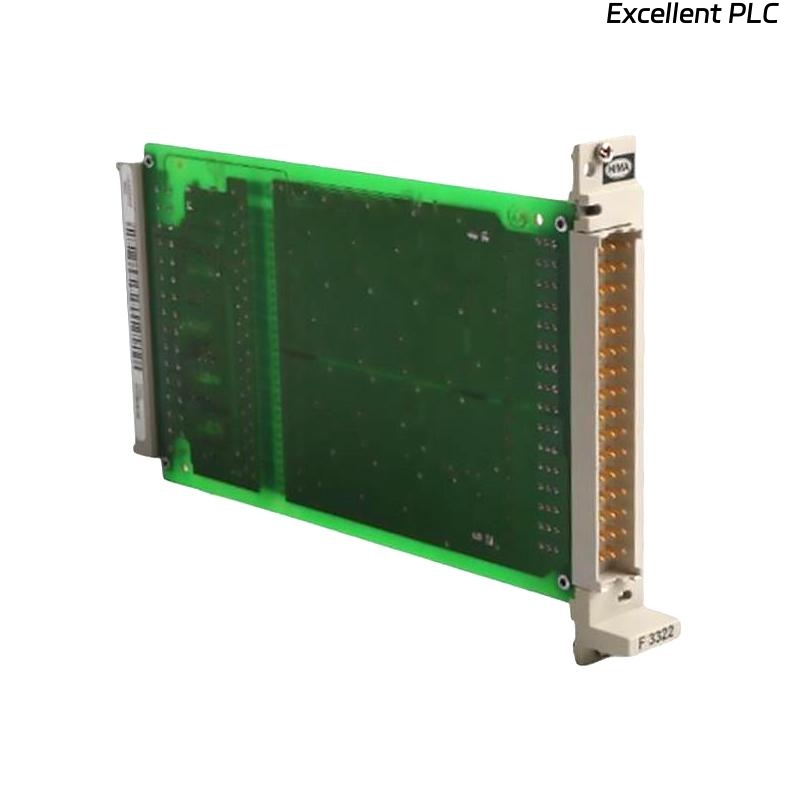

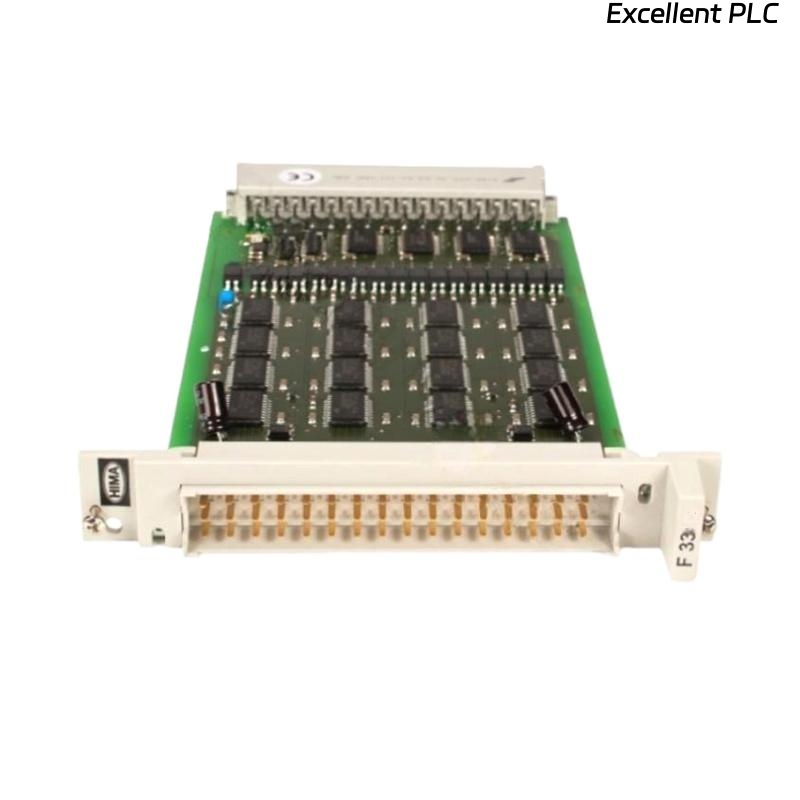

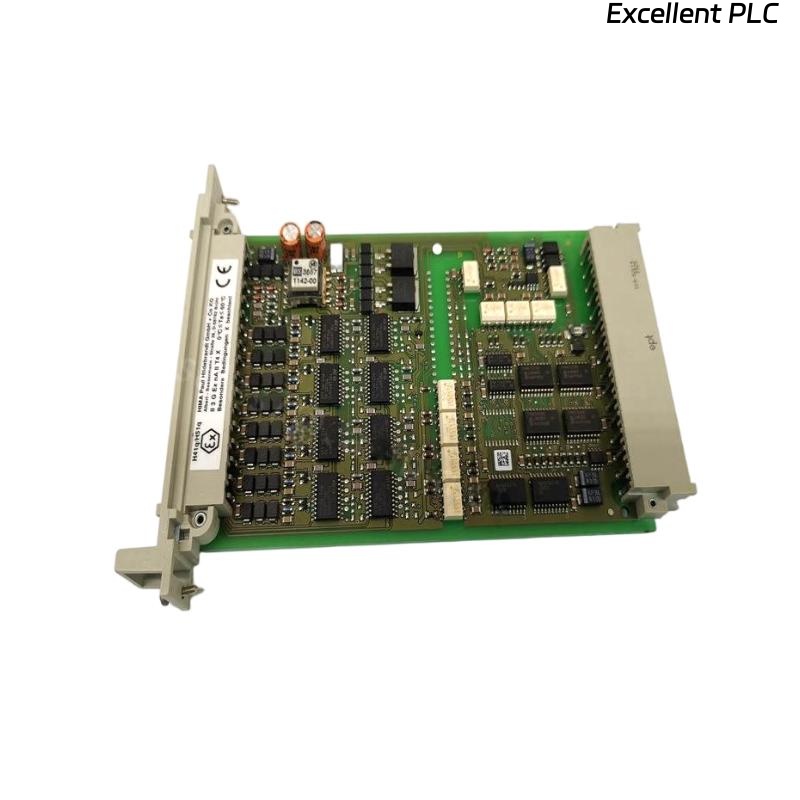

The HIMA F3332 Output Module is a high-performance, digital output module designed for use in safety-critical applications. It is part of the HIMA safety system, which provides reliable and safe control solutions for industrial processes. The module is engineered to operate within safety instrumented systems (SIS), delivering precise and reliable output control for various machinery and systems.
The F3332 Output Module is typically employed in safety systems where failsafe operation is necessary. It ensures that the system responds appropriately in case of safety-related events, making it crucial in environments such as chemical processing, oil and gas, and power plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | F3332 Output Module |
| Module Type | Digital Output Module |
| Output Channels | 8 Channels |
| Signal Type | Digital (24V DC) |
| Output Current | 2 A per channel |
| Electrical Connection | Screw terminal block |
| Response Time | ≤ 10 ms |
| Operating Temperature | –20°C to +60°C |
| Dimensions | 150 x 102 x 30 mm |
| Weight | 0.5 kg |
| Mounting Type | DIN Rail Mounting |
| Protection Class | IP20 |
| Compliance | SIL 3 (Safety Integrity Level 3) |
| Power Supply | 24 V DC (nominal) |
Applications
-
Safety Instrumented Systems (SIS): Used for safety-related control applications in various industries like chemical, oil and gas, and energy.
-
Process Control: Provides digital output control for processes that require high reliability and safety.
-
Critical Infrastructure: Ideal for monitoring and controlling safety-critical functions in power generation plants.
-
Machine Safety: Employed in systems that monitor and control the safety of machinery in industrial environments.
Advantages
-
High Safety Integrity: Complies with SIL 3 (Safety Integrity Level 3), ensuring reliable operation for safety-critical applications.
-
Fast Response Time: The module offers a fast response time (≤ 10 ms), ensuring that the system reacts quickly to changes in input conditions.
-
Compact and Robust: With a compact size and rugged design, the module can be easily integrated into various industrial environments.
-
Easy Integration: DIN rail mounting allows easy installation and integration into existing control panels.
-
High Current Capacity: Supports 2A per channel, making it suitable for controlling large outputs like actuators and relays.
-
Versatile: Suitable for a wide range of applications, from process control to machine safety.
-
Low Power Consumption: Operates efficiently with 24 V DC power supply.
FAQ
Q1: What is the primary function of the HIMA F3332 Output Module?
A1: The primary function is to provide digital output control for safety-critical applications, ensuring failsafe operation in safety systems.
Q2: What is the compliance level of the F3332?
A2: The F3332 complies with SIL 3, which is the highest Safety Integrity Level, providing high reliability for safety-related applications.
Q3: How many output channels does the HIMA F3332 have?
A3: The F3332 has 8 digital output channels, each capable of handling 2A of current.
Q4: What is the response time of the F3332 Output Module?
A4: The response time of the module is ≤ 10 ms, making it suitable for fast control systems.
Q5: How is the F3332 mounted in control panels?
A5: The F3332 is designed for DIN rail mounting, allowing for easy integration into existing control systems.
Q6: What type of connection does the F3332 use?
A6: The F3332 uses a screw terminal block for secure and reliable electrical connections.
Q7: What is the operating temperature range for the F3332?
A7: The F3332 can operate within a temperature range of –20°C to +60°C.
Q8: What industries can benefit from using the HIMA F3332?
A8: Industries such as chemical processing, oil and gas, and power generation can benefit from the reliable output control provided by the F3332.
Q9: Is the F3332 module suitable for use in hazardous environments?
A9: Yes, the F3332 is designed to meet high safety standards, making it suitable for use in hazardous and safety-critical environments.
Q10: What power supply does the HIMA F3332 require?
A10: The F3332 requires a 24 V DC power supply to operate.
Related Models
| Model | Description |
|---|---|
| F3331 | Digital Input Module for safety-related applications. |
| F3340 | Analog Output Module for precise control. |
| F3321 | Digital Output Module with extended functionality. |
| F3300 | Universal Input/Output Module for various applications. |
| F3350 | Advanced Safety Input Module with higher performance. |
| F3360 | Universal module for controlling large-scale systems. |
