Product Introduction

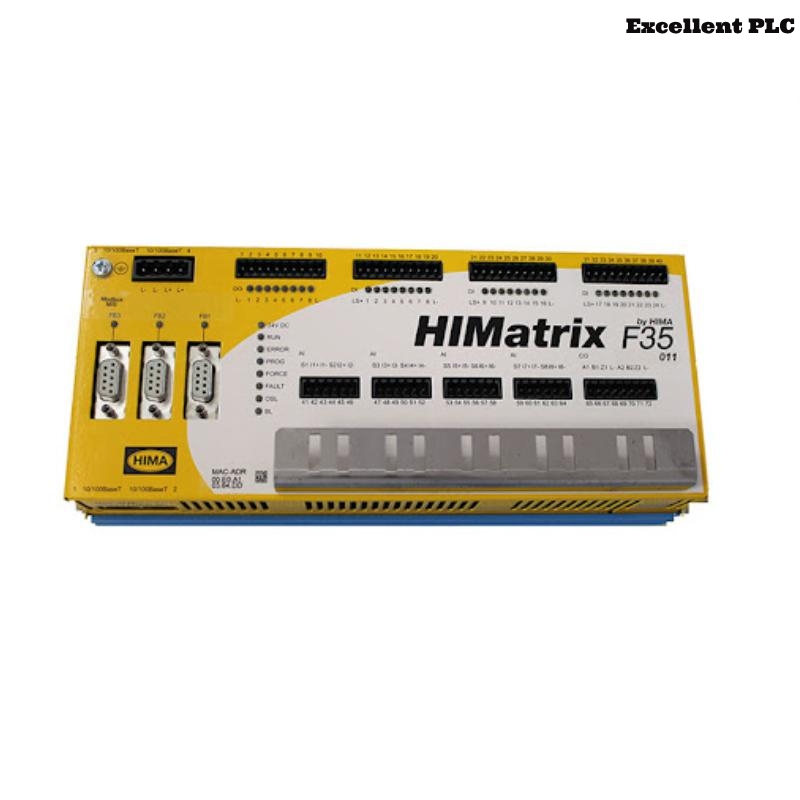

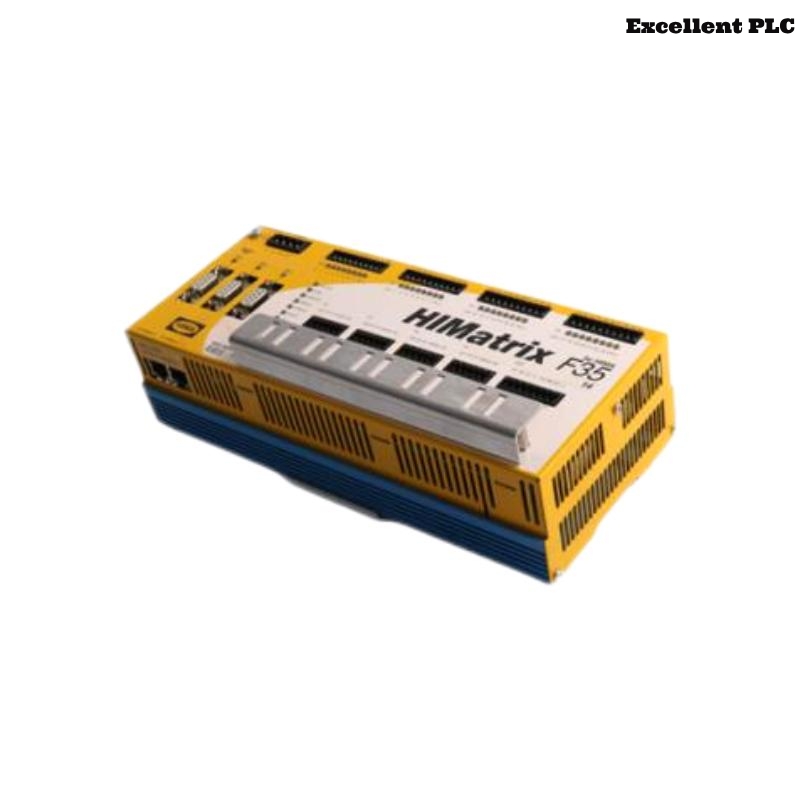

The HIMA F35 011 is a safety-related controller from the renowned F-series platform, developed by HIMA – a global leader in functional safety and automation solutions. Designed specifically for safety-critical applications, the F35 011 operates as a programmable logic controller (PLC) certified up to SIL 3 in accordance with IEC 61508.
This controller combines robust safety functionality with real-time performance and modular flexibility, making it a central element in distributed and scalable safety systems. Whether deployed in power generation, oil & gas, petrochemical plants, or railway applications, the F35 011 ensures maximum system integrity and uninterrupted safe operation under all conditions.
Its dual-processor architecture, fault-tolerant design, and support for hot-redundant configurations deliver high availability with no compromise on functional safety.
Product Specifications
| Parameter | Details |
|---|---|
| Model | HIMA F35 011 |
| Series | HIMA F-Series Safety Controllers |
| Controller Type | Safety-Related Programmable Logic Controller |
| Compliance Standards | IEC 61508, SIL 3 / EN 50156, EN 50129 |
| CPU Architecture | Dual Processor Redundant Architecture |
| Memory | 4 MB Flash, 1 MB RAM |
| Cycle Time | < 10 ms (typical) |
| Communication Protocols | Ethernet, RS232, PROFIBUS, F-Net, Modbus TCP |
| I/O Support | Up to 256 local I/O, expandable via F-Rail |
| Operating Temperature | -20°C to +60°C |
| Power Supply | 24 VDC (18 V to 30 V range) |
| Housing Material | Industrial-grade aluminum casing |
| Cooling Method | Passive convection |
| Dimensions (L × W × H) | 257 x 114 x 97 mm |
| Weight | 1.2 kg |
| Mounting | DIN Rail |
| Diagnostic Capability | Full system self-diagnostics with logging |
| Programming Interface | SILworX Engineering Tool |
Product Applications
The HIMA F35 011 controller is engineered to function as the core brain of safety-critical systems across a diverse set of industries. Its applications include:
-
Process Safety Systems (PSS): In chemical, oil & gas, and refinery plants, the F35 011 executes emergency shutdown (ESD), burner management, and fire & gas systems.
-
Power Plant Safety: Used in both conventional and nuclear power generation for boiler protection and turbine overspeed controls.
-
Railway Automation: Controls signaling, interlocking, and train protection systems compliant with EN 50129.
-
Offshore Platforms: Operates reliably in marine and offshore environments where system integrity is essential.
-
Manufacturing Plants: Ensures the safety of machinery, personnel, and equipment in complex production lines.
-
Distributed Safety Networks: Suitable for remote and networked safety installations with F-NET/F-Rail bus expansion.
Product Advantages
-
Certified SIL 3 Safety: Full compliance with international safety standards, offering peace of mind in high-risk installations.
-
Redundant Architecture: Dual-CPU and communication redundancy ensure system availability even in failure scenarios.
-
Modular Expansion: Flexibly expandable I/O and communication options accommodate plant evolution without major redesign.
-
High-Speed Processing: Fast cycle times enable timely response in critical operations and emergency scenarios.
-
Diagnostics & Maintenance: Built-in self-diagnostics and integrated logging tools simplify troubleshooting and predictive maintenance.
-
Harsh Environment Ready: Designed to perform reliably in environments with high vibration, temperature variation, and electrical noise.
-
Engineering Integration: Seamless programming using SILworX software for configuration, testing, and validation.
-
Compact Footprint: Saves panel space while delivering maximum control capability and reliability.
-
Interoperability: Supports common fieldbus and communication standards for integration into both legacy and modern systems.
-
Long Lifecycle Support: Backed by HIMA’s long-term support policy and extensive global service network.
FAQ – Frequently Asked Questions
-
What safety standard is the HIMA F35 011 certified for?
The F35 011 is certified for SIL 3 according to IEC 61508, ensuring it can be used in high-integrity safety systems. -
Can the F35 011 be used in redundant systems?
Yes, the F35 011 supports hot standby redundancy and dual CPU configurations for high availability. -
What programming tool is required to configure the F35 011?
It uses SILworX, HIMA’s standard IEC 61131-compliant engineering tool. -
Does the F35 011 support remote I/O?
Yes, it can expand to remote I/O using F-Rail or other HIMA-supported communication modules. -
What are the power supply requirements for the F35 011?
It operates on a 24 VDC power supply, with a voltage tolerance range of 18 V to 30 V. -
How many I/O points can the F35 011 handle?
It supports up to 256 I/O points locally, with options for remote expansion. -
Is it suitable for marine or offshore installations?
Yes, the controller’s rugged design and extended temperature range make it suitable for offshore and maritime use. -
What communication protocols are supported?
It supports Ethernet, PROFIBUS, RS232, Modbus TCP, and HIMA’s F-NET. -
How is the unit mounted?
The F35 011 is DIN rail mountable, facilitating easy panel integration. -
What kind of diagnostics are available?
The module includes full system self-check, event logging, and diagnostic messaging to ensure early fault detection.
