Product Introduction

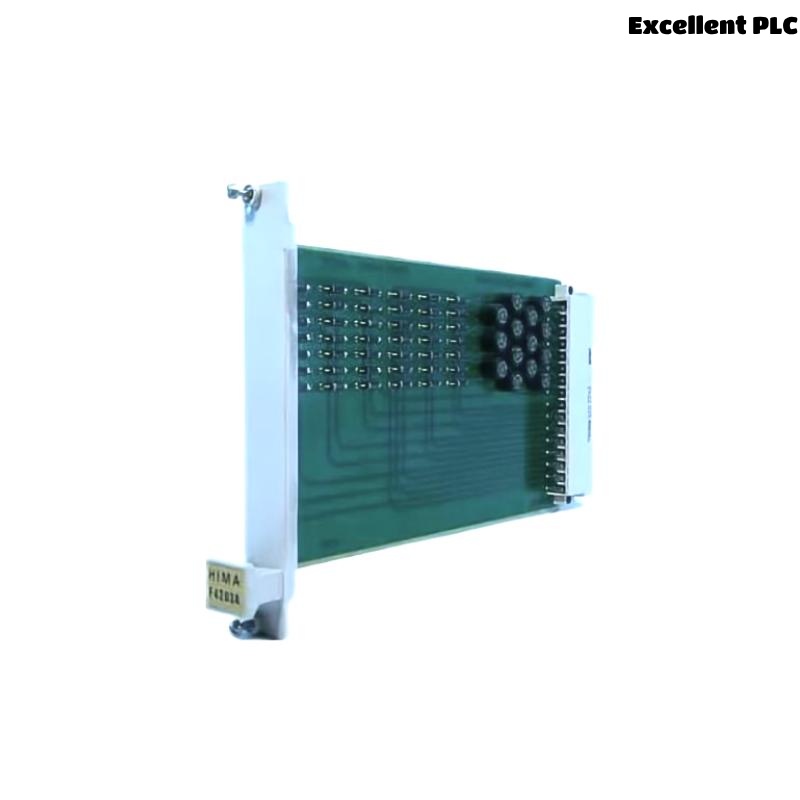

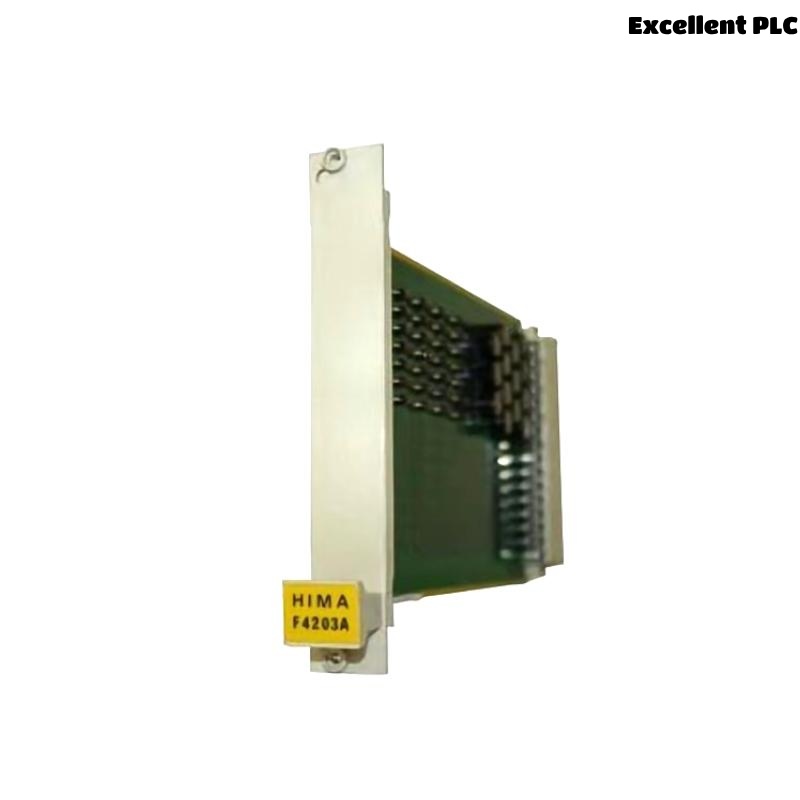

The HIMA F4203A is a safety-related diode pre-unit designed specifically for use in safety instrumented systems within industrial automation and process control environments. This module is an integral part of the HIMA HIMax and HIQuad safety platforms, providing diode-based isolation and protection for safety-critical applications. The F4203A is engineered to meet stringent SIL (Safety Integrity Level) requirements in accordance with IEC 61508 standards.
Its primary function is to isolate signals in safety-related circuits, offering protection against reverse voltage, signal feedback, and overcurrent conditions. The F4203A plays a crucial role in ensuring signal integrity and safe system operation in environments where reliability and fail-safe performance are paramount.
Technical Specifications
| Parameter | Details |
|---|---|
| Product Model | HIMA F4203A |
| Function | Safety-related diode pre-unit |
| Mounting Type | DIN rail mounting |
| Supply Voltage | 24 VDC typical (from backplane) |
| Signal Type | Digital/Analog Input Isolation |
| Diode Type | Fast recovery diodes |
| Max Reverse Voltage | 50 V |
| Max Forward Current | 100 mA per channel |
| Response Time | < 1 ms |
| Channel Configuration | 8 channels per unit |
| Redundancy | Supported in safety-critical configurations |
| Ambient Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| Dimensions (W x H x D) | 220 x 100 x 30 mm |
| Weight | 0.14 kg |
| Certification | CE, SIL 3 (IEC 61508), ATEX compliant |
| Compliance | EN 61000, EN 61326, IEC 61508 |
Product Applications
The HIMA F4203A is widely used in the following industrial environments:
-
Oil & Gas: For safe signal isolation in refineries, offshore platforms, and pipeline control systems.
-
Chemical Plants: Used in hazardous chemical processes requiring strict safety loop isolation.
-
Power Generation: Ensures electrical isolation in turbine control and safety systems.
-
Pharmaceutical Industry: Safeguards batch process controls and automation systems.
-
Nuclear Facilities: Utilized in signal separation within nuclear safety systems.
-
Steel and Metallurgy Plants: Protects field devices from electrical disturbances and backfeed currents.
Product Advantages
-
Safety Certified: Meets rigorous SIL 3 requirements as per IEC 61508 for critical safety system integration.
-
Compact Design: Slim profile enables high-density installations in control cabinets.
-
Reliable Signal Isolation: Ensures no unwanted feedback or cross-interference between channels.
-
Easy Integration: Designed to be easily inserted into existing HIMA HIMax or HIQuad systems.
-
High Durability: Withstands extreme industrial conditions, including high temperature and vibration.
-
Maintenance Friendly: Passive design requires minimal maintenance over long operating cycles.
-
Fail-Safe Operation: Provides consistent protection even during fault conditions.
-
Versatile Usage: Suitable for both digital and analog signal isolation in complex safety loops.
Frequently Asked Questions (FAQ)
-
What is the primary function of the HIMA F4203A module?
The F4203A is used for signal isolation and protection in safety-related circuits to prevent backfeed and ensure system integrity. -
Is the F4203A suitable for analog signals or only digital?
The module supports both analog and digital signal isolation, depending on the configuration. -
Can I use F4203A in a SIL 3 certified safety loop?
Yes, the F4203A is certified for SIL 3 applications under IEC 61508 standards. -
What kind of protection does the diode pre-unit offer?
It offers reverse voltage protection, signal isolation, and overcurrent safeguarding. -
Does the module support redundancy?
Yes, it can be used in redundant safety systems as part of high-integrity configurations. -
Is this module hot-swappable?
No, the F4203A should be replaced or installed when the system is powered down for safety. -
How many channels does the module provide?
It offers 8 isolated channels per unit. -
What is the power supply method for the F4203A?
It is typically powered via the backplane of the HIMA safety system (24 VDC). -
Is the F4203A ATEX certified for hazardous environments?
Yes, the module meets ATEX compliance requirements for use in explosive atmospheres. -
What systems are compatible with the F4203A?
The module is compatible with HIMA HIMax and HIQuad safety control systems.
