Product Introduction

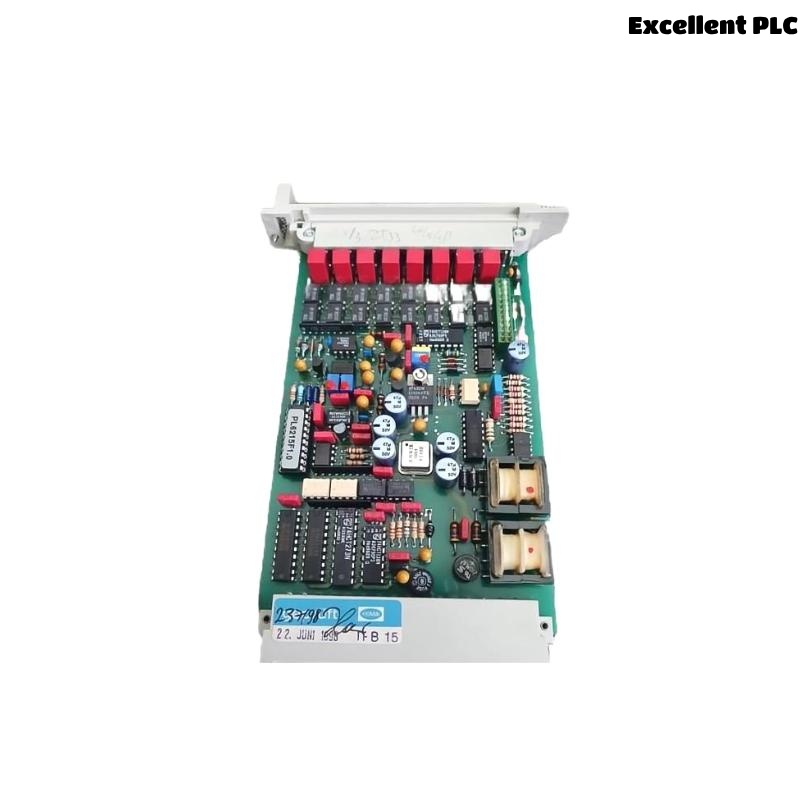

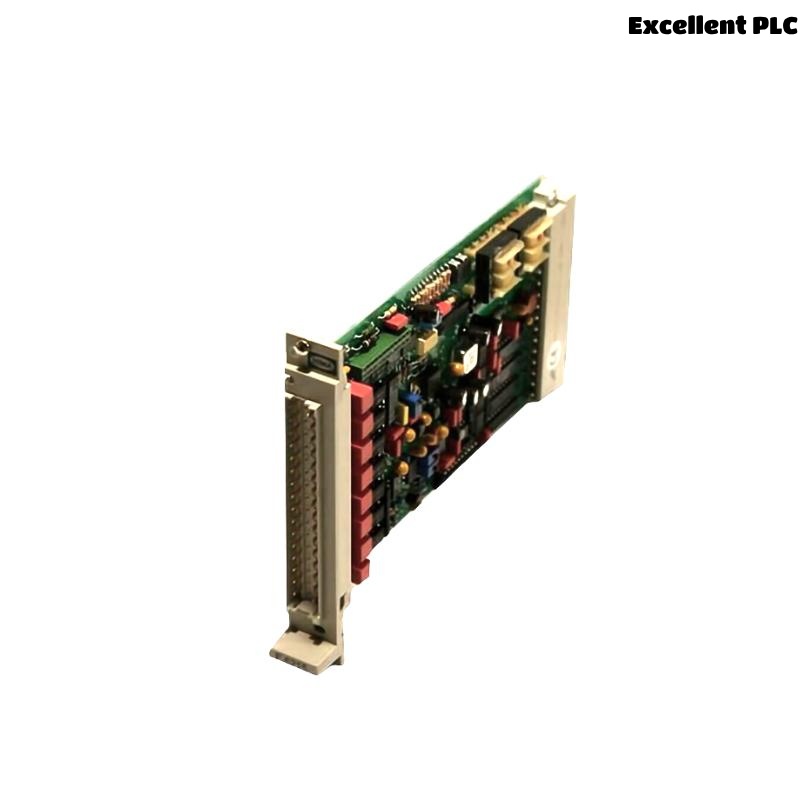

The HIMA F6215 Analog Input Module is a critical component in HIMA’s safety instrumented systems (SIS), designed to reliably capture and convert analog signals from field devices into digital data for processing within safety control systems. Known for its high precision and robustness, the F6215 module is engineered to meet stringent industrial safety standards, providing accurate, real-time monitoring of analog parameters such as temperature, pressure, flow, or level.
Built to operate seamlessly within HIMA’s extensive product ecosystem, this module supports a range of input types and signal conditioning options. Its design prioritizes fail-safe operation and diagnostic capabilities, ensuring that critical process variables are monitored continuously with minimal risk of undetected faults. The F6215 is widely recognized for enhancing process safety in industries where failure is not an option.
Product Specifications
| Parameter | Details |
|---|---|
| Model | HIMA F6215 Analog Input Module |
| Input Channels | 8 (analog inputs) |
| Supported Signal Types | 4–20 mA, 0–20 mA, 0–10 V, Resistance |
| Input Impedance | Typically 250 Ω (for current inputs) |
| Resolution | 16-bit ADC |
| Sampling Rate | Up to 100 ms per channel |
| Isolation | Channel-to-channel galvanic isolation |
| Communication Interface | HIMA HIMax or HIMax Compact bus |
| Power Supply | 24 V DC |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Protection Class | IP20 |
| Dimensions (W x H x D) | 151 x 77 x 113 mm |
| Weight | 0.7 kg |
| Certifications | SIL 3 (IEC 61508), ATEX, IECEx |
Product Applications
The F6215 Analog Input Module is utilized extensively across industries requiring highly reliable analog data acquisition for safety-related process monitoring:
-
Oil and Gas: Monitoring pressure, temperature, and flow in pipelines and processing plants to maintain safe operational conditions.
-
Chemical and Petrochemical: Ensuring precise measurement of critical process variables in reactors, distillation columns, and storage tanks.
-
Power Generation: Tracking analog signals from sensors measuring steam pressure, water level, and temperature in power plants.
-
Pharmaceutical Industry: Monitoring environmental conditions and process parameters in production to comply with stringent safety regulations.
-
Water and Wastewater Treatment: Ensuring safe control of flow and chemical dosing through continuous analog signal monitoring.
-
Steel and Metal Industry: Measuring temperature and other variables during metal processing to prevent unsafe conditions.
-
Automation and Process Control: Integrated in SIS architectures for fail-safe data acquisition from multiple analog sensors.
Product Advantages
-
High Safety Integrity: Certified SIL 3 compliance ensures the module meets rigorous safety standards for critical applications.
-
Multi-Signal Support: Supports a wide range of analog inputs, allowing integration with diverse field devices.
-
Robust Diagnostics: Built-in diagnostics detect sensor faults, wiring errors, and module failures, enhancing system reliability.
-
Galvanic Isolation: Channel-to-channel isolation prevents interference and ensures signal integrity.
-
Compact Design: Space-saving module fits efficiently into standard control racks.
-
Seamless Integration: Designed for plug-and-play operation within HIMA’s HIMax safety control platforms.
-
Wide Operating Range: Functions reliably under varied industrial temperature and environmental conditions.
-
Low Maintenance: Designed for durability and minimal downtime with easy replacement and serviceability.
-
Industry Certifications: Meets global safety and explosion protection standards for hazardous environments.
-
Accurate Data Conversion: High-resolution ADC ensures precise and reliable analog signal digitization.
Frequently Asked Questions (FAQ)
-
Q: What types of analog signals does the F6215 module support?
A: It supports current signals (4–20 mA, 0–20 mA), voltage signals (0–10 V), and resistance inputs. -
Q: How many analog input channels does the module provide?
A: The module provides 8 independent analog input channels. -
Q: Is the F6215 module certified for safety applications?
A: Yes, it is SIL 3 certified according to IEC 61508 standards. -
Q: What is the module’s operating temperature range?
A: The module operates between -20°C and +60°C. -
Q: How is the module integrated into a control system?
A: It interfaces via the HIMA HIMax or HIMax Compact bus systems. -
Q: Does the module have built-in diagnostics?
A: Yes, it provides extensive diagnostics for sensor faults, wiring issues, and internal errors. -
Q: What are the physical dimensions of the module?
A: The module measures 151 x 77 x 113 mm. -
Q: Can the module be used in hazardous environments?
A: Yes, it holds certifications such as ATEX and IECEx for use in hazardous locations. -
Q: What is the power supply requirement?
A: The module requires a 24 V DC power supply. -
Q: How does the module ensure signal integrity?
A: It uses galvanic isolation between channels to prevent electrical interference.
