Product Introduction

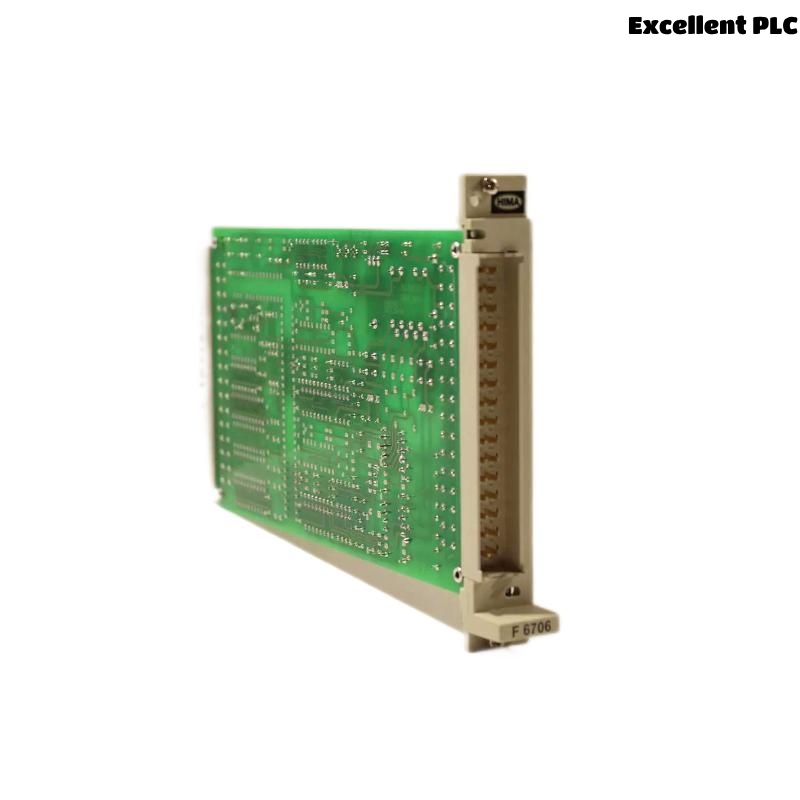

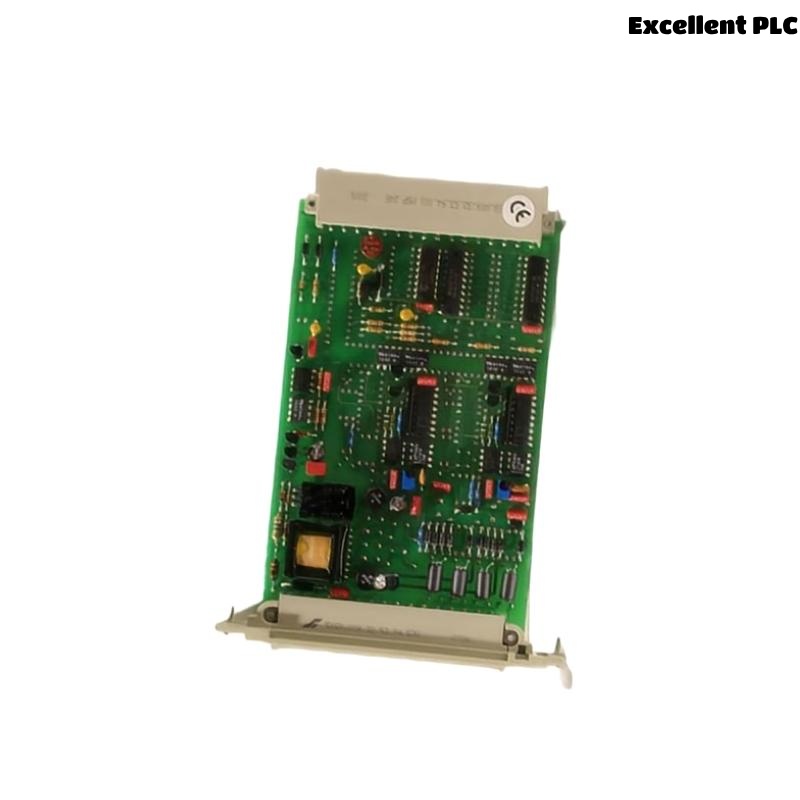

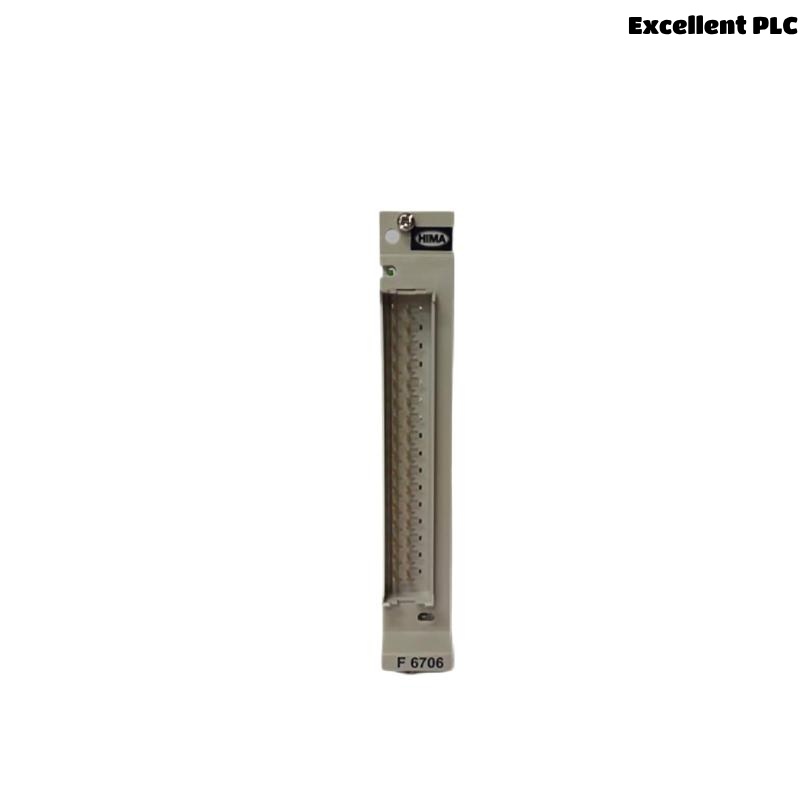

The HIMA F6706 Analog Output Module is an essential component within HIMA’s safety instrumented systems, designed to provide reliable, precise analog output signals for critical process control and safety functions. This module converts digital signals from the safety controller into standardized analog signals (typically 4-20 mA or 0-10 V), which can be used to operate actuators, valves, or provide feedback to monitoring equipment.
Engineered for safety-critical environments, the F6706 module meets stringent industry standards for functional safety, ensuring consistent and fail-safe performance even under extreme conditions. Its modular design allows seamless integration into HIMA’s FlexSILon or HIMax systems, facilitating scalable and maintainable solutions tailored to complex industrial processes.
The robust build, coupled with diagnostic capabilities, makes this module an ideal choice for sectors such as oil and gas, power generation, chemical processing, and other industries where safety and precision are paramount.
Product Specifications
| Parameter | Specification |
|---|---|
| Model Number | F6706 |
| Function | Analog Output Module |
| Output Signal Type | 4-20 mA current or 0-10 V voltage |
| Number of Channels | Typically 4 channels per module |
| Resolution | 12-bit (4096 steps) |
| Accuracy | ±0.1% of full scale |
| Output Load Capacity | 600 Ω max for current output |
| Response Time | < 10 ms |
| Power Supply | 24 V DC (±20%) |
| Operating Temperature Range | -20°C to +70°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | Up to 95% non-condensing |
| Communication Interface | Backplane bus compatible with HIMax/FlexSILon |
| Diagnostics | Built-in diagnostics and status monitoring |
| Safety Integrity Level (SIL) | Up to SIL 3 |
| Mounting | DIN rail or panel mount |
| Dimensions (H x W x D) | 167 x 90 x 35 mm |
| Weight | 0.6 kg |
| Certifications | IEC 61508, IEC 61511, ATEX, SIL certified |
Product Applications
-
Process Control and Safety Systems
Converts controller output into analog signals to drive actuators and provide feedback in safety instrumented systems. -
Oil & Gas Industry
Used in emergency shutdown systems and safety interlocks to ensure precise control under hazardous conditions. -
Power Generation Plants
Controls valve positioning and turbine speed regulation through accurate analog signals. -
Chemical & Petrochemical Plants
Integral in maintaining safe process parameters by interfacing with control valves and monitoring equipment. -
Manufacturing & Automation
Provides safe and reliable analog output for critical process control loops.
Product Advantages
-
High Reliability and Safety Compliance
Certified to IEC 61508 and IEC 61511 standards, ensuring suitability for SIL 3 applications. -
Modular and Scalable Design
Easily integrates with HIMA’s HIMax and FlexSILon platforms, enabling tailored safety solutions. -
Built-in Diagnostics
Real-time monitoring of module status enhances system availability and simplifies maintenance. -
Wide Operating Range
Performs consistently in harsh industrial environments with extended temperature and humidity tolerance. -
Precise and Stable Outputs
High resolution and accuracy guarantee dependable signal transmission to actuators and other field devices. -
Compact Size
Saves panel space without compromising on functionality.
Frequently Asked Questions (FAQ)
-
What type of signals does the F6706 module output?
It outputs analog signals, typically 4-20 mA current or 0-10 V voltage, depending on configuration. -
How many output channels does this module support?
The standard F6706 module supports four independent analog output channels. -
Is the F6706 suitable for SIL 3 safety applications?
Yes, it is certified for use in SIL 3 safety instrumented systems. -
What is the operating temperature range for this module?
It can operate safely between -20°C and +70°C. -
Can the module diagnose its own status?
Yes, it has built-in diagnostic features to detect faults and report status. -
What communication interface does the module use?
It interfaces via the backplane bus compatible with HIMA’s HIMax and FlexSILon systems. -
What are the physical dimensions of the module?
The module measures 167 x 90 x 35 mm. -
Is the F6706 module suitable for explosive environments?
Yes, it carries ATEX certification for use in hazardous areas. -
What is the module’s power supply requirement?
It requires a 24 V DC power supply with ±20% tolerance. -
How does this module ensure signal accuracy and stability?
It uses 12-bit resolution with ±0.1% accuracy and includes diagnostic monitoring to maintain reliable operation.
