Product Introduction

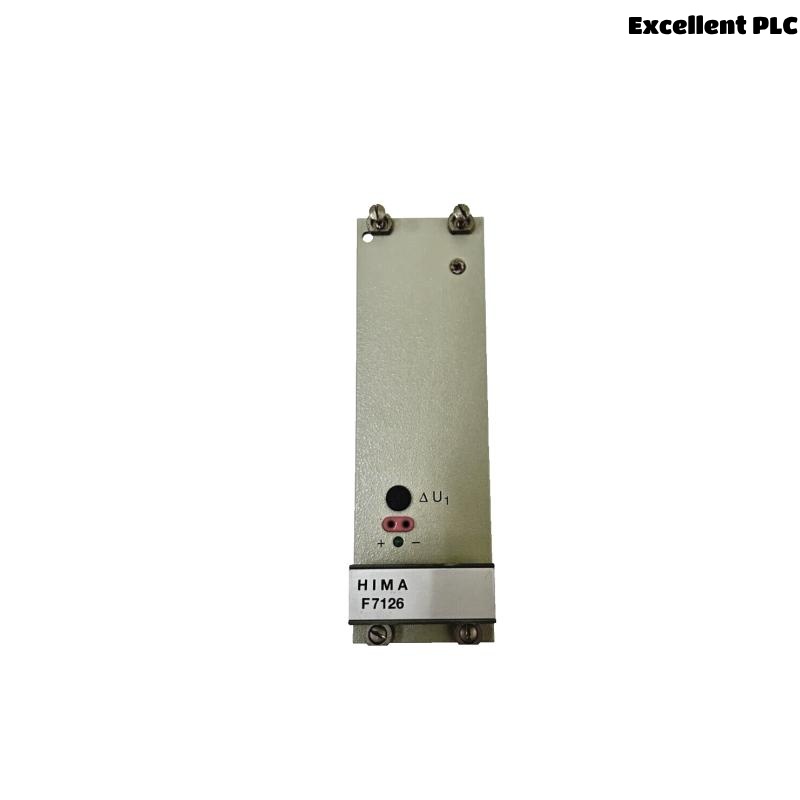

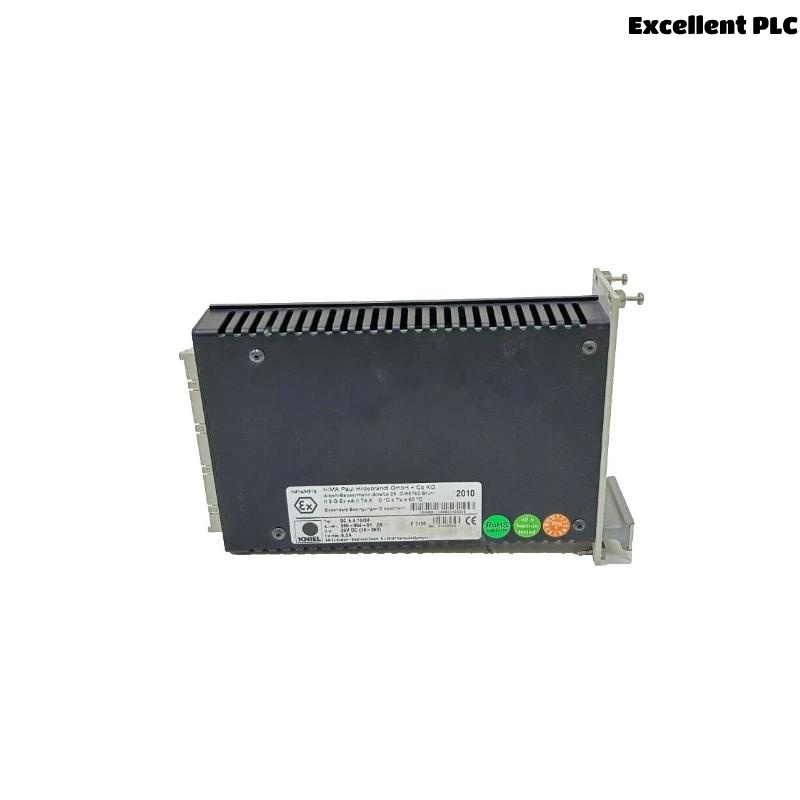

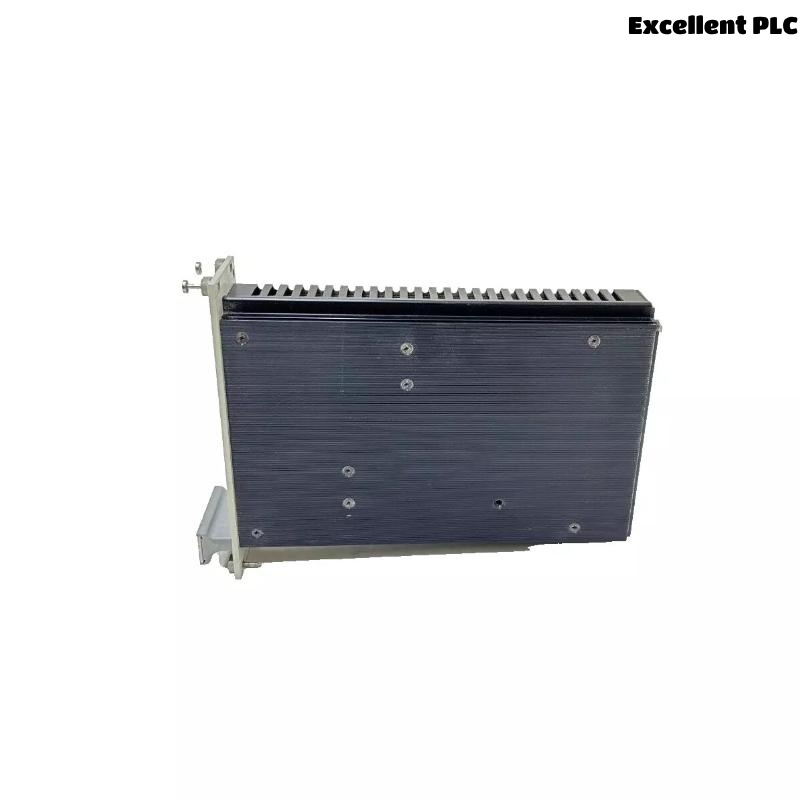

The HIMA F7126 Power Supply Module is a vital component designed to provide a stable and reliable power source for HIMA safety automation systems. Power supply reliability is crucial in safety-related applications, and the F7126 ensures uninterrupted power delivery to critical safety modules and controllers.
Engineered to operate within demanding industrial environments, the F7126 supports redundant power configurations and safeguards against voltage fluctuations, spikes, and electrical noise. Its robust design ensures continuous operation of safety functions even under adverse conditions, making it an indispensable part of HIMA’s modular safety platforms such as HIMax and HiQuad.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | HIMA F7126 |
| Function | Power Supply Module |
| Input Voltage | 85 V to 264 V AC / 88 V to 300 V DC |
| Output Voltage | 24 V DC |
| Output Current | Max 5 A |
| Redundancy Support | Yes, for dual power supply setup |
| Space requirement | 8 TE |
| Weight | 0.58 kg |
| Operating Temperature Range | -20°C to +60°C |
| Certifications | CE, UL, IEC 61508 SIL 3 |
| Mounting | DIN rail or panel mount |
| Protection Features | Over-voltage, short-circuit, overload protection |
| Cooling | Convection cooled |
Product Applications
The F7126 Power Supply Module is widely employed in safety-critical automation environments, including:
-
Oil & Gas Facilities: Providing dependable power for emergency shutdown and fire & gas detection systems.
-
Chemical Processing Plants: Ensuring uninterrupted power to safety controllers and instrumentation.
-
Power Generation: Supporting turbine control and generator safety circuits with stable power.
-
Pharmaceutical Manufacturing: Maintaining continuous operation of safety systems in cleanroom and controlled environments.
-
Transportation Systems: Powering safety modules in railway signaling and airport automation.
-
Heavy Industry: Protecting machinery and workers by powering fail-safe control modules in manufacturing plants.
Product Advantages
-
High Reliability: Designed for continuous operation in critical safety applications, minimizing downtime.
-
Wide Input Voltage Range: Supports both AC and DC inputs, offering flexibility in installation.
-
Redundancy Capable: Supports dual power supply arrangements to increase system availability.
-
Compact and Robust Design: Fits easily in control cabinets and withstands industrial environmental stresses.
-
Built-In Protections: Guards against electrical faults such as overload, short circuit, and over-voltage to protect downstream devices.
-
Easy Installation: Compatible with standard DIN rail or panel mounting, simplifying setup and maintenance.
-
Certified Safety Compliance: Meets SIL 3 requirements per IEC 61508, ensuring suitability for safety instrumented systems.
-
Efficient Cooling: Convection cooling reduces the need for additional fans, enhancing reliability.
Frequently Asked Questions (FAQ)
-
What input voltages does the F7126 support?
It supports an input range of 85–264 V AC or 88–300 V DC. -
What is the maximum output current?
The module can deliver up to 5 A at 24 V DC. -
Is the F7126 module suitable for redundant power supply configurations?
Yes, it supports dual redundant setups to improve system reliability. -
What safety certifications does the power supply have?
It is certified to IEC 61508 SIL 3 and holds CE and UL certifications. -
How is the module cooled?
It uses convection cooling with no moving parts, enhancing durability. -
What protections are built into the power supply?
Over-voltage, overload, and short-circuit protections are included. -
What are the physical weight?
Weight 0.58 kg. -
Can the F7126 be used in harsh industrial environments?
Yes, it is designed to operate reliably from -20°C to +60°C. -
How is the module mounted?
It supports DIN rail or panel mounting options. -
Is the F7126 compatible with other HIMA safety modules?
Yes, it is fully compatible with HIMax, HiQuad, and other HIMA safety platforms.
