Product Introduction

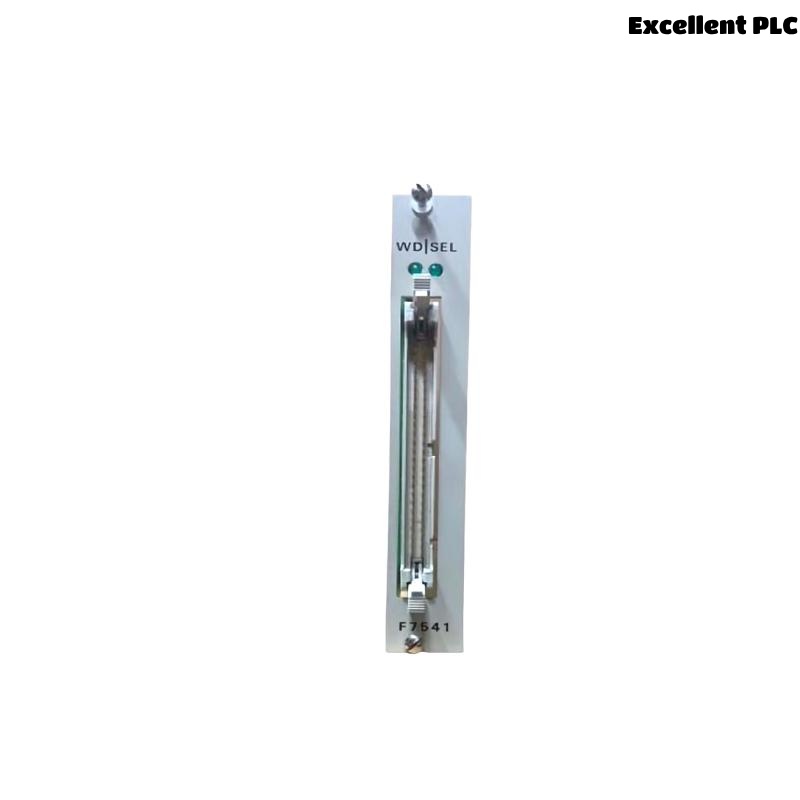

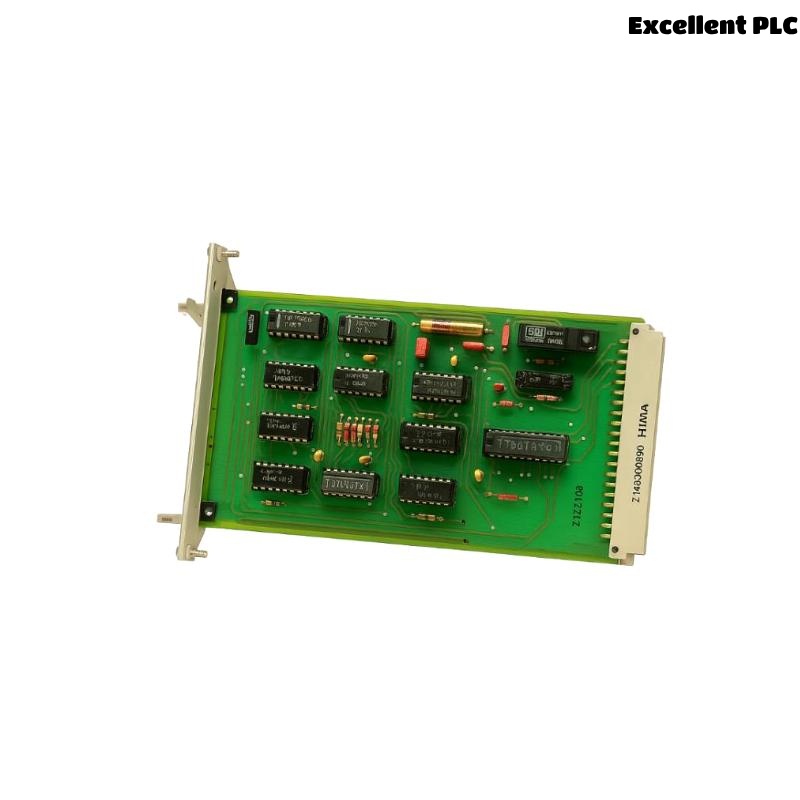

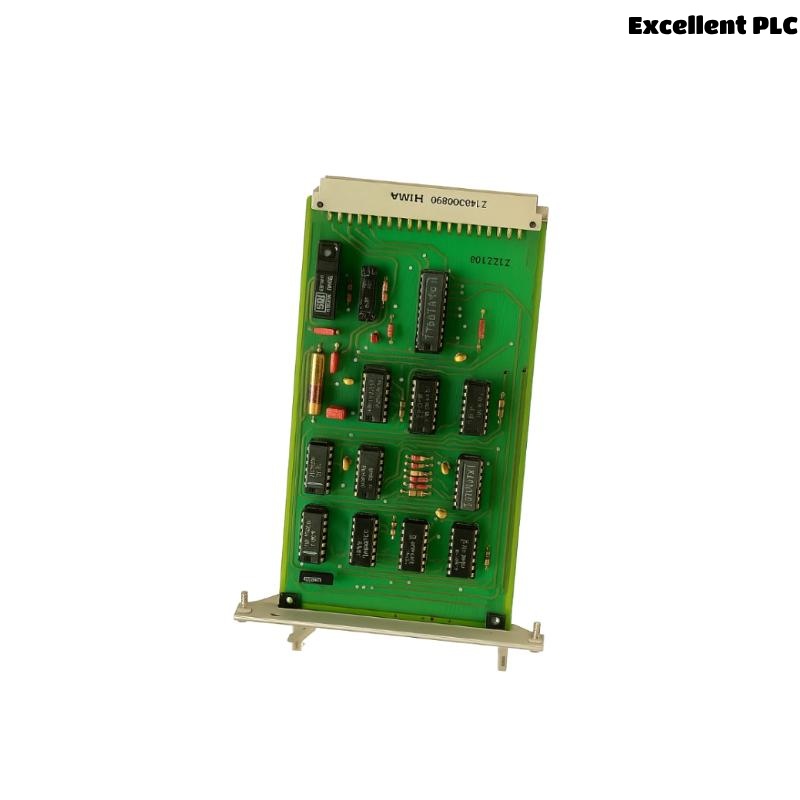

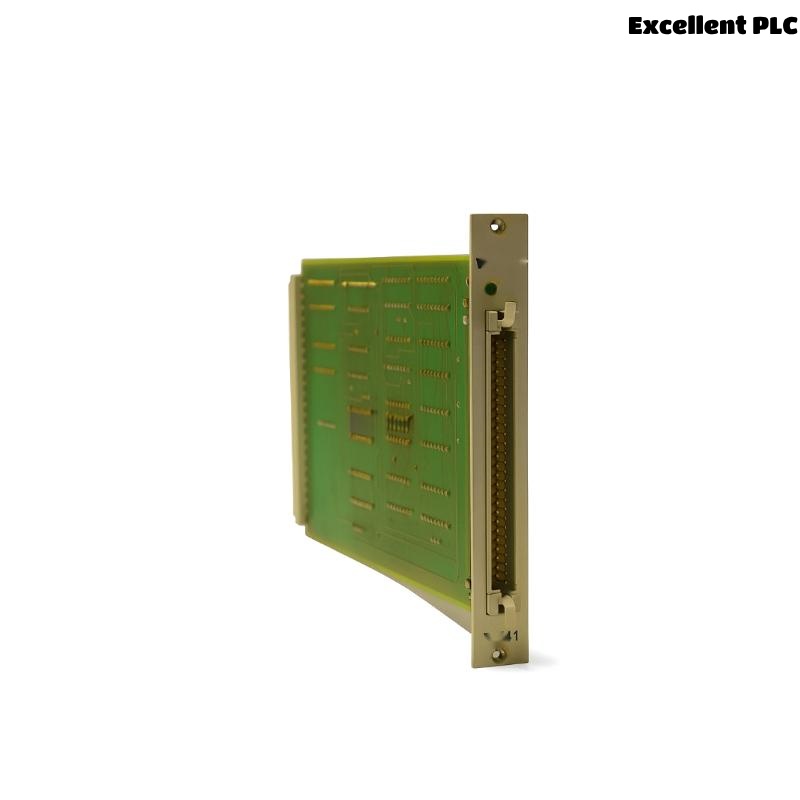

The HIMA F7541 Connecting Module is a specialized interface module engineered for integration within HIMA’s renowned safety control systems. It serves as a vital connecting interface between the safety system and field-level devices, facilitating robust signal transmission, galvanic isolation, and reliable interfacing capabilities.
This module is tailored for use in demanding industrial automation applications, where safety, reliability, and long-term availability are non-negotiable. Its design adheres strictly to IEC 61508 SIL standards, ensuring safe deployment in safety-critical environments like oil & gas, chemical plants, and power generation facilities.
Product Specifications
| Parameter | Specification |
|---|---|
| Model | F7541 |
| Manufacturer | HIMA |
| Product Type | Connecting Module |
| Signal Type | Digital / Analog interface (depending on system configuration) |
| Galvanic Isolation | Yes (between field and system level) |
| Number of Channels | Typically 8 to 16 (depending on installation) |
| Operating Voltage | 24 V DC |
| Power Consumption | Approx. 2.5 W |
| Operating Temperature Range | -20°C to +60°C |
| Storage Temperature Range | -40°C to +85°C |
| Humidity | < 95% RH, non-condensing |
| Dimensions (W x H x D) | 25 x 127 x 103 mm |
| Weight | 0.3 kg |
| Mounting | DIN rail |
| Housing Material | Polyamide, self-extinguishing |
| Certification | SIL 3 (IEC 61508), CE, ATEX zone compliant |
Product Applications
The F7541 Connecting Module is extensively deployed in the following sectors:
-
Oil and Gas Processing Units
For interfacing emergency shutdown systems (ESD) with field transmitters and actuators. -
Petrochemical Plants
Facilitating reliable data and command exchange between control systems and hazardous area equipment. -
Power Plants (Nuclear and Conventional)
Used in turbine control systems, boiler management systems, and auxiliary interlock systems. -
Pharmaceutical Manufacturing
Ensuring safety compliance in batch processing and high-purity systems. -
Railway and Transportation Automation
Acts as a crucial part of safety integrity loop in train protection systems.
Product Advantages
-
Robust and Reliable Signal Interfacing
Provides stable connection and galvanic isolation between field and system levels, reducing noise and protecting internal circuitry. -
High Safety Integrity Level
Certified up to SIL 3 per IEC 61508, ensuring suitability for the most safety-critical applications. -
Compact Form Factor
Slim profile with DIN rail mounting allows space-saving installation in crowded cabinets. -
Temperature and Humidity Resilience
Operates efficiently under harsh environmental conditions with extended temperature and humidity tolerance. -
Ease of Maintenance and Diagnostics
Designed for quick replacement and straightforward fault diagnosis, minimizing system downtime. -
Longevity and Manufacturer Support
Backed by HIMA’s extensive experience in industrial safety, ensuring long-term availability and technical support.
Frequently Asked Questions (FAQ)
-
Q: Can the F7541 module be used in redundant system architectures?
A: Yes, the F7541 is designed to support redundant configurations, making it suitable for safety-critical systems where availability is a top priority. -
Q: Does the F7541 require external fusing or protection devices?
A: In most standard installations, the module interfaces directly with HIMA systems without additional protection. However, external fusing may be recommended depending on field wiring and system design standards. -
Q: Is there a specific orientation for mounting the F7541 module?
A: Yes, the module should be installed vertically on a DIN rail to ensure optimal cooling and performance as per HIMA installation guidelines. -
Q: How does the F7541 handle signal disturbances from the field side?
A: It features galvanic isolation and internal filtering circuits that effectively suppress signal disturbances and minimize the impact of electromagnetic interference (EMI). -
Q: What kind of maintenance does the F7541 typically require?
A: The module is maintenance-free under normal operation. Periodic inspection for connection integrity and module diagnostics via HIMA tools is recommended. -
Q: Can I replace the F7541 module without shutting down the system?
A: Yes, in systems with hot-swappable architecture (like HIMax), the F7541 can be replaced while the system remains operational, minimizing downtime. -
Q: Is there an LED status indication on the F7541?
A: Yes, the module includes integrated status LEDs for quick visual feedback on signal transmission and fault conditions. -
Q: What type of connectors are used for field wiring?
A: Standard screw terminals are provided for secure and vibration-resistant field connections, compatible with common industrial wire gauges. -
Q: Is the F7541 compatible with legacy HIQuad systems?
A: It is primarily optimized for HIMax and newer platforms, but compatibility with older systems like HIQuad may depend on firmware and configuration. Consultation with HIMA support is recommended. -
Q: How does the module behave during power interruptions?
A: The module retains safe-state logic during power loss and will resume operation automatically when power is restored, without requiring manual reset.
