Product Introduction

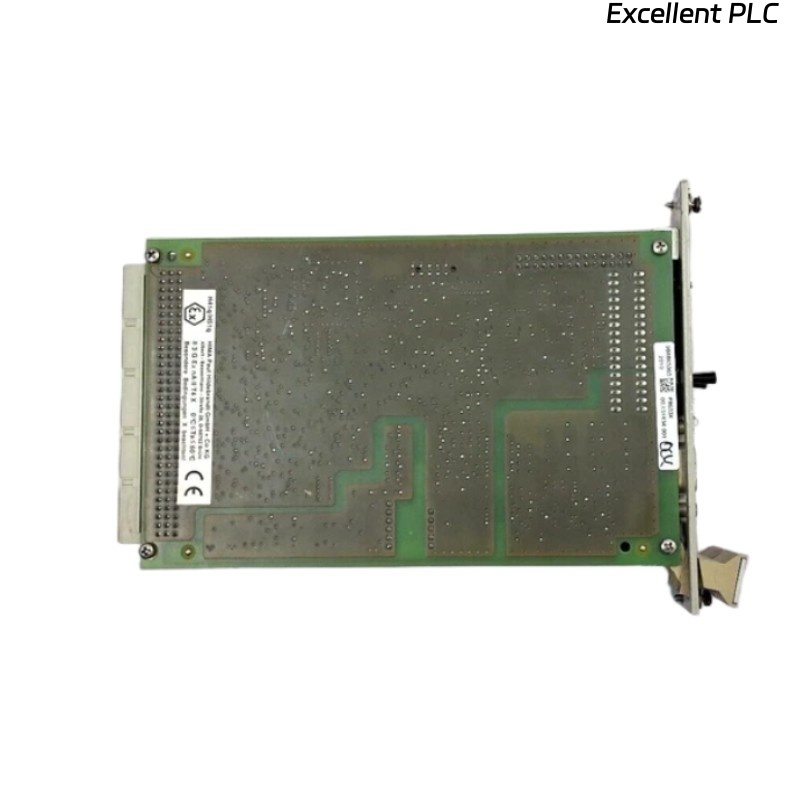

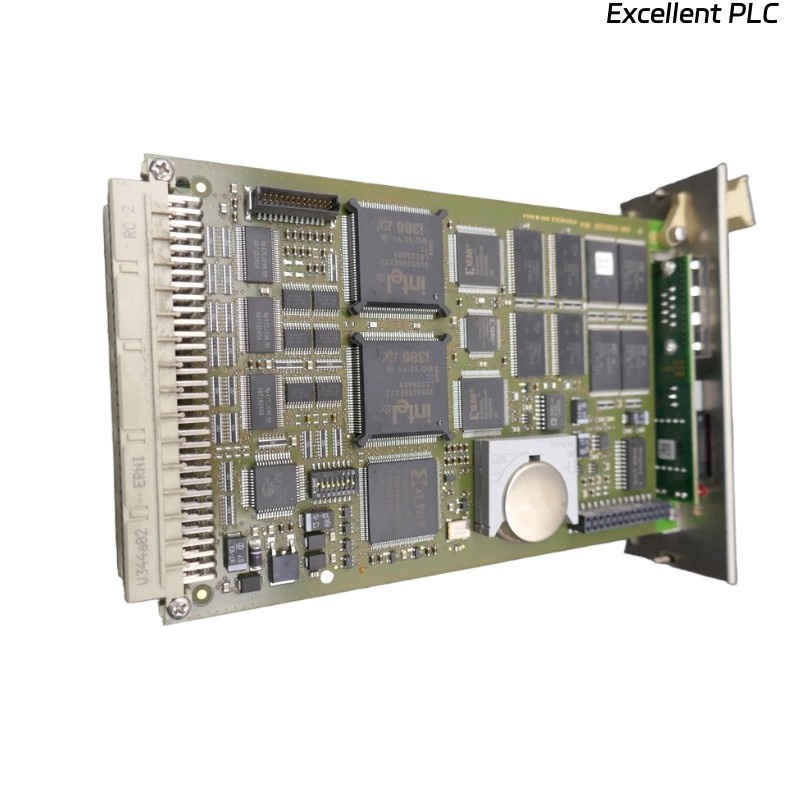

The HIMA F8560X Central Processor Module is a high-performance CPU module designed for use in HIMA HIMax and HIQuad safety systems. As the core processing unit, it ensures the execution of safety-critical applications with deterministic performance and compliance with international safety standards such as IEC 61508 and SIL 3.
Technical Specifications
| Parameter | Description |
|---|---|
| Product Model | HIMA F8560X Central Processor Module |
| Dimensions | 260 x 110 x 25 mm |
| Weight | 0.85 kg |
| Power Supply Voltage | 24 V DC (redundant power supply supported) |
| Power Consumption | ~ 15 W |
| Processor Type | High-performance CPU with hardware redundancy capability |
| Communication Interfaces | Ethernet, serial communication, system bus interface |
| Memory Capacity | Large onboard memory with support for safety application storage and logs |
| Operating Temperature | 0 °C to +60 °C |
| Storage Temperature | -25 °C to +70 °C |
| Certifications | IEC 61508, SIL 3, ATEX, CE, TÜV |
| Installation | Rack-mounted within HIMA HIMax / HIQuad chassis |
Product Applications
-
Oil & Gas: Emergency shutdown (ESD), fire and gas detection, and burner management systems.
-
Chemical Industry: Reactor safety, process safeguarding, and plant-wide safety controls.
-
Power Generation: Turbine protection, boiler safety, and distributed safety monitoring.
-
Rail & Transport: Fail-safe control systems for railway signaling and safety monitoring.
-
Industrial Automation: Integration in complex safety architectures requiring SIL 3 compliance.
Product Advantages
-
High Reliability: Built with redundancy and fault-tolerant architecture to minimize downtime.
-
SIL 3 Certified: Fully compliant with IEC 61508 standards for functional safety applications.
-
Scalable Architecture: Suitable for small systems as well as large distributed safety platforms.
-
Fast Processing: High CPU performance ensures real-time execution of critical safety tasks.
-
Secure Communication: Multiple industrial communication interfaces with cybersecurity compliance.
-
Seamless Integration: Compatible with other HIMA modules and scalable within HIMax and HIQuad systems.
FAQ
Q1: What safety standard does the HIMA F8560X comply with?
A1: It complies with IEC 61508 and is certified up to SIL 3.
Q2: Can the F8560X be used in redundant configurations?
A2: Yes, it supports hot-redundant configurations for fault tolerance and high availability.
Q3: Which HIMA systems is the F8560X compatible with?
A3: It is designed for HIMax and HIQuad safety systems.
Q4: What type of communication interfaces are available?
A4: The module supports Ethernet, serial interfaces, and the HIMA system bus.
Q5: Does the module support event and data logging?
A5: Yes, it has onboard memory for application programs, event logging, and diagnostic data.
Q6: Can the F8560X operate under harsh environmental conditions?
A6: Yes, it is designed for industrial environments with an operating temperature range of 0 °C to +60 °C.
Q7: Is the F8560X certified for use in hazardous areas?
A7: Yes, it holds ATEX and TÜV certifications for use in safety-critical environments.
Q8: How is the power supplied to the module?
A8: It operates with a 24 V DC power supply and supports redundant power connections.
Q9: What happens if the primary processor fails?
A9: In redundant configurations, the secondary processor takes over instantly without process interruption.
Q10: Can the F8560X be integrated with third-party control systems?
A10: Yes, it can be integrated through standard industrial communication protocols.
