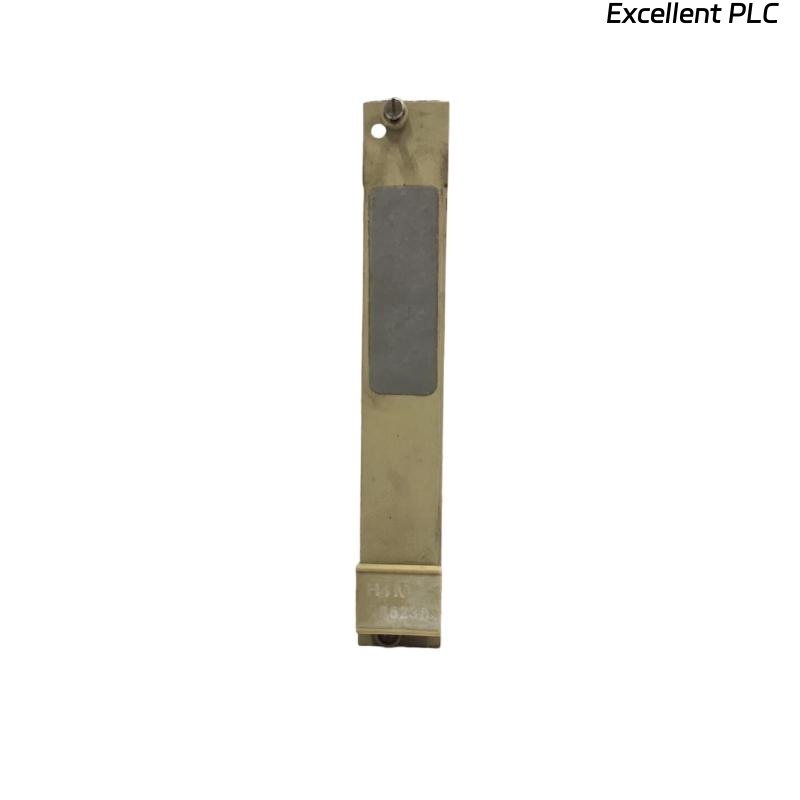

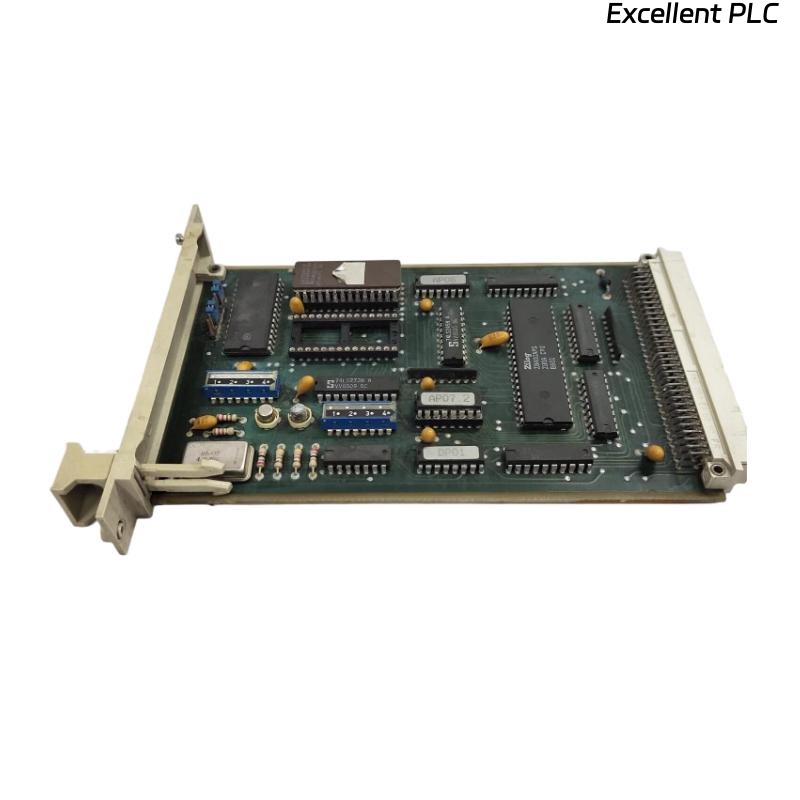

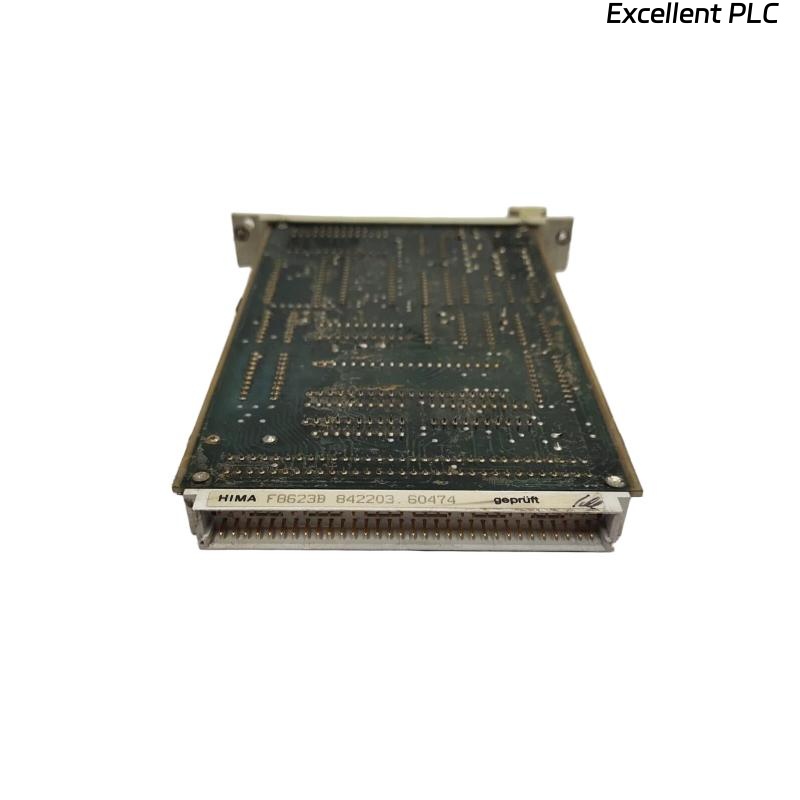

HIMA F8623B Safety-Related Output Module

Product Overview

The HIMA F8623B is a safety-related output module designed for integration into industrial safety systems. This module is part of HIMA’s extensive safety control offerings, providing high reliability and performance in ensuring the safe operation of critical industrial processes. As part of the F8600 series, the F8623B serves as an essential component in emergency stop systems, plant shutdown sequences, and other critical applications where fail-safe output functionality is paramount.

This module is designed to interface with a variety of safety systems and uses advanced fail-safe technology to guarantee safe outputs in the event of a failure. The F8623B ensures that the system reacts in a controlled and predictable manner to maintain personnel and equipment safety. With compact dimensions and lightweight design, the module is highly suitable for installations where space is limited or where system upgrades are required.

Key Features

• Safety-Related Outputs: Provides reliable and fail-safe output control in accordance with international safety standards.

• Compact and Lightweight Design: The module’s 25 x 203 x 127 mm design ensures it can be easily integrated into control panels or safety enclosures with minimal space requirements.

• High Reliability: Designed to meet SIL 3 safety standards, ensuring that the output control is always in a safe state during operation, even in the event of a system failure.

• Versatile Integration: Compatible with a variety of control systems and can be seamlessly integrated into existing safety architectures, including systems that require emergency stop or shutdown outputs.

• Redundant Architecture: Features redundancy options for critical systems, ensuring continuous operation even if one output channel fails.

• International Safety Certification: Certified according to IEC 61508 and IEC 61511 standards, ensuring compliance with global safety regulations.

• Flexible Output Options: Supports multiple types of safety-related output signals, making it adaptable to a wide range of applications.

• Diagnostic Features: Includes diagnostic capabilities to monitor the status of the output channels, providing early detection of issues before they escalate into faults.

Technical Specifications

Applications

The HIMA F8623B Safety-Related Output Module is used in various industrial sectors where fail-safe operation and safety-related output functions are critical:

• Process Automation: Used in emergency shutdown systems, ensuring that outputs are safely activated to protect both personnel and machinery in the event of an emergency.

• Oil and Gas: Essential in explosive environments, ensuring that safety outputs are triggered reliably and consistently to protect critical assets in hazardous areas.

• Power Generation: Used in critical plant shutdown sequences to ensure safe operation of turbine generators and other high-value equipment.

• Manufacturing: Integrated into safety systems for machine safety, triggering safe shutdowns or halts in the event of malfunction or unsafe operating conditions.

• Mining and Heavy Industry: Plays a key role in ensuring safety-critical output signals for conveyor systems, cranes, and other high-risk equipment in mining and industrial operations.

• Transportation Systems: Ensures safe output control in systems like elevators, escalators, and public transport systems where fail-safe operation is essential for passenger safety.

Advantages

• High-Level Safety Compliance: Meets SIL 3 safety integrity level, offering peace of mind for critical systems that need to adhere to the highest safety standards.

• Compact and Flexible Design: With its compact size and flexible output options, the F8623B can be easily integrated into a variety of applications and spaces.

• Reliable Output Control: Offers fail-safe outputs that are designed to remain in a safe state even if a fault is detected, ensuring that system failures don’t lead to hazardous conditions.

• Redundant Systems for High Availability: Built-in redundancy ensures that safety systems remain operational even if one output channel fails, maintaining continuous protection.

• Diagnostic Features: Continuous diagnostics provide real-time status updates on the output channels, helping detect any issues early and preventing costly downtime.

• Easy Integration with Existing Systems: Compatible with HIMA’s broader safety control solutions and can be integrated into existing systems using common industrial protocols like Profibus or Modbus.

FAQ

1. What is the SIL rating of the HIMA F8623B?
   Answer: The F8623B is rated SIL 3 (Safety Integrity Level 3), ensuring it provides a high level of safety performance for critical systems.

2. How many output channels does the F8623B have?
   Answer: The module features 8 output channels, providing ample control for various applications.

3. What kind of outputs does the F8623B provide?
   Answer: The F8623B provides digital relay outputs, ensuring reliable, fail-safe control.

4. Is the F8623B compatible with existing safety control systems?
   Answer: Yes, it is fully compatible with HIMA safety systems and can also be integrated with standard industrial communication protocols.

5. What communication protocols does the F8623B support?
   Answer: The module supports common industrial communication protocols, including Profibus and Modbus, for seamless integration into existing systems.

6. What certifications does the F8623B hold?
   Answer: The F8623B is certified according to IEC 61508 and IEC 61511, ensuring compliance with international safety standards.

7. Can the F8623B be used in hazardous environments?
   Answer: Yes, the F8623B is suitable for use in hazardous environments, such as oil and gas and chemical plants, where safety-related outputs are critical.

8. What is the operating temperature range of the F8623B?
   Answer: The module operates within a temperature range of -20°C to +60°C, making it suitable for a wide range of industrial environments.

9. How does the F8623B provide diagnostics?
   Answer: The module includes continuous diagnostic features that monitor the status of the output channels, providing real-time information on the health of the system.

10. Can the F8623B be used for emergency stop applications?
    Answer: Yes, the F8623B is ideal for use in emergency stop systems and other safety-critical applications, ensuring that outputs are activated to protect both equipment and personnel.
