Product Description

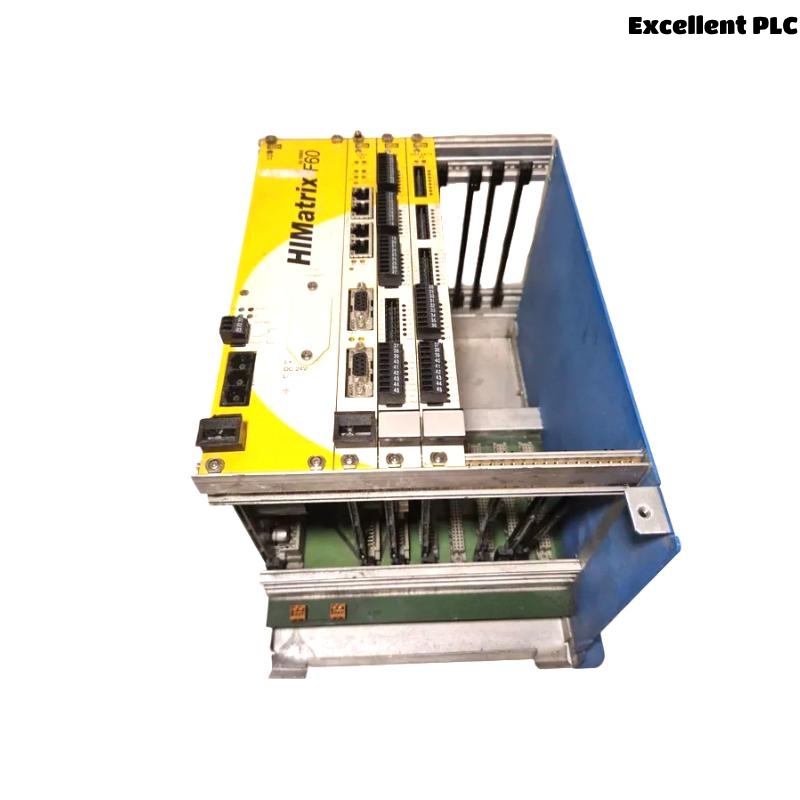

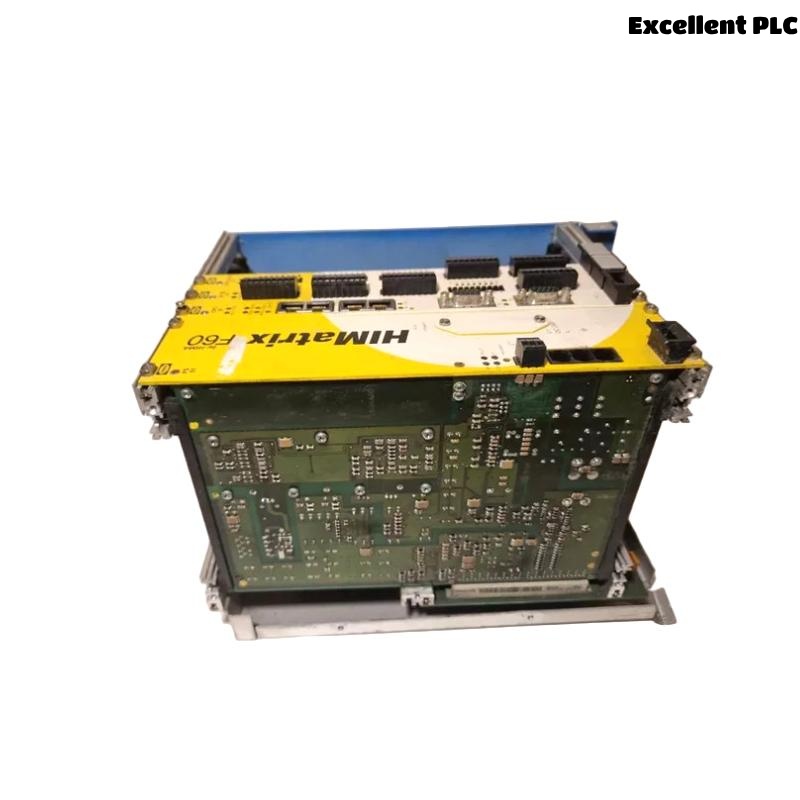

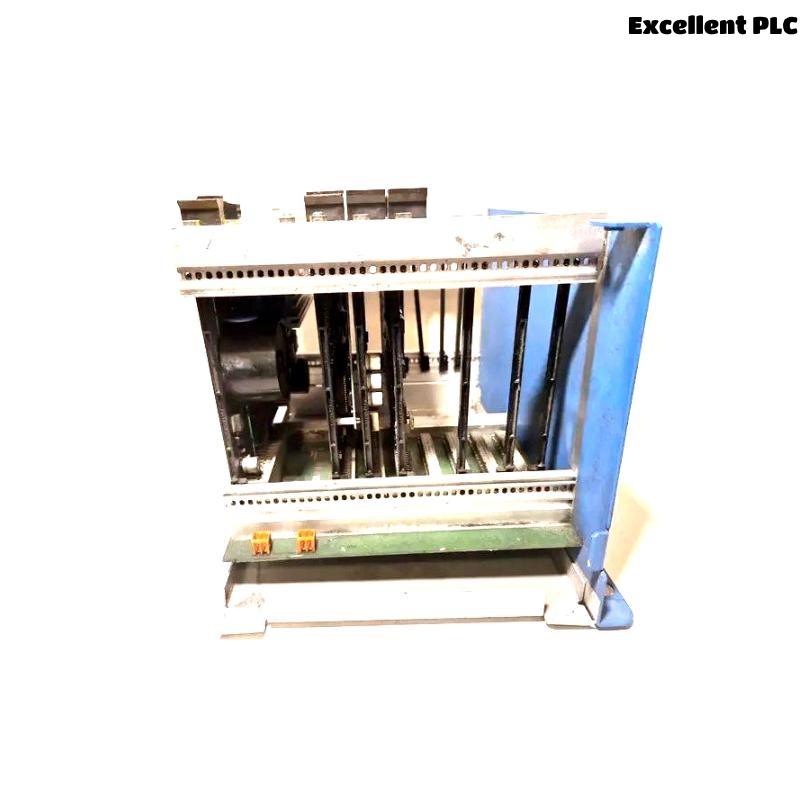

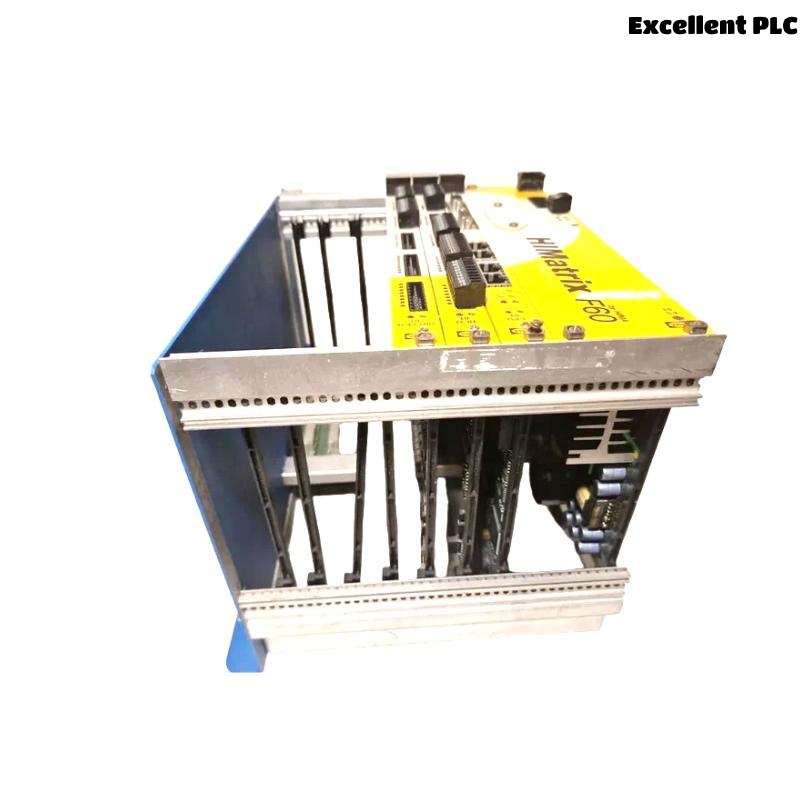

The HIMA HIMatrix F60 DI 32 01 is a high-integrity digital input module designed for use in safety-related automation systems. It provides 32 digital input channels, optimized for fast response and high availability in critical process applications such as emergency shutdown (ESD), fire and gas (F&G), and burner management systems.
Technical Specifications
| Parameter | Value |
|---|---|
| Channels | 32 digital inputs |
| Input Type | 24 VDC, sink or source |
| Response Time | < 10 ms |
| Power Supply | 24 VDC |
| Operating Temperature | -20°C to +60°C |
| Dimensions (W x H x D) | 100 × 50 × 80 mm |
| Weight | 0.2 kg |
| Mounting | DIN rail |
| Diagnostic Functions | Yes |
| Certifications | SIL 3 (IEC 61508), ATEX |
Applications
-
Emergency Shutdown Systems (ESD)
-
Fire and Gas Detection Systems (F&G)
-
Burner Management Systems (BMS)
-
High-integrity pressure protection systems (HIPPS)
-
Pipeline and process plant safety
Advantages
-
Certified for SIL 3 safety applications
-
Compact footprint with high channel density
-
Fast and reliable signal processing
-
Comprehensive diagnostics for enhanced system availability
-
Easy integration into HIMatrix systems
FAQ
Q1: How many input channels does the F60 DI 32 01 provide?
A1: It provides 32 digital input channels.
Q2: What is the input voltage for the digital inputs?
A2: The inputs are designed for 24 VDC signals.
Q3: Is the module suitable for SIL 3 applications?
A3: Yes, it is certified for SIL 3 per IEC 61508.
Q4: What are the dimensions and weight of the module?
A4: 100 × 50 × 80 mm, weighing 0.2 kg.
Q5: Can the module operate in harsh environments?
A5: Yes, it operates between -20°C and +60°C and is ATEX-certified for hazardous areas.
Q6: What diagnostics features are available?
A6: Built-in diagnostics detect line breaks, short circuits, and input faults.
Q7: How is the module mounted?
A7: It mounts easily on a standard DIN rail.
Q8: What is the typical response time?
A8: Less than 10 ms.
Q9: Is the module hot-swappable?
A9: No, power must be removed before replacement.
Q10: Which systems is it compatible with?
A10: It is fully compatible with the HIMA HIMatrix safety controller family.
Recommended Related Models
| Model | Description | Channels | Dimensions (mm) | Weight (kg) |
|---|---|---|---|---|
| F60 DI 16 01 | Digital Input Module (16 ch) | 16 | 100×50×80 | 0.2 |
| F60 DO 32 01 | Digital Output Module (32 ch) | 32 | 100×50×80 | 0.2 |
| F60 AI 8 01 | Analog Input Module (8 ch) | 8 | 100×50×80 | 0.2 |
| F60 AO 4 01 | Analog Output Module (4 ch) | 4 | 100×50×80 | 0.2 |
| F60 DI 8 01 | Digital Input Module (8 ch) | 8 | 100×50×80 | 0.2 |
| F60 DO 16 01 | Digital Output Module (16 ch) | 16 | 100×50×80 | 0.2 |
