Product Introduction

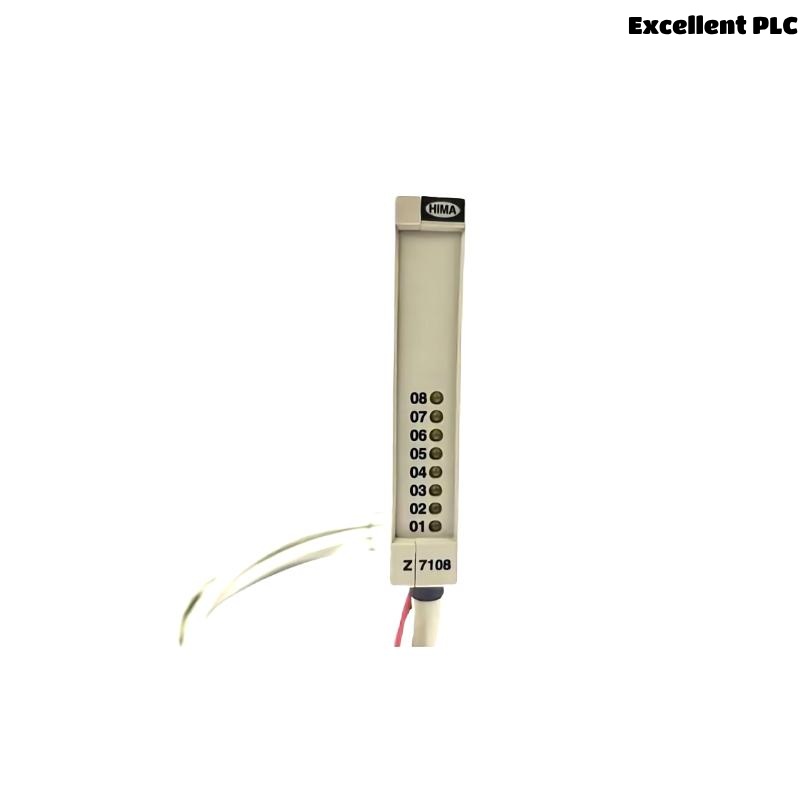

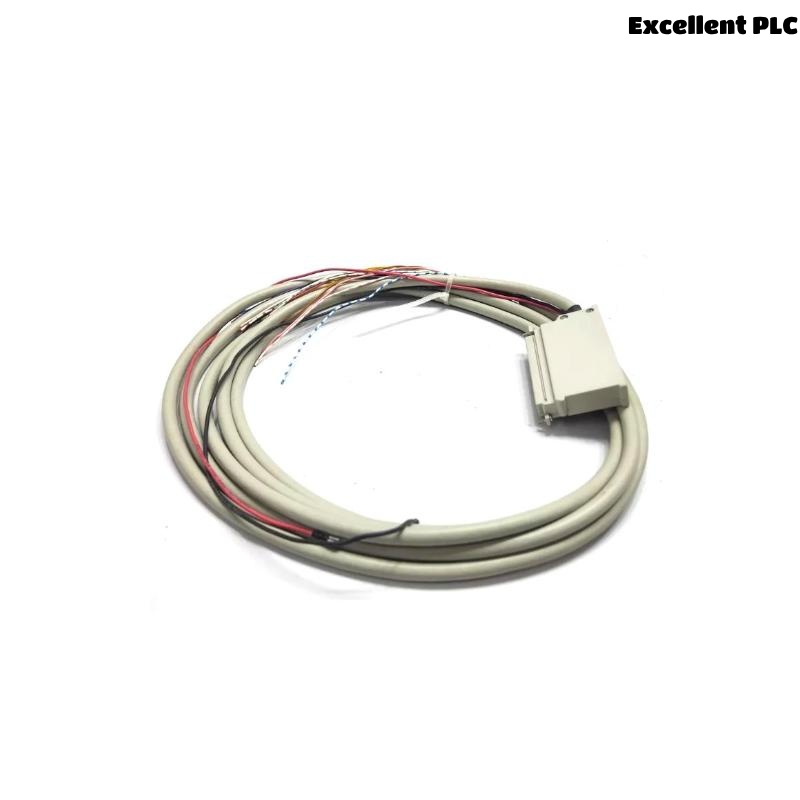

The HIMA Z7108 Cable Plug is a highly reliable and rugged connector designed for industrial and safety-critical applications. It is part of HIMA’s extensive range of cable plugs engineered to provide secure, stable, and durable electrical connections in demanding environments. The Z7108 model is widely used to interface with safety instrumented systems, automation devices, and field equipment, ensuring seamless communication and power transmission.
Constructed with high-quality materials, the Z7108 Cable Plug offers excellent resistance to mechanical stress, environmental factors, and electromagnetic interference. This plug is tailored to meet stringent industrial standards, making it a dependable choice in sectors such as oil and gas, petrochemical, power generation, and heavy manufacturing.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Model | Z7108 Cable Plug |
| Connector Type | Circular Cable Plug |
| Number of Pins | 8 Pins |
| Rated Voltage | 250 V AC/DC |
| Rated Current | 10 A |
| Protection Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Housing Material | Nickel-plated Brass |
| Contact Material | Gold-plated Copper Alloy |
| Cable Diameter Range | 7 – 12 mm |
| Locking Mechanism | Screw Lock |
| Space requirements | 4 TE |
| Weight | 0.15 kg |
Applications
-
Safety Instrumented Systems (SIS): Commonly used to connect safety controllers and field devices to ensure system integrity and fail-safe operations.
-
Hazardous Area Installations: Suitable for use in explosive atmospheres where reliable explosion-proof connectors are essential.
-
Process Automation: Widely applied in oil & gas, chemical plants, and refineries for secure signal and power transmission.
-
Power Plants: Integral for connecting control and instrumentation equipment in power generation facilities.
-
Heavy Industrial Environments: Designed for tough conditions with resistance to vibration, moisture, and corrosive substances.
-
Marine and Offshore: Used in hazardous maritime environments requiring durable, certified cable connections.
Product Advantages
-
Robust Construction: The nickel-plated brass housing protects against corrosion, mechanical impact, and chemical exposure.
-
Explosion-Proof Design: Suitable for use in hazardous environments, complying with industry safety standards.
-
IP67 Protection: Dust-tight and water-resistant, ensuring performance in wet and dusty conditions.
-
Secure Locking: Screw lock ensures the plug remains firmly connected despite vibrations and shocks.
-
Reliable Electrical Contact: Gold-plated contacts maintain stable conductivity and minimize signal loss.
-
Wide Temperature Range: Functions efficiently from -40°C up to +85°C, covering a wide range of industrial scenarios.
-
Easy Installation: Standard cable gland and locking mechanism facilitate quick and secure assembly.
-
Long Service Life: Durable materials and design support repeated mating cycles without degradation.
-
Compatibility: Fully compatible with HIMA cable sockets and accessories for system-wide integration.
-
Versatility: Suitable for various cable sizes within the specified range, making it adaptable for multiple applications.
Frequently Asked Questions (FAQ)
-
What type of connector is the HIMA Z7108 Cable Plug?
It is a circular 8-pin cable plug designed for industrial and safety applications. -
Is the Z7108 suitable for hazardous environments?
Yes, it is built to meet safety requirements for use in hazardous and explosive atmospheres. -
What is the temperature range for operating the plug?
It operates reliably between -40°C and +85°C. -
What protection rating does the cable plug have?
It is rated IP67, meaning it is dust-tight and resistant to water immersion. -
How are cables secured in the plug?
The plug uses a screw locking mechanism and a standard cable gland for firm cable fixation. -
What materials are used in the plug?
The housing is made of nickel-plated brass, and the contacts are gold-plated copper alloy. -
Can the Z7108 handle high electrical loads?
Yes, it supports voltages up to 250 V and currents up to 10 A. -
Is this plug compatible with other HIMA connectors?
Yes, it is designed to mate with corresponding HIMA sockets and connectors. -
What cable diameter can be used with this plug?
The plug supports cable diameters from 7 to 12 mm. -
How durable is the Z7108 in industrial environments?
The plug is engineered to resist mechanical stress, vibrations, and corrosive conditions, ensuring long-term reliability.
Related Models from the Same Series or Similar Use
| Model Number | Description | Pins | Protection Rating | Cable Diameter | Operating Temp. |
|---|---|---|---|---|---|
| Z7104 | 4-pin cable plug | 4 | IP67 | 6 – 10 mm | -40°C to +85°C |
| Z7106 | 6-pin cable plug | 6 | IP67 | 7 – 11 mm | -40°C to +85°C |
| Z7108/Ex | Explosion-proof 8-pin cable plug | 8 | ATEX Certified | 7 – 12 mm | -40°C to +85°C |
| Z7112 | 12-pin cable plug | 12 | IP67 | 8 – 14 mm | -40°C to +85°C |
| Z7108/S | Stainless steel housing variant | 8 | IP67 | 7 – 12 mm | -40°C to +85°C |
| Z7108/Heavy Duty | Heavy duty 8-pin cable plug | 8 | IP68 | 7 – 13 mm | -40°C to +85°C |
Popular Models from HIMA Brand
| Model Number | Description | Type | Typical Application |
|---|---|---|---|
| Z7008/3238/Ex/C8 | Explosion-proof 8-pin cable plug | Cable Plug | Hazardous area connections |
| Z7200/0012 | Safety relay module | Safety Relay | Emergency shutdown circuits |
| Y7000/3220 | Safety controller interface module | Interface Module | Process safety management |
| Z7010/1201 | Explosion-proof terminal box | Terminal Box | Wiring junction in hazardous zones |
| Z7008/3240/Ex | 8-pin cable socket | Cable Socket | Automation system connections |
| Z7008/3244/Ex | 4-pin explosion-proof cable socket | Cable Socket | Hazardous signal transmission |
