Product Introduction

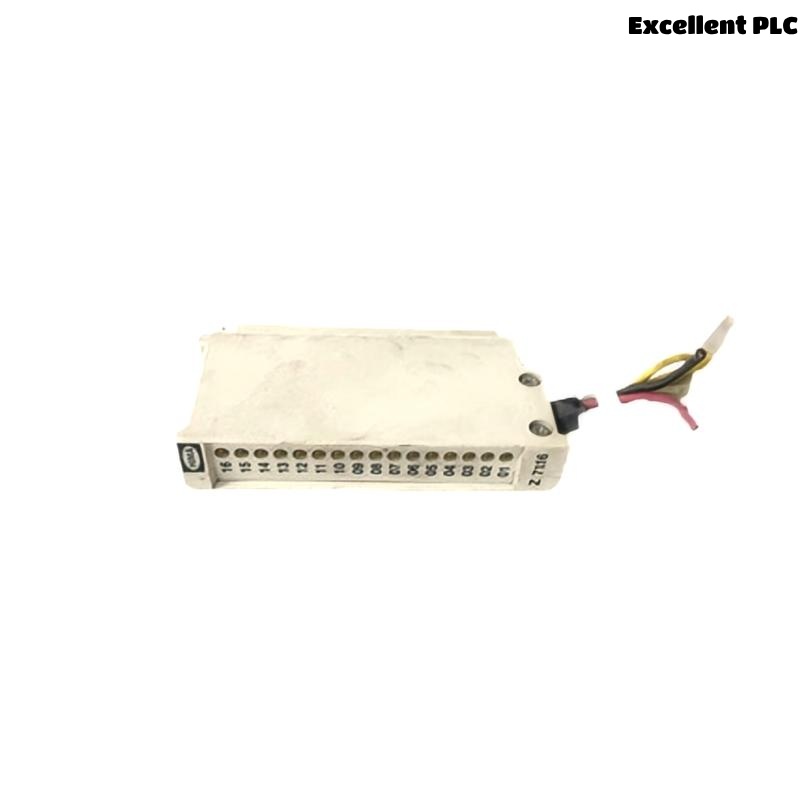

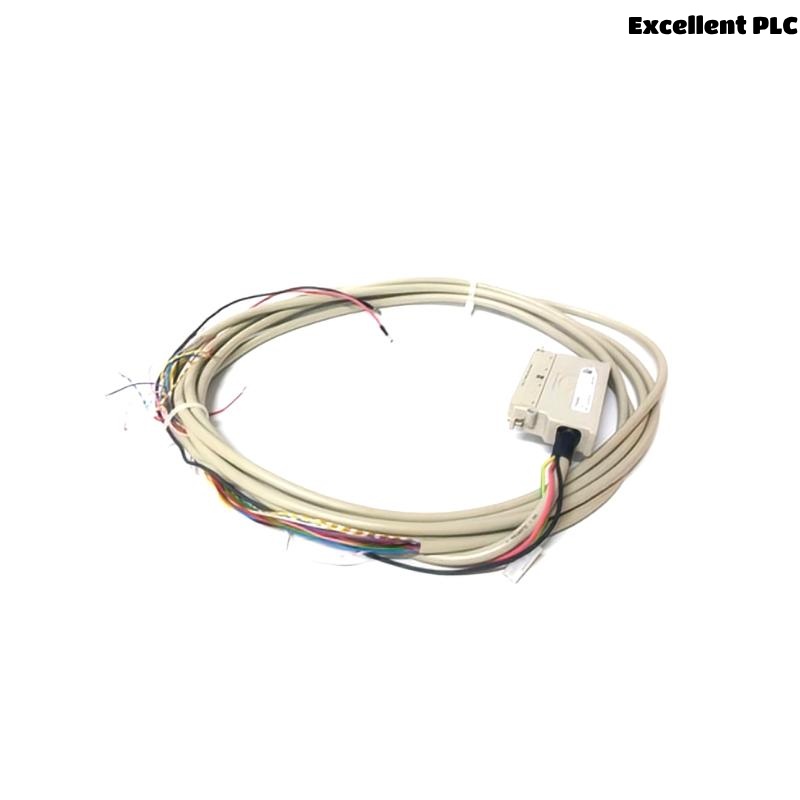

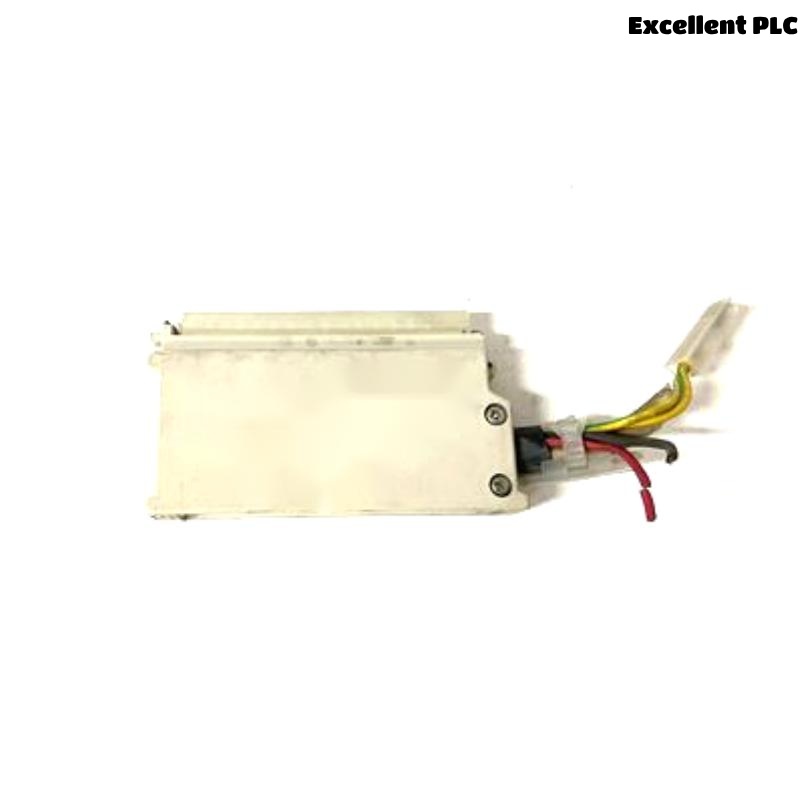

The HIMA Z7116 Cable Plug is a high-performance industrial connector designed to interface seamlessly with HIMA safety modules, such as the F3221 and F3236. Manufactured in Germany, this 16-pin cable plug ensures reliable signal transmission in safety-critical applications. Its robust construction and compliance with international standards make it suitable for various demanding environments, including turbine control systems and industrial automation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | Z7116 |
| Manufacturer | HIMA |
| Country of Origin | Germany |
| Product Type | Cable Plug |
| Compatible Modules | F3221, F3236 |
| Number of Pins | 16 |
| LED Indicators | 16 (one per channel) |
| Shunt Resistor | Included |
| Space Requirements | 4 TE |
| Weight | 0.5 kg |
| Protection Class | IP67 (dust-tight and water-resistant) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | Up to 95% RH, non-condensing |
| Mounting | DIN rail (35 mm) |
| Compliance Standards | CE, UL, EN |
| Warranty | 12 months |
Product Applications
The HIMA Z7116 Cable Plug is designed for use in various industrial applications where safety and reliability are paramount:
-
Turbine Control Systems: Ensures reliable connections in power generation facilities.
-
Industrial Automation: Facilitates secure communication between control systems and machinery.
-
Safety Systems: Integral in connecting safety-related devices to HIMA safety controllers.
-
Hazardous Environments: Suitable for areas prone to dust, moisture, or extreme temperatures due to its IP67 rating.
-
Process Control Systems: Ensures reliable connections in chemical, oil, and gas industries.
Product Advantages
-
Robust Construction: Durable materials ensure long-lasting performance in harsh conditions.
-
High Protection Class: IP67 rating provides excellent resistance to dust and water ingress.
-
Versatile Compatibility: Designed to work seamlessly with HIMA’s F3221 and F3236 modules.
-
Easy Installation: User-friendly design allows for quick and secure connections, reducing installation time.
-
Compliance with Standards: Meets international safety and environmental standards, ensuring reliability and safety.
-
Compact Design: Space-saving dimensions make it suitable for installations with limited space.
-
Reliable Signal Transmission: Minimizes signal loss, ensuring consistent communication between components.
-
Temperature Resistance: Operates effectively in a wide temperature range, accommodating various industrial environments.
-
Maintenance-Friendly: Designed for easy maintenance, reducing downtime and operational costs.
-
Enhanced Safety: Provides secure connections, minimizing the risk of accidental disconnections or failures.
Frequently Asked Questions (FAQ)
-
What is the primary use of the HIMA Z7116 Cable Plug?
-
It is used to connect field devices to HIMA safety modules, ensuring secure and reliable signal transmission in safety-critical applications.
-
-
Is the cable plug suitable for outdoor use?
-
Yes, with an IP67 rating, it is dust-tight and water-resistant, making it suitable for outdoor and harsh environments.
-
-
What is the operating temperature range?
-
The plug operates effectively between -20°C and +60°C.
-
-
Can it be used with other HIMA modules besides F3221 and F3236?
-
While specifically designed for F3221 and F3236, compatibility with other modules should be verified based on technical requirements.
-
-
What are the weight of the plug?
-
It weighs 0.5 kg.
-
-
Does the plug comply with international standards?
-
Yes, it complies with CE, UL, and EN standards.
-
-
Is the installation process complicated?
-
No, the plug is designed for easy and secure installation, reducing setup time.
-
-
What is the warranty period for the product?
-
The product comes with a 12-month warranty.
-
-
Does the plug have LED indicators?
-
Yes, it features 16 LED indicators, one for each channel, providing clear visual feedback.
-
-
Is the plug resistant to high humidity?
-
Yes, it can operate in environments with up to 95% relative humidity, non-condensing.
-
Related Models from the Same Series
| Model | Description | Pins | Protection Class | Temperature Range |
|---|---|---|---|---|
| Z7108/3237/C3 | 3-pin version for smaller control circuits | 3 | IP67 | -40°C to +85°C |
| Z7108/3237/C5 | 5-pin version for standard applications | 5 | IP67 | -40°C to +85°C |
| Z7108/3237/C6 | 6-pin version for medium-scale systems | 6 | IP67 | -40°C to +85°C |
| Z7108/3237/C7 | 7-pin version for complex control systems | 7 | IP67 | -40°C to +85°C |
| Z7108/3237/C9 | 9-pin version for advanced automation systems | 9 | IP67 | -40°C to +85°C |
| Z7108/3237/C10 | 10-pin version for specialized applications | 10 | IP67 | -40°C to +85°C |
Popular HIMA Models
| Model | Function | Pins | Protection Class | Application |
|---|---|---|---|---|
| Z7101/2337/C5 | 5-pin cable plug for control systems | 5 | IP67 | Process Automation |
| Z7105/3435/C3 | 3-pin connector for field devices | 3 | IP67 | Machine Safety |
| Z7110/2235/C4 | 4-pin cable connector for medium applications | 4 | IP67 | Industrial Control |
| Z7109/3336/C7 | 7-pin cable plug for complex field wiring | 7 | IP67 | Hazardous Areas |
| Z7104/5432/C6 | 6-pin connector for large industrial systems | 6 | IP67 | Automation Control |
| Z7103/2227/C8 | 8-pin field wiring connector for specialized circuits | 8 | IP67 | Power Generation |
