Product Introduction

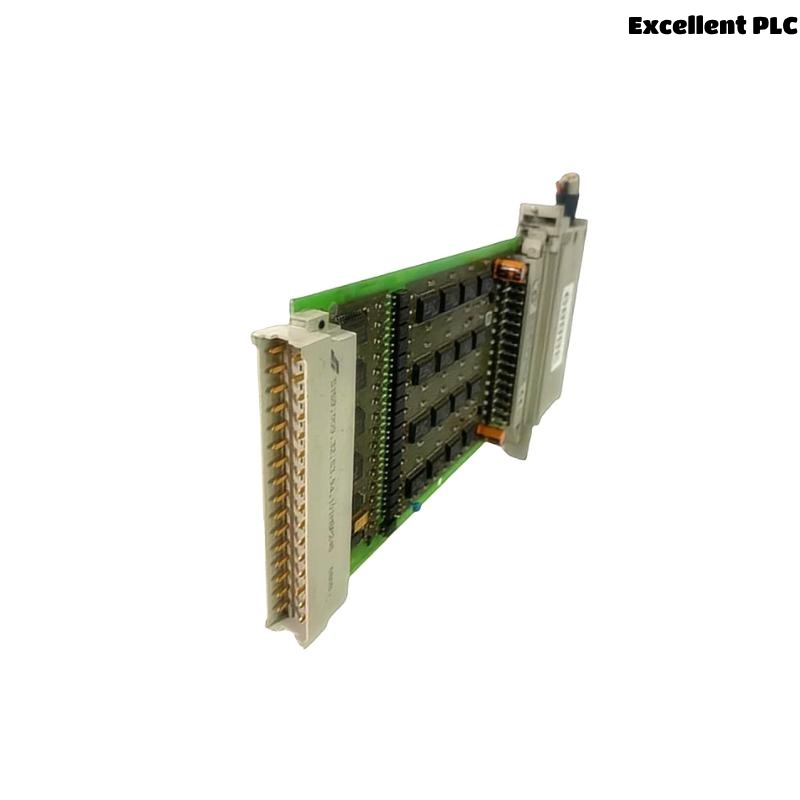

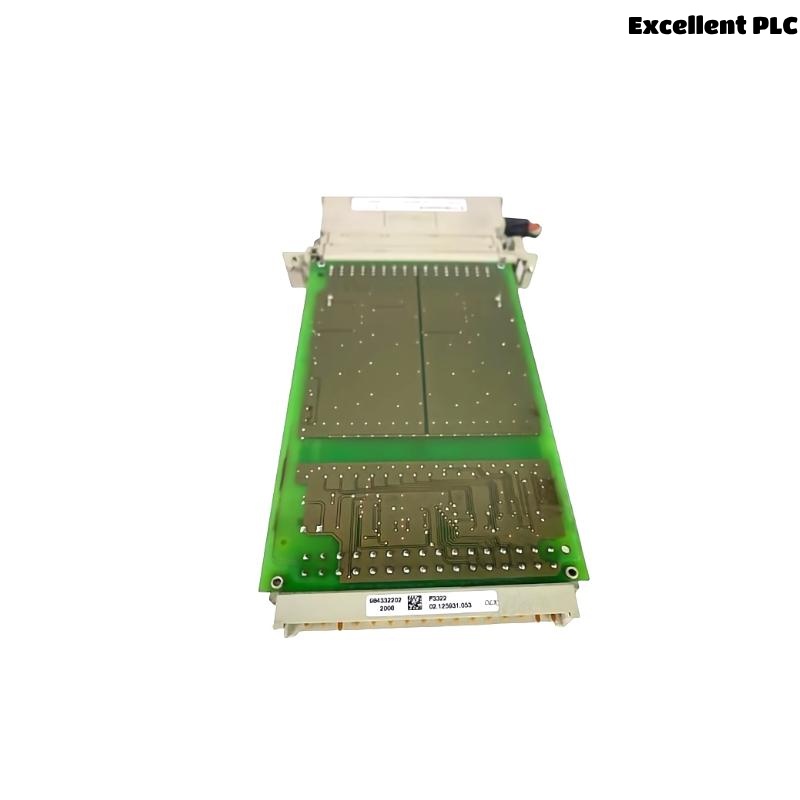

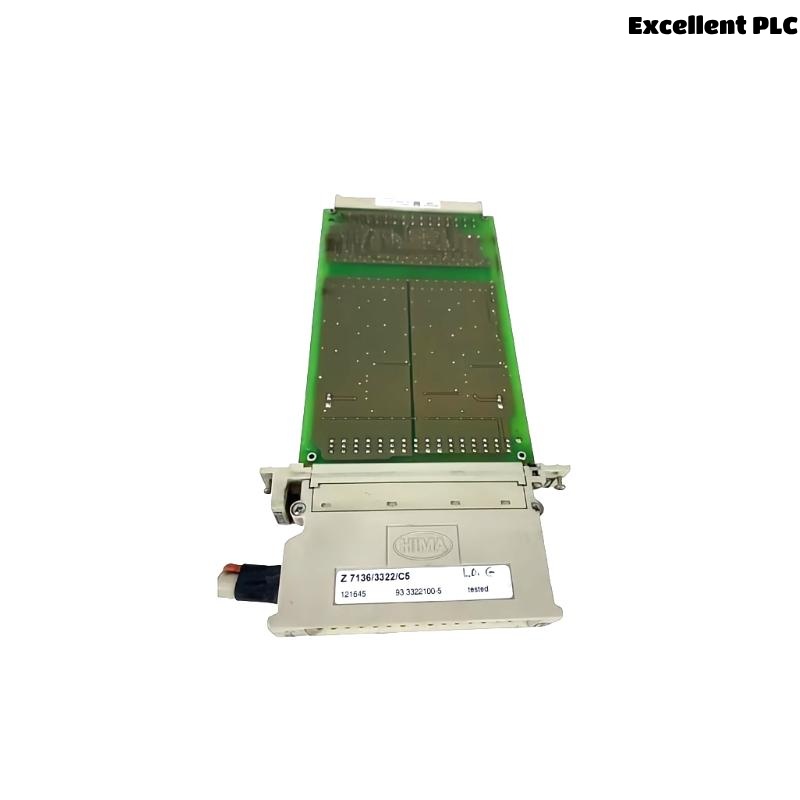

The HIMA Z7136 Digital Output Module is a high-integrity, industrial-grade digital output interface designed for fail-safe automation applications in critical infrastructure. As part of the HIQuad safety system family, it is widely implemented in sectors such as oil & gas, petrochemical, power generation, transportation, and industrial automation where safety and reliability are paramount.
This module provides 16 digital output channels, specifically engineered to actuate relays, valves, contactors, and signal indicators with complete safety assurance. With built-in fault diagnostics, channel isolation, and compatibility with SIL 3-rated systems per IEC 61508, the Z7136 ensures long-term operational reliability in safety-related automation.
Each output is independently monitored for wire breaks, short circuits, and output voltage levels, making it a perfect fit for safety-critical installations. The Z7136 supports hot-swapping, enabling maintenance without system shutdown, thus minimizing downtime in continuous process environments.
Product Specifications
| Parameter | Details |
|---|---|
| Model | Z7136 |
| Manufacturer | HIMA Paul Hildebrandt GmbH |
| System Compatibility | HIQuad Safety System |
| Function | Digital Output (DO) Module |
| Number of Channels | 16 |
| Output Type | Binary (High-Side Switching) |
| Nominal Output Voltage | 24 V DC |
| Max Output Current/Channel | 0.5 A |
| Switching Type | Electronic (MOSFET-based) |
| Output Protection | Overload, Short-Circuit, Thermal Shutdown |
| Diagnostics | Short circuit, Wire-break, Open load, Channel status |
| Rated Safety Level | SIL 3 (IEC 61508) |
| Galvanic Isolation | Channel-to-bus and channel-to-channel |
| Redundancy Support | Yes |
| Hot Swappable | Yes |
| Voltage Supply | 24 V DC (redundant supported) |
| Power Dissipation | Approx. 6 W |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5–95% RH non-condensing |
| Mounting Type | DIN Rail (rack-mounted within HIQuad system) |
| Protection Class | IP20 (within enclosure) |
| Compliance | CE, RoHS, ATEX, IEC 61508, SIL 3 |
| Space Requirements | 4 TE |
| Weight | 0.31 kg |
Applications
The HIMA Z7136 module is commonly installed in safety-critical industrial automation systems, particularly in environments where rapid and reliable actuation of external devices is vital for safe plant operations. Application examples include:
-
Oil & Gas Platforms: Controlling emergency shut-down valves (ESDVs), solenoids, and beacons.
-
Chemical & Petrochemical Plants: Actuating safety dampers, pumps, and alarm units in hazardous processing units.
-
Power Plants: Used for load shedding, fan control, breaker operation, and auxiliary system shutdown.
-
Rail and Subway Systems: Ensuring safe signaling, gate control, and fail-safe light signaling.
-
Pharmaceutical and Food Processing Units: Triggering safety interlocks, conveyors, and controlled discharges.
-
Water Treatment Facilities: Driving actuators and indicating alarms for overflow and contamination events.
Advantages
-
Safety Integrity Level 3 (SIL 3): Fully certified to the highest standards for critical automation.
-
High Channel Density: 16 outputs in a compact module, saving space in control cabinets.
-
Hot Swappable: Maintenance without halting system operations, increasing availability.
-
Advanced Diagnostics: Each channel is continuously monitored for health and operational status.
-
Galvanic Isolation: Enhances system protection and minimizes interference between channels.
-
Output Protection: Safeguards against short-circuit, overload, and thermal damage.
-
Modular System Integration: Easily fits into HIMA’s HIQuad rack systems for scalable expansion.
-
Redundant Power Inputs: Enhances fault tolerance in mission-critical environments.
-
Long-Term Reliability: Engineered for continuous industrial usage with minimal failure risk.
-
Certified Compliance: Fully compliant with international standards including CE, RoHS, ATEX.
Frequently Asked Questions (FAQ)
-
What is the output voltage of the Z7136 module?
The nominal output voltage is 24 V DC. -
How many digital outputs does this module provide?
It provides 16 independently monitored digital output channels. -
Is the Z7136 suitable for SIL 3 applications?
Yes, it meets the requirements for SIL 3 as per IEC 61508. -
Can the Z7136 be hot-swapped?
Yes, it supports hot swapping without system shutdown. -
What kind of load protection does it offer?
It includes protection against short circuits, overloads, and overheating. -
Which HIMA systems are compatible with Z7136?
It is designed for integration with the HIQuad system. -
Are the output channels galvanically isolated?
Yes, each channel features galvanic isolation to protect the system. -
Can this module handle inductive loads?
Yes, but proper suppression circuits must be used to protect the output. -
How is diagnostics performed?
Diagnostic feedback is provided for open-load, short-circuit, and over-temperature. -
What certifications does the Z7136 hold?
It complies with CE, RoHS, ATEX, and IEC 61508 safety standards.
Related Models (Same Series or Functionality)
| Model | Description | Channels | Type | Dimensions (mm) | Weight |
|---|---|---|---|---|---|
| Z7137 | Digital Output Module with high-side switching | 8 | Digital Output | 30 × 130 × 120 | 305 g |
| Z7138 | DO Module, galvanically isolated | 16 | Digital Output | 30 × 130 × 120 | 310 g |
| Z7128 | Relay Output Module | 8 | Relay Output | 30 × 130 × 120 | 320 g |
| Z7129 | Relay Output Module | 16 | Relay Output | 30 × 130 × 120 | 340 g |
| F60 DO 8 01 | HIMax Digital Output Module | 8 | Digital Output | 30 × 130 × 120 | 270 g |
| F60 DO 16 01 | HIMax High-Density Output Module | 16 | Digital Output | 30 × 130 × 120 | 280 g |
