Product Introduction:

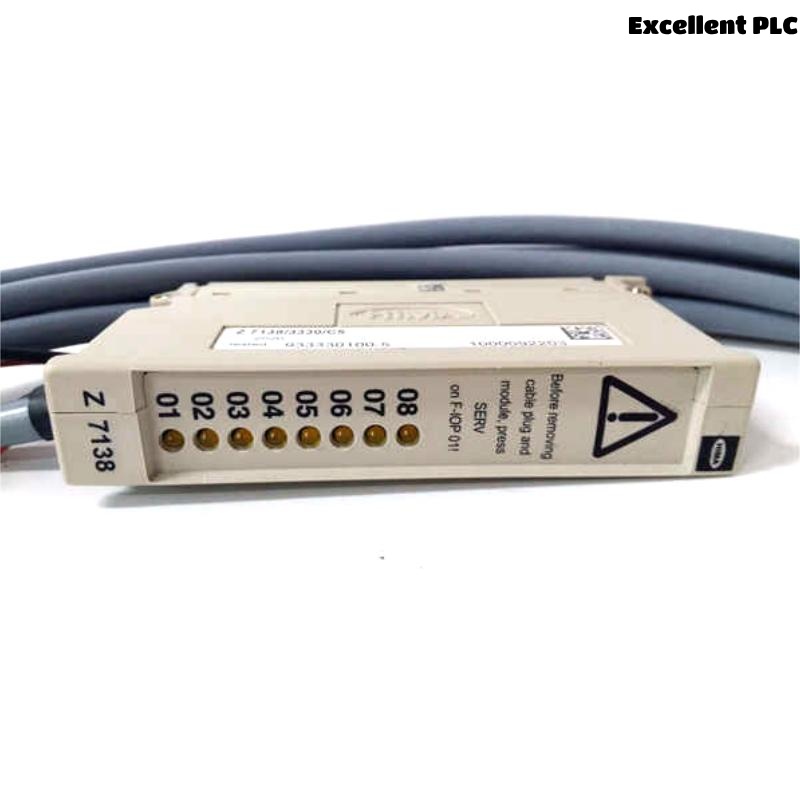

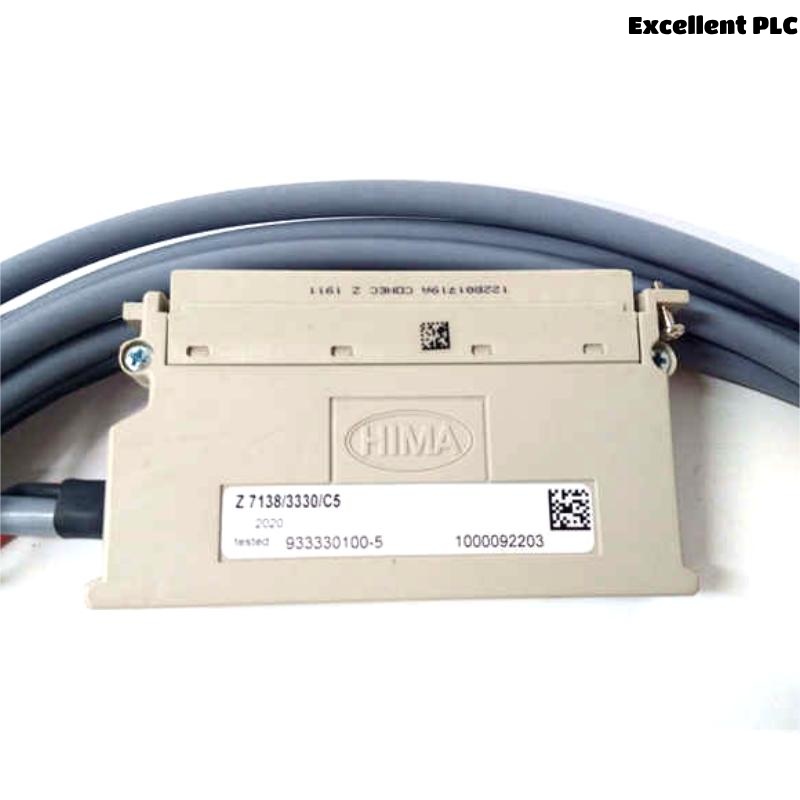

The HIMA Z7138/3330/C5 Cable Plug is an industrial-grade, high-reliability multipole connector designed to interface securely with safety-critical automation systems developed by HIMA. Tailored for environments where system integrity and connection reliability are vital, this connector is a core component in safety instrumented systems (SIS), programmable safety controllers, and distributed I/O modules.
This 5-pole version is compact yet robust, making it ideal for space-constrained cabinets or smaller signal groups. Engineered with precision contacts, high IP protection, and EMC shielding, the Z7138/3330/C5 is compatible with a variety of control modules and field devices used in the energy, oil & gas, chemical, and transport sectors. Its plug-and-play structure enables swift installation and servicing, minimizing operational downtime.
Product Specifications:
| Parameter | Details |
|---|---|
| Product Name | Z7138/3330/C5 |
| Manufacturer | HIMA |
| Product Type | Industrial Cable Plug |
| Connector Type | Multipole Plug |
| Number of Contacts | 5-pole |
| Contact Termination | Screw Terminals / Crimp Contacts |
| Rated Voltage | 250 V AC/DC |
| Rated Current | Up to 10 A per contact |
| Insulation Resistance | >10⁹ Ohms |
| Dielectric Strength | 2.5 kV AC (1 minute) |
| Housing Material | Zinc Alloy, Nickel-Plated |
| Insulation Material | Thermoplastic, UL94-V0 |
| EMC Shielding | Yes (360° shielding) |
| Cable Gland Type | PG11 |
| Ingress Protection | IP65 (when mated) |
| Operating Temperature Range | -40°C to +85°C |
| Storage Temperature Range | -55°C to +90°C |
| Mechanical Durability | >500 mating cycles |
| Mounting Style | Field-connectable |
| Cable Length | 5 meters |
| Weight | 0.18 kg |
| Compliance / Certification | CE, RoHS, IEC 61984, UL |
Product Applications:
-
Safety Instrumented Systems (SIS): Ensures reliable signal transmission between field devices and safety PLCs.
-
Oil & Gas Refineries: Used in explosion-proof zones (with protective enclosures) for sensor and actuator interfacing.
-
Power Plants: Interfaces with turbine monitoring, control logic, and shutdown systems.
-
Pharmaceutical and Chemical Plants: Maintains clean and secure connections in high-risk environments.
-
Transportation Systems: Supports rail signal control and industrial safety installations.
-
Industrial Automation Panels: Used in junction boxes and cabinets requiring compact, safe I/O connection.
Product Advantages:
-
Compact Footprint: Small form factor ideal for space-constrained installations.
-
Reliable Connection Integrity: Secure mechanical latching and gold-plated contacts provide robust, interference-free signal transmission.
-
High Safety Assurance: Certified to international standards, reducing risk of failure in mission-critical applications.
-
Rapid Installation: Field wiring is fast and accessible with screw terminals or crimped inserts.
-
Resilient Housing: Zinc-alloy casing resists corrosion, wear, and mechanical impacts.
-
IP65 Protection: Maintains integrity in dusty, humid, and industrial environments.
-
Modular Use: Easily integrates with a wide range of HIMA I/O and controller modules.
-
EMC-Shielded: Full 360° shielding ensures noise immunity in control cabinets and high-EMF zones.
-
Low Maintenance Needs: Durable build quality offers a long lifespan and fewer replacements.
-
Thermal Stability: Wide operating temperature range makes it suitable for both freezing and high-heat environments.
Frequently Asked Questions (FAQ):
-
What type of connection system does the Z7138/3330/C5 use?
It uses either crimp or screw terminals for quick and secure field wiring. -
Can this plug be used in high-vibration environments?
Yes, the housing and locking mechanism are designed to withstand industrial vibration conditions. -
Is this cable plug reusable?
Yes, it is designed for over 500 connect/disconnect cycles without degradation. -
Does it provide electromagnetic interference protection?
Yes, the connector offers 360-degree EMC shielding. -
Is this plug compatible with HIMA HIMax or HIMatrix systems?
Absolutely. It’s commonly used with both HIMax and HIMatrix modules. -
What’s the main difference between C5 and C15 variants?
The C5 variant supports 5 contacts and is smaller, suitable for lower signal count needs. -
Can the plug be installed without special tools?
Standard industrial tools are sufficient for installation and maintenance. -
What’s the ingress protection rating?
IP65 when mated—resistant to dust and water spray from any direction. -
Is the connector suitable for outdoor installation?
If mounted in a weatherproof enclosure or cabinet, it performs reliably outdoors. On its own, it’s IP65-rated when mated, protecting against dust and light water jets. -
Does it meet RoHS and CE requirements?
Yes, the product is fully compliant with RoHS and CE directives.
Related Models (Same Series or Functional Equivalents):
| Model | Description | Poles | Protection | Use Case |
|---|---|---|---|---|
| Z7138/3330/C15 | 15-pole cable plug variant | 15 | IP65 | Large I/O signal connections |
| Z7138/3330/C9 | 9-pole variant | 9 | IP65 | Medium signal groups |
| Z7138/3330/C24 | 24-pole version | 24 | IP65 | High-density industrial setups |
| Z7138/3330/C5/S2072 | C5 plug with shield variant | 5 | IP65 | Enhanced EMI-sensitive installations |
| Z7139/3340/C5 | Angled plug with 5 poles | 5 | IP67 | Space-restricted control cabinets |
| Z7116/C5 | Pre-wired system connector plug | 5 | IP65 | HIMax system expansion |
