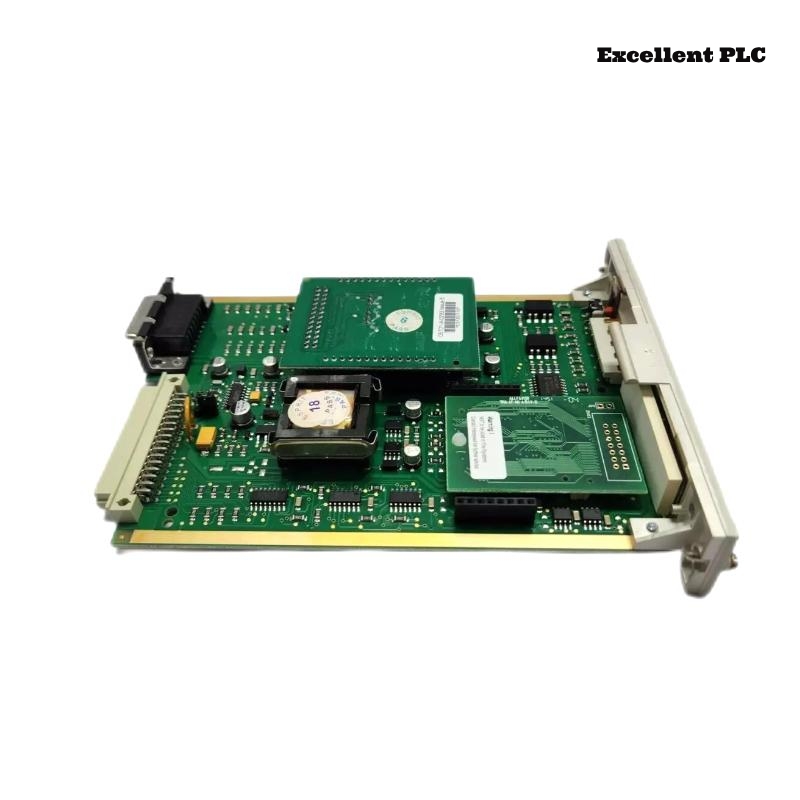

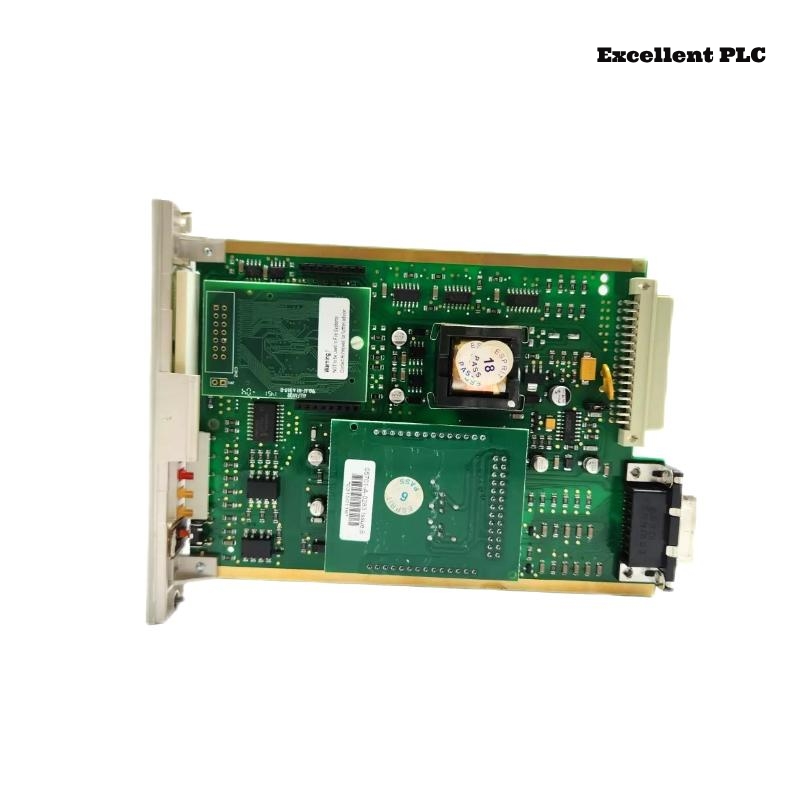

Honeywell 05701-A-0301 – Detailed Product Overview
Product Specifications:
| Specification | Details |
|---|---|
| Model | 05701-A-0301 |
| Type | Single Channel Control Card |
| Input Range | 0-1000°C |
| Output Range | 4-20 mA |
| Power Supply | 12-36 V DC |
| Accuracy | ±0.1% of Span |
| Display Type | Digital |
| Mounting Type | Wall-Mount |
| Enclosure Type | IP67 |
| Dimensions (LxWxH) | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
| Environmental Rating | NEMA 4X, IP67 |
| Operating Temperature | -40°C to +85°C |
| Humidity | 0-100% RH (non-condensing) |
Product Introduction:
The Honeywell 05701-A-0301 is a highly precise and reliable Single Channel Control Card designed for industrial environments. It features a wide range of input capabilities and outputs a standard 4-20 mA signal for ease of integration into most control systems. With its compact size, rugged enclosure, and high accuracy, the product is ideal for use in applications requiring precise temperature measurements and continuous monitoring. The transmitter is designed to withstand harsh conditions, offering enhanced reliability and performance in both low and high-temperature environments.
Product Applications:
- Process Control Systems: The 05701-A-0301 can be utilized in process industries such as chemical plants, oil refineries, and food production to monitor temperatures in various processes.
- HVAC Systems: Used in heating, ventilation, and air conditioning systems to ensure optimal temperature conditions are maintained for energy efficiency and system longevity.
- Power Generation: It helps in monitoring temperatures within power generation facilities, ensuring operational safety and system efficiency.
- Environmental Monitoring: Used in environmental applications to track temperature fluctuations, especially in weather stations or outdoor monitoring systems.
- Manufacturing Plants: Ideal for controlling temperatures in industrial machines, helping to prevent overheating and system failures.
Product Advantages:
- High Accuracy: Ensures precise temperature measurements, crucial for industries where temperature control is vital.
- Durability: With an IP67 rated enclosure, the device is resistant to dust and water, making it ideal for use in tough industrial environments.
- Wide Operating Temperature Range: It operates effectively in extreme temperatures, ranging from -40°C to +85°C.
- Easy Integration: Standard 4-20 mA output allows for simple integration into existing control and monitoring systems.
- Low Maintenance: With its robust design and reliable performance, the need for frequent maintenance is minimized.
- Cost-Effective: Provides high-quality performance at an affordable price, making it suitable for both small and large-scale applications.
Latest News:
- March 2025: Honeywell has announced that the 05701-A-0301 model has been upgraded with improved accuracy features, now offering a ±0.1% of span accuracy.
- February 2025: Honeywell continues to expand its industrial monitoring solutions, with the 05701-A-0301 being integrated into a variety of high-demand environments, such as power plants and petrochemical facilities.
Frequently Asked Questions (FAQs):
-
What is the maximum operating temperature for the Honeywell 05701-A-0301?
- The maximum operating temperature is +85°C.
-
How accurate is the Honeywell 05701-A-0301 temperature transmitter?
- The accuracy is ±0.1% of span.
-
What is the power supply requirement for this device?
- The device operates with a DC supply voltage ranging from 12V to 36V.
-
Can this transmitter be used in hazardous environments?
- Yes, it features an IP67 enclosure, making it suitable for use in hazardous environments, but additional certifications may be required for specific applications.
-
What type of output does the Honeywell 05701-A-0301 provide?
- It provides a 4-20 mA analog output signal.
-
What is the size of the Honeywell 05701-A-0301 transmitter?
- The dimensions are 170 x 25 x 112 mm.
-
Is the Honeywell 05701-A-0301 easy to install?
- Yes, it features a simple wall-mounting design for easy installation.
-
What is the weight of this transmitter?
- The weight is 0.165 kg.
-
Can the device be used in food manufacturing plants?
- Yes, it is suitable for food manufacturing due to its high accuracy and durability.
-
What is the humidity range of the Honeywell 05701-A-0301?
- The humidity range is 0-100% RH (non-condensing).
