Product Overview

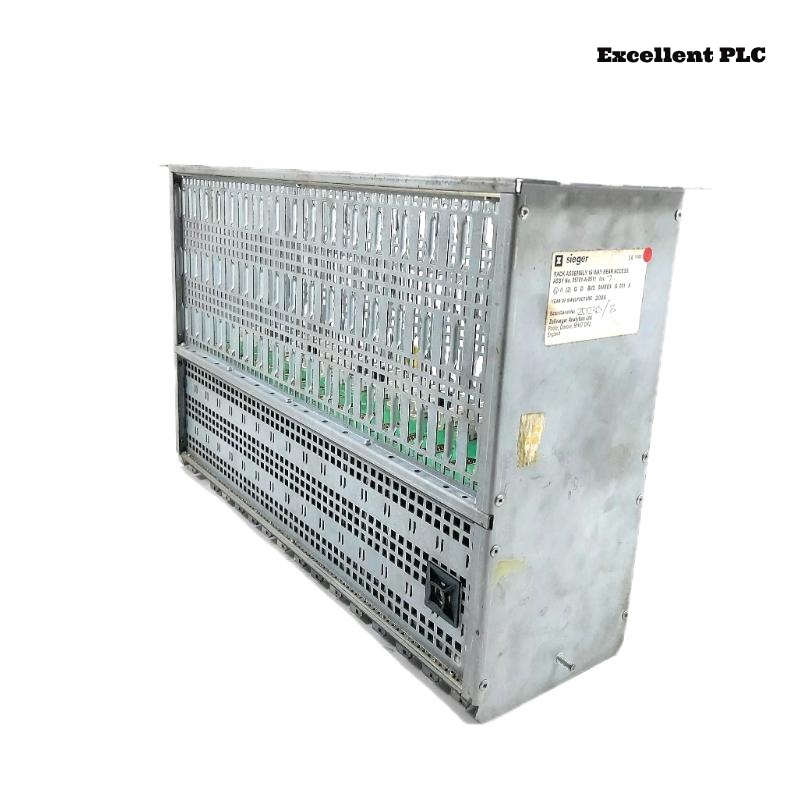

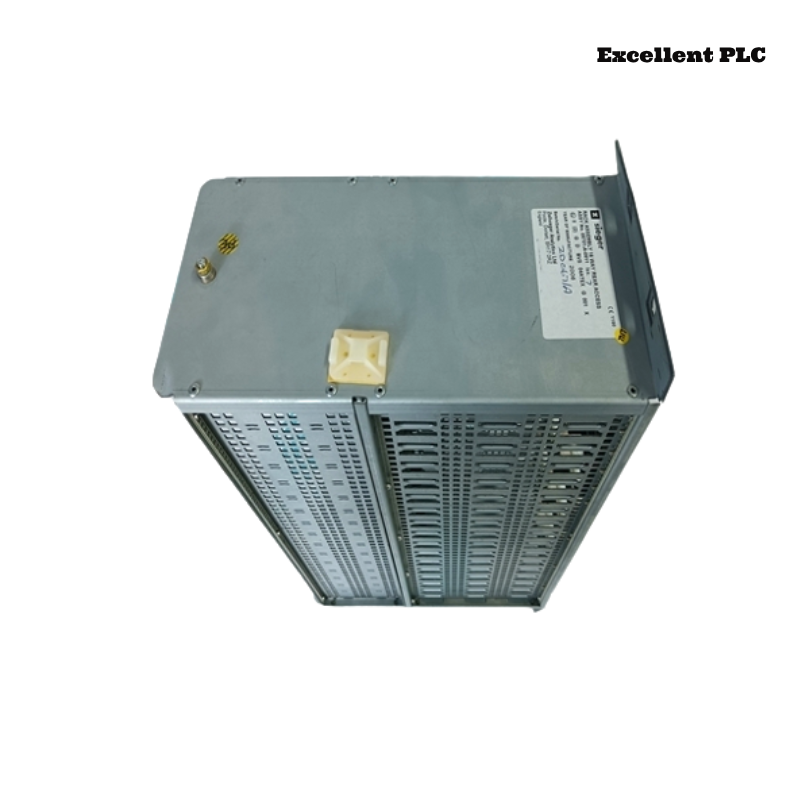

The Honeywell 05701-A-0511 is a rack component designed to serve as a robust and reliable platform for industrial automation and control systems. It provides a standardized framework for mounting various modules, cards, and equipment, ensuring organized and efficient system integration.
Product Specifications
| Parameter | Description |
|---|---|
| Model Number | 05701-A-0511 |
| Manufacturer | Honeywell |
| Series | System 57 |
| Rack Format | 3U card format, compatible with standard 19-inch sub-racks |
| Channel Capacity | Supports up to 16 channels of gas detection |
| Card Slots | 17 slots: accommodates up to 16 channel control cards and 1 engineering card |
| Wiring Specification | Designed for rear wiring; accepts field connections with conductors up to 2.5 mm² |
| Structure | Two independent chambers: one for control cards with electromagnetic shielding, another for field/relay interface cards; interconnected via backplane |
| Dimensions | Standard 19-inch rack width; height and depth dimensions may vary based on configuration |
| Weight | 4.1 kg |
| Material | Industrial-grade metal construction for durability |
| Installation Method | Suitable for wall-mounted or cabinet installations |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Power Distribution | Facilitates power distribution to installed modules, ensuring stable system operation |
| Compliance | Meets industrial standards for safety and performance |
Applications
The Honeywell 05701-A-0511 rack component is versatile and finds applications in various industrial settings, including:
- Gas Detection Systems: Serves as the foundational structure for assembling Honeywell’s System 57 gas detection systems, ensuring reliable monitoring of hazardous gases.
- Industrial Automation: Provides a standardized platform for integrating various control modules, facilitating streamlined automation processes.
- Process Control: Utilized in industries such as oil and gas, petrochemicals, and manufacturing to monitor and control critical process parameters.
- Safety Systems: Forms part of safety instrumented systems (SIS) where reliable hardware is essential for emergency shutdowns and safety controls.
- Energy Management: Assists in monitoring and controlling energy consumption within industrial facilities, contributing to efficiency and cost savings.
Product Advantages
- Modular Design: Allows for flexible configuration by adding or replacing modules based on system requirements, enhancing adaptability.
- High Reliability: Constructed with industrial-grade materials to withstand harsh environments, ensuring long-term stable operation.
- Ease of Installation: Designed for straightforward installation and maintenance, reducing downtime during system setup or upgrades.
- Comprehensive Compatibility: Compatible with various Honeywell controllers and modules, facilitating the creation of customized control systems.
- Efficient Power Distribution: Provides centralized power distribution to all installed modules, ensuring consistent and reliable operation.
- Enhanced Safety Features: Incorporates design elements that protect internal components from electromagnetic interference and physical damage.
- Scalability: Supports system expansion by accommodating additional modules as operational demands grow.
- Standardized Dimensions: Fits into standard 19-inch racks, ensuring compatibility with existing industrial setups.
- Robust Construction: Built to endure industrial conditions, minimizing the risk of mechanical failure.
- Optimized Wiring Management: Designed for rear wiring, facilitating organized and efficient cable management.
Latest News & Updates
- “Honeywell Enhances System 57 Series with Advanced Rack Components”
- “Integrating Honeywell’s 05701-A-0511 Rack in Modern Industrial Automation”
- “Expanding Capabilities: Honeywell’s Modular Approach to Control Systems”
- “Ensuring Safety: The Role of Honeywell’s Rack Components in Gas Detection”
- “Honeywell’s Commitment to Reliable and Scalable Industrial Solutions”
Frequently Asked Questions (FAQs)
-
What is the primary function of the Honeywell 05701-A-0511 rack component?
- It serves as a structural framework for mounting and organizing various modules and cards in industrial control systems.
-
Which Honeywell systems are compatible with this rack component?
- It is compatible with Honeywell’s System 57 series and other related industrial control systems.
-
What materials are used in the construction of this rack component?
- Constructed from high-quality aluminum alloy, ensuring durability and corrosion resistance.
-
How many modules can be installed in this rack?
- It features 17 slots, accommodating up to 16 channel control cards and 1 engineering card.
-
What are the installation options for this rack component?
- Designed for standard 19-inch rack installations, suitable for both wall-mounted and cabinet-mounted setups.
-
Does the rack provide any protection for the installed modules?
- Yes, it offers physical protection and includes electromagnetic shielding for control cards.
-
What are the wiring specifications for this rack?
- Supports rear wiring with field connections accommodating conductors up to 2.5 mm².
-
Is the rack component suitable for harsh industrial environments?
- Yes, it is designed to operate reliably in demanding industrial settings.
-
Can the rack be expanded to support additional modules?
- Yes, its modular design allows for scalability to meet growing system requirements.
-
How much does this rack assembly weigh?
- The weight of this rack is 4.1 kg
