Product Introduction

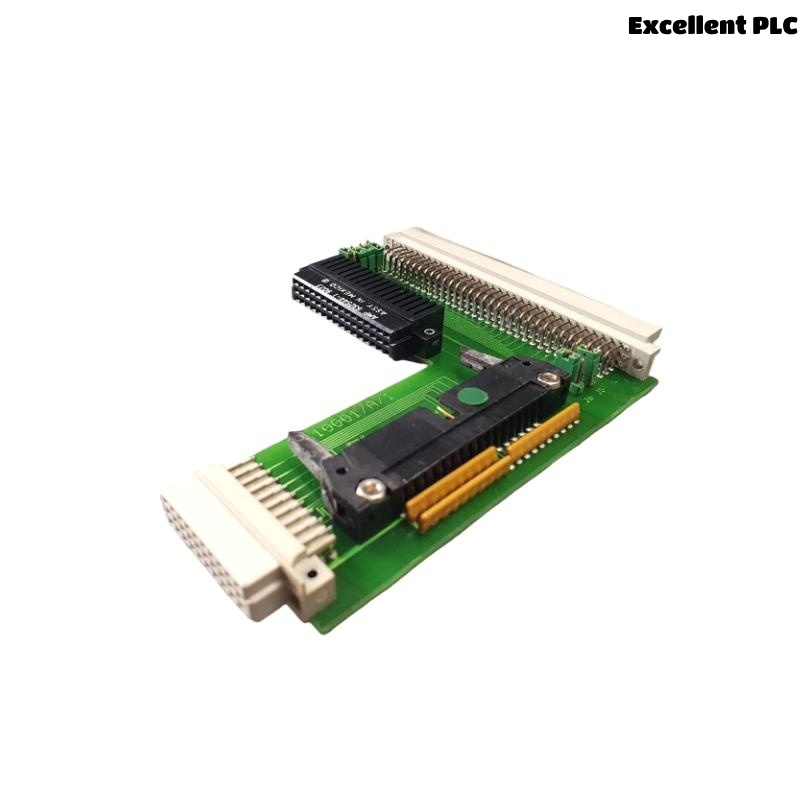

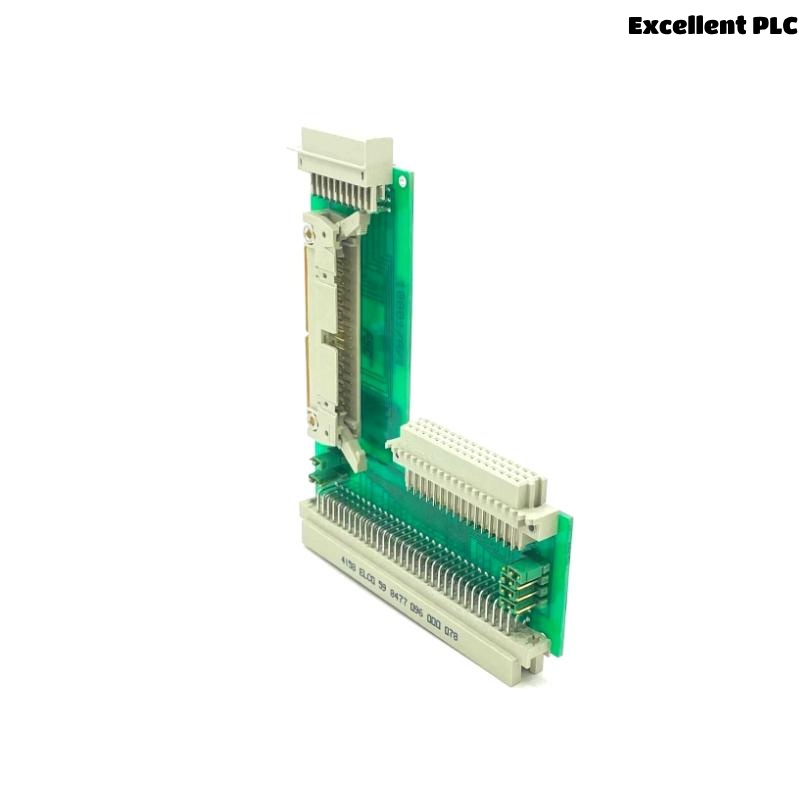

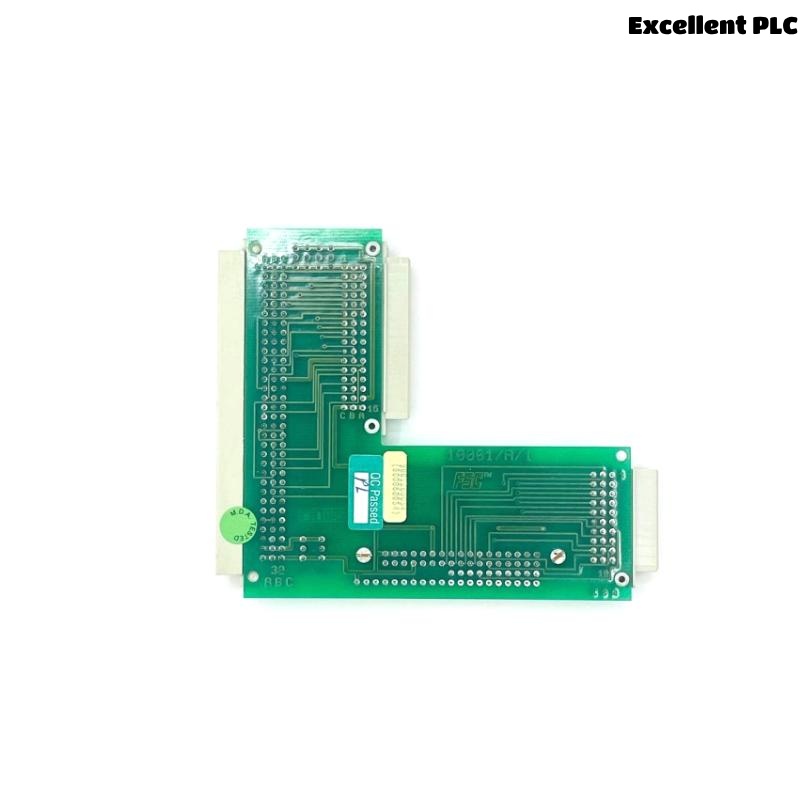

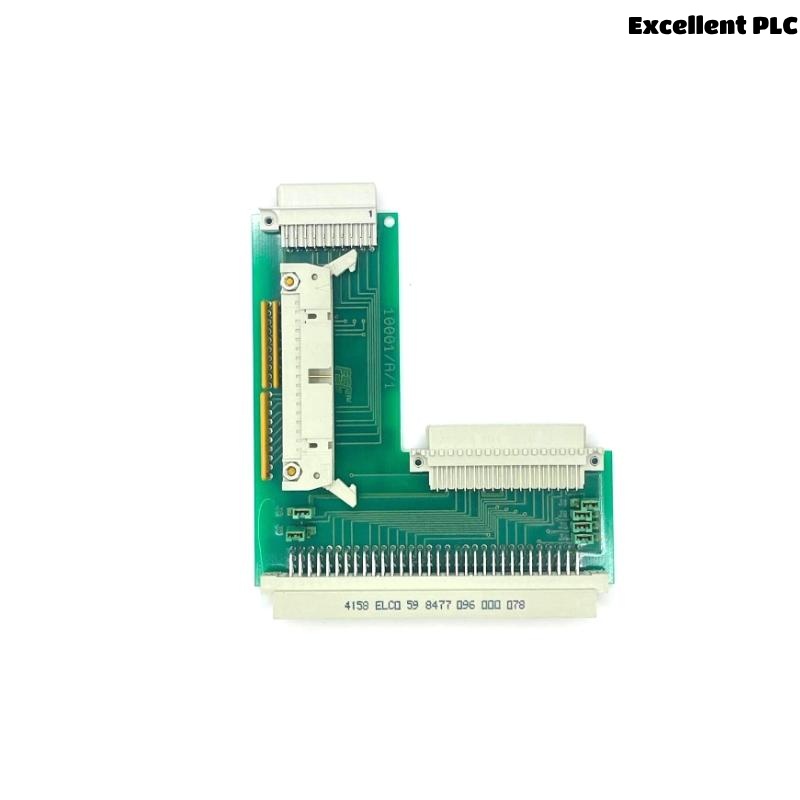

The Honeywell 10001/A/1 Vertical Bus Driver Module is a specialized communication component designed to facilitate high-performance data transfer between Honeywell’s control systems and field devices. It plays a crucial role in ensuring smooth, reliable communication within a control network, driving and managing the data flow through the system’s vertical bus.
Typically used in industrial environments, the 10001/A/1 Vertical Bus Driver Module is engineered to provide both stability and scalability, accommodating high-speed data transmission across multiple devices within a network. It is highly suitable for applications that require robust data transfer, particularly where field devices need to be synchronized with a central control unit for real-time monitoring and control.
This module is commonly used in distributed control systems (DCS), supervisory control and data acquisition systems (SCADA), and other automation networks that rely on centralized control and communication between devices.
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | 10001/A/1 |
| Type | Vertical Bus Driver Module |
| Interface | Serial (RS-485) |
| Power Supply | 24 V DC ±10% |
| Data Transfer Rate | Up to 115200 bps |
| Bus Interface | Vertical Bus (Multi-drop capability) |
| Mounting Type | DIN Rail or Panel Mountable |
| Dimensions (W x D x H) | 160 x 120 x 25 mm |
| Weight | 0.15 kg |
| Operating Temperature | 0°C to 60°C |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
| Environmental Protection | IP20 (Indoor use only) |
| Certifications | CE, UL, RoHS |
| Communication Protocol | Supports Modbus, BACnet, and proprietary Honeywell protocols |
| Isolation | Opto-Isolated for enhanced electrical protection |
| Power Consumption | < 10 W |
Applications
The Honeywell 10001/A/1 Vertical Bus Driver Module finds extensive use across several industries, especially in automated control systems where reliable data transfer is crucial for effective monitoring and control. Some of the key applications include:
-
Industrial Automation – Connecting various field devices (e.g., sensors, actuators, PLCs) with centralized control systems for real-time data exchange and management.
-
Building Automation – Facilitating communication between control systems and building equipment like HVAC systems, lighting, and energy management devices.
-
Process Control – Used in process control environments where field devices need to communicate with supervisory systems to optimize and control complex industrial processes.
-
Energy Management Systems – Ensuring communication between field devices and control systems for accurate monitoring of energy consumption, production, and system efficiency.
-
Safety and Alarm Systems – Connecting emergency shutdown systems, safety devices, and alarm sensors to a control system to improve operational safety and reduce response time to hazardous situations.
-
SCADA Systems – Integrating remote terminal units (RTUs) and other peripheral devices to a centralized SCADA system for monitoring and control.
Product Advantages
-
High-Speed Data Transfer: The 10001/A/1 Vertical Bus Driver Module supports data transfer rates up to 115200 bps, ensuring fast and reliable communication between the control system and field devices.
-
Robust Design: It is designed to withstand industrial environments, providing long-lasting performance even in harsh conditions with temperatures ranging from 0°C to 60°C.
-
Optical Isolation: The opto-isolation feature ensures that the module can protect both the data and power circuits, preventing damage from voltage surges or electrical faults.
-
Multi-Drop Bus Capability: The vertical bus interface allows multiple devices to be connected over a single network line, reducing the need for multiple communication cables and simplifying the wiring.
-
Modular and Scalable: The module is part of a modular control system, offering flexibility to expand or modify the system as required, whether adding new field devices or extending the communication network.
-
Cost-Effective: The use of the vertical bus configuration allows for reduced installation costs by minimizing the number of communication wires and interfaces needed.
-
Versatility: It supports multiple communication protocols, including Modbus, BACnet, and Honeywell’s proprietary protocols, making it compatible with a wide range of devices and systems.
-
Reliable Performance: Its design prioritizes high reliability, ensuring the integrity of data transmission even in demanding industrial and commercial applications.
-
Easy Integration: The module is easy to integrate into existing Honeywell control systems and can be adapted to third-party systems that support common communication protocols.
Frequently Asked Questions (FAQ)
-
Q: What type of communication does the Honeywell 10001/A/1 support?
A: The module supports RS-485 communication over a vertical bus, enabling multi-drop communication. -
Q: What is the data transfer rate of this module?
A: The Honeywell 10001/A/1 supports data transfer rates up to 115200 bps. -
Q: How is the module mounted?
A: The module can be mounted on a DIN rail or directly on a panel for flexible installation. -
Q: Does the module support any communication protocols?
A: Yes, it supports Modbus, BACnet, and Honeywell’s proprietary communication protocols. -
Q: What is the operating voltage for the Honeywell 10001/A/1?
A: The operating voltage is 24 V DC ±10%. -
Q: Is the module isolated for protection?
A: Yes, the module features opto-isolation for both data and power connections to protect against electrical surges. -
Q: What is the temperature range within which the module operates?
A: The operating temperature range is from 0°C to 60°C. -
Q: What is the weight of the Honeywell 10001/A/1 Vertical Bus Driver Module?
A: The module weighs 0.15 kg. -
Q: Can the Honeywell 10001/A/1 be used in hazardous environments?
A: The module is rated IP20, meaning it is suitable for indoor use in non-hazardous environments. It should not be exposed to extreme weather or direct water contact. -
Q: How does the module connect to the control system?
A: It connects via a vertical bus interface, allowing communication with multiple field devices over a single bus line.
Related Models from the Same Series or Family
| Model Number | Type | Description | Key Feature |
|---|---|---|---|
| 10001/B/1 | Vertical Bus Driver Module | Similar functionality with additional isolation | Enhanced isolation features |
| 10002/A/1 | Vertical Bus Interface | Interface module for extended field device support | Suitable for larger networks |
| 10003/C/1 | Vertical Bus Amplifier | Signal amplifier for extended bus distances | Ensures signal integrity over long distances |
| 10004/A/1 | Bus Control Module | Manages data flow and scheduling across buses | Improves data management in large networks |
| 10005/B/1 | Bus Driver and Power Module | Combines bus driving with power supply integration | Streamlined design for high-power systems |
| 10006/C/1 | Vertical Bus Bridge | Bridges different bus segments for extended reach | Extends network coverage |
